# Part Retail Our Price

Stock Status Suggested Quantity
1
3JD-23394-00-00 bolt, special Retail: $17.99 Price: $15.47

Expected to Ship in 5-8 Days
3SP-23102-L0-00 front fork assembly (l.h) Retail: $796.99 Price: $662.57

Expected to Ship in 5-8 Days
2
3SP-23136-L0-00 tube, outer 2 Retail: $410.99 Price: $341.53

Expected to Ship in 5-8 Days
3
3SP-23120-L0-00 inner tube comp. 2 Retail: $256.99 Price: $205.59

Expected to Ship in 5-8 Days
4
4FM-23171-40-00 metal, slide Supersedes: 3JD-23171-L0-00 (METAL, SLIDE) Retail: $25.99 Price: $22.35

Expected to Ship in 5-8 Days
5
4FM-23125-40-00 metal, slide 1 Supersedes: 3JD-23125-L0-00 (METAL, SLIDE 1 (3LC-23125-00-) Retail: $36.99 Price: $31.81

In Stock
6
36Y-23146-10-00 washer, oil seal Supersedes: 1TP-23146-00-00 (WASHER, OIL SEAL) Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
7
3SP-23145-L0-00 oil seal Retail: $32.99 Price: $28.37

In Stock
8
26H-23156-00-00 ring, snap Supersedes: 1TP-23156-00-00 (CLIP, OIL SEAL) Price: $9.76

In Stock
9
3SP-23144-L1-00 seal, dust Supersedes: 3JD-23144-L0-00 (SEAL, DUST) Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
10
3SP-2314A-L0-00 piston rod assembly Retail: $357.99 Price: $282.81

Expected to Ship in 5-8 Days
11
3SP-23170-L0-00 cylinder comp., front fork Retail: $329.99 Price: $260.69

Expected to Ship in 5-8 Days
12
3SP-2316A-L0-00 valve comp Retail: $173.99 Price: $139.19

Expected to Ship in 5-8 Days
13
3SP-23147-L0-00 o-ring Price: $2.82

Expected to Ship in 5-8 Days
14
3JD-23147-M0-00 o-ring Price: $8.04

Expected to Ship in 5-8 Days
15
3SP-23111-L0-00 bolt, cap
This part is currently unavailable.
16
3SP-23147-M0-00 o-ring Price: $7.46

Expected to Ship in 5-8 Days
17
3JD-23158-L0-00 gasket
This part is currently unavailable.
18
3SP-23153-L0-00 ring, snap
This part is currently unavailable.
19
3SP-23113-L0-00 collar
This part is currently unavailable.
20
3SP-23166-L0-00 spacer, oil lock Retail: $14.99 Price: $12.89

Expected to Ship in 5-8 Days
21
3SP-23393-L0-00 nut, special Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
22
3JD-23147-L0-00 o-ring Price: $5.18

Expected to Ship in 5-8 Days
23
3SP-23142-L0-00 seat, spring upper Retail: $17.49 Price: $15.04

Expected to Ship in 5-8 Days
24
3SP-23357-L0-00 nut Price: $4.31

In Stock
25
3SP-23141-L0-00 spring, front fork (k=0.390) Retail: $79.99 Price: $64.79

Expected to Ship in 5-8 Days
26
3SP-23143-L0-00 seat, spring lower Price: $9.19

Expected to Ship in 5-8 Days
27
3JD-2312G-L0-00 plug Price: $8.61

In Stock
28
3SP-23103-L0-00 front fork assembly (r.h) Retail: $796.99 Price: $662.57

Expected to Ship in 5-8 Days
29
3SP-23136-L0-00 tube, outer 2 Retail: $410.99 Price: $341.53

Expected to Ship in 5-8 Days
30
3SP-23110-L0-00 inner tube comp. 1 Retail: $294.99 Price: $235.99

Expected to Ship in 5-8 Days
31
4FM-23171-40-00 metal, slide Supersedes: 3JD-23171-L0-00 (METAL, SLIDE) Retail: $25.99 Price: $22.35

Expected to Ship in 5-8 Days
32
4FM-23125-40-00 metal, slide 1 Supersedes: 3JD-23125-L0-00 (METAL, SLIDE 1 (3LC-23125-00-) Retail: $36.99 Price: $31.81

In Stock
33
36Y-23146-10-00 washer, oil seal Supersedes: 1TP-23146-00-00 (WASHER, OIL SEAL) Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
34
3SP-23145-L0-00 oil seal Retail: $32.99 Price: $28.37

In Stock
35
26H-23156-00-00 ring, snap Supersedes: 1TP-23156-00-00 (CLIP, OIL SEAL) Price: $9.76

In Stock
36
3SP-23144-L1-00 seal, dust Supersedes: 3JD-23144-L0-00 (SEAL, DUST) Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
37
3SP-2314A-L0-00 piston rod assembly Retail: $357.99 Price: $282.81

Expected to Ship in 5-8 Days
38
3SP-23170-L0-00 cylinder comp., front fork Retail: $329.99 Price: $260.69

Expected to Ship in 5-8 Days
39
3SP-2316A-L0-00 valve comp Retail: $173.99 Price: $139.19

Expected to Ship in 5-8 Days
40
3SP-23147-L0-00 o-ring Price: $2.82

Expected to Ship in 5-8 Days
41
3JD-23147-M0-00 o-ring Price: $8.04

Expected to Ship in 5-8 Days
42
3SP-23111-L0-00 bolt, cap
This part is currently unavailable.
43
3SP-23147-M0-00 o-ring Price: $7.46

Expected to Ship in 5-8 Days
44
3JD-23158-L0-00 gasket
This part is currently unavailable.
45
3SP-23153-L0-00 ring, snap
This part is currently unavailable.
46
3SP-23113-L0-00 collar
This part is currently unavailable.
47
3SP-23166-L0-00 spacer, oil lock Retail: $14.99 Price: $12.89

Expected to Ship in 5-8 Days
48
3SP-23393-L0-00 nut, special Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
49
3JD-23147-L0-00 o-ring Price: $5.18

Expected to Ship in 5-8 Days
50
3SP-23142-L0-00 seat, spring upper Retail: $17.49 Price: $15.04

Expected to Ship in 5-8 Days
51
3SP-23357-L0-00 nut Price: $4.31

In Stock
52
3SP-23141-L0-00 spring, front fork (k=0.390) Retail: $79.99 Price: $64.79

Expected to Ship in 5-8 Days
53
3SP-23143-L0-00 seat, spring lower Price: $9.19

Expected to Ship in 5-8 Days
54
3JD-2312G-L0-00 plug Price: $8.61

In Stock
55
4V2-23167-L0-00 holder, axle Retail: $38.99 Price: $33.53

Expected to Ship in 5-8 Days
56
5Y3-23393-00-00 nut, special Price: $10.34

Expected to Ship in 5-8 Days
57
92995-06100-00 washer, spring Supersedes: 92990-06100-00 (WASHER, WAVE) Price: $3.97

Expected to Ship in 5-8 Days
58
3JD-23340-L0-00 under bracket comp Retail: $734.99 Price: $580.64

Expected to Ship in 5-8 Days
59
95024-08060-00 bolt, flange (small head) Supersedes: 95021-08060-00 (BOLT, FLANGE)
This part is currently unavailable.
60
95704-08500-00 nut, flange Supersedes: 95701-08500-00 (NUT, FLANGE) Price: $10.91

In Stock
61
3XJ-2314J-L0-00 protecter comp., 2 Supersedes: 3SP-2314J-L0-00 (PROTECTER COMP., 2)
This part is currently unavailable.
62
3XJ-2314H-L0-00 protecter comp., 1 Supersedes: 3SP-2314H-L0-00 (PROTECTER COMP., 1) Retail: $191.99 Price: $153.59

Expected to Ship in 5-8 Days
63
3SP-23356-L0-00 bolt 2 Price: $10.91

In Stock
64
3SP-2314G-L0-00 protecter guide comp., 2 Retail: $33.99 Price: $29.23

Expected to Ship in 5-8 Days
65
3SP-2314F-L0-00 protecter guide comp., 1 Retail: $55.99 Price: $45.35

Expected to Ship in 5-8 Days
66
98517-04025-00 screw, pan head Supersedes: 98502-04025-00 (SCREW, PAN HEAD) Price: $3.68

In Stock
67
3SP-2314E-L0-00 cover, hose
This part is currently unavailable.
68
95024-06008-00 bolt, flange Supersedes: 3SP-23346-L0-00 (BOLT, FLANGE) Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
69
3JD-23389-01-00 guide, cable
This part is currently unavailable.

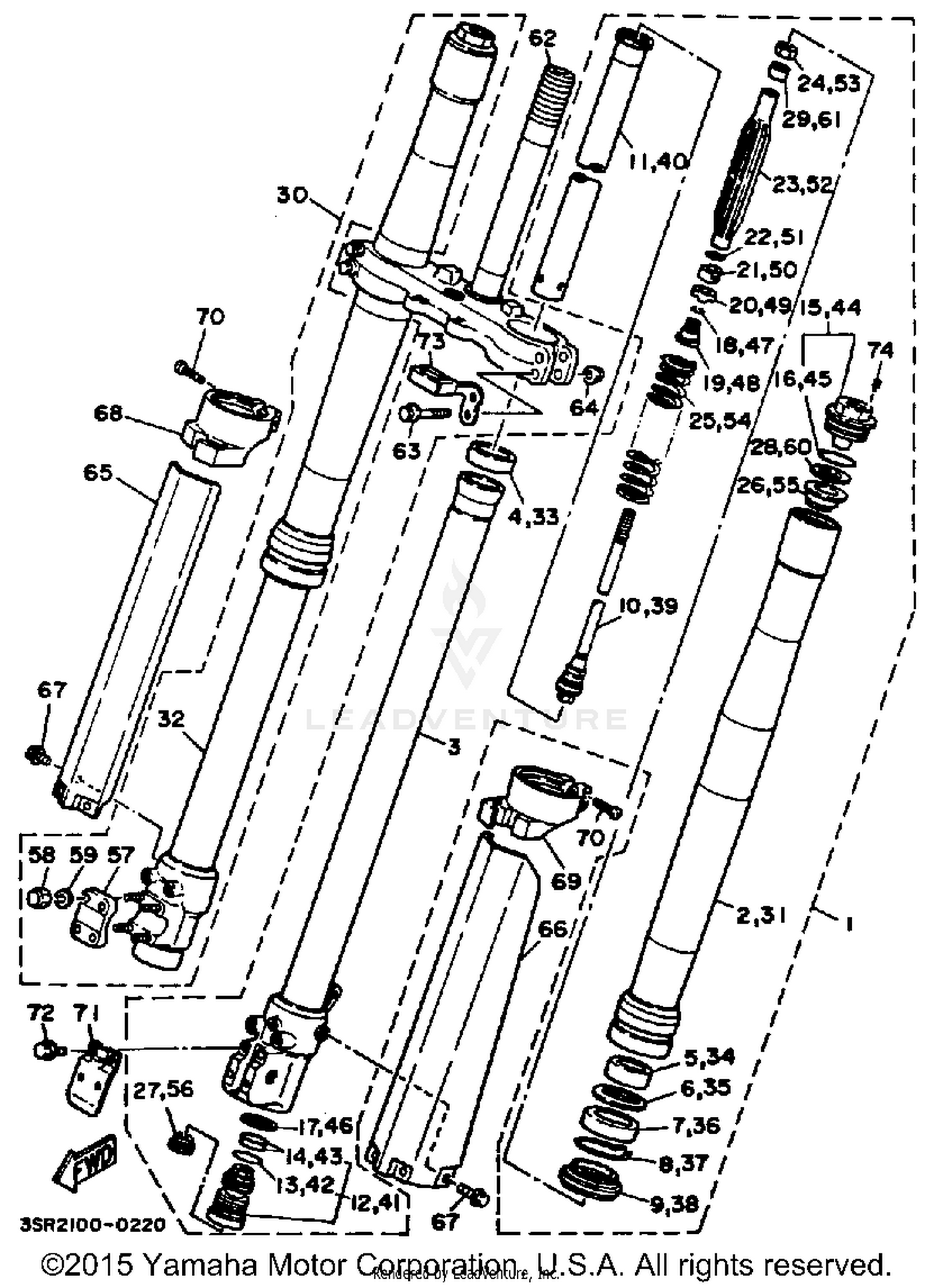

1990 Yamaha YZ250 FRONT FORK
