# Part Retail Our Price

Stock Status Suggested Quantity
1
1NU-46101-00-00 axle gear case assy Retail: $768.99 Price: $651.08

Expected to Ship in 5-8 Days
2
95617-08620-00 bolt, stud Supersedes: 90116-08360-00 (BOLT, STUD) Price: $9.76

In Stock
3
24W-46102-00-00 bearing assy Retail: $41.99 Price: $36.11

Expected to Ship in 5-8 Days
4
93317-85569-00 bearing U.R. Retail: $93.99 Price: $76.13

Expected to Ship in 5-8 Days
93317-55542-00 bearing, cylinder.17 U.R. Retail: $52.99 Price: $42.92

Expected to Ship in 5-8 Days
1J7-17537-Y0-50 shim, thrust (0.50t) U.R. Price: $5.58

Expected to Ship in 5-8 Days
1J7-17537-Y0-40 shim, thrust (0.40t) U.R. Price: $5.58

Expected to Ship in 5-8 Days
24W-46118-00-14 washer, thrust (1.4t) U.R. Retail: $17.99 Price: $15.47

Expected to Ship in 5-8 Days
24W-46118-00-16 washer, thrust (1.6t) U.R. Retail: $17.99 Price: $15.47

Expected to Ship in 5-8 Days
24W-46118-00-18 washer, thrust (1.8t) U.R. Retail: $17.99 Price: $15.47

Expected to Ship in 5-8 Days
24W-46118-00-20 washer, thrust (2.0t) U.R. Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
24W-46117-00-40 shim, ring gear (0.40t) U.R.
This part is currently unavailable.
24W-46117-00-25 shim, ring gear (0.25t) U.R.
This part is currently unavailable.
24W-46117-00-50 shim, ring gear (0.50t) U.R.
This part is currently unavailable.
5
93101-52116-00 oil seal Retail: $18.49 Price: $15.90

Expected to Ship in 5-8 Days
6
1J7-17537-Y0-30 shim, thrust (0.30t) U.R. Price: $5.58

Expected to Ship in 5-8 Days
7
93306-30560-00 bearing Supersedes: 93306-30527-00 (BEARING) Retail: $85.99 Price: $71.79

Expected to Ship in 5-8 Days
8
24W-46125-00-00 retainer, bearing Retail: $29.99 Price: $25.79

Expected to Ship in 5-8 Days
9
1NU-46123-00-00 coupling, gear (52g-46123-00) Retail: $97.99 Price: $79.37

Expected to Ship in 5-8 Days
10
52G-17524-00-00 holder
This part is currently unavailable.
11
24W-46118-00-12 washer, thrust (1.2t) U.R. Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
12
90340-14002-00 plug, straight screw Supersedes: 90340-14046-00 (PLUG, STRAIGHT SCREW) Retail: $22.99 Price: $19.77

In Stock
13
214-11198-01-00 gasket Price: $3.65

Expected to Ship in 5-8 Days
14
2H7-17591-01-00 breather
This part is currently unavailable.
15
24W-46117-00-30 shim, ring gear (0.30t) U.R.
This part is currently unavailable.
16
1EV-17527-00-00 cam, driven Retail: $25.99 Price: $22.35

Expected to Ship in 5-8 Days
17
52G-17529-00-00 washer, thrust
This part is currently unavailable.
18
90501-655A6-00 spring, compression Retail: $15.49 Price: $13.32

Expected to Ship in 5-8 Days
19
90201-17682-00 washer, plate Supersedes: 90201-171J5-00 (WASHER, PLATE) Price: $3.05

Expected to Ship in 5-8 Days
20
93316-01301-00 bearing Retail: $120.99 Price: $96.79

Expected to Ship in 5-8 Days
21
93102-65277-00 oil seal Supersedes: 93102-65386-00 (OIL SEAL) Retail: $18.49 Price: $15.90

Expected to Ship in 5-8 Days
22
93211-44348-00 o-ring Retail: $20.99 Price: $18.05

Expected to Ship in 5-8 Days
23
97013-08025-00 bolt, kick crank Supersedes: 97024-08025-00 (BOLT) Price: $10.91

Expected to Ship in 5-8 Days
24
92990-08600-00 washer, plate Supersedes: 90201-08544-00 (WASHER, PLATE) Price: $3.11

Expected to Ship in 5-8 Days
25
97017-10025-00 bolt Supersedes: 97311-10022-00 (BOLT) Price: $10.91

Expected to Ship in 5-8 Days
26
92990-10600-00 washer, plate
This part is currently unavailable.
27
3GC-46152-00-00 housing, bearing Supersedes: 29U-46152-00-00 (HOUSING, BEARING)
This part is currently unavailable.
28
93210-59531-00 o-ring Retail: $17.49 Price: $15.04

Expected to Ship in 5-8 Days
29
95704-08500-00 nut, flange Supersedes: 95701-08500-00 (NUT, FLANGE) Price: $10.91

In Stock
30
97017-10025-00 bolt Supersedes: 97311-10022-00 (BOLT) Price: $10.91

Expected to Ship in 5-8 Days
31
92990-10100-00 washer, spring Supersedes: 92902-10100-00 (WASHER, SPRING) Price: $3.74

In Stock
32
92990-10600-00 washer, plate
This part is currently unavailable.
33
93210-85075-00 o-ring Supersedes: 93210-85M32-00 (O-RING) Price: $6.31

Expected to Ship in 5-8 Days
34
90501-132A0-00 spring, compression Price: $0.88

Expected to Ship in 5-8 Days
35
1EV-46172-00-00 shaft, drive Retail: $86.99 Price: $70.46

Expected to Ship in 5-8 Days
36
93108-35012-00 oil seal, oso-type
This part is currently unavailable.
37
90201-225M9-00 washer, plate Supersedes: 90201-213J1-00 (WASHER, PLATE) Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
38
93410-20070-00 circlip, s-type Price: $2.07

Expected to Ship in 5-8 Days
39
99009-20400-00 circlip Supersedes: 43D-F3183-00-00 (CIRCLIP) Price: $10.91

In Stock
40
1EV-46180-00-00 cross joint comp.
This part is currently unavailable.
41
93311-21059-00 bearing, cylinder. (1ev) Retail: $26.99 Price: $23.21

Expected to Ship in 5-8 Days
42
99009-20500-00 circlip Price: $2.13

In Stock
43
93101-40129-00 oil seal, s-type
This part is currently unavailable.
44
93315-64037-00 bearing, cylinder.#15
This part is currently unavailable.
45
341-23469-00-00 cap, bolt Retail: $10.99 Price: $9.45

In Stock
46
4H7-46181-10-00 label, oil caution Price: $1.44

Expected to Ship in 5-8 Days
47
90467-07029-00 clip Price: $2.99

Expected to Ship in 5-8 Days
48
90445-070G6-00 hose (l1700) Supersedes: 90445-076K2-00 (HOSE (L1700)) Retail: $44.99 Price: $38.69

Expected to Ship in 5-8 Days

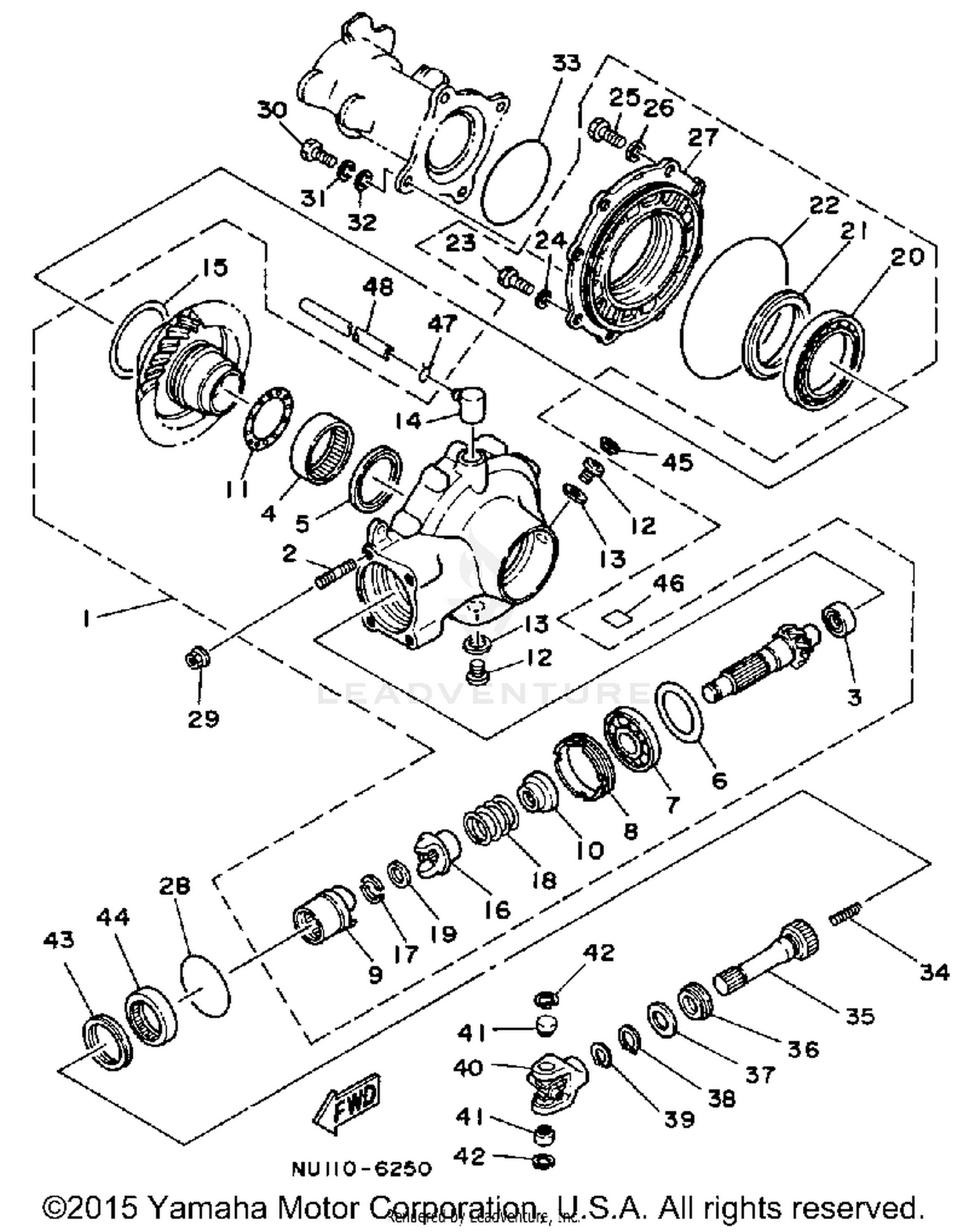

1987 Yamaha YFM200 MOTO-4 DRIVE SHAFT
