# Part Retail Our Price

Stock Status Suggested Quantity
1
57T-14301-05-00 carburetor assy 1 U.R. Supersedes: 57T-14301-01-00 (CARBURETOR ASSEMBLY 1 (57T-1430)
This part is currently unavailable.
56R-14301-05-00 carburetor assy 1 UR FOR CALIF. Supersedes: 56R-14301-01-00 (CARBURETOR ASSEMBLY 1 (56R-1430)
This part is currently unavailable.
288-14343-63-00 jet, main (#125) U.R. Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
57T-1490J-00-00 needle set U.R.
This part is currently unavailable.
56R-14312-35-00 valve, throttle 1 UR FOR CALIF. Retail: $84.09 Price: $68.11

Expected to Ship in 5-8 Days
2NW-14396-00-00 pipe (56r-14396-00-00) UR FOR CALIF. Price: $8.61

Expected to Ship in 5-8 Days
5Y1-14197-00-00 pipe U.R. Price: $8.61

Expected to Ship in 5-8 Days
42U-14146-00-00 plate UR FOR CALIF. Retail: $13.49 Price: $11.60

Expected to Ship in 5-8 Days
2
30X-14198-00-00 gasket Retail: $17.99 Price: $15.47

In Stock
3
1LN-14291-00-00 bracket 1 Supersedes: 30X-14203-00-00 (CABLE CONNECTOR SET)
This part is currently unavailable.
4
98580-04016-00 screw, pan head Price: $10.91

In Stock
5
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
6
30X-14342-21-00 jet, pilot ( 42) Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
7
360-24512-00-00 o-ring Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
8
51Y-14341-00-00 nozzle, main
This part is currently unavailable.
9
288-14343-60-00 jet, main (#120) UR FOR CALIF. Retail: $12.99 Price: $11.17

Expected to Ship in 5-8 Days
10
5Y1-14385-00-00 float Retail: $97.99 Price: $79.37

Expected to Ship in 5-8 Days
11
6E5-14386-01-00 pin, float
This part is currently unavailable.
12
1JK-14107-01-00 needle valve set Retail: $43.99 Price: $37.83

Expected to Ship in 5-8 Days
13
30X-14384-00-00 gasket, float chamber Retail: $28.99 Price: $24.93

In Stock
14
57T-1490J-10-00 needle set UR FOR CALIF.
This part is currently unavailable.
15
2JX-14312-35-00 valve, throttle 1 U.R. Supersedes: 30X-14312-35-00 (VALVE, THROTTLE 1) Retail: $73.99 Price: $59.93

Expected to Ship in 5-8 Days
16
98580-04014-00 screw, pan head Supersedes: 97601-04114-00 (SCREW, PAN HEAD) Price: $3.80

Expected to Ship in 5-8 Days
17
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
18
92990-04600-00 washer, plate Supersedes: 92902-04600-00 (WASHER, PLATE) Price: $1.73

In Stock
19
5Y1-14357-00-00 washer, plain
This part is currently unavailable.
20
5Y1-14572-00-00 plate, stay Retail: $26.99 Price: $23.21

Expected to Ship in 5-8 Days
21
1LN-14930-00-00 throttle shaft assembly
This part is currently unavailable.
22
97885-05010-00 screw, pan head Supersedes: 97801-05010-00 (SCREW, PAN HEAD)
This part is currently unavailable.
23
30X-14131-00-00 spring, throttle valve
This part is currently unavailable.
24
5Y1-14356-00-00 washer, spring
This part is currently unavailable.
25
5Y1-14358-00-00 nut
This part is currently unavailable.
26
15A-14371-01-00 plunger, starter Supersedes: 15A-14371-00-00 (PLUNGER, STARTER)
This part is currently unavailable.
27
5Y1-14536-00-00 gasket Price: $7.46

Expected to Ship in 5-8 Days
28
98980-04006-00 screw,bind Supersedes: 98901-04006-00 (SCREW, BIND) Price: $6.15

Expected to Ship in 5-8 Days
29
98580-04010-00 screw, pan head Supersedes: 98501-04100-00 (SCREW, PAN HEAD) Price: $10.91

In Stock
30
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
31
3WP-14103-00-00 throttle screw set Retail: $17.49 Price: $15.04

Expected to Ship in 5-8 Days
32
30X-14216-00-00 screw Price: $8.61

Expected to Ship in 5-8 Days
33
30X-14358-00-00 nut Price: $4.14

Expected to Ship in 5-8 Days
34
30X-1490K-00-00 stop screw set Retail: $18.49 Price: $15.90

Expected to Ship in 5-8 Days
35
98517-04012-00 screw,panhead Supersedes: 97607-04112-00 (SCREW, PAN HEAD) Price: $4.83

In Stock
36
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
37
5Y1-14115-00-00 plug, screw Retail: $44.99 Price: $38.69

Expected to Ship in 5-8 Days
38
5Y1-14397-00-00 o-ring Price: $9.76

Expected to Ship in 5-8 Days
39
5Y1-1490A-00-00 diaphragm set 1 Retail: $32.99 Price: $28.37

In Stock
40
30X-14340-01-00 valve assembly
This part is currently unavailable.
41
30X-14286-00-00 spring
This part is currently unavailable.
42
57T-1490J-00-00 needle set U.R.
This part is currently unavailable.
43
30X-14355-00-00 nozzle, main 2
This part is currently unavailable.
44
30X-14343-53-00 jet, main (106)
This part is currently unavailable.
45
5Y1-14146-00-00 plate Retail: $42.99 Price: $36.97

Expected to Ship in 5-8 Days
46
1RG-14394-00-00 valve, drain (30x-14394-00)
This part is currently unavailable.
47
5Y1-14349-00-00 pipe Price: $9.76

Expected to Ship in 5-8 Days
48
5Y1-14396-00-00 pipe U.R. Price: $5.64

Expected to Ship in 5-8 Days
49
56R-14196-00-00 pipe UR FOR CALIF. Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
50
30X-14148-00-00 pipe Price: $9.76

Expected to Ship in 5-8 Days
51
5Y1-14159-00-00 clip Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
52
30X-14149-00-00 pipe
This part is currently unavailable.
53
98580-04010-00 screw, pan head Supersedes: 98501-04100-00 (SCREW, PAN HEAD) Price: $10.91

In Stock
54
5H0-14991-00-00 screw Price: $6.89

Expected to Ship in 5-8 Days
55
5H0-14126-00-00 gasket Price: $6.31

Expected to Ship in 5-8 Days
56
98507-04008-00 screw, pan head Supersedes: 98506-04008-00 (SCREW, PAN HEAD) Price: $2.46

Expected to Ship in 5-8 Days
57
30X-14337-70-00 air jet, main
This part is currently unavailable.
58
30X-14146-00-00 plate U.R.
This part is currently unavailable.
59
90413-05013-00 way 3 FOR CALIF. Supersedes: 90413-05008-00 (WAY 3) Price: $6.89

Expected to Ship in 5-8 Days
60
56R-14196-00-00 pipe FOR CALIF. Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
61
5Y1-14137-00-00 clip FOR CALIF. Price: $9.19

Expected to Ship in 5-8 Days
62
56R-14193-00-00 pipe FOR CALIF. Retail: $289.99 Price: $231.99

Expected to Ship in 5-8 Days
63
2NW-14396-00-00 pipe (56r-14396-00-00) FOR CALIF. Price: $8.61

Expected to Ship in 5-8 Days
64
437-83936-01-00 band, switch cord FOR CALIF. Supersedes: 366-82591-00-00 (BAND, SWITCH CORD) Price: $9.76

In Stock
65
90413-05013-00 way 3 FOR CALIF. Supersedes: 90413-05008-00 (WAY 3) Price: $6.89

Expected to Ship in 5-8 Days
66
90464-16039-00 clamp FOR CALIF. Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days

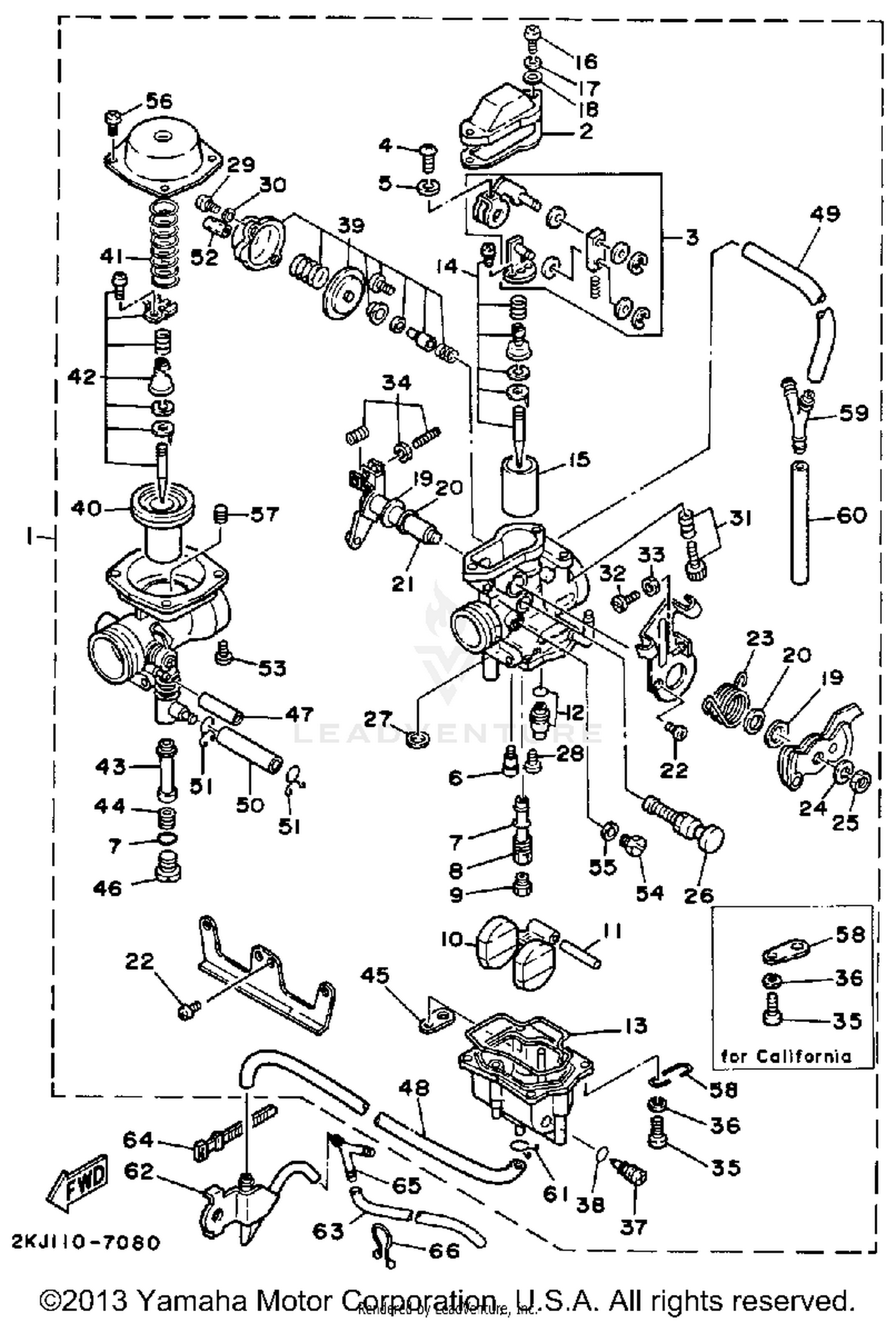

1987 Yamaha XT350 CARBURETOR
