# Part Retail Our Price

Stock Status Suggested Quantity
1
2NW-14301-00-00 carburetor assembly 1
This part is currently unavailable.
2
30X-14198-00-00 gasket Retail: $17.99 Price: $15.47

In Stock
3
1LN-14291-00-00 bracket 1
This part is currently unavailable.
4
51Y-14105-00-00 pilot screw set (30x-14105-00 Retail: $14.49 Price: $12.46

In Stock
5
43F-14342-19-00 jet, pilot (#38) Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
6
360-24512-00-00 gasket Retail: $10.99 Price: $9.45

In Stock
7
51Y-14341-00-00 nozzle, main
This part is currently unavailable.
8
288-14355-61-00 nozzle,main #122 Supersedes: 288-14343-61-00 (JET, MAIN #122)
This part is currently unavailable.
9
25N-14385-00-00 float Supersedes: 2JN-14385-00-00 (FLOAT) Retail: $50.99 Price: $41.30

Expected to Ship in 5-8 Days
10
6E5-14386-01-00 pin, float
This part is currently unavailable.
11
2JN-14107-00-00 needle valve set Retail: $42.99 Price: $36.97

In Stock
12
30X-14384-00-00 gasket, float chamber Retail: $28.99 Price: $24.93

In Stock
13
2NV-1490J-10-00 needle set
This part is currently unavailable.
14
51Y-14312-35-00 valve, throttle 1 Retail: $17.97 Price: $15.45

Expected to Ship in 5-8 Days
15
98517-04016-00 screw, pan head Supersedes: 98507-04016-00 (SCREW, PAN HEAD (98511-04016-) Price: $10.91

In Stock
16
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
17
92990-04600-00 washer, plate Supersedes: 92902-04600-00 (WASHER, PLATE) Price: $1.73

In Stock
18
5Y1-14357-00-00 washer, plain
This part is currently unavailable.
19
5Y1-14572-00-00 plate, stay Retail: $26.99 Price: $23.21

Expected to Ship in 5-8 Days
20
2NV-14930-00-00 throttle shaft assemblyassy Retail: $64.99 Price: $52.64

Expected to Ship in 5-8 Days
21
97885-05010-00 screw, pan head Supersedes: 97801-05010-00 (SCREW, PAN HEAD)
This part is currently unavailable.
22
30X-14131-00-00 spring, throttle valve
This part is currently unavailable.
23
5Y1-14356-00-00 washer, spring
This part is currently unavailable.
24
5Y1-14358-00-00 nut
This part is currently unavailable.
25
51Y-14371-01-00 plunger, starter Supersedes: 51Y-14371-00-00 (PLUNGER, STARTER)
This part is currently unavailable.
26
5Y1-14536-00-00 gasket Price: $7.46

Expected to Ship in 5-8 Days
27
98580-04010-00 screw, pan head Supersedes: 98501-04100-00 (SCREW, PAN HEAD) Price: $10.91

In Stock
28
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
29
3WP-14103-00-00 throttle screw set Retail: $17.49 Price: $15.04

Expected to Ship in 5-8 Days
30
30X-14216-00-00 screw Price: $8.61

Expected to Ship in 5-8 Days
31
30X-14358-00-00 nut Price: $4.14

Expected to Ship in 5-8 Days
32
30X-1490K-00-00 stop screw set Retail: $18.49 Price: $15.90

Expected to Ship in 5-8 Days
33
98517-04012-00 screw,panhead Supersedes: 97607-04112-00 (SCREW, PAN HEAD) Price: $4.83

In Stock
34
92990-04100-00 washer, spring Supersedes: 92903-04100-00 (WASHER, SPRING) Price: $1.66

In Stock
35
5Y1-14115-00-00 plug, screw Retail: $44.99 Price: $38.69

Expected to Ship in 5-8 Days
36
5Y1-14397-00-00 o-ring Price: $9.76

In Stock
37
5Y1-1490A-00-00 diaphragm set 1 Retail: $32.99 Price: $28.37

In Stock
38
30X-14340-01-00 valve assembly
This part is currently unavailable.
39
30X-14286-00-00 spring
This part is currently unavailable.
40
2NV-1490J-00-00 needle set
This part is currently unavailable.
41
2NV-14355-00-00 nozzle, main 2
This part is currently unavailable.
42
30X-14343-40-00 jet, main (#80)
This part is currently unavailable.
43
5Y1-14146-00-00 plate Retail: $42.99 Price: $36.97

Expected to Ship in 5-8 Days
44
1RG-14394-00-00 valve, drain (30x-14394-00)
This part is currently unavailable.
45
5Y1-14349-00-00 pipe Price: $9.76

Expected to Ship in 5-8 Days
46
2NW-14396-00-00 pipe (56r-14396-00-00) Price: $8.61

Expected to Ship in 5-8 Days
47
51Y-14197-00-00 pipe
This part is currently unavailable.
48
30X-14148-00-00 pipe Price: $9.76

Expected to Ship in 5-8 Days
49
5Y1-14159-00-00 clip Retail: $10.99 Price: $9.45

In Stock
50
30X-14149-00-00 pipe
This part is currently unavailable.
51
98580-04010-00 screw, pan head Supersedes: 98501-04100-00 (SCREW, PAN HEAD) Price: $10.91

In Stock
52
5H0-14991-00-00 screw Price: $6.89

Expected to Ship in 5-8 Days
53
5H0-14126-00-00 gasket Price: $6.31

Expected to Ship in 5-8 Days
54
98580-04008-00 screw, pan head Supersedes: 98501-04008-00 (SCREW, PAN HEAD) Price: $7.46

In Stock
55
42U-14146-00-00 plate Retail: $13.49 Price: $11.60

Expected to Ship in 5-8 Days
56
5Y1-14118-00-00 cap Retail: $23.99 Price: $20.63

Expected to Ship in 5-8 Days
57
2NW-14193-00-00 pipe
This part is currently unavailable.

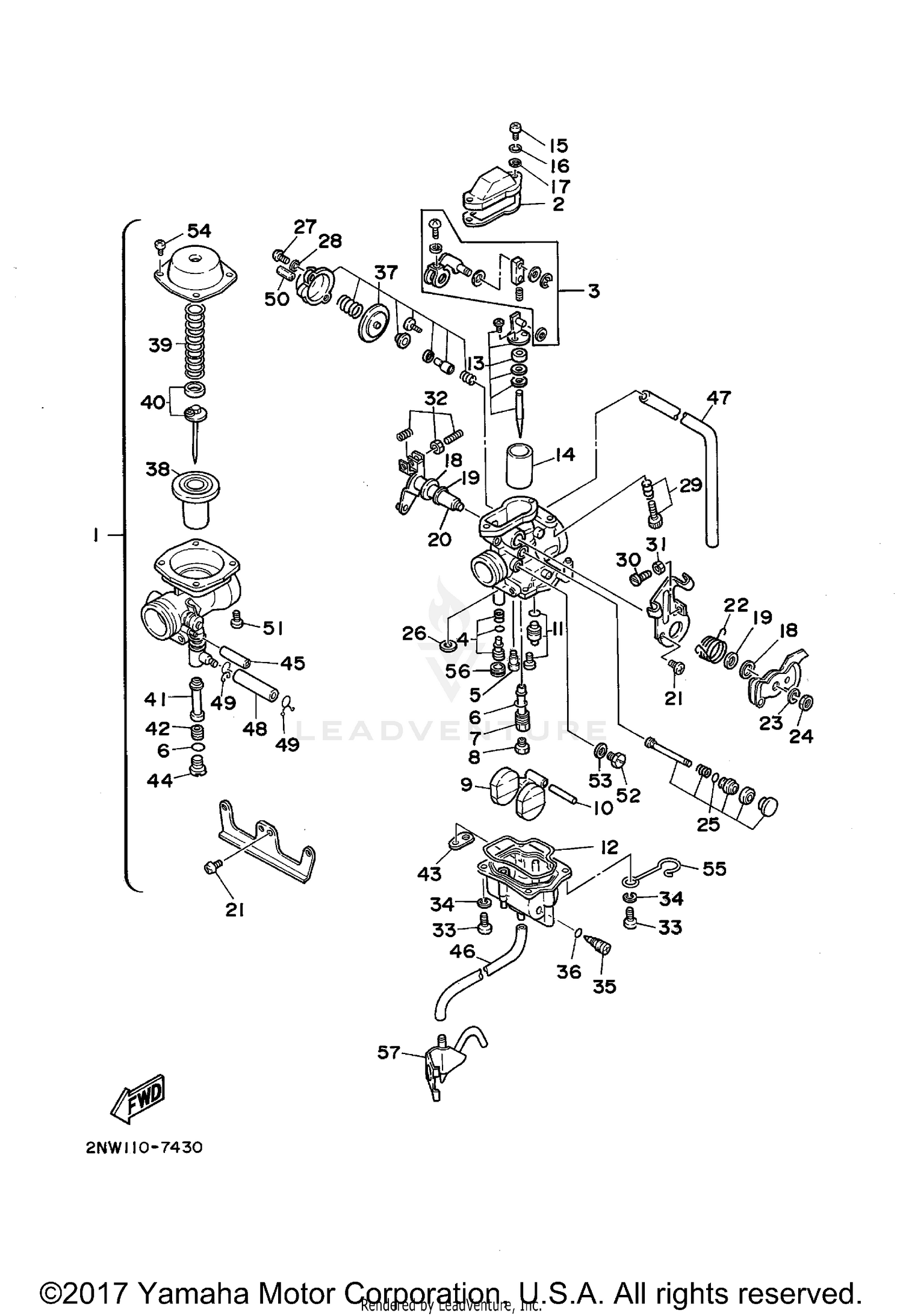

1987 Yamaha SRX250T CARBURETOR SRX250TC
