# Part Retail Our Price

Stock Status Suggested Quantity
1
57H-23102-N0-00 front fork assembly lh
This part is currently unavailable.
2
56A-23126-L0-00 tube, outer 1
This part is currently unavailable.
3
4V4-23153-L0-00 ring, snap Retail: $10.99 Price: $9.45

In Stock
4
23X-23145-L0-00 oil seal Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
5
5EB-23125-00-00 metal, slide 1 Supersedes: 3XJ-23125-L0-00 (METAL, SLIDE 1) Retail: $35.99 Price: $30.95

In Stock
6
23X-23144-L0-00 seal, dust Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
7
4V4-23146-L0-00 washer, oil seal Price: $8.61

Expected to Ship in 5-8 Days
8
56A-23110-L0-00 inner tube 1
This part is currently unavailable.
9
4V4-23171-L0-00 piston, front fork
This part is currently unavailable.
10
56A-23170-L0-00 cylinder, front fork
This part is currently unavailable.
11
55Y-23152-M0-00 spring, sub
This part is currently unavailable.
12
4V4-23157-L0-00 ring, piston front fork Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
13
23X-23173-L0-00 spindle, taper Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
14
39X-23141-00-00 spring, front fork std (k@0.3 SOFT U.R.
This part is currently unavailable.
39X-23141-20-00 spring, front fork hard (k@0. STD Retail: $76.99 Price: $62.36

Expected to Ship in 5-8 Days
57H-23141-20-00 spring, front fork hard (k@0. HARD U.R. Retail: $85.99 Price: $69.65

Expected to Ship in 5-8 Days
39X-23141-10-00 spring, front fork soft (k@0. Retail: $66.99 Price: $54.26

Expected to Ship in 5-8 Days
39X-23141-20-00 spring, front fork hard (k@0. Retail: $76.99 Price: $62.36

Expected to Ship in 5-8 Days
15
4V4-23142-L0-00 seat, spring upper Supersedes: 3GM-23142-00-00 (SEAT, SPRING UPPER) Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
16
5X6-23118-10-00 spacer (l=80) Retail: $12.99 Price: $11.17

Expected to Ship in 5-8 Days
17
23X-23158-L0-00 gasket Price: $5.58

Expected to Ship in 5-8 Days
18
122-23129-00-00 gasket, drain plug Price: $9.76

Expected to Ship in 5-8 Days
19
98517-04006-00 screw, pan head Supersedes: 98502-04006-00 (SCREW, PAN HEAD (98511-04006-) Price: $5.18

In Stock
20
43M-23111-L0-00 bolt, cap
This part is currently unavailable.
21
23X-23190-L0-00 air valve comp. Retail: $73.99 Price: $59.93

Expected to Ship in 5-8 Days
22
4V4-23188-L1-00 o-ring Supersedes: 4V4-23188-L0-00 (O-RING) Price: $7.46

Expected to Ship in 5-8 Days
23
3J2-23147-00-00 o-ring Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
24
56A-2316A-L0-00 valve
This part is currently unavailable.
25
55Y-2312G-M0-00 plug Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
26
56A-23103-L0-00 front fork assembly (r)
This part is currently unavailable.
27
56A-23136-L0-00 tube, outer 2
This part is currently unavailable.
28
4V4-23153-L0-00 ring, snap Retail: $10.99 Price: $9.45

In Stock
29
23X-23145-L0-00 oil seal Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
30
5EB-23125-00-00 metal, slide 1 Supersedes: 3XJ-23125-L0-00 (METAL, SLIDE 1) Retail: $35.99 Price: $30.95

In Stock
31
23X-23144-L0-00 seal, dust Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
32
4V4-23146-L0-00 washer, oil seal Price: $8.61

Expected to Ship in 5-8 Days
33
56A-23110-L0-00 inner tube 1
This part is currently unavailable.
34
4V4-23171-L0-00 piston, front fork
This part is currently unavailable.
35
56A-23170-L0-00 cylinder, front fork
This part is currently unavailable.
36
55Y-23152-M0-00 spring, sub
This part is currently unavailable.
37
4V4-23157-L0-00 ring, piston front fork Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
38
23X-23173-L0-00 spindle, taper Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
39
39X-23141-00-00 spring, front fork std (k@0.3
This part is currently unavailable.
40
4V4-23142-L0-00 seat, spring upper Supersedes: 3GM-23142-00-00 (SEAT, SPRING UPPER) Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
41
5X6-23118-10-00 spacer (l=80) Retail: $12.99 Price: $11.17

Expected to Ship in 5-8 Days
42
23X-23158-L0-00 gasket Price: $5.58

Expected to Ship in 5-8 Days
43
122-23129-00-00 gasket, drain plug Price: $9.76

Expected to Ship in 5-8 Days
44
98517-04006-00 screw, pan head Supersedes: 98502-04006-00 (SCREW, PAN HEAD (98511-04006-) Price: $5.18

In Stock
45
43M-23111-L0-00 bolt, cap
This part is currently unavailable.
46
23X-23190-L0-00 air valve comp. Retail: $73.99 Price: $59.93

Expected to Ship in 5-8 Days
47
4V4-23188-L1-00 o-ring Supersedes: 4V4-23188-L0-00 (O-RING) Price: $7.46

Expected to Ship in 5-8 Days
48
3J2-23147-00-00 o-ring Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
49
56A-2316A-L0-00 valve
This part is currently unavailable.
50
5X6-23181-L0-00 bolt, hexagon socket head
This part is currently unavailable.
51
55Y-2312G-M0-00 plug Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
52
43M-23191-L0-00 boot, front fork
This part is currently unavailable.
53
43M-23192-L0-00 band Retail: $22.99 Price: $19.77

In Stock
54
98507-04018-00 screw, pan head Supersedes: 98502-04018-00 (SCREW, PAN HEAD) Price: $2.70

Expected to Ship in 5-8 Days
55
3LD-23489-00-00 band Retail: $32.99 Price: $28.37

Expected to Ship in 5-8 Days
56
39X-23340-00-00 under bracket Retail: $258.99 Price: $208.99

Expected to Ship in 5-8 Days
57
90101-08340-00 bolt Price: $4.49

Expected to Ship in 5-8 Days
58
92990-08600-00 washer, plate Supersedes: 90201-08544-00 (WASHER, PLATE) Price: $3.11

Expected to Ship in 5-8 Days
59
92990-08100-00 washer, spring Supersedes: 92903-08100-00 (WASHER, SPRING) Price: $6.44

In Stock
60
95333-08600-00 nut Supersedes: 95301-08600-00 (NUT (6L2)) Price: $4.37

In Stock

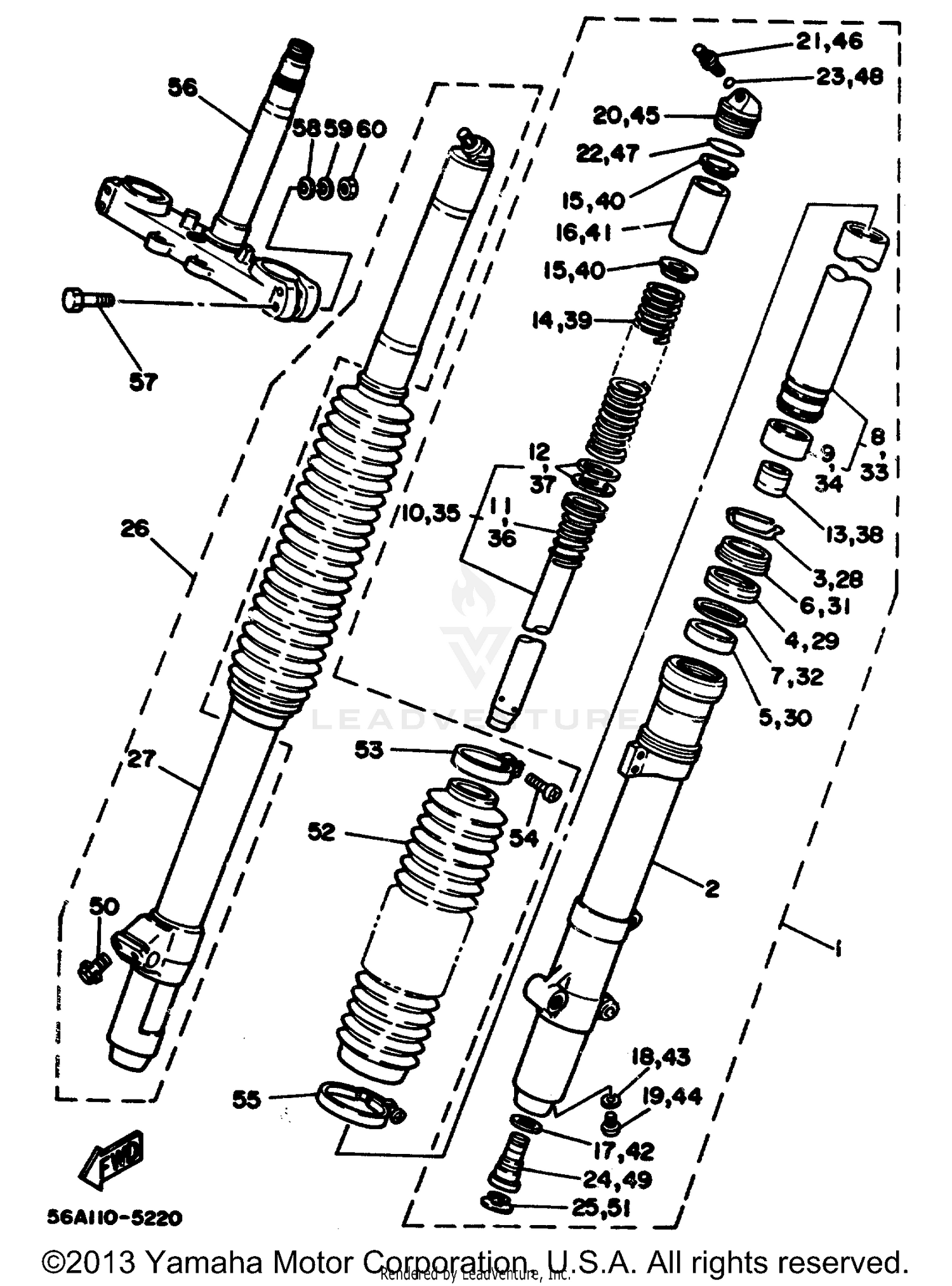

1985 Yamaha YZ490 FRONT FORK
