2021 Suzuki V-STROM - DL650A REAR MASTER CYLINDER

Set this as my ride

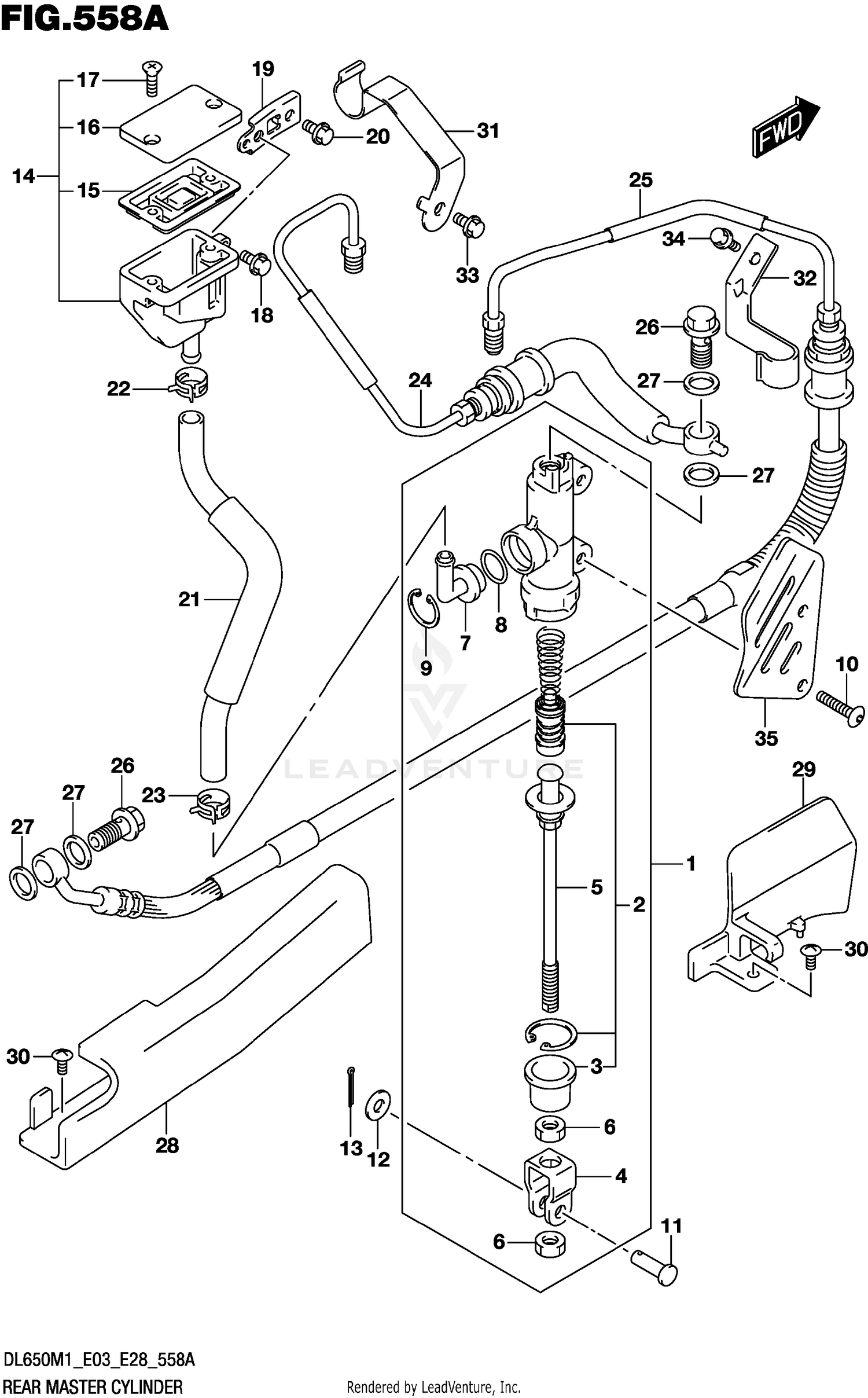

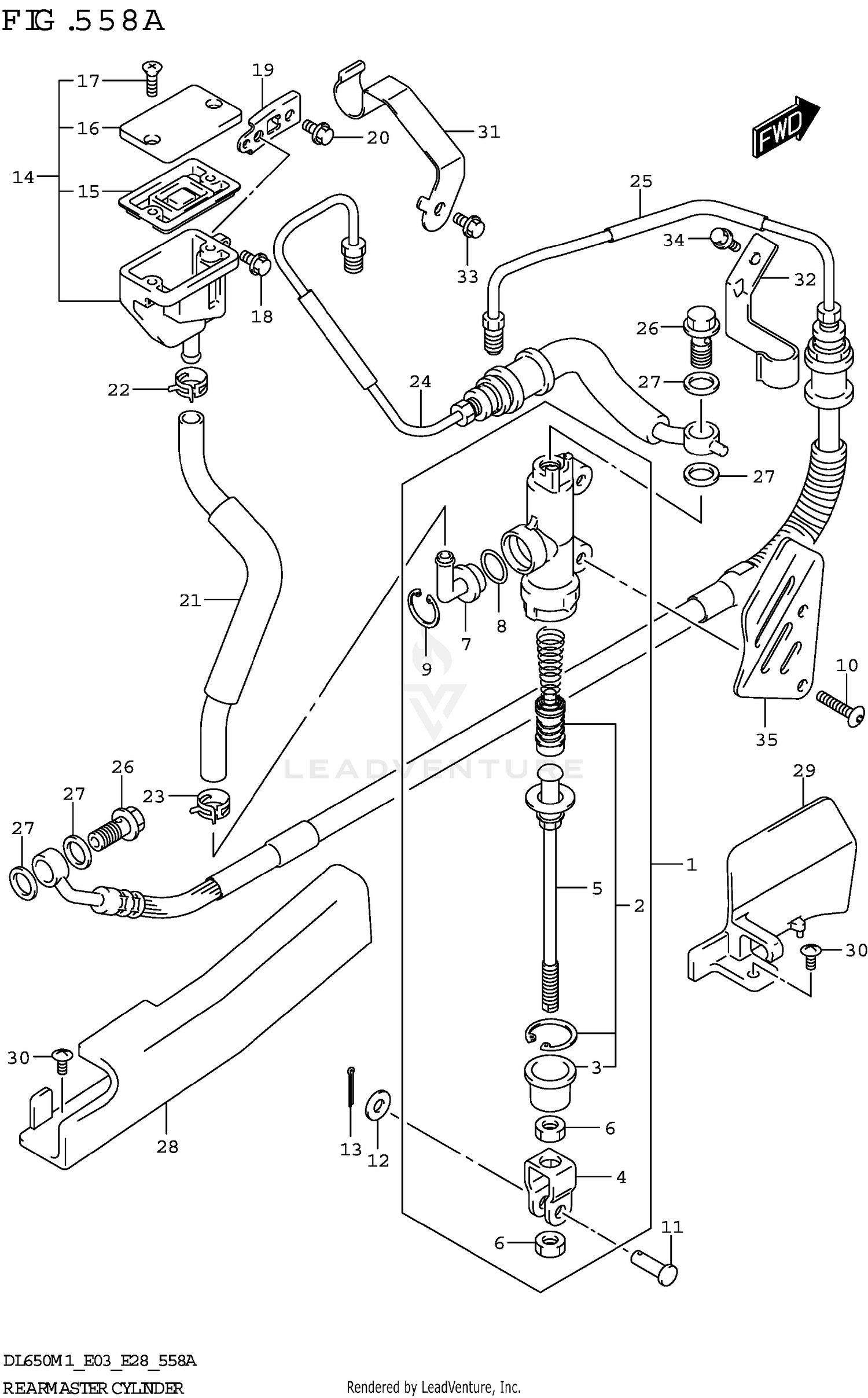

REAR MASTER CYLINDER

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    69600-06G00-000 cylinder assy,rear master
    This part is currently unavailable.
  • 2
    69600-34820-000 .piston/cup set
    This part is currently unavailable.
  • 3
    69691-00A00-000 ..boot
    This part is currently unavailable.
  • 4
    69692-19A00-000 .yoke
    This part is currently unavailable.
  • 5
    69670-03G00-000 .rod,push
    This part is currently unavailable.
  • 6
    69693-05A00-000 .nut
    This part is currently unavailable.
  • 7
    69672-00B20-000 .connector
    This part is currently unavailable.
  • 8
    69686-34200-000 .o ring
    This part is currently unavailable.
  • 9
    69674-00B20-000 .circlip
    This part is currently unavailable.
  • 10
    09139-06192-000 screw (6x25)
    This part is currently unavailable.
  • 11
    09200-06068-000 pin (6x18.2)
    This part is currently unavailable.
  • 12
    08322-0106A-000 washer
    This part is currently unavailable.
  • 13
    04111-2015A-000 pin
    This part is currently unavailable.
  • 14
    69740-01D02-000 tank assy,rear reservoir
    This part is currently unavailable.
  • 15
    59667-04700-000 .diaphragm
    This part is currently unavailable.
  • 16
    59669-05D00-000 .cap
    This part is currently unavailable.
  • 17
    69689-04A00-000 .screw
    This part is currently unavailable.
  • 18
    01547-0612A-000 bolt
    This part is currently unavailable.
  • 19
    69750-28K00-000 bracket,rr reservoir tank
    This part is currently unavailable.
  • 20
    01547-0612A-000 bolt
    This part is currently unavailable.
  • 21
    69730-28K00-000 hose,rr reservoir tank
    This part is currently unavailable.
  • 22
    09401-13417-000 clip (id:13.2)
    This part is currently unavailable.
  • 23
    09401-12404-000 clip (id:12)
    This part is currently unavailable.
  • 24
    69200-28K01-000 hose assy,rr bk master to hu
    This part is currently unavailable.
  • 25
    69400-11J01-000 hose assy,rr brake no.2
    This part is currently unavailable.
  • 26
    09360-10062-000 union (10x1.25x22)
    This part is currently unavailable.
  • 27
    09161-10009-000 washer (10x15x1.5)
    This part is currently unavailable.
  • 28
    61196-27G10-000 guide,rear brake hose
    This part is currently unavailable.
  • 29
    61196-06G00-000 guide,rr brake hose fr
    This part is currently unavailable.
  • 30
    02142-0510A-000 screw
    This part is currently unavailable.
  • 31
    69260-11J00-000 clamp,rr brake hose
    This part is currently unavailable.
  • 32
    69266-27G00-000 clamp,rr brake hose no.2
    This part is currently unavailable.
  • 33
    01547-0610B-000 bolt
    This part is currently unavailable.
  • 34
    01547-0612A-000 bolt
    This part is currently unavailable.
  • 35
    69641-06G00-000 cover,rear master cylinder
    This part is currently unavailable.
