# Part Retail Our Price

Stock Status Suggested Quantity
1
13200-24C42 carburetor assy Supersedes: 13200-24C41 (CARBURETOR ASSY) Retail: $780.42 Price: $655.55

Expected to Ship in 4-9 Days
2
13500-24B41 diaphragm assy Supersedes: 13500-24B40 (DIAPHRAGM ASSY) Retail: $247.31 Price: $210.21

Expected to Ship in 4-9 Days
3
13389-37400 .plate Retail: $8.80 Price: $4.77

In Stock
4
02112-0306B .screw Supersedes: 02112-03063 (SCREW) Price: $2.24

Expected to Ship in 4-9 Days
5
08321-2103B .lock washer Supersedes: 08321-21033 (LOCK WASHER) Retail: $1.99 Price: $0.77

In Stock
6
13387-44030 .ring Supersedes: 13387-33E00 (RING) Price: $8.52

Expected to Ship in 4-9 Days
7
13394-31210 .clip needle Price: $6.79

Expected to Ship in 4-9 Days
8
13382-44030 .washer Price: $5.43

Expected to Ship in 4-9 Days
9
13388-44030 .spring Price: $10.10

Expected to Ship in 4-9 Days
10
13383-24C40 .needle, jet (5c17) Retail: $19.92 Price: $18.72

Expected to Ship in 4-9 Days
11
09494-00861 .jet, needle (x-7m) Retail: $54.54 Price: $50.72

Expected to Ship in 4-9 Days
12
13503-24B00 .spring Retail: $24.92 Price: $23.42

Expected to Ship in 4-9 Days
13
13502-37400 .cover Retail: $35.42 Price: $33.29

Expected to Ship in 4-9 Days
14
09404-06036 clamp(l:80) Supersedes: 09404-06434 (CLAMP(L:80)) Price: $2.44

In Stock
15
02112-0510A .screw Supersedes: 02112-05103 (SCREW, CLAMP) Price: $1.99

Expected to Ship in 4-9 Days
16
09491-29013 .jet, main (145) Retail: $18.24 Price: $17.15

Expected to Ship in 4-9 Days
17
13382-03110 .washer Supersedes: 13332-44080 (WASHER) Price: $3.78

Expected to Ship in 4-9 Days
18
09492-52010 .jet, pilot (52.5) Retail: $18.13 Price: $17.04

Expected to Ship in 4-9 Days
19
13370-24C80 .valve assy, needle Retail: $93.70 Price: $87.14

Expected to Ship in 4-9 Days
20
13376-19F00 .filter Supersedes: 13376-84110 (FILTER) Retail: $12.71 Price: $11.95

Expected to Ship in 4-9 Days
21
13374-35C00 .o ring Supersedes: 13374-44080 (O RING) Price: $8.51

In Stock
22
13373-39110 .plate Price: $9.71

Expected to Ship in 4-9 Days
23
02112-0406B .screw Supersedes: 02112-04063 (SCREW) Price: $2.16

In Stock
24
13250-37400 .float Retail: $35.79 Price: $33.64

Expected to Ship in 4-9 Days
25
13254-92311 .pin, float Price: $2.67

Expected to Ship in 4-9 Days
26
13251-37101 .gasket Supersedes: 13251-38300 (.GASKET, FLOAT CHAMBER) Retail: $13.90 Price: $13.07

In Stock
27
02112-0516A .screw Supersedes: 02112-05163 (SCREW) Price: $2.01

In Stock
28
13247-02340 screw, drain Supersedes: 13247-19C00 (SCREW, DRAIN) Price: $7.08

In Stock
29
13411-24C00 .plunger assy Retail: $61.25 Price: $56.96

Expected to Ship in 4-9 Days
30
13484-38A10 .cover Retail: $24.00 Price: $22.56

Expected to Ship in 4-9 Days
31
13481-24B00 .spring Retail: $5.43 Price: $2.77

In Stock
32
13480-05A11 diaphragm assy Supersedes: 13480-05A10 (.DIAPHRAGM ASSY) Retail: $65.77 Price: $61.17

Expected to Ship in 4-9 Days
33
02112-0410A .screw Supersedes: 02112-04103 (SCREW | MODEL X/Y) Price: $1.82

Expected to Ship in 4-9 Days
34
13267-25D00 .adjuster Supersedes: 13267-37100 (ADJUSTER) Retail: $15.34 Price: $14.42

Expected to Ship in 4-9 Days
35
13271-93011 .spring Price: $6.43

In Stock
36
13621-24B01 .bracket assy Retail: $54.11 Price: $50.32

Expected to Ship in 4-9 Days
37
02112-0510A .screw Supersedes: 02112-05103 (SCREW, CLAMP) Price: $1.99

Expected to Ship in 4-9 Days
38
13318-24C01 hose assy Supersedes: 13318-24C00 (.HOSE ASSY) Retail: $23.59 Price: $22.17

Expected to Ship in 4-9 Days
39
44421-13ER0 hose,5x10x600 L:600->250 Supersedes: 09355-50105-600 (HOSE (L:600->140)) Retail: $12.25 Price: $11.52

In Stock
40
09491-46005 .jet, pilot (230) Retail: $18.24 Price: $17.15

Expected to Ship in 4-9 Days
41
13269-37400 .screw, air Retail: $14.43 Price: $13.56

Expected to Ship in 4-9 Days
42
13268-47070 .spring (nt:45) Price: $6.16

Expected to Ship in 4-9 Days
43
13291-29900 .washer Price: $2.42

In Stock
44
13295-29901 o-ring Supersedes: 13295-29900 (O RING) Price: $6.16

In Stock
45
13281-05A00 .plug Price: $6.53

In Stock
46
09491-45002 .jet (#45) Retail: $18.24 Price: $17.15

Expected to Ship in 4-9 Days

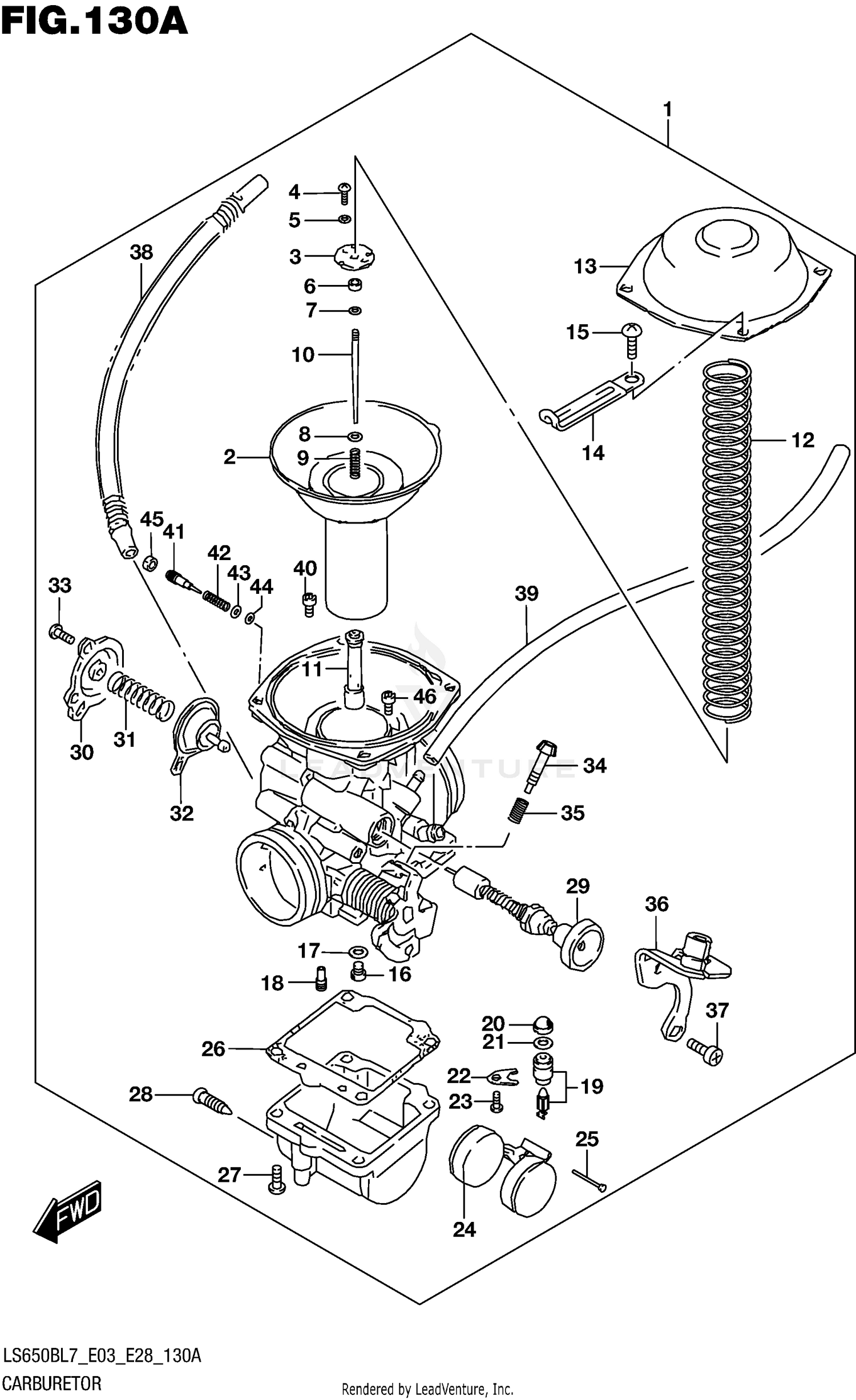

2017 Suzuki LS650B CARBURETOR (LS650BL7 E03)
