# Part Retail Our Price

Stock Status Suggested Quantity
13200-15D10 carburetor assy
This part is currently unavailable.
13200-15D30 carburetor assy CALIFORNIA ONLY; Includes Item(s) 1 - 39
This part is currently unavailable.
1
13604-44080 screw, throttle valve Supersedes: 13604-42A00 (SCREW | MODEL S/T) Price: $4.13

Expected to Ship in 4-9 Days
2
13551-45B00 valve, throttle (115)
This part is currently unavailable.
3
13382-42A00 ring Price: $6.36

Expected to Ship in 4-9 Days
4
13394-01D00 clip, needle Price: $6.79

Expected to Ship in 4-9 Days
5
13417-44B00 spring Price: $10.78

Expected to Ship in 4-9 Days
6
13502-44B00 cover, daphram Supersedes: 13502-45B00 (COVER, DIAPHRAGM)
This part is currently unavailable.
7
13551-44B10 valve, piston Retail: $99.31 Price: $92.36

Expected to Ship in 4-9 Days
8
13507-44B01 diaphragm Supersedes: 13507-44B00 (DIAPHRAGM) Retail: $30.68 Price: $28.84

Expected to Ship in 4-9 Days
9
13387-47010 ring Price: $10.56

Expected to Ship in 4-9 Days
10
13550-14D10 shaft assy
This part is currently unavailable.
11
13573-14D10 spring
This part is currently unavailable.
12
13557-47070 gasket Price: $5.24

Expected to Ship in 4-9 Days
13
13617-44080 e ring Price: $4.04

Expected to Ship in 4-9 Days
14
13556-44B00 seal Price: $5.51

Expected to Ship in 4-9 Days
15
13247-02340 screw, drain MODEL L Supersedes: 13247-19C00 (SCREW, DRAIN) Price: $7.08

In Stock
15
13247-02340 screw, drain MODEL M Supersedes: 13247-19C00 (SCREW, DRAIN) Price: $7.08

In Stock
16
02112-05127 screw Supersedes: 13602-33E00 (SCREW) Price: $2.73

Expected to Ship in 4-9 Days
17
13258-44B00 gasket, float chamber Retail: $12.08 Price: $11.36

In Stock
18
13240-14D30 float assy
This part is currently unavailable.
19
13374-46710 .o ring Price: $6.36

In Stock
20
09494-00883 jet, needle (0-6m) Supersedes: 09494-00691 (JET, NEEDLE (0-6)) Retail: $46.33 Price: $43.55

Expected to Ship in 4-9 Days
21
09491-26011 jet, main (132.5) Retail: $11.97 Price: $11.25

Expected to Ship in 4-9 Days
22
13383-14D20 needle, jet (5cd16)
This part is currently unavailable.
23
13370-02D01 valve assy,need Supersedes: 13370-44B00 (VALVE ASSY, NEEDLE) Retail: $60.07 Price: $55.87

Expected to Ship in 4-9 Days
24
13374-35C00 o ring Supersedes: 13374-44080 (O RING) Price: $8.51

In Stock
25
13267-14D10 adjuster Retail: $26.58 Price: $24.99

Expected to Ship in 4-9 Days
26
13375-14D10 spring Price: $8.76

Expected to Ship in 4-9 Days
27
13427-38300 washer Price: $2.39

Expected to Ship in 4-9 Days
28
13411-14D10 plunger assy
This part is currently unavailable.
29
13574-28A00 ring
This part is currently unavailable.
30
02112-7516A screw Supersedes: 13602-34390 (SCREW) Price: $3.37

Expected to Ship in 4-9 Days
31
09492-40014 jet, pilot (40) Retail: $11.58 Price: $10.89

Expected to Ship in 4-9 Days
32
09401-10401 clip Supersedes: 09401-10410 (CLIP) Price: $2.01

In Stock
33
13247-32210 screw, drain Retail: $16.47 Price: $15.48

Expected to Ship in 4-9 Days
34
13249-41310 o ring, drain plug Price: $6.26

Expected to Ship in 4-9 Days
35
09493-28006 jet, air (1.4) Supersedes: 09493-28007 (JET, PILOT AIR (1.4)) Retail: $17.14 Price: $16.11

Expected to Ship in 4-9 Days
36
09493-60004 jet, air (0.6) Retail: $17.72 Price: $16.66

Expected to Ship in 4-9 Days
37
09352-30504-600 .hose (3x5x600) L:300->150 Supersedes: 13683-36A00 (HOSE (3X5X300)) Price: $6.98

Expected to Ship in 4-9 Days
38
09404-06036 clamp(l:80) Supersedes: 09404-06434 (CLAMP(L:80)) Price: $2.44

In Stock
39
09352-70119-600 hose(7x11x600) L:300->200 Supersedes: 13683-43410 (HOSE (7X11X300)) Retail: $12.84 Price: $12.07

Expected to Ship in 4-9 Days
40
09404-06039 clamp Supersedes: 09404-06401 (CLAMP, OVER FLOW HOSE) Price: $2.40

In Stock
41
SPECIAL NOTE refer to fig.9a (c- 4) for
This part is currently unavailable.

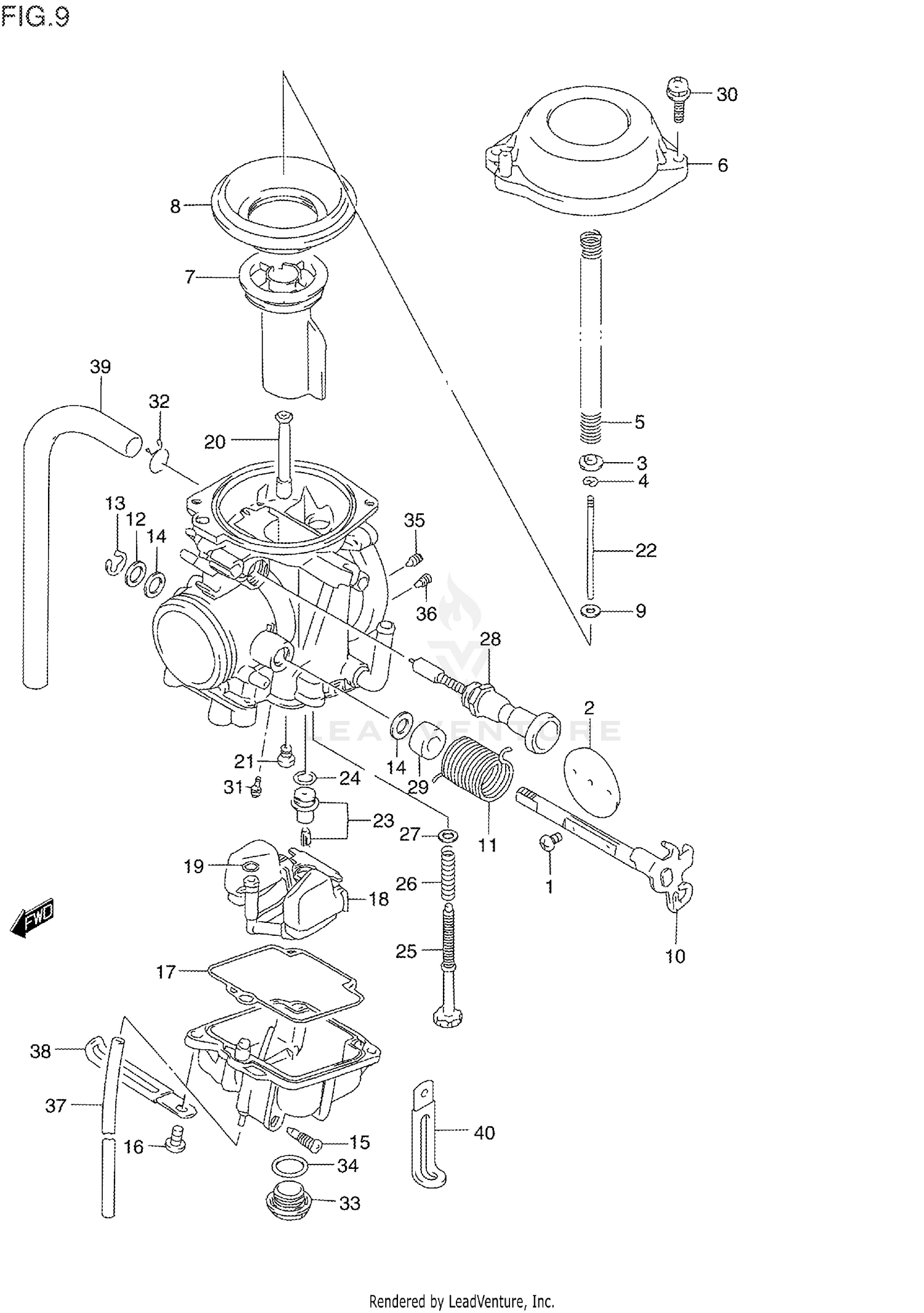

1994 Suzuki DR250S CARBURETOR (MODEL L/M)
