1993 Suzuki VX800 REAR MASTER CYLINDER

Set this as my ride

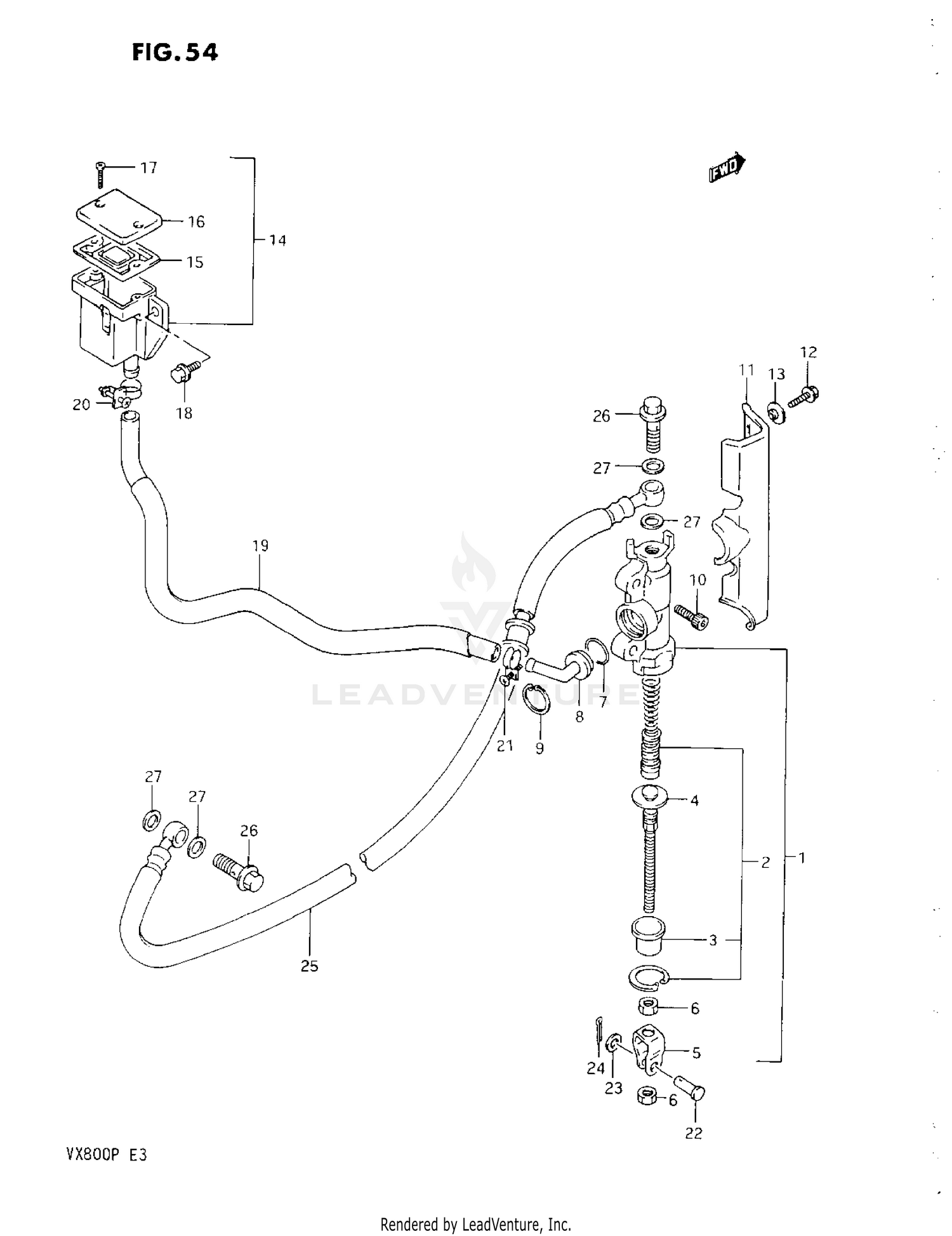

REAR MASTER CYLINDER

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    69600-45C01 cylinder assy, rear master MODEL L/M/N Supersedes: 69600-45C00 (CYLINDER ASSY, REAR MASTER)
    This part is currently unavailable.
  • 1
    69600-45C01 cylinder assy, rear master MODEL P
    This part is currently unavailable.
  • 2
    69600-04821 .piston/cup set Supersedes: 69600-04820 (PISTON/CUP SET) Retail: $39.87 Price: $37.48
    In Stock
  • 3
    69691-00A00 .boot Price: $7.75
    Expected to Ship in 4-9 Days
  • 4
    69670-45C00 rod, push Retail: $21.11 Price: $19.84
    Expected to Ship in 4-9 Days
  • 5
    69692-22A00 yoke Retail: $20.53 Price: $19.30
    Expected to Ship in 4-9 Days
  • 6
    69693-05A00 nut Supersedes: 69693-24A00 (NUT) Price: $2.39
    In Stock
  • 7
    69686-34200 o-ring Price: $4.16
    In Stock
  • 8
    69672-00B20 connector Price: $9.97
    In Stock
  • 9
    69674-00B20 circlip Price: $5.80
    Expected to Ship in 4-9 Days
  • 10
    07130-0620B bolt, front brg housing Supersedes: 07130-06203 (BOLT) Price: $4.34
    Expected to Ship in 4-9 Days
  • 11
    69641-45C00 cover, cylinder
    This part is currently unavailable.
  • 12
    02142-0612A screw Supersedes: 02142-06125 (SCREW) Price: $1.90
    In Stock
  • 13
    09169-06060 washer Price: $2.68
    In Stock
  • 14
    69740-24A01 tank assy, rear reservoir MODEL L/M/N Supersedes: 69740-24A00 (TANK ASSY, REAR RESERVOIR)
    This part is currently unavailable.
  • 14
    69740-24A01 tank assy, rear reservoir MODEL P Supersedes: 69740-24A00 (TANK ASSY, REAR RESERVOIR)
    This part is currently unavailable.
  • 15
    59667-04700 diaphragm Supersedes: 59667-0BE00 (DIAPHRAGM) Retail: $12.08 Price: $11.36
    In Stock
  • 16
    69669-24A01 cap MODEL L/M/N Supersedes: 69669-24A00 (CAP) Retail: $19.20 Price: $18.05
    Expected to Ship in 4-9 Days
  • 16
    59669-05D00 cap MODEL P Supersedes: 59669-0BE00 (CAP) Retail: $21.30 Price: $20.02
    Expected to Ship in 4-9 Days
  • 17
    69689-04A00 screw Supersedes: 69689-0BE00 (SCREW) Price: $2.48
    In Stock
  • 18
    01550-06127 bolt Supersedes: 01517-06128 (BOLT) Price: $3.21
    Expected to Ship in 4-9 Days
  • 19
    69731-45C00 hose, tank Retail: $34.85 Price: $32.76
    Expected to Ship in 4-9 Days
  • 20
    09400-16304 clamp Supersedes: 09400-16302 (CLAMP) Price: $4.40
    Expected to Ship in 4-9 Days
  • 21
    09400-15302 clamp, lower
    This part is currently unavailable.
  • 22
    09200-06068 pin (6x18.2) Supersedes: 09200-06037-A05 (PIN) Price: $5.76
    In Stock
  • 23
    08322-01067 washer Supersedes: 08322-21067 (WASHER) Price: $2.59
    In Stock
  • 24
    04111-2015A .cotter pin Supersedes: 04111-20158 (COTTER PIN) Price: $1.70
    In Stock
  • 25
    69480-45C10 hose, rear brake MODEL L/M/N Supersedes: 69480-45C00 (HOSE, REAR BRAKE) Retail: $65.25 Price: $60.68
    Expected to Ship in 4-9 Days
  • 25
    69480-45C10 hose, rear brake MODEL P Retail: $65.25 Price: $60.68
    Expected to Ship in 4-9 Days
  • 26
    09360-10061 union Supersedes: 09360-10041 (UNION BOLT (10X22)) Price: $9.14
    In Stock
  • 27
    09161-10009 washer (10x15x1.5) Supersedes: 09161C10009J000 (WASHER (10X15X1.5)) Price: $2.55
    In Stock
