# Part Retail Our Price

Stock Status Suggested Quantity
1
13201-48B11 carburetor assy, lh
This part is currently unavailable.
1
13201-48B21 carburetor assy, lh CALIFORNIA ONLY
This part is currently unavailable.
2
13202-48B11 carburetor assy, ml
This part is currently unavailable.
2
13202-48B21 carburetor assy, ml CALIFORNIA ONLY
This part is currently unavailable.
3
13203-48B11 carburetor assy, mr
This part is currently unavailable.
3
13203-48B21 carburetor assy, mr CALIFORNIA ONLY
This part is currently unavailable.
4
13204-48B11 carburetor assy, rh
This part is currently unavailable.
4
13204-48B21 carburetor assy, rh CALIFORNIA ONLY; Includes Item(s) 5 - 58
This part is currently unavailable.
5
13500-06B01 diaphragm assy Supersedes: 13500-06B00 (DIAPHRAGM ASSY) Retail: $142.58 Price: $121.19

Expected to Ship in 4-9 Days
6
13394-10010 e ring Retail: $6.79 Price: $1.77

In Stock
7
13382-42A00 ring Price: $6.36

Expected to Ship in 4-9 Days
8
13387-47010 ring Price: $10.56

Expected to Ship in 4-9 Days
9
13417-42A00 spring Price: $9.92

Expected to Ship in 4-9 Days
10
13383-48B20 needle, jet (5dl11) Retail: $19.80 Price: $18.61

Expected to Ship in 4-9 Days
10
13383-48B30 needle, jet (5dl16-1) CALIFORNIA ONLY
This part is currently unavailable.
11
08310-21086 nut ML,MR
This part is currently unavailable.
12
13606-47070 washer ML,MR
This part is currently unavailable.
13
13573-28A10 spring LH,ML Price: $6.58

Expected to Ship in 4-9 Days
14
13550-28A30 shaft assy LH
This part is currently unavailable.
15
13550-28A00 shaft assy ML Retail: $30.94 Price: $29.08

Expected to Ship in 4-9 Days
16
13553-28A00 lever ML Price: $7.36

Expected to Ship in 4-9 Days
17
13555-28A00 lever MR Retail: $17.97 Price: $16.89

Expected to Ship in 4-9 Days
18
13573-28A00 spring MR Price: $6.97

Expected to Ship in 4-9 Days
19
13573-28A20 spring RH Price: $5.31

Expected to Ship in 4-9 Days
20
13550-28A20 shaft assy RH Retail: $30.94 Price: $29.08

Expected to Ship in 4-9 Days
21
13651-51011 seal Supersedes: 13651-51010 (SEAL) Price: $3.04

Expected to Ship in 4-9 Days
22
13617-44080 e ring LH,RH Price: $4.04

Expected to Ship in 4-9 Days
23
13557-47070 washer Price: $5.24

Expected to Ship in 4-9 Days
24
13582-95216 nut ML Price: $4.46

Expected to Ship in 4-9 Days
25
13267-52012 screw LH,ML,RH Price: $3.90

Expected to Ship in 4-9 Days
26
13605-73000 screw Retail: $12.92 Price: $12.14

Expected to Ship in 4-9 Days
27
13604-44080 screw, throttle valve Supersedes: 13604-42A00 (SCREW | MODEL S/T) Price: $4.13

Expected to Ship in 4-9 Days
28
13551-06B10 valve, throttle (125)
This part is currently unavailable.
28
13551-06B00 valve, throttle (130) CALIFORNIA ONLY Retail: $19.69 Price: $18.51

Expected to Ship in 4-9 Days
29
13251-42A00 o ring Retail: $11.15 Price: $10.48

Expected to Ship in 4-9 Days
30
13249-78100 washer Price: $4.11

Expected to Ship in 4-9 Days
31
09492-32006 jet, pilot (32.5) Retail: $11.89 Price: $11.18

Expected to Ship in 4-9 Days
31
09492-42010 .jet, pilot (#42.5) CALIFORNIA ONLY
This part is currently unavailable.
32
09494-00535 jet, needle (p-2)
This part is currently unavailable.
32
09494-00586 jet, needle (p-0) CALIFORNIA ONLY Retail: $28.42 Price: $26.71

Expected to Ship in 4-9 Days
33
13382-03110 washer, needle jet Supersedes: 13332-44080 (WASHER) Price: $3.78

Expected to Ship in 4-9 Days
34
09491-22015 jet, main (112.5) LH,RH Retail: $11.97 Price: $11.25

Expected to Ship in 4-9 Days
34
09491-22016 jet, main (110) ML,MR Retail: $12.43 Price: $11.68

Expected to Ship in 4-9 Days
35
13247-28A00 screw, drain Price: $10.70

Expected to Ship in 4-9 Days
36
13250-28A00 float Retail: $39.23 Price: $36.88

Expected to Ship in 4-9 Days
37
13602-43410 screw Price: $4.04

Expected to Ship in 4-9 Days
38
13254-92311 pin Price: $2.67

Expected to Ship in 4-9 Days
39
13370-48B00 valve assy, needle Retail: $87.73 Price: $81.59

Expected to Ship in 4-9 Days
40
13374-35C00 o ring Supersedes: 13374-44080 (O RING) Price: $8.51

In Stock
41
13376-19F00 filter Supersedes: 13376-84110 (FILTER) Retail: $12.71 Price: $11.95

Expected to Ship in 4-9 Days
42
02112-04087 screw Price: $1.55

Expected to Ship in 4-9 Days
43
13271-28A00 spring LH,RH
This part is currently unavailable.
44
13268-96111 spring LH,ML,RH Supersedes: 13268-96110 (SPRING) Price: $5.89

Expected to Ship in 4-9 Days
45
09493-27001 jet, pilot air (135) Retail: $17.72 Price: $16.66

Expected to Ship in 4-9 Days
45
09493-30005 jet, pilot air (155) CALIFORNIA ONLY Retail: $17.24 Price: $16.21

Expected to Ship in 4-9 Days
46
02112-04127 screw LH:2,ML,MR,RH:4 Supersedes: 13602-27A10 (SCREW) Price: $2.70

Expected to Ship in 4-9 Days
47
13550-28A10 shaft assy MR Retail: $26.98 Price: $25.36

Expected to Ship in 4-9 Days
48
13574-28A00 ring MR
This part is currently unavailable.
49
13502-09F00 cover assy Supersedes: 13502-28A00 (COVER,DIAPHRAGM)
This part is currently unavailable.
50
13682-31210 .cap, starter valve Price: $6.21

Expected to Ship in 4-9 Days
51
02112-0416A screw LH Supersedes: 02112-04163 (SCREW | MODEL T) Price: $1.73

Expected to Ship in 4-9 Days
52
13628-48B00 bracket assy LH
This part is currently unavailable.
53
13418-44080 .holder, guide Retail: $12.71 Price: $11.95

Expected to Ship in 4-9 Days
54
13417-09210 spring Price: $5.05

Expected to Ship in 4-9 Days
55
13411-05320 plunger assy Retail: $28.95 Price: $27.21

Expected to Ship in 4-9 Days
56
13684-48B11 hose CALIFORNIA ONLYMR,RH Supersedes: 13684-48B10 (HOSE) Retail: $19.72 Price: $18.54

In Stock
57
13683-10201 hose CALIFORNIA ONLYML Supersedes: 13683-10200 (HOSE (5.3X10.5X38->25)) Price: $9.26

Expected to Ship in 4-9 Days
58
13684-48B11 hose CALIFORNIA ONLYLH Supersedes: 13684-48B10 (HOSE) Retail: $19.72 Price: $18.54

In Stock
59
13586-48B00 shaft, starter Retail: $31.49 Price: $29.60

Expected to Ship in 4-9 Days
60
13605-47070 screw Supersedes: 13605-49330 (SCREW | MR)
This part is currently unavailable.
61
13422-48B10 lever
This part is currently unavailable.
62
13628-19C00 plate Retail: $22.78 Price: $21.41

Expected to Ship in 4-9 Days
63
02112-05127 screw Supersedes: 13602-33E00 (SCREW) Price: $2.73

Expected to Ship in 4-9 Days
64
13628-19C10 plate Retail: $23.23 Price: $21.84

Expected to Ship in 4-9 Days
65
09126-05005 screw (m5x14)
This part is currently unavailable.
66
09355-65001-600 hose(6.5x11.5x6 L:400->18 Supersedes: 13683-49160 (HOSE (6.5X10.5X400)) Retail: $14.61 Price: $13.73

In Stock
67
44421-13ER0 hose,5x10x600 L:550->300 Supersedes: 09355-50105-600 (HOSE (L:600->140)) Retail: $12.25 Price: $11.52

In Stock
68
13218-03D01 hose assy Supersedes: 13680-27A00 (HOSE ASSY)
This part is currently unavailable.
69
13680-28A01 hose assy Supersedes: 13680-28A00 (HOSE ASSY)
This part is currently unavailable.
70
13605-09300 screw Supersedes: 13605-34390 (SCREW) Price: $2.37

Expected to Ship in 4-9 Days
71
13684-43440 hose (16x19x100) L:100->30 Price: $7.31

Expected to Ship in 4-9 Days
72
09352-50901-600 hose OTHER THAN CALIFORNIA Supersedes: 13683-48B00 (HOSE (5X9X225)) Price: $11.44

Expected to Ship in 4-9 Days
73
09352-50901-600 hose CALIFORNIA ONLYL:225->100 Supersedes: 13683-48B00 (HOSE (5X9X225)) Price: $11.44

Expected to Ship in 4-9 Days
74
13271-28A10 spring Price: $6.01

Expected to Ship in 4-9 Days
75
13432-47090 washer Price: $2.85

Expected to Ship in 4-9 Days
76
13422-48B00 lever Price: $8.53

Expected to Ship in 4-9 Days
77
13671-48B00 clip Price: $3.17

Expected to Ship in 4-9 Days
78
13685-48B00 .nipple CALIFORNIA ONLY Retail: $15.44 Price: $14.51

Expected to Ship in 4-9 Days
79
09401-10401 clip CALIFORNIN ONLY Supersedes: 09401-10410 (CLIP) Price: $2.01

In Stock

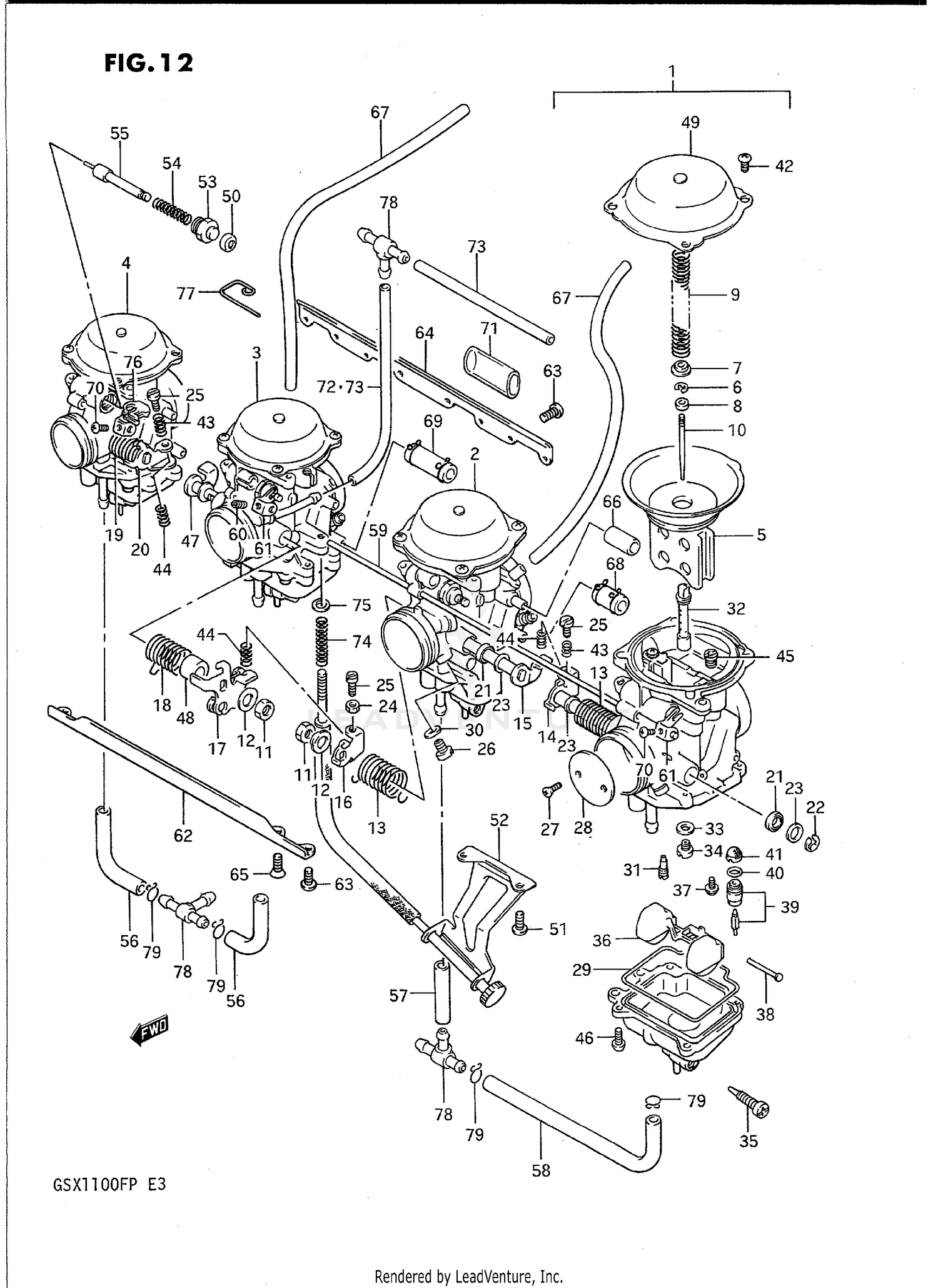

1993 Suzuki GSX1100FP CARBURETOR
