# Part Retail Our Price

Stock Status Suggested Quantity
1
11300-28897 no description available MODEL K Supersedes: 11300-28890 (CRANKCASE SET)
This part is currently unavailable.
1
11300-28897 no description available MODEL L Supersedes: 11300-28891 (CRANKCASE SET)
This part is currently unavailable.
1
11301-28814 crankcase set MODEL M Supersedes: 11301-28810 (CRANKCASE SET) Retail: $988.00 Price: $829.92

Expected to Ship in 4-9 Days
1
11301-28814 crankcase set MODEL N; Includes Item(s) 2 - 7 Supersedes: 11301-28811 (CRANKCASE SET) Retail: $988.00 Price: $829.92

Expected to Ship in 4-9 Days
2
11481-28C00 gasket, crankcase
This part is currently unavailable.
3
04211-09129 pin Price: $2.29

Expected to Ship in 4-9 Days
4
01547-06407 bolt Price: $3.25

Expected to Ship in 4-9 Days
5
01547-06507 bolt
This part is currently unavailable.
6
01547-06557 bolt Price: $3.25

Expected to Ship in 4-9 Days
7
01547-06607 bolt Price: $3.85

Expected to Ship in 4-9 Days
8
09103-08097 bolt (8x105) MODEL K Price: $4.90

Expected to Ship in 4-9 Days
8
09103-08296 bolt (8x102) MODEL L Supersedes: 09103-08273 (BOLT (8X102)) Price: $9.95

Expected to Ship in 4-9 Days
8
09103-08296 bolt (8x102) MODEL M/N Price: $9.95

Expected to Ship in 4-9 Days
9
09103-08297 bolt (8x137) MODEL K/L Supersedes: 09103-08248 (BOLT (8X137)) Price: $10.10

Expected to Ship in 4-9 Days
9
09103-08297 bolt (8x137) MODEL M/N Price: $10.10

Expected to Ship in 4-9 Days
10
09159-08067 nut MODEL K/L/M Price: $7.80

In Stock
11
09159-08034 nut MODEL N Supersedes: 61447-03B00 (NUT) Price: $2.25

In Stock
11
01500-0816B plug, drain Supersedes: 01107-08165 (PLUG, DRAIN) Price: $3.47

In Stock
12
09168-08016 gasket (8.2x14x1) Supersedes: 09168-08008 (GASKET) Price: $2.29

In Stock
13
13150-92B00 no description available MODEL K/L; Includes Item(s) 14 - 16 Supersedes: 13150-01C10 (VALVE ASSY, REED)
This part is currently unavailable.
14
13152-01C10 stopper, reed valve MODEL K/L Price: $10.60

Expected to Ship in 4-9 Days
15
13153-01C10 valve, reed MODEL K/L Retail: $14.73 Price: $7.77

In Stock
16
02112-3308A screw Supersedes: 02112-33083 (SCREW) Price: $2.70

Expected to Ship in 4-9 Days
17
13150-28C31 no description available MODEL M Supersedes: 13150-28C20 (VALVE ASSY, REED)
This part is currently unavailable.
17
13150-28C31 no description available MODEL N; Includes Item(s) 18 - 20 Supersedes: 13150-28C30 (VALVE ASSY, REED)
This part is currently unavailable.
18
13152-28C20 stopper, reed valve MODEL M/N Price: $5.15

Expected to Ship in 4-9 Days
19
13153-28C21 valve, reed MODEL M/N
This part is currently unavailable.
19A
13155-28C30 valve, reed upper MODEL N
This part is currently unavailable.
20
02112-3308A screw Supersedes: 02112-33083 (SCREW) Price: $2.70

Expected to Ship in 4-9 Days
21
13156-01C10 gasket, reed valve Price: $4.93

Expected to Ship in 4-9 Days
22
01547-06207 bolt Supersedes: 09103-06235 (BOLT) Price: $2.82

In Stock
23
13110-28C01 pipe, intake MODEL K/L
This part is currently unavailable.
23
13110-28C21 pipe,intake MODEL M/N Supersedes: 13110-28C20 (PIPE,INTAKE)
This part is currently unavailable.
24
09402-56901 clamp MODEL K/L Supersedes: 09402-56208 (CLAMP) Price: $7.51

In Stock
24
09402-54303 clamp MODEL M/N Supersedes: 09402-54306 (CLAMP) Price: $5.55

Expected to Ship in 4-9 Days

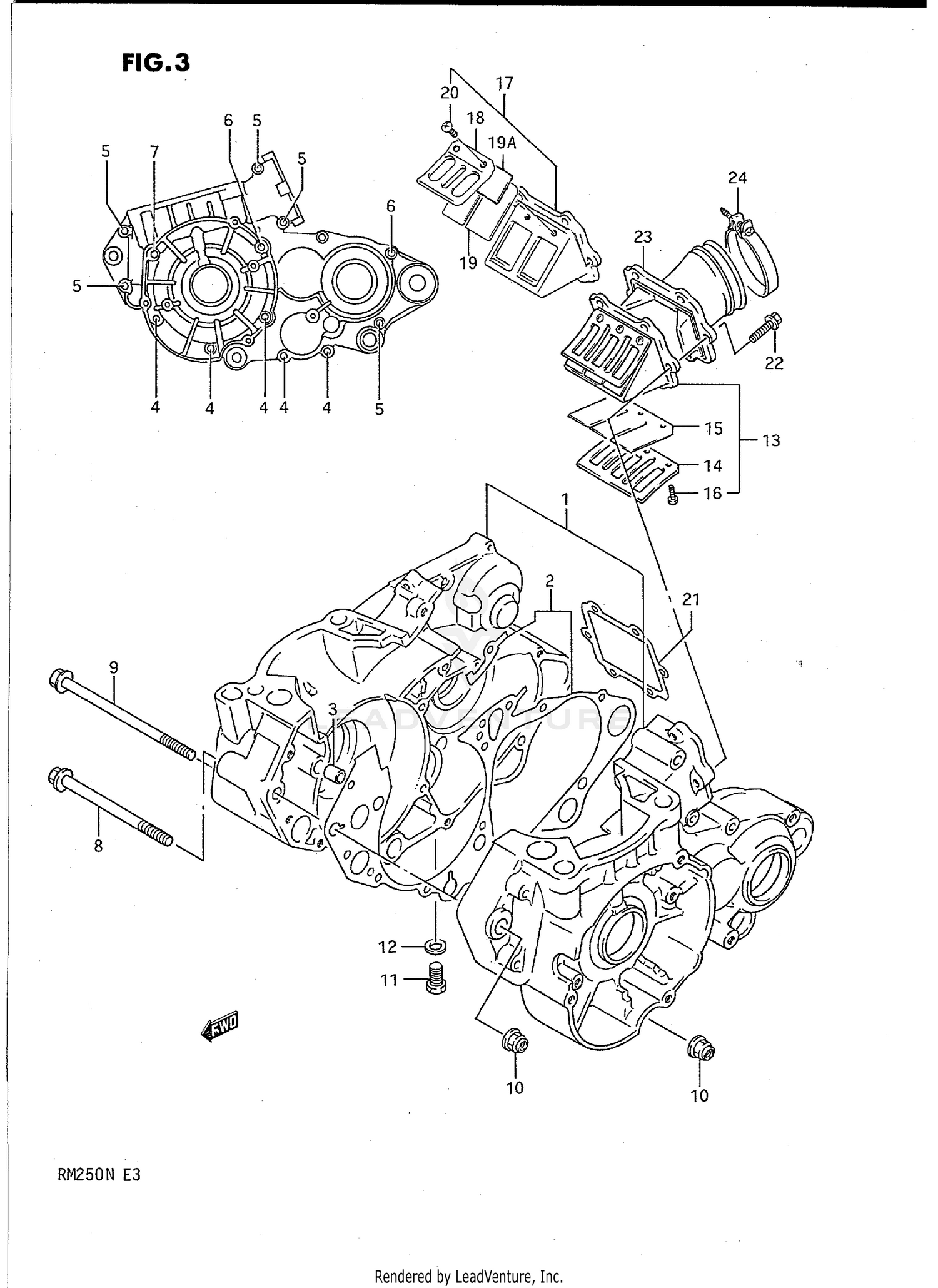

1990 Suzuki RM250 CRANKCASE
