# Part Retail Our Price

Stock Status Suggested Quantity
1
13200-42A21 carburetor assy MODEL G Supersedes: 13200-42A20 (CARBURETOR ASSY)
This part is currently unavailable.
1
13200-42A21 carburetor assy MODEL H/J
This part is currently unavailable.
1
13261-27A00 cap, top Retail: $15.78 Price: $14.83

Expected to Ship in 4-9 Days
2
13266-27A00 gasket Price: $8.51

Expected to Ship in 4-9 Days
3
08321-0105A lock washer Supersedes: 08321-01053 (LOCK WASHER) Price: $2.63

In Stock
4
01500-0516B bolt Supersedes: 01500-05163 (BOLT) Price: $2.70

In Stock
5
13541-13E00 lever set, throttle Supersedes: 13541-14A00 (LEVER, THROTTLE) Retail: $40.03 Price: $37.63

Expected to Ship in 4-9 Days
6
13575-38200 washer Supersedes: 13574-38200 (WASHER)
This part is currently unavailable.
7
13447-14A00 plate Retail: $12.37 Price: $11.63

Expected to Ship in 4-9 Days
8
02112-3410A screw Supersedes: 02112-34103 (SCREW) Price: $2.75

Expected to Ship in 4-9 Days
9
13446-14A00 spring Supersedes: 13268-27A00 (SPRING)
This part is currently unavailable.
10
13398-42A20 connector MODEL G Retail: $14.25 Price: $13.40

Expected to Ship in 4-9 Days
10
13398-27A02 connector MODEL H/J Retail: $26.38 Price: $24.80

Expected to Ship in 4-9 Days
11
02112-0312B screw Supersedes: 02112-03123 (SCREW) Price: $3.12

Expected to Ship in 4-9 Days
12
13445-14A00 washer Price: $4.29

Expected to Ship in 4-9 Days
13
09160-04024 washer (4.5x8x0.5) Supersedes: 13449-14A00 (WASHER) Price: $1.58

Expected to Ship in 4-9 Days
14
13415-38300 .e ring Supersedes: 13298-49000 (E RING) Price: $2.71

Expected to Ship in 4-9 Days
15
13551-14D00 valve, piston (ca:1.5) MODEL G Supersedes: 13551-42A20 (VALVE, PISTON (CA:1.5))
This part is currently unavailable.
15
13551-14D00 valve, piston (ca:1.5) MODEL H/J Supersedes: 13551-42A21 (VALVE, PISTON (CA:1.5))
This part is currently unavailable.
16
13382-47010 washer Price: $5.44

In Stock
17
13394-10010 e ring Retail: $7.10 Price: $1.77

In Stock
18
13383-42A20 needle, jet (5fp85-3) Retail: $23.51 Price: $22.10

Expected to Ship in 4-9 Days
19
09494-00513 jet, needle (p-6)
This part is currently unavailable.
20
13573-42A20 spring
This part is currently unavailable.
21
13494-27A00 spring
This part is currently unavailable.
22
13411-42A20 plunger assy Retail: $43.79 Price: $41.16

Expected to Ship in 4-9 Days
23
13278-47091 .o ring (16) Supersedes: 13278-47090 (O RING) Price: $2.75

In Stock
24
13279-47070 screw, pilot (5/8) Retail: $17.25 Price: $16.22

Expected to Ship in 4-9 Days
25
13268-47070 .spring Price: $6.44

Expected to Ship in 4-9 Days
26
13291-29900 .washer (14x17) Supersedes: 13277-44080 (WASHER) Price: $2.52

In Stock
27
13295-29901 .o ring Supersedes: 13295-29900 (O RING) Price: $6.44

In Stock
28
09492-25007 jet, pilot (25) Supersedes: 09492-25008 (JET, PILOT (25))
This part is currently unavailable.
29
13331-13A00 ring Price: $8.00

Expected to Ship in 4-9 Days
30
09491-23011 jet, main (115) Retail: $12.31 Price: $11.57

Expected to Ship in 4-9 Days
31
13370-05530 valve assy, needle Supersedes: 13370-37100 (VALVE ASSY, NEEDLE) Retail: $80.59 Price: $74.95

Expected to Ship in 4-9 Days
32
13374-35C00 .o ring,needle valve seat Supersedes: 13374-44080 (O RING) Price: $8.89

In Stock
33
13376-19F00 filter Supersedes: 13376-84110 (FILTER) Retail: $13.28 Price: $12.48

Expected to Ship in 4-9 Days
34
13602-43410 screw Price: $4.22

Expected to Ship in 4-9 Days
35
13250-42A00 float Supersedes: 13252-27A00 (FLOAT ASSY) Retail: $44.01 Price: $41.37

Expected to Ship in 4-9 Days
36
13254-92311 pin, float Price: $2.79

Expected to Ship in 4-9 Days
37
13251-27A00 o-ring Price: $11.42

Expected to Ship in 4-9 Days
38
09355-30001-600 .hose (3x7x600) L:500->375 Supersedes: 13684-18900 (HOSE (3X5X500 )) Retail: $10.94 Price: $10.28

Expected to Ship in 4-9 Days
39
13267-01400 adjuster Price: $10.40

Expected to Ship in 4-9 Days
40
13427-38300 washer Price: $2.51

Expected to Ship in 4-9 Days
41
13271-93011 spring Supersedes: 13268-49310 (SPRING) Price: $6.72

Expected to Ship in 4-9 Days
42
13601-04148 screw Price: $4.08

In Stock
43
13247-02340 screw, drain Supersedes: 13247-19C00 (SCREW, DRAIN) Price: $7.41

In Stock
44
13499-44500 cap Retail: $14.20 Price: $13.35

Expected to Ship in 4-9 Days
45
13487-14A00 rod Retail: $12.29 Price: $11.55

Expected to Ship in 4-9 Days
46
13493-27A00 plunger Retail: $11.88 Price: $11.17

Expected to Ship in 4-9 Days
47
13271-09400 spring Price: $6.67

In Stock
48
13613-14A00 bolt Price: $11.47

Expected to Ship in 4-9 Days
49
13490-14A00 lever Retail: $11.65 Price: $10.95

Expected to Ship in 4-9 Days
50
13553-42A20 shaft assy
This part is currently unavailable.
51
44421-13ER0 hose,5x10x600 Supersedes: 09355-50105-600 (HOSE (L:600->140)) Retail: $12.80 Price: $12.03

In Stock
52
09367-06002 .joint,3 way Price: $3.48

Expected to Ship in 4-9 Days
53
44421-13ER0 hose,5x10x600 Supersedes: 09355-50105-600 (HOSE (L:600->140)) Retail: $12.80 Price: $12.03

In Stock

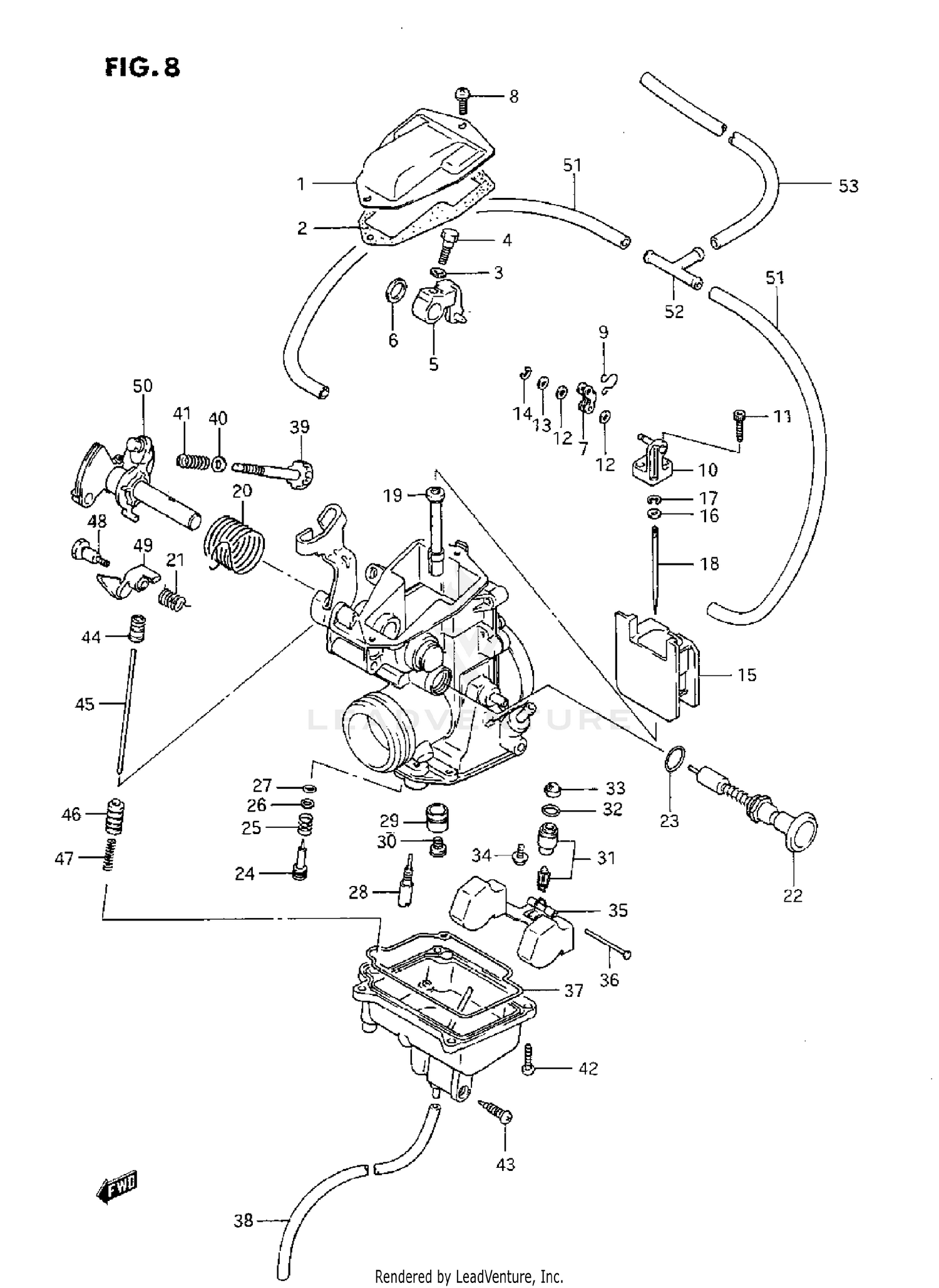

1987 Suzuki DR200 CARBURETOR
