# Part Retail Our Price

Stock Status Suggested Quantity
1
79236004000 timing chain guide top Supersedes: 77736004000 (TIMING CHAIN GUIDE TOP) Retail: $36.73 Price: $31.22

In Stock
2
0472042150 copper washer sb42 Price: $1.99

In Stock
3
77736082000 breather plate Price: $6.15

In Stock
5
0770400010 o-ring 40,00x1,00 viton Price: $9.78

Usually ships in 5-7 business days.
6
77736109000 camshaft intake Retail: $257.06 Price: $218.50

Backordered
8
77736110044 camshaft exhaust cpl. Retail: $336.48 Price: $286.01

Usually ships in 5-7 business days.
9
77736016000 decompression lever cpl. Retail: $75.34 Price: $64.04

In Stock
10
0402051880 needle roller nrb 5x18,8 g2 Price: $2.99

In Stock
11
77336016055 deco spring pin l=10,6 07 07 Retail: $20.67 Price: $17.57

In Stock
12
77336017030 spring for auto decompr. Price: $3.99

In Stock
13
77336017050 deco screw plug Retail: $18.03 Price: $15.33

In Stock
14
77236001000 timing chain guide Price: $8.90

Usually ships in 5-7 business days.
15
77236001160 bushing screw m6 Price: $6.15

In Stock
17
77236002160 bushing screw m8 Price: $3.99

In Stock
19
77236005000 securing protection Price: $3.99

In Stock
20
77236002000 tensioning rail Retail: $23.53 Price: $20.00

Backordered
22
0025060406 hh collar screw m6x40 tx30 TX30 Supersedes: 0015060403 (HH COLLAR SCREW M6X40 TX30) Price: $3.99

In Stock
23
77336008000 holding bolt m24x1,5 Retail: $24.19 Price: $20.56

Backordered
24
0603242920 cu seal-ring din7603 a24x29x2 Price: $3.99

In Stock
25
77036003000 chain adjuster hyd. 05 05 Retail: $86.89 Price: $73.86

In Stock
26
0770180020 o-ring 18.00x2.00 nbr70 Supersedes: 0770021140 (O-RING) Price: $2.99

In Stock
28
0402040980 needle rol.din5402 nrb 4x9,8 Price: $3.99

In Stock
29
0888030037 woodruff key din6888-3x3,7 Price: $2.99

In Stock
30
77236076000 timing valve twin wheel Retail: $140.57 Price: $119.48

Usually ships in 5-7 business days.
31
77236013000 timing chain Retail: $190.40 Price: $161.84

Usually ships in 5-7 business days.
32
0625062022 ball bearing 6202 c0 2 Retail: $17.04 Price: $14.48

In Stock
33
77230058000 needle bearing nk16/16 Retail: $22.21 Price: $18.88

In Stock
34
0472300120 circlip 30x1,2 Price: $1.99

In Stock
35
81235055020 water pump rotor Retail: $11.87 Price: $10.09

In Stock
36
61230045000 cap nut m6 stainless steel Price: $2.99

In Stock
38
07601530451 shaft seal ring 15x30x4.5 baud Supersedes: 0760153045 (SHAFT SEAL RING 15X30X4.5 BAUD) Price: $8.02

In Stock
39
77735053000 water pump cover gasket Retail: $10.22 Price: $8.69

In Stock
40
77735052000 waterpump cover Retail: $38.16 Price: $32.44

Usually ships in 5-7 business days.
41
0025060256 hh collar screw m6x25 tx30 TX30 Supersedes: 0015060253 (HH COLLAR SCREW M6X25 TX30) Price: $3.99

In Stock
43
0603061001 cu-seal ring din7603-6x10x1 Supersedes: 8000H4591 (CU- SEAL RING DIN7603-6X10X1) Price: $2.99

In Stock
44
0770010010 o-ring 10.00x1.00 nbr70 Price: $2.99

In Stock
45
77236080000 screw plug
This part is currently unavailable.
46
C77236072120 wear bushing 12/15/12,5 Supersedes: 77236072020 (water pump wear bushing) Retail: $12.42 Price: $10.56

Usually ships in 5-7 business days.
47
07700900151 o-ring 9x1,5 v80 sh Supersedes: 0770090015 (O-RING 9X1,5 NBR) Price: $2.99

In Stock
48
77236081000 angle piece f. breather system Price: $4.99

In Stock
49
81235055110 disc water pump Price: $6.15

In Stock
50
77536072033 balancer shaft cpl. Retail: $367.83 Price: $312.66

Usually ships in 5-7 business days.
51
77235055010 water pump rep. kit 11-14 As Required, 11-13 Retail: $62.80 Price: $53.38

In Stock

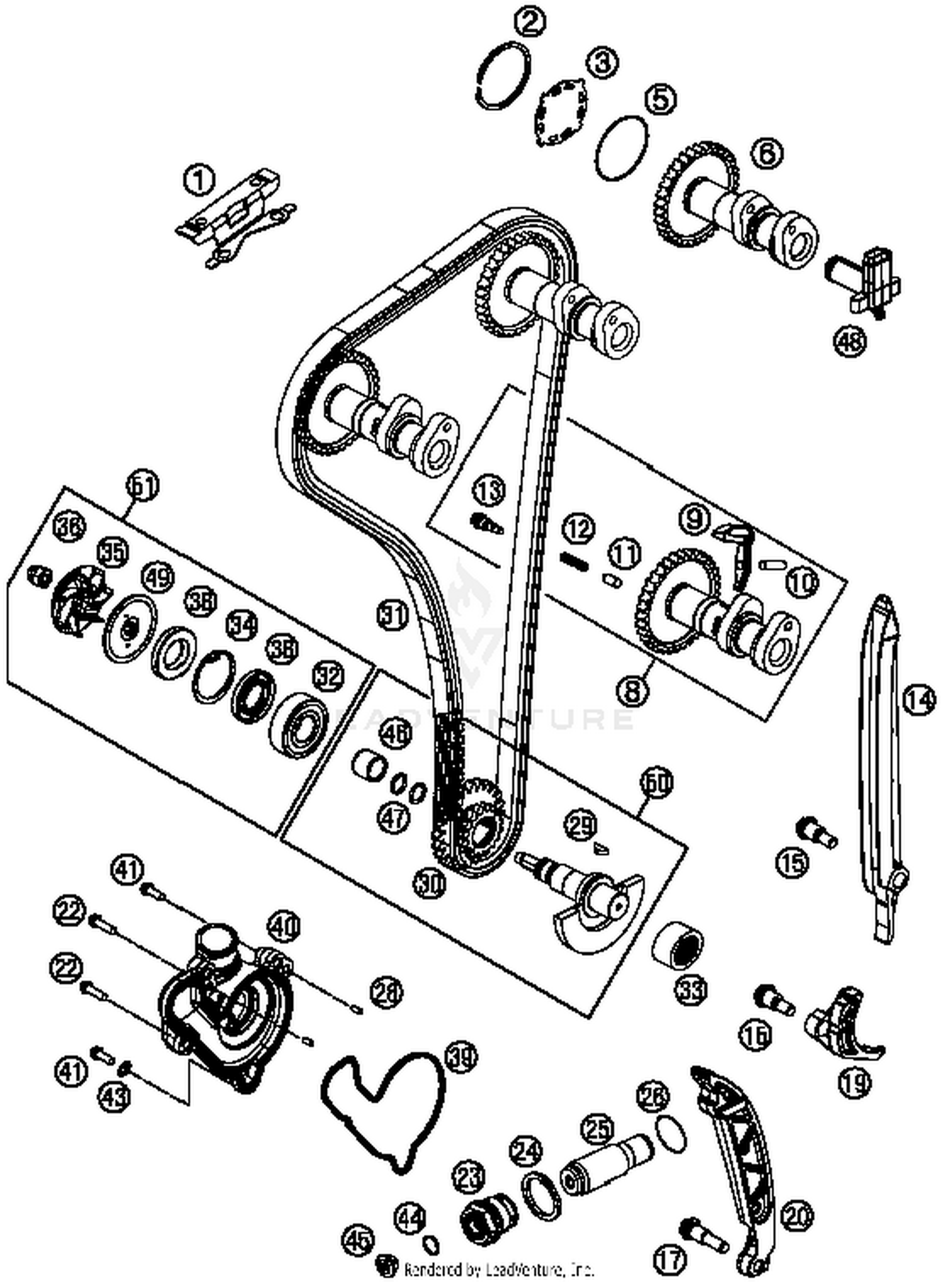

2014 KTM 250XCFW Timing Drive
