# Part Retail Our Price

Stock Status Suggested Quantity
1
77730018100 crankshaft cpl. Retail: $1,228.91 Price: $1,044.57

In Stock
2
77730015144 connecting rod repair set Retail: $581.89 Price: $494.61

Usually ships in 5-7 business days.
3
988324510 thrust washer 988st 32x0,1 As Required
This part is currently unavailable.
3
988324515 thrust washer 988st 32x0,15 As Required
This part is currently unavailable.
3
988324530 thrust washer 988st 32x0,30 As Required
This part is currently unavailable.
4
77330082200 bearing nj 206 ecp/hn3c4hva624 Retail: $110.43 Price: $93.87

Backordered
6
0910001801001S nut m18x1.5 precote lh thread Supersedes: 77230029000 (NUT PRIMARY WHEEL) Price: $5.05

In Stock
7
760304772 sh.seal ring 30x47x7 bsl viton
This part is currently unavailable.
8
760405560 shaft seal ring a40x55x6 viton
This part is currently unavailable.
9
77232022100 spacer, primary gear Supersedes: 77232022000 (SPACER BUSHING PRIMARY GEAR) Retail: $12.97 Price: $11.02

Usually ships in 5-7 business days.
11
19050106 int. torx flat head m5x10
This part is currently unavailable.
13
75030085100 retaining bracket crankshaft bearing Supersedes: 75030085000 (RETAINING PLATE F. CS BEARING) Price: $1.99

In Stock
14
77339010100 flywheel screw Price: $6.59

In Stock
22
888030037 woodruff key din6888-3x3,7
This part is currently unavailable.
23
77232023024 primary gear 24t. Retail: $111.20 Price: $94.52

Usually ships in 5-7 business days.
33
77730033200 piston pin Retail: $55.65 Price: $47.30

Usually ships in 5-7 business days.
34
77730074000 circlip 16x1.4 mm Retail: $13.30 Price: $11.31

Backordered
40
77730007100 I piston i cpl. 250 As Required Retail: $445.27 Price: $378.48

In Stock
40
77730007100 II piston ii cpl. 250 As Required
This part is currently unavailable.
41
77730032000 scraper ring 250 Retail: $64.34 Price: $54.69

Usually ships in 5-7 business days.
42
77730030000 compressionring 250 Retail: $48.17 Price: $40.94

Usually ships in 5-7 business days.
98
50002311 crankshaft rep. kit sx-f As Required
This part is currently unavailable.
99
50000222 piston kit gr.i 250 sx-f As Required
This part is currently unavailable.
99
50000223 piston kit gr.ii 250 sx-f As Required
This part is currently unavailable.

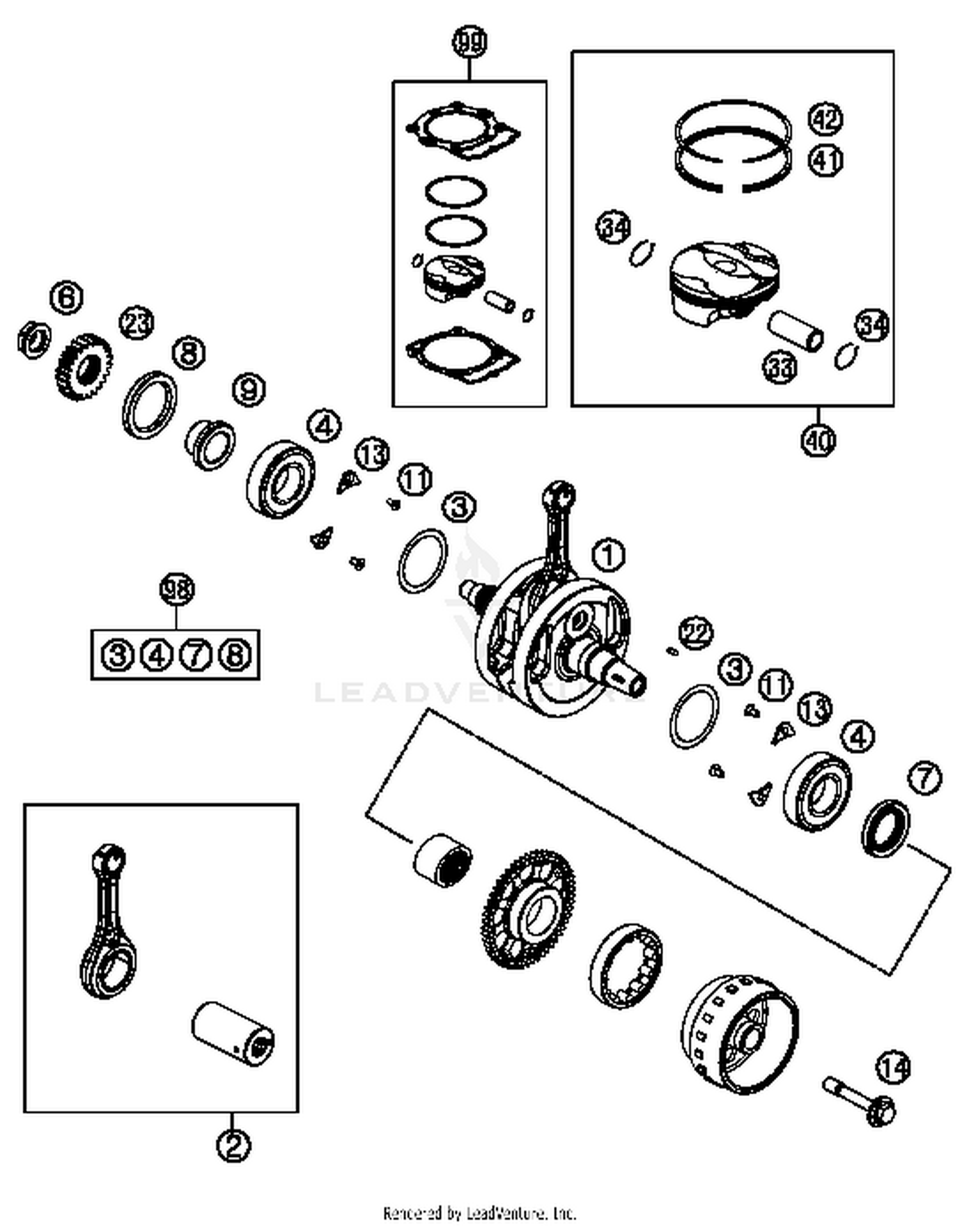

2013 KTM 250SXF Crankshaft, Piston
