More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
77036004000 timing chain guide top 05 05 Retail: $14.84 Price: $12.61

Usually ships in 5-7 business days.
2
77036004050 spacer bushing guide rail ´05 '05 Price: $6.15

In Stock
3
77036012100 camshaft gear screw 08 08 Retail: $15.72 Price: $13.36

Usually ships in 5-7 business days.
4
77036011300 camshaft gear Retail: $74.57 Price: $63.38

Usually ships in 5-7 business days.
5
0625060043 ball bearing 6004 nr c3 ´05 '05 Retail: $16.38 Price: $13.92

In Stock
6
77036009500 camshaft intake Retail: $230.00 Price: $195.50

Usually ships in 5-7 business days.
7
0402040600 needle rooler din5402 nrb 4x6 Price: $6.15

Usually ships in 5-7 business days.
8
77036010400 camshaft exhaust Retail: $289.62 Price: $246.18

Usually ships in 5-7 business days.
9
77036015100 auto decompression shaft Retail: $57.41 Price: $48.80

Usually ships in 5-7 business days.
10
77036016100 auto deco weight Retail: $64.12 Price: $54.50

Usually ships in 5-7 business days.
11
77036017000 spring for auto decompr. 05 05 Price: $6.15

Usually ships in 5-7 business days.
12
77036019000 bearing pin autodeco 06 Retail: $22.46 Price: $19.09

Backordered
14
77036001000 timing chain guide 05 05 Retail: $16.60 Price: $14.11

Usually ships in 5-7 business days.
15
77036001160 bushing screw 06 06 Price: $3.99

Usually ships in 5-7 business days.
16
0603082121 seal ring cu din7603- 8x12x1 Supersedes: 58038032000 (SEAL RING CU DIN7603- 8X12X1) Price: $3.99

In Stock
17
0025060256 hh collar screw m6x25 tx30 TX30 Supersedes: 0015060253 (HH COLLAR SCREW M6X25 TX30) Price: $3.99

In Stock
18
59036001050 spacer bushing 6,1x8,2x13,1 Price: $4.99

In Stock
19
77036005000 securing protection ´05 '05 Price: $8.02

Usually ships in 5-7 business days.
20
77036002000 timing chain tensioner ´05 '05 Price: $7.91

In Stock
21
77036001050 spacer bushing 6.1x8.2x9.1 05 05 Price: $4.99

Usually ships in 5-7 business days.
22
0025060406 hh collar screw m6x40 tx30 TX30 Supersedes: 0015060403 (HH COLLAR SCREW M6X40 TX30) Price: $3.99

In Stock
23
78036008100 chain adjuster holding bolt Supersedes: 78036008000 (CHAIN ADJUSTER HOLDING BOLT) Retail: $25.51 Price: $21.68

In Stock
24
0603242920 cu seal-ring din7603 a24x29x2 Price: $3.99

In Stock
25
77036003000 chain adjuster hyd. 05 05 Retail: $86.89 Price: $73.86

In Stock
26
0770180020 o-ring 18.00x2.00 nbr70 Supersedes: 0770021140 (O-RING) Price: $2.99

In Stock
27
77036072100 timing valve jackshaft 08 08 Retail: $45.31 Price: $38.51

Usually ships in 5-7 business days.
28
77036073000 stop disk 18,2x30x1 05 05 Price: $3.99

In Stock
29
0888030037 woodruff key din6888-3x3,7 Price: $2.99

In Stock
30
77036076200 timing valve twin wheel Retail: $142.44 Price: $121.07

Usually ships in 5-7 business days.
31
77036013100 timing chain 108 rolls Retail: $115.93 Price: $98.54

In Stock
32
0625062035 ball bearing 6203 jr2 c3 Supersedes: 800010452 (BALL BEARING 6203 C3 NTN) Retail: $17.04 Price: $14.48

In Stock
33
0618182412 needle bear.hk1812 18/24/12 05 05 Price: $9.56

In Stock
34
0402031780 needle rol.din5402 nrb 3x17,8 Price: $1.99

In Stock
35
77035055000 water pump rotor 05 05 Price: $4.99

In Stock
36
0471100010 circlip din0471-10x1 Price: $2.99

In Stock
38
0760123073 shaft seal ring 12x30x7 ptfe Supersedes: 0760123072 (SHAFT SEAL RING 12X30X7) Retail: $14.73 Price: $12.52

In Stock
39
77035053000 molded ring water pump 05 05 Price: $8.68

In Stock
40
77035052000 water pump cover 05 05 Retail: $47.07 Price: $40.01

Usually ships in 5-7 business days.
41
0025060306 hh collar screw m6x30 tx30 TX30 Supersedes: 0015060303 (HH COLLAR SCREW M6X30 TX30) Price: $3.99

In Stock
42
0025060206 hh collar screw m6x20 tx30 TX30 Supersedes: 0015060203 (HH COLLAR SCREW M6X20 TX30) Price: $3.99

In Stock
43
0603061001 cu-seal ring din7603-6x10x1 Supersedes: 8000H4591 (CU- SEAL RING DIN7603-6X10X1) Price: $2.99

In Stock
44
0770010010 o-ring 10.00x1.00 nbr70 Price: $2.99

In Stock
45
77336008010 holding bolt Price: $9.78

In Stock

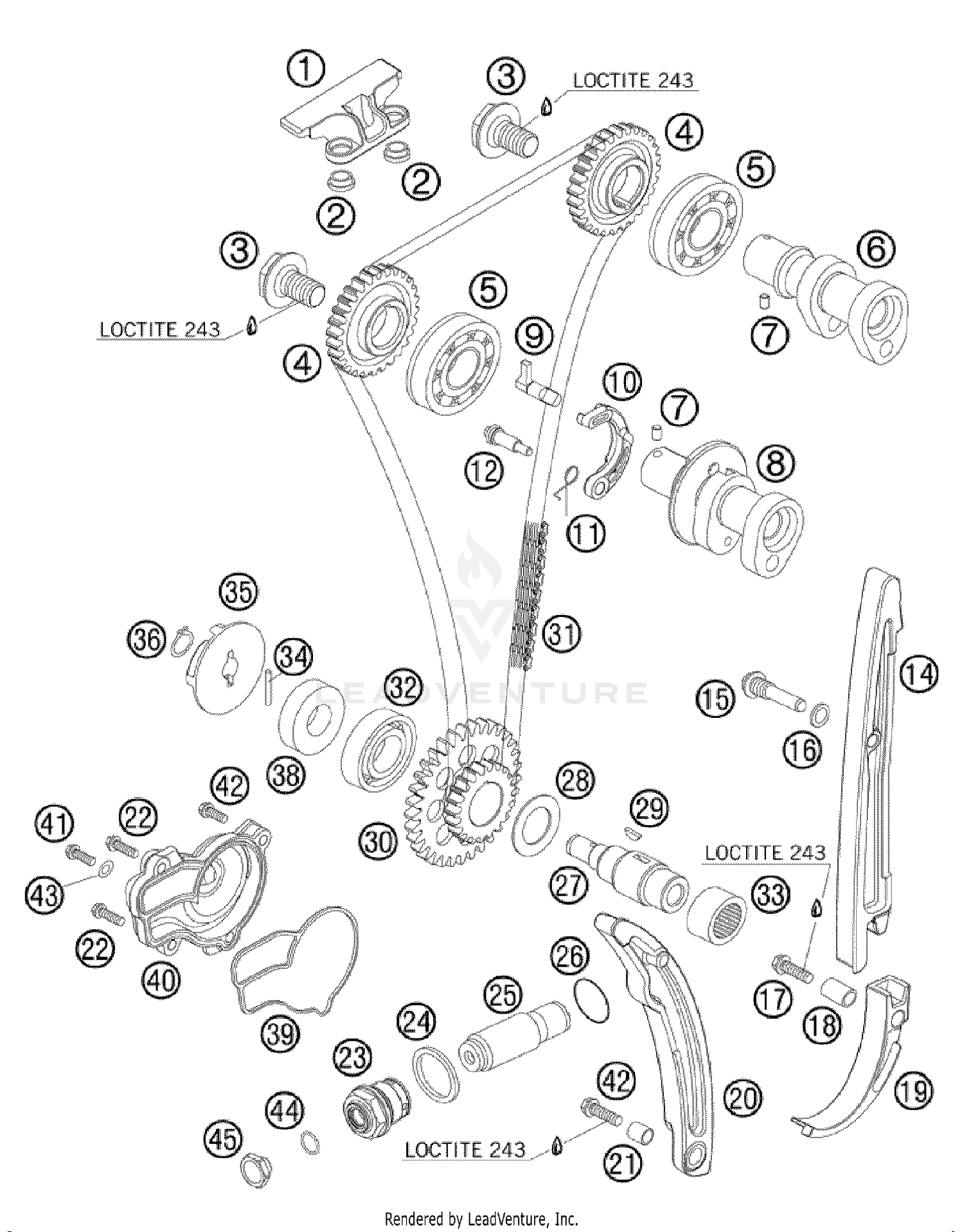

2009 KTM 250XCF Timing Drive
