More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
3
486008S adjusting knob + screw
This part is currently unavailable.
3
48600698 fork protection ring 62,1mm 08 Retail: $10.99 Price: $9.34

In Stock
3
48600464 piston rod 12x405 Price: $161.99

Usually ships in 5-7 business days.
2
48600736 fork outer tube 49,13x577 dt54 db60 natu Retail: $543.94 Price: $462.35

In Stock
5
48601009 guide bushing 48x52x12 Supersedes: 48600429 (DU-BUSH D48XD52X12DDL02) Retail: $14.18 Price: $12.05

Usually ships in 5-7 business days.
6
4860003 support ring 50 x 5 7,6 x 1,5
This part is currently unavailable.
7
S604800001000C1 shaft seal skf 48x58x11,4 black 03 Supersedes: 48600347 (OIL SEAL RING 48X57,8X9,5 03) Retail: $16.05 Price: $13.64

In Stock
8
48600070 snap ring sb58x1,5 acc drawing Price: $2.41

Usually ships in 5-7 business days.
9
S604800000000C1 dirtscarper skf 48mm black Supersedes: 48600400 (DUST CAP D=48 58,4X11,8) Retail: $15.06 Price: $12.80

In Stock
22
48601008 guide bushing 47x49x20 Supersedes: 48600428 (DU-BUSH D47XD49X20DDL02) Retail: $14.18 Price: $12.05

In Stock
24
4860028 membrane
This part is currently unavailable.
26
4860030 o-riig nbr 9,5x,5
This part is currently unavailable.
27
46808 o-ring nbr 1 7x2 pa
This part is currently unavailable.
28
4800280S screw bush m20x1 l=33 cpl.
This part is currently unavailable.
29
48600275 copper disc 20,5x26x1 Price: $2.41

In Stock
30
48600269 adjustment tube 6x371 Retail: $25.29 Price: $21.50

In Stock
32
48600459 lock nut m12x1 h23 waf17 Retail: $11.65 Price: $9.90

Usually ships in 5-7 business days.
33
48600277 needle 4,5x43,6 07 Price: $6.48

In Stock
34
48600298 o-ring 2x1,5 nbr70 Price: $1.20

Usually ships in 5-7 business days.
35
48600444 spring (5,4) 4-23 rebound Price: $3.62

In Stock
38
940027S spring 4,4 n/mm set d=5,1mm (As required)
This part is currently unavailable.
38
940028S spring 4,6 n /mm set d=5,1mm (As required)
This part is currently unavailable.
38
940029S polished spring 4,8 n/mm (As required)
This part is currently unavailable.
38
940030S spring 5,0 n/mm (As required)
This part is currently unavailable.
38
940059S spring 4,0 n/mm set (As required)
This part is currently unavailable.
38
940060S spring 4,2 n/mm set d=5,0mm (As required)
This part is currently unavailable.
39
48600456 washer 35x43x2,5 plastic (As required) Price: $2.41

In Stock
39
48600457 preload bush 35x43x3,5 (As required) Price: $2.41

In Stock
39
48600458 washer 35x43x1,5 plastic (As required) Price: $2.41

In Stock
40
48600525 spring retainer 12,3x19x1,25 rebound Price: $2.41

Usually ships in 5-7 business days.
42
48600520 spring support ring 27,08x42x41 Retail: $78.75 Price: $66.94

Usually ships in 5-7 business days.
43
48600299 o-ring 6x1,2 nbr70 Price: $1.20

Usually ships in 5-7 business days.
44
48600578 spring (13,9) 37-32 rebound Price: $2.41

Usually ships in 5-7 business days.
45
48600576 tap 6x46 rebound Retail: $14.99 Price: $12.74

In Stock
47
35480377 spring (11,7) 1,5-8 valve Price: $2.41

Usually ships in 5-7 business days.
47
48600382 spring (11,4) 0,4-8 valve Price: $2.41

Usually ships in 5-7 business days.
48
48600519E3 membrane holder wp Supersedes: 48600519S3 (MEMBRANE HOLDER INKL. PIN SET) Retail: $339.49 Price: $288.57

Backordered
49
48600512 round-wire snap ring 28,5x1,5 Price: $5.93

Usually ships in 5-7 business days.
50
48600542 hs countersunk head screw m4x6 Price: $3.62

In Stock
51
46811499 o-ring 21x2 nbr70 Price: $1.20

In Stock
52
48600047 piston 6x27,8x9 compression Retail: $11.54 Price: $9.81

In Stock
53
50180222 o-ring 4x1,5 nbr70 Price: $1.20

In Stock
54
48600518S pin valve set
This part is currently unavailable.
55
40540486 nut m6x0,5 h6,5 waf10 rebound Price: $4.83

In Stock
56
48600744 guiding ring 39x44x8 Price: $1.20

In Stock
57
48600577 spring guide ring 27,08x32x9,5 Price: $6.48

Backordered
59
48600113 washer 32x42x2,5 plastic Retail: $13.08 Price: $11.12

Usually ships in 5-7 business days.
60
48600863S1 fork ax.pass + tube cpl. 09 Supersedes: 48600690S2 (FORK AX.PASS + TUBE CPL.) Retail: $693.99 Price: $589.89

Backordered
61
48600864S1 fork ax.pass + tube cpl. 09 Supersedes: 48600691S2 (AXLE CLAMP R/S + TUBE CPL. 09) Retail: $737.29 Price: $626.70

Backordered
62
0025080256 hh collar screw m8x25 TX40 Supersedes: 0015080253 (HH COLLAR SCREW M8X25 TX40) Price: $2.41

In Stock
63
48600163 nut valve m6x0,5 h6,5 waf17 Price: $3.62

Usually ships in 5-7 business days.
64
48600202 spring (8,5) l6,5 valve Price: $2.41

Usually ships in 5-7 business days.
69
48600509 tap 6x38 compression Retail: $12.20 Price: $10.37

In Stock
71
48600575 piston 6,07x22,7x13 2007 Retail: $17.37 Price: $14.76

In Stock
72
48601625 piston ring 21x23x5 Supersedes: 48600455 (Piston ring 21x23x5) Price: $5.29

In Stock
74
48600296 ring d=23,45x2,65 Retail: $12.06 Price: $10.25

Backordered
75
48600829 seal ring freudenberg 12mm 85sh violett Supersedes: 48600471 (PISTON ROD SEALING) Price: $7.14

In Stock
76
48600546S screw sleeve m24,5x1 cpl. Retail: $82.20 Price: $69.87

Backordered
77
48600430 guide bushing 12x14x10 Price: $7.58

Usually ships in 5-7 business days.
78
48600709 check valve locking r4 Retail: $21.22 Price: $18.04

Usually ships in 5-7 business days.
79
48600446 round-wire snap ring 24x2 Price: $2.41

Backordered
81
15080017 silicon plug 60sh Price: $6.15

Usually ships in 5-7 business days.
82
48600692 rubber cap 26,4x11 Price: $3.62

In Stock
83
48601166S1 fork fluid viscosity 4.0 5l 2005 Supersedes: 48600211S1 (FORK OIL SAE4 5L) Retail: $175.99 Price: $149.59

Usually ships in 5-7 business days.
84
40140024 o-ring 43x2 nbr70 siliconized yellow Price: $4.83

In Stock
85
48600516E1 screw cap l=125 Supersedes: 48600516S1 (SCREW CAP L=125) Retail: $126.71 Price: $107.70

Usually ships in 5-7 business days.
87
48600526 cross flat head screw m4x10 Price: $2.41

In Stock
88
48600514 clamping ring bladder 11,31x22x7,5 Retail: $32.44 Price: $27.57

Usually ships in 5-7 business days.
98
T14034 fuchs grease ipr (250g) Supersedes: T511 (Fuchs grease IPR (250g)) Retail: $40.69 Price: $34.59

Usually ships in 5-7 business days.
99
RP10046T fork service kit 48mm Supersedes: R14014 (REPAIR-KIT GASKET 48MM 0) Retail: $124.95 Price: $106.21

Usually ships in 5-7 business days.

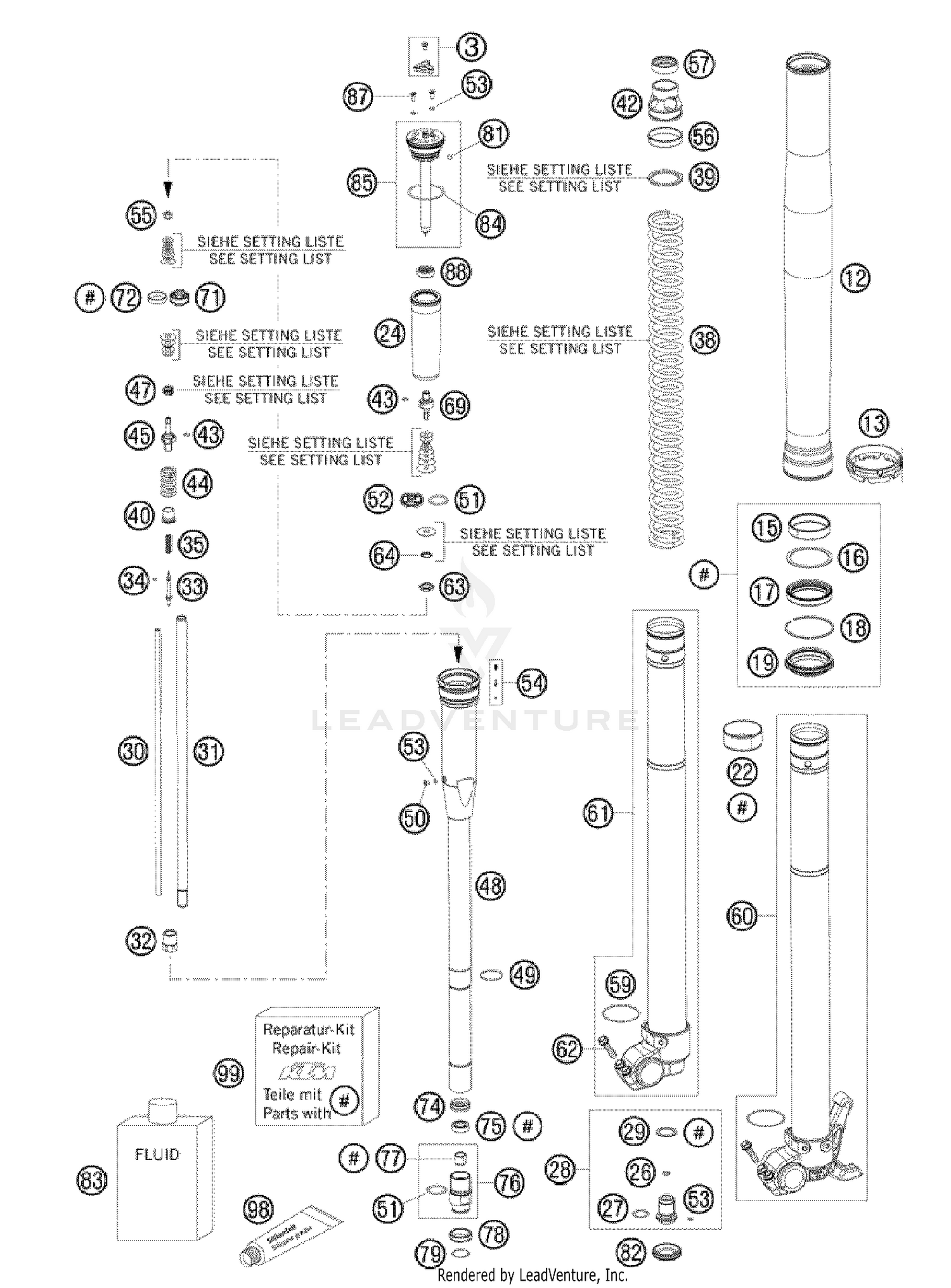

2009 KTM 200XC USA Front Fork, Disassembled
