MotoSport.com: #1 in Dirt Bike, Motorcycle, ATV and UTV Parts, Accessories and Gear

More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
46180348 shock absorber top h40 135deg.
This part is currently unavailable.
2
50180213S4 dcc-compr.damp.control cpl. 03 Retail: $385.09 Price: $288.82

Expected to Ship in 4-9 Days
3
46180007 distance bush 12x15/18/24,5x10,5 Retail: $20.89 Price: $17.76

In Stock
4
46180003 seal ring 19,5x26x3 Price: $6.59

In Stock
5
50180168 round-wire snap ring 25x1 Price: $1.20

In Stock
6
50180005 ball joint bearing 15x25x13 Retail: $34.53 Price: $29.35

Usually ships in 5-7 business days.
8
50180095 hs cylinder-head screw r1/8 l8 Price: $2.85

In Stock
11
46180017 o-ring 50x2 nbr70 siliconized Price: $1.20

Usually ships in 5-7 business days.
12
52000086 sticker wp clear 35x55 Supersedes: 52000014 (STICKER WP 35X55) Price: $4.19

Backordered
13
46180319 reservoir screw l=113,5 d=52 Retail: $197.02 Price: $151.71

Expected to Ship in 4-9 Days
14
46180014 o-ring 41x5 viton75 Price: $2.41

Usually ships in 5-7 business days.
15
46180002 piston 52mm reservoir Retail: $51.36 Price: $43.66

Backordered
16
46180015 pistonring 47,5x50,5x3,9 Retail: $11.76 Price: $10.00

Usually ships in 5-7 business days.
18
50180344 reservoir cap d=58 Retail: $141.74 Price: $120.48

Backordered
19
S208600003000FB o-ring 5,28x1,78 hnbr70 red Supersedes: 46810893 (O-ring 5,28x1,78 NBR70 black) Price: $1.33

In Stock
20
36120151ST plug screw m5x6 cpl. Supersedes: 36120151 (HS lock screw M5x6) Price: $4.83

In Stock
21
46811208 rubber cap do not open 22x5,5 nbr Price: $3.62

Usually ships in 5-7 business days.
25
46810016 o-ring 48x2 nbr70 siliconized Price: $1.20

Usually ships in 5-7 business days.
27
46180340 sleeve d=48 Retail: $94.83 Price: $82.50

Expected to Ship in 4-9 Days
29
46180352 lock washer m52x1,5 Retail: $52.57 Price: $44.68

Backordered
30
46180345 tube m52x1,5 Retail: $146.35 Price: $112.69

Expected to Ship in 4-9 Days
35
46180353 spring retainer m52x1,5
This part is currently unavailable.
36
46180354 ah screw m5x25 Price: $1.99

Backordered
40
91010240 spring (59) 215 35 n/mm d=9,25 Retail: $203.47 Price: $156.67

Expected to Ship in 4-9 Days
40
91010161 mainspring (59) 40-215 damper white Retail: $203.47 Price: $172.95

Backordered
40
91010201 mainspring (59) 45-215 damper white Retail: $153.99 Price: $130.89

In Stock
43
46180349 spring retainer 28x56x15 Retail: $36.29 Price: $30.85

Backordered
45
46180356 piston rod nut m10x1 Price: $9.12

Usually ships in 5-7 business days.
46
46810035 o-ring 37x,82x1,78 viton70 green Price: $2.41

Usually ships in 5-7 business days.
47
46811206 piston ring 43,95x45,95x8 Retail: $20.89 Price: $17.76

In Stock
48
36120349 shim 10x19x0,30 Price: $2.41

Usually ships in 5-7 business days.
48
50180032 shim 16x25x0,25 Price: $3.62

In Stock
48
50180395 ring 10x16x1 Price: $5.69

Backordered
49
14460016 piston 10,05x35,5x13,7 3,5/5,5 Retail: $68.41 Price: $58.15

Usually ships in 5-7 business days.
50
36120312 shim 10x16x0,30 Price: $2.41

In Stock
50
36120334 shim 10x21x0,20 Price: $2.41

In Stock
50
36120335 shim 10x23x0,20 Price: $2.41

Usually ships in 5-7 business days.
50
36120336 shim 10x25x0,20 Price: $2.41

In Stock
50
36120337 shim 10x27x0,20 Price: $2.41

Usually ships in 5-7 business days.
50
36120338 shim 10x29x0,20 Price: $2.41

In Stock
50
36120339 shim 10x31x0,20 Price: $2.41

In Stock
51
46180339 separation bush 17x12x18 Retail: $33.89 Price: $28.81

Backordered
54
46810505 shim 12x36x0,25 Price: $2.41

Usually ships in 5-7 business days.
54
46810519 shim 12x28x0,15 Price: $2.41

Usually ships in 5-7 business days.
54
46810495 shim 12x34x0,20 Price: $2.41

Usually ships in 5-7 business days.
54
46810494 shim 12x32x0,20 Price: $2.41

Usually ships in 5-7 business days.
54
46810493 shim 12x30x0,20 Price: $2.41

Usually ships in 5-7 business days.
54
46810492 shim 12x28x0,20 Price: $2.41

Usually ships in 5-7 business days.
54
46810637 shim 12x17x0,30 Price: $2.41

Usually ships in 5-7 business days.
56
46810491 shim 12x26x0,20 Price: $2.41

Usually ships in 5-7 business days.
56
46810492 shim 12x28x0,20 Price: $2.41

Usually ships in 5-7 business days.
56
46810493 shim 12x30x0,20 Price: $2.41

Usually ships in 5-7 business days.
56
46810494 shim 12x32x0,20 Price: $2.41

Usually ships in 5-7 business days.
56
46810520 shim 12x30x0,15 Price: $2.41

Usually ships in 5-7 business days.
56
46810522 shim 12x34x0,15 Price: $2.41

Usually ships in 5-7 business days.
56
46810523 shim 12x36x0,15 Price: $2.41

Usually ships in 5-7 business days.
56
46810524 shim 12x38x0,15 Price: $2.41

Usually ships in 5-7 business days.
56
46810525 shim 12x40x0,15 Price: $2.41

Usually ships in 5-7 business days.
56
46810637 shim 12x17x0,30 Price: $2.41

Usually ships in 5-7 business days.
57
46180179 rebound disc h=0 Retail: $78.83 Price: $68.58

Expected to Ship in 4-9 Days
57
46180337 rebound disc 12x34x7 h4 Retail: $38.49 Price: $32.72

Backordered
58
46180047 piston 5x4,5x/6x6 Retail: $213.88 Price: $181.80

Backordered
60
46180343 tap piston rod d=13,5 Retail: $58.08 Price: $50.53

Expected to Ship in 4-9 Days
61
46180342 spindel d=18 lc=159
This part is currently unavailable.
62
50180397 o-ring 5x1,5 viton70 Price: $1.04

Backordered
64
46180346 needle rebound l=169 Retail: $14.49 Price: $12.32

Backordered
65
46180018 o-ring nbr 7,5x2 Price: $1.99

Backordered
66
46180350 needle guide Retail: $10.39 Price: $8.83

Backordered
72
46180341S adaptor cpl. d=46 h=28 d=38 Retail: $179.34 Price: $152.44

Backordered
73
50180168 round-wire snap ring 25x1 Price: $1.20

In Stock
74
46180003 seal ring 19,5x26x3 Price: $6.59

In Stock
75
46180007 distance bush 12x15/18/24,5x10,5 Retail: $20.89 Price: $17.76

In Stock
76
46180005 screw cap m16x1 Supersedes: 46180355 (RESERVOIR CAP M16X1) Retail: $33.09 Price: $28.13

Backordered
77
46180013 o-ring 12x1 nbr70 Price: $2.41

Usually ships in 5-7 business days.
78
50180222 o-ring 4x1,5 nbr70 Price: $1.20

In Stock
79
48600028 spring (1,7) l7,9 Price: $3.62

In Stock
80
40540603 steel ball d3 Price: $1.20

Usually ships in 5-7 business days.
81
46180006 adjustment screw slot rebound Retail: $26.50 Price: $22.53

Usually ships in 5-7 business days.
82
46180016 adjustment screw slot rebound Retail: $45.99 Price: $39.09

Backordered
83
50180410 washer 58,6x73,6x1,5 Price: $4.83

Usually ships in 5-7 business days.
85
46810010 round-wire snap ring 49x1,8 Price: $3.62

In Stock
86
46180338 cover 46,12x6,2 h15,7 Retail: $40.58 Price: $34.49

Usually ships in 5-7 business days.
87
50180276 rubber pad 17,2x45,2x40 black Price: $9.89

In Stock
88
50180283 hh locking nut m18x1 h5 waf24 Retail: $14.29 Price: $12.15

Backordered
90
46180347 shock absorber bot. kgw l=54,5 Retail: $247.39 Price: $210.28

Backordered
97
50180005 ball joint bearing 15x25x13 Retail: $34.53 Price: $29.35

Usually ships in 5-7 business days.
98
50180751S1 shock absorber fluid 5 lt Supersedes: 46810208S1 (SHOCK ABSORBER FLUID 5 LT) Retail: $175.99 Price: $149.59

Usually ships in 5-7 business days.

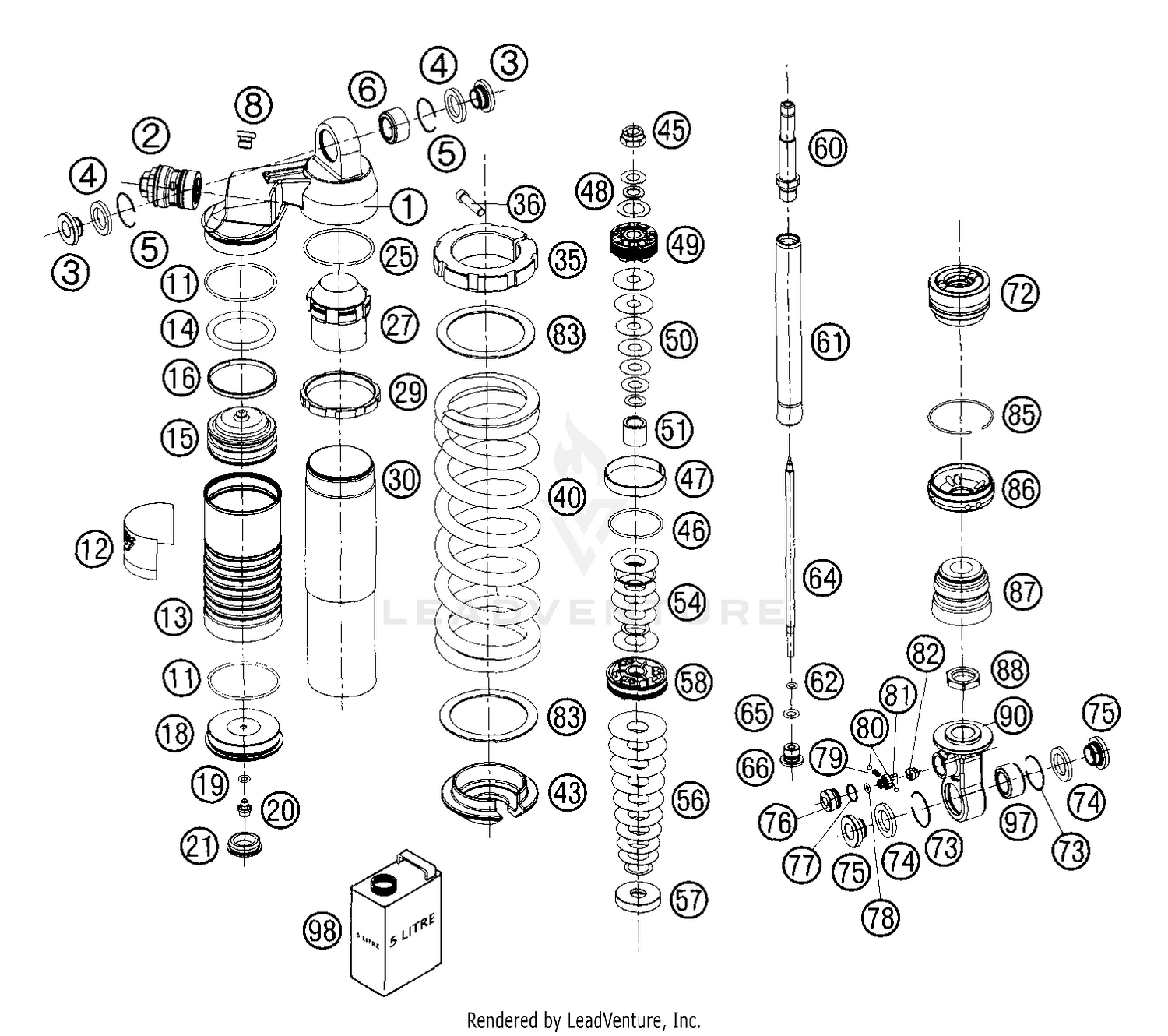

2004 KTM 105SX Shock Absorber WP Disassembled
