1987 Kawasaki KX500 CARBURETOR

Set this as my ride

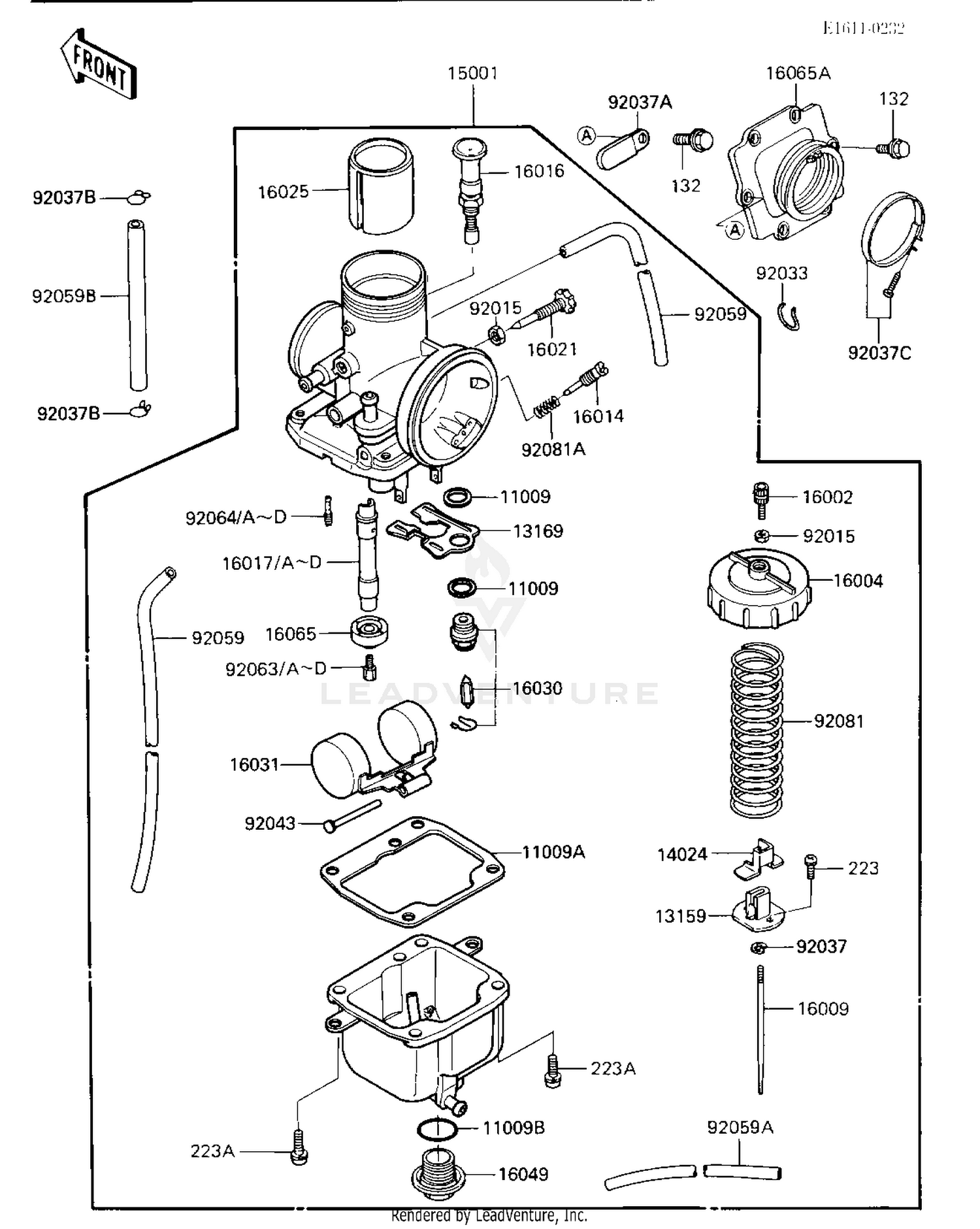

CARBURETOR

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 11009
    11009-1076 gasket,float valve
    This part is currently unavailable.
  • 11009A
    16019-028 gasket,float chamber
    This part is currently unavailable.
  • 11009B
    16038-009 gasket-cover
    This part is currently unavailable.
  • 13159
    13159-1010 connector,throttle
    This part is currently unavailable.
  • 13169
    13169-1520 plate,float chamber
    This part is currently unavailable.
  • 14024
    14025-1478 cover,throttle
    This part is currently unavailable.
  • 15001
    15001-1310 carburetor-assy Retail: $348.74 Price: See price in cart
    Expected to Ship in 4-9 Days
  • 16002
    16002-011 adjuster-cable Retail: $13.21 Price: $12.15
    Expected to Ship in 4-9 Days
  • 16004
    16004-026 cap-mixing chamber
    This part is currently unavailable.
  • 16009
    16009-1341 needle-jet,6dj6
    This part is currently unavailable.
  • 16014
    16014-006 screw
    This part is currently unavailable.
  • 16016
    16016-1026 plunger,starter
    This part is currently unavailable.
  • 16017
    16017-1234 jet-needle,r-2 (OPTION)
    This part is currently unavailable.
  • 16017A
    16017-1235 jet-needle,r-0
    This part is currently unavailable.
  • 16017B
    16017-1236 jet-needle,r-4 (OPTION)
    This part is currently unavailable.
  • 16017C
    16017-1295 jet-needle,q-8 (OPTION) Retail: $39.49 Price: See price in cart
    Expected to Ship in 4-9 Days
  • 16017D
    16017-1306 jet-needle,q-6 (OPTION) Retail: $27.51 Price: See price in cart
    Expected to Ship in 4-9 Days
  • 16021
    16021-1108 screw-throttle stop Supersedes: 16021-1104 (SCREW-THROTTLE STOP)
    This part is currently unavailable.
  • 16025
    16025-1140 valve-throttle,ca 3.0 Retail: $107.66 Price: See price in cart
    Expected to Ship in 4-9 Days
  • 16030
    16030-1015 valve-float
    This part is currently unavailable.
  • 16031
    16031-030 float
    This part is currently unavailable.
  • 16049
    16049-1005 cover,main jet
    This part is currently unavailable.
  • 16065
    16065-1045 holder,needle jet Supersedes: 16065-1040 (HOLDER-CARBURETOR)
    This part is currently unavailable.
  • 16065A
    16065-1149 holder-carburetor
    This part is currently unavailable.
  • 92015
    16003-006 nut,adjust lock Price: $7.56
    Expected to Ship in 4-9 Days
  • 92033
    92036-018 ring-snap Price: $4.11
    In Stock
  • 92037
    16008-010 circlip Price: $9.84
    Expected to Ship in 4-9 Days
  • 92037A
    92171-0652 clamp,l=60 Supersedes: 92037-1069 (CLAMP) Price: $2.81
    Expected to Ship in 4-9 Days
  • 92037B
    92037-147 clamp,tube Price: $7.56
    In Stock
  • 92037C
    92037-1486 clamp,55mm Price: $9.18
    In Stock
  • 92043
    16032-008 pin,float Supersedes: 16032-003 (PIN,FLOAT) Price: $7.04
    Expected to Ship in 4-9 Days
  • 92059
    92059-147 hose,fuel overflow Supersedes: 92059-1142 (TUBE,3.5X6.5X410)
    This part is currently unavailable.
  • 92059A
    92059-1233 tube,3.5x6.5x300
    This part is currently unavailable.
  • 92059B
    92059-3731 tube,2.5x5.8x270 Supersedes: 92059-1888 (TUBE, 2.5X5.8X270) Price: $9.82
    In Stock
  • 92063
    92063-032 main jet no 360a Retail: $19.65 Price: $18.08
    Expected to Ship in 4-9 Days
  • 92063A
    92063-033 jet-main no 370a (OPTION)
    This part is currently unavailable.
  • 92063B
    92063-034 jet-main no 380a (OPTION) Retail: $16.08 Price: $14.79
    Expected to Ship in 4-9 Days
  • 92063C
    92063-049 main jet no 340a (OPTION)
    This part is currently unavailable.
  • 92063D
    92063-050 jet-main no 350a (OPTION)
    This part is currently unavailable.
  • 92064
    92064-022 jet-pilot,#30 (OPTION) Retail: $15.85 Price: $14.58
    In Stock
  • 92064A
    92064-023 jet-pilot no 35
    This part is currently unavailable.
  • 92064B
    92064-024 jet-pilot no 40 (OPTION)
    This part is currently unavailable.
  • 92064C
    92064-044 jet-pilot no 45 (OPTION)
    This part is currently unavailable.
  • 92064D
    92064-1033 jet-pilot,#27.5 (OPTION) Retail: $15.85 Price: $14.58
    Expected to Ship in 4-9 Days
  • 92081
    16006-028 spring,throttle valve
    This part is currently unavailable.
  • 92081A
    16022-007 spring,pilot air screw Price: $8.77
    Expected to Ship in 4-9 Days
  • 132
    132BA0620 bolt-flanged-small,6x20 Supersedes: 132G0620 (BOLT-FLANGED-SMALL,6X20) Price: $2.86
    In Stock
  • 223
    223AA0307 screw-pan-ws-cros Supersedes: 223B0308 (SCREW-PAN-WS-CROS,3X7) Price: $5.76
    Expected to Ship in 4-9 Days
  • 223A
    223AA0516 screw-pan-ws-cros,5x16 Supersedes: 223B0516 (SCREW-PAN-WS-CROS,5X16) Price: $6.41
    Expected to Ship in 4-9 Days
