2011 Husqvarna SMS 125 Clutch, Primary Drive

Set this as my ride

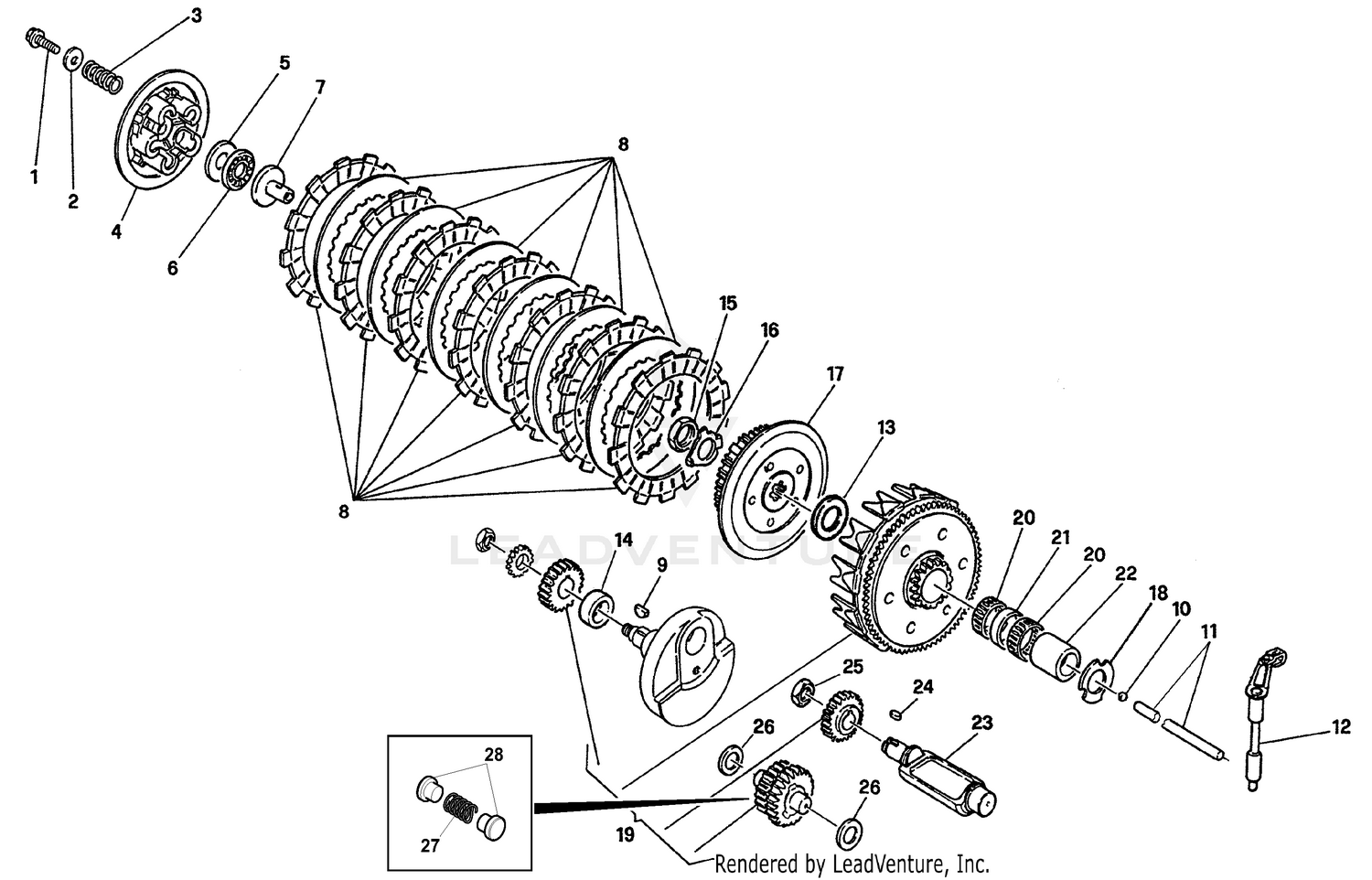

Clutch, Primary Drive

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    0025060206 hh collar screw m6x20 tx30 Supersedes: 0015060203 (HH COLLAR SCREW M6X20 TX30) Price: $3.29
    In Stock
  • 2
    Z00048814 washer Supersedes: 800048814 (Washer)
    This part is currently unavailable.
  • 3
    800083085 spring,clutch Price: $1.99
    Expected to Ship in 4-9 Days
  • 4
    800070467 plate retaining spring Retail: $29.89 Price: $25.41
    Expected to Ship in 4-9 Days
  • 5
    800070551 thrust washer Price: $3.99
    Expected to Ship in 4-9 Days
  • 6
    800070550 bearing, needle thrust
    This part is currently unavailable.
  • 7
    800070549 piece, clutch push
    This part is currently unavailable.
  • 8
    800088822 clutch plates set
    This part is currently unavailable.
  • 9
    800054507 key, woodruff Price: $3.99
    Expected to Ship in 4-9 Days
  • 10
    6BN021506 ball 7/32' Price: $1.09
    Expected to Ship in 4-9 Days
  • 11
    8000H4192 clutch control rod Retail: $12.19 Price: $10.36
    Expected to Ship in 4-9 Days
  • 12
    800070552 release-comp-clutch
    This part is currently unavailable.
  • 13
    8000H4193 washer Retail: $14.29 Price: $7.77
    In Stock
  • 14
    800092820 spacer
    This part is currently unavailable.
  • 15
    8A0031386 nut m16x1.00 ch22
    This part is currently unavailable.
  • 16
    800029089 washer
    This part is currently unavailable.
  • 17
    800070468 hub, clutch
    This part is currently unavailable.
  • 18
    800046428 washer 33x17
    This part is currently unavailable.
  • 19
    8000H5728 set of matched primary (z 22/72)
    This part is currently unavailable.
  • 20
    8A0025044 bearing, needle
    This part is currently unavailable.
  • 21
    8A0036849 spacer
    This part is currently unavailable.
  • 22
    8A0065845 spacer 17x24.6 Retail: $28.19 Price: $23.96
    Expected to Ship in 4-9 Days
  • 23
    800066954 layshhaft
    This part is currently unavailable.
  • 24
    800038707 key, woodruff Retail: $4.39 Price: $2.77
    In Stock
  • 25
    80A047665 nut m14 ch22 Price: $7.69
    Expected to Ship in 4-9 Days
  • 26
    800004551 thrust washer 22x12x0.3 Retail: $14.29 Price: $12.15
    Expected to Ship in 4-9 Days
  • 26
    8B0004551 washer Supersedes: 8C0004551 (WASHER) Price: $1.31
    Expected to Ship in 4-9 Days
  • 26
    8E0004551 thrust washer 22x12x0.8
    This part is currently unavailable.
  • 26
    8G0004551 washer (1,0 mm)
    This part is currently unavailable.
  • 27
    8000A1406 spring Price: $2.99
    Expected to Ship in 4-9 Days
  • 28
    800055588 pin
    This part is currently unavailable.
