More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
8000H1691 frame
This part is currently unavailable.
1
8000H1694 front frame
This part is currently unavailable.
2
8000H1651 rear frame
This part is currently unavailable.
2
8000H1652 rear frame Retail: $805.09 Price: $684.33

Backordered
3
Z00069056 screw Supersedes: 800069056 (SCREW TE M8X1.25X20 CH12)
This part is currently unavailable.
4
Y00060898 screw Retail: $1.04 Price: $0.50

In Stock
5
Y00073140 footrest pin Supersedes: 800073140 (Pin)
This part is currently unavailable.
6
800096907 spring, footrest, lh
This part is currently unavailable.
7
8000B0157 guard engine
This part is currently unavailable.
9
80A089953 footrest, front rh
This part is currently unavailable.
10
80A089962 footrest, front lh Retail: $78.99 Price: $67.14

Backordered
11
800096908 spring, footrest, rh
This part is currently unavailable.
12
64ND20068 pin
This part is currently unavailable.
13
ZA0001815 washer d16xd10,5x1 Supersedes: 8A0001815 (WASHER 16X10X1)
This part is currently unavailable.
15
80A0B0245 cover pivot lh m.f.graystone
This part is currently unavailable.
18
800069150 bracket, seat
This part is currently unavailable.
19
800062796 screw tef m8x1.25x40 ch12
This part is currently unavailable.
20
800033373 rivet 3.3x14 Retail: $1.73 Price: $0.50

In Stock
24
8000A7237 u-bolt
This part is currently unavailable.
25
800087243 conical rollers bearing 29-48- Retail: $27.16 Price: $23.09

Backordered
26
800062796 screw tef m8x1.25x40 ch12
This part is currently unavailable.
27
YG0073458 screw Supersedes: 8G0073458 (SCREW)
This part is currently unavailable.
28
YG0073458 screw Supersedes: 8G0073458 (SCREW)
This part is currently unavailable.
29
800043391 lock, steering Retail: $24.19 Price: $20.56

Backordered
30
800024350 spacer 18x8.5x19
This part is currently unavailable.
31
Y00043928 self locking nut Supersedes: 800043928 (Nut) Price: $1.99

In Stock
34
800035531 key, brank
This part is currently unavailable.
37
8000B0152 footrest bracket kit
This part is currently unavailable.
38
8AA059433 roller, chain tensioner Supersedes: 8A0059433 (Roller)
This part is currently unavailable.
39
0625006087 grooved ball bear. 608 2rs c3 Supersedes: 800063312 (GROOVED BALL BEAR 608 2RS C3) Retail: $25.18 Price: $21.40

In Stock
40
8A0059434 spacer Price: $1.99

Backordered
44
8000B0156 footrest assy pillion rh
This part is currently unavailable.
45
800066652 footrest, rear rh
This part is currently unavailable.
46
8000B0155 stay rr step lh p.silver To issue/SMR model
This part is currently unavailable.
47
800066651 footrest, rear lh To issue/SMR model
This part is currently unavailable.
48
800041459 screw To issue/SMR model Price: $3.99

Backordered
49
62N115504 washer 6.4x12x1 To issue/SMR model Price: $1.99

Backordered
50
64ND20048 pin, cotter 1.3x12 To issue/SMR model Supersedes: 64N120048 (PIN, COTTER 1.3X12) Price: $1.99

Backordered
51
800062732 screw tef m8x1.25x25 ch12 To issue/SMR model Price: $2.99

Backordered
52
8000H0233 stand, side TE model Retail: $153.11 Price: $130.14

In Stock
52
8000H0234 stand, side SMR model
This part is currently unavailable.
53
800097976 screw m8x25 mm TE model/SMR model
This part is currently unavailable.
54
8000A0268 spring, inner TE model/SMR model
This part is currently unavailable.
55
8000A0269 spring side stand outer TE model/SMR model
This part is currently unavailable.
56
8000A0267 plate TE model/SMR model
This part is currently unavailable.
57
U00046893 clip nut m6x1 To issue Supersedes: 800046893 (Clip Nut)
This part is currently unavailable.
60
8000H0188 guard. rh crankcase Not for SMR/To issue
This part is currently unavailable.
61
8000H0187 guard, front lh Not for SMR/To issue
This part is currently unavailable.
62
Z00062730 screw te m6x1 ch8 l30 Not for SMR/To issue Supersedes: 800062730 (Screw)
This part is currently unavailable.
63
U00046893 clip nut m6x1 Not for SMR/To issue Supersedes: 800046893 (Clip Nut)
This part is currently unavailable.
65
8000B1747 shield, heat To issue/TE model/TC model
This part is currently unavailable.
66
8E0061121 screw m8x30
This part is currently unavailable.
67
Z00017810 nut Supersedes: 800017810 (Nut)
This part is currently unavailable.
68
60ND02559 screw Supersedes: 60N102559 (Screw) Price: $1.73

Backordered
69
8A0094356 pad TE model/SMR model
This part is currently unavailable.
70
8000B0841 plug Price: $1.73

Backordered
71
800056444 clamp 188 mm
This part is currently unavailable.
72
8000H0822 bush Not for SMR/To issue Retail: $1.99 Price: $0.50

In Stock
73
8000H0235 bolt. stand TE model/SMR model
This part is currently unavailable.

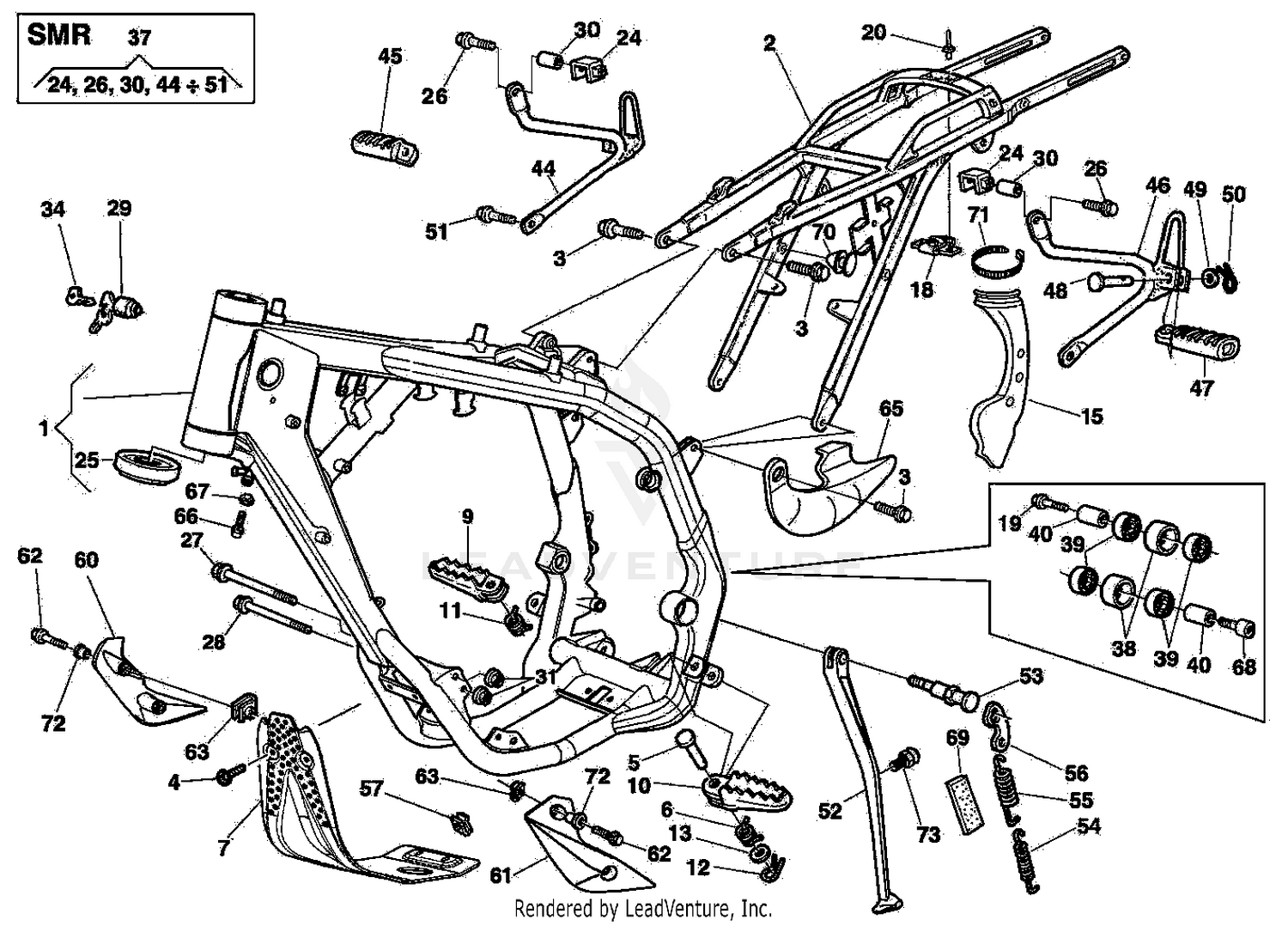

2010 Husqvarna TE 450 Frame, Foot Rests
