2009 Husqvarna TE 310 Transmission, Shifter

Set this as my ride

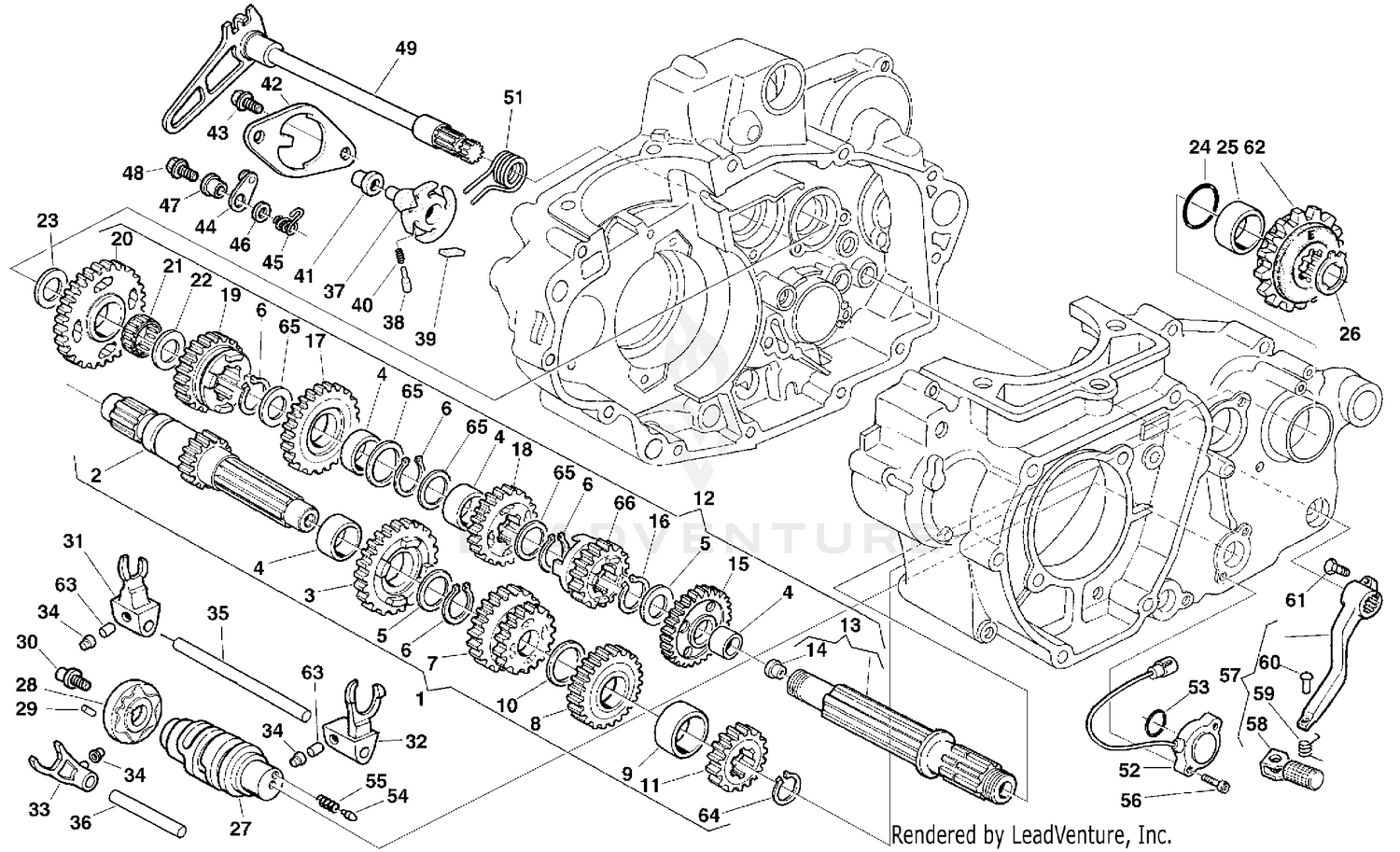

Transmission, Shifter

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    8000A3511 main axle comp.
    This part is currently unavailable.
  • 1
    8000A4592 main shaft assy (250-310)
    This part is currently unavailable.
  • 2
    8000A1300 main shaft t14
    This part is currently unavailable.
  • 2
    8000A3512 main shaft t14 Retail: $184.79 Price: $157.07
    Backordered
  • 3
    800088244 gear drive 5th speed t25 Retail: $99.49 Price: $84.57
    Backordered
  • 4
    800063822 bush Retail: $22.49 Price: $19.12
    Backordered
  • 5
    8D0036022 thrust washer 32x25.1x0.5 mm Price: $2.34
    Backordered
  • 6
    800031772 circlip 23.2x1.2 Retail: $12.69 Price: $10.79
    Backordered
  • 7
    8000A3972 gear drive 3/4th speed t18/23 Supersedes: 800088245 (Main Shaft 3rd- 4th Gear (Z=18, Z=23)) Retail: $112.39 Price: $95.53
    Backordered
  • 8
    800088246 driven gear 6th speed t27
    This part is currently unavailable.
  • 9
    8A0061261 bush 25x22 Retail: $26.69 Price: $22.69
    Backordered
  • 10
    8B0036023 washer, thrust Price: $7.01
    Backordered
  • 11
    800088247 gear drive 2nd speed t18 Retail: $45.39 Price: $38.58
    Backordered
  • 12
    8000A3971 counter shaft assy
    This part is currently unavailable.
  • 13
    8000A1302 counter shaft
    This part is currently unavailable.
  • 14
    800057196 plug 12x6x10 Price: $4.99
    Backordered
  • 15
    8000A1918 driven gear 2nd speed t29 Retail: $91.19 Price: $77.51
    Backordered
  • 16
    66N021211 circlip 25mm din471
    This part is currently unavailable.
  • 17
    800088254 driven gear 4th speed t25 Retail: $58.69 Price: $49.89
    Backordered
  • 18
    8000A3970 driven gear 3th speed t24
    This part is currently unavailable.
  • 19
    8000A1920 driven gear 5th speed t23 Retail: $93.79 Price: $79.72
    Backordered
  • 20
    8000A1921 driven gear 1st speed t28 Retail: $57.69 Price: $49.04
    Backordered
  • 21
    800022373 bearing, needle 20x24x10 Retail: $10.29 Price: $1.77
    In Stock
  • 22
    8G0007989 washer 28x20x1
    This part is currently unavailable.
  • 23
    8G0007989 washer 28x20x1
    This part is currently unavailable.
  • 24
    0770020200 o-ring 21,95x1,78 nbr Supersedes: 800041693 (O-RING 21,95X1,78 NBR) Price: $2.99
    Usually ships in 5-7 business days.
  • 25
    800086953 spacer
    This part is currently unavailable.
  • 26
    66N021211 circlip 25mm din471
    This part is currently unavailable.
  • 27
    8000H0246 drum, change Retail: $123.44 Price: $104.92
    Backordered
  • 28
    8A0097739 cam-change drum Retail: $82.93 Price: $70.49
    Backordered
  • 29
    800038520 roller, 4x8 Price: $1.73
    Backordered
  • 30
    800098149 screw Retail: $23.09 Price: $19.63
    Backordered
  • 31
    8A0086980 shift fork 1-4 Retail: $57.99 Price: $49.29
    Backordered
  • 32
    8A0048127 shift fork 2-3 Retail: $52.47 Price: $44.60
    Backordered
  • 33
    800099738 shift fork 5-6 Retail: $59.29 Price: $50.40
    Backordered
  • 34
    800071010 roller Retail: $22.59 Price: $19.20
    Backordered
  • 35
    800038711 bar, shift fork guide 96 mm Retail: $29.89 Price: $25.41
    Backordered
  • 36
    800038712 bar, shift fork guide 57.5 mm Retail: $18.90 Price: $16.07
    Backordered
  • 37
    8000H0247 selector sprocket Retail: $81.79 Price: $40.77
    In Stock
  • 38
    8000A7515 pawl Retail: $11.79 Price: $10.02
    Backordered
  • 39
    800071008 push rod Retail: $14.59 Price: $12.40
    Backordered
  • 40
    800071009 spring Price: $1.73
    Backordered
  • 41
    800071010 roller Retail: $22.59 Price: $19.20
    Backordered
  • 42
    8000A7514 plate
    This part is currently unavailable.
  • 43
    Z00062726 screw Supersedes: 800062726 (Screw)
    This part is currently unavailable.
  • 44
    800085495 stopper lever assy
    This part is currently unavailable.
  • 45
    8000A1748 spring Price: $5.29
    Backordered
  • 46
    800086107 thrust washer 6.2x20
    This part is currently unavailable.
  • 47
    800085493 bush Retail: $15.54 Price: $13.21
    Backordered
  • 48
    Z00062726 screw Supersedes: 800062726 (Screw)
    This part is currently unavailable.
  • 49
    800091559 shaft, gear shift Retail: $73.09 Price: $62.13
    Backordered
  • 51
    8A00A7329 spring, shift return
    This part is currently unavailable.
  • 52
    8000A4511 neutral switch assy TXC model
    This part is currently unavailable.
  • 52
    8000A6751 sensor assy, gear position TE model/SMR model
    This part is currently unavailable.
  • 53
    8A0042700 o-ring 23.52x1.78
    This part is currently unavailable.
  • 54
    800042676 point, neutral
    This part is currently unavailable.
  • 55
    800042677 spring
    This part is currently unavailable.
  • 56
    Z00067997 screw Supersedes: 800067997 (Flange Bolt)
    This part is currently unavailable.
  • 57
    8000A3488 pedal, gear change Supersedes: 800099741 (Crank Lever Assy)
    This part is currently unavailable.
  • 58
    8A00A3485 arm Supersedes: 800099743 (Gearchange Level Pedal)
    This part is currently unavailable.
  • 59
    800070216 spring Price: $3.99
    Backordered
  • 60
    800099744 rivet 6x22 uni 748 Retail: $4.64 Price: $0.77
    In Stock
  • 61
    0025060206 hh collar screw m6x20 tx30 Supersedes: 0015060203 (HH COLLAR SCREW M6X20 TX30) Price: $3.99
    In Stock
  • 62
    800063827 sprocket, drive 12t Upon request
    This part is currently unavailable.
  • 62
    800063828 sprocket 13t Supplied
    This part is currently unavailable.
  • 62
    800063829 sprocket z14 Upon request Retail: $47.89 Price: $23.77
    In Stock
  • 62
    800063829 sprocket z14 Supplied Retail: $47.89 Price: $23.77
    In Stock
  • 62
    800063830 chain sprocket z15 Supplied
    This part is currently unavailable.
  • 62
    800063830 chain sprocket z15 Upon request
    This part is currently unavailable.
  • 63
    800038728 roller 6x12 Price: $1.99
    Backordered
  • 64
    66N021206 circlip 25 mm Retail: $1.73 Price: $0.50
    In Stock
  • 65
    800088255 washer, thrust Price: $2.99
    Backordered
  • 66
    8000A1919 driven gear 6th speed t22
    This part is currently unavailable.
