# Part Retail Our Price

Stock Status Suggested Quantity
1
8000A5012 cylinder assy
This part is currently unavailable.
1
8000A5011 cylinder assy In alternative
This part is currently unavailable.
2
161540702 gasket, cylinder base Retail: $14.29 Price: $12.15

In Stock
3
61ND15195 Supersedes: 61N115195 (NUT M8X1.25)
This part is currently unavailable.
4
161533201 stud bolt 84mm
This part is currently unavailable.
5
800081650 stud bolt, cylinder head Retail: $9.73 Price: $4.77

In Stock
6
60ND07335 screw tcei m6x1-ch5-l16 Supersedes: 60N107335 (SCREW TCEI M6X1.00X16) Price: $1.04

Backordered
7
800088167 clamp 10mm
This part is currently unavailable.
8
8A0068908 tensioner, cam chain Retail: $90.19 Price: $76.66

Backordered
9
161535801 gascket tensioner assy, cam ch
This part is currently unavailable.
10
161535902 screw
This part is currently unavailable.
11
800045194 washer 14x8.2x1
This part is currently unavailable.
12
800081151 guide, timing chain
This part is currently unavailable.
13
800047708 spring pin 12x10 uni 6874
This part is currently unavailable.
14
800019789 o-ring 2081 20.35x1.78
This part is currently unavailable.
15
80A066222 joint Retail: $51.30 Price: $43.61

Backordered
16
Z00062727 screw Supersedes: 800062727 (Screw)
This part is currently unavailable.
17
60N102511 screw tcei m6x1x30 Price: $1.23

Backordered
18
Z00062725 screw tef m6x1-ch8-l10 Supersedes: 800062725 (Flange Bolt)
This part is currently unavailable.
19
8A0015960 washer Retail: $1.99 Price: $0.50

In Stock
20
60ND02557 screw Supersedes: 60N102557 (Screw) Price: $0.74

Backordered
21
Z00008536 washer Supersedes: 800008536 (WASHER 13X8.4X2) Retail: $1.04 Price: $0.50

In Stock
22
800098290 clamp
This part is currently unavailable.
23
800098205 manifold
This part is currently unavailable.
24
800069156 washer 18x10.5x2
This part is currently unavailable.
25
161535101 nut
This part is currently unavailable.
26
800081645 head and cover assy
This part is currently unavailable.
26
8A0081645 head, cylinder
This part is currently unavailable.
27
8A0080661 guide, intake valve +0.025 mm
This part is currently unavailable.
27
8B0080661 guide, intake valve +0.050 mm Retail: $71.79 Price: $61.02

Backordered
28
800059940 ring, snap
This part is currently unavailable.
29
800073482 sheet
This part is currently unavailable.
30
800014837 screw tcic m5x0.8x10
This part is currently unavailable.
31
62N015672 aluminium washer 10x5.1x1 Price: $1.73

Backordered
32
800077425 cotter, valve
This part is currently unavailable.
33
800081799 seat spring
This part is currently unavailable.
34
800082205 spring, valve outer
This part is currently unavailable.
35
800082204 spring, valve inner Price: $3.99

Backordered
36
800081647 spring cap
This part is currently unavailable.
37
800075584 seal, valve stem Retail: $9.59 Price: $0.77

In Stock
37
161530301 seal ring In alternative
This part is currently unavailable.
38
161795501 bush 8x6.4x6 Price: $4.19

Backordered
39
Z00062730 screw te m6x1 ch8 l30 Supersedes: 800062730 (Screw)
This part is currently unavailable.
40
800066395 joint
This part is currently unavailable.
41
8A0015960 washer Retail: $1.99 Price: $0.50

In Stock
42
80C075766 housing, water pump
This part is currently unavailable.
43
Z00042278 nut flange m5 Supersedes: 800042278 (Nut)
This part is currently unavailable.
44
8A0063644 gasket, water pump
This part is currently unavailable.
45
8A0060415 impeller, water pump
This part is currently unavailable.
46
800053339 oil seal 8-16-10
This part is currently unavailable.
47
800063817 bush
This part is currently unavailable.
48
161170801 bush
This part is currently unavailable.
49
0770291016 o-ring 29,10x1,60 nbr 70 Supersedes: 800059942 (O-RING 29,10X1,60 NBR 70) Price: $2.99

In Stock
50
800018422 o-ring 18.77x1.78
This part is currently unavailable.
51
8A0078765 water pipe
This part is currently unavailable.
52
800080532 exhaust valve
This part is currently unavailable.
53
800080531 intake valve
This part is currently unavailable.
54
800064726 gasket, cylinder head Retail: $81.29 Price: $69.10

Backordered
55
8000A4835 engine assy
This part is currently unavailable.
56
800097970 gasket set, engine
This part is currently unavailable.
57
800081149 tensioner cam chain
This part is currently unavailable.
58
8A0080669 seat, exhaust valve +0.03 mm
This part is currently unavailable.
58
8B0080669 exhaust valve seat (+0,06 mm)
This part is currently unavailable.
59
8A0080668 inlet valve seat (+0,03 mm)
This part is currently unavailable.
59
8B0080668 inlet valve seat (+0,06 mm)
This part is currently unavailable.
63
800097971 oil seal set, engine
This part is currently unavailable.

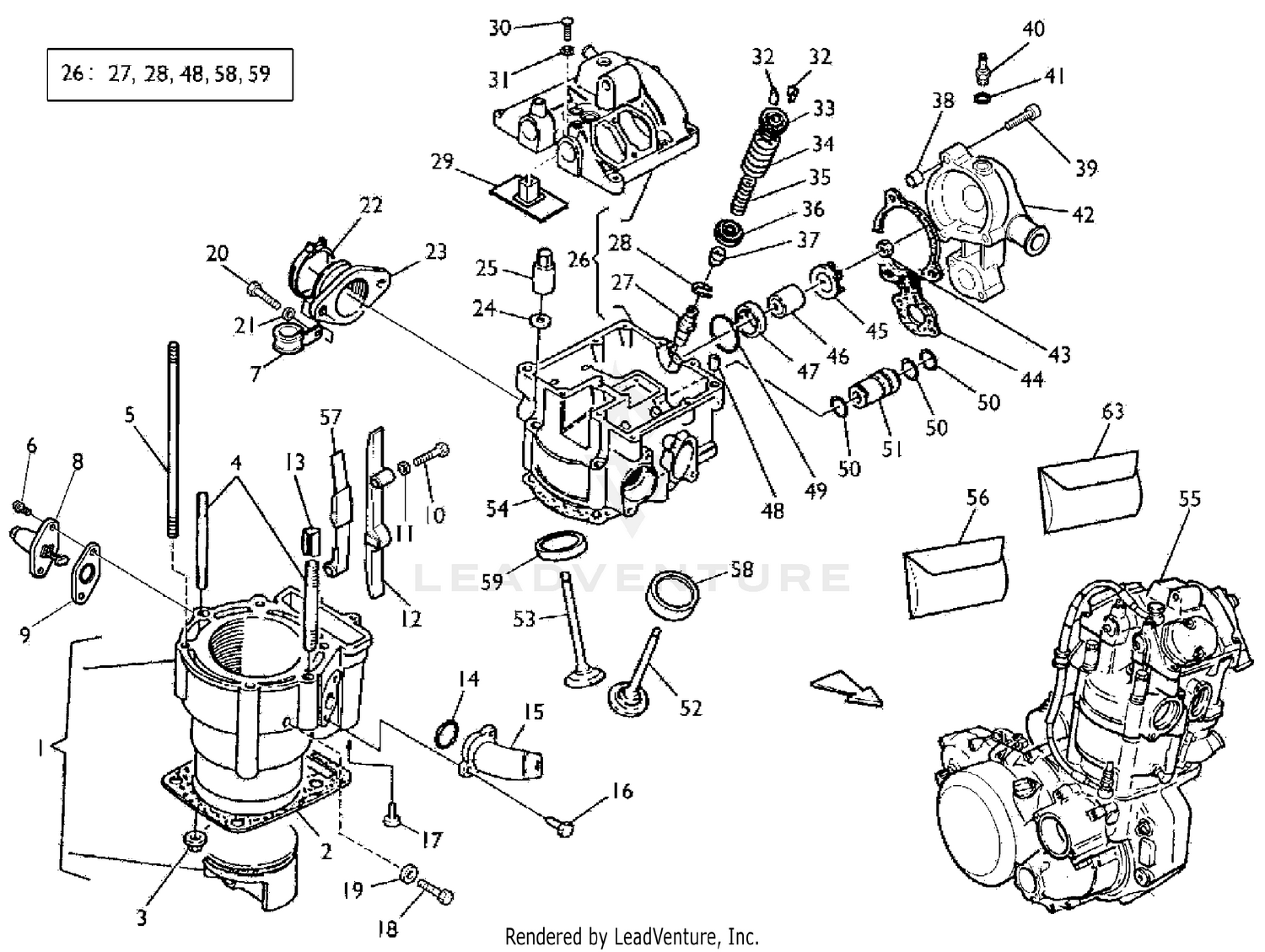

2006 Husqvarna TE 610 39KW Cylinder Head
