2004 Husqvarna TE 510 CENTENNIAL Rear Suspension Linkage

Set this as my ride

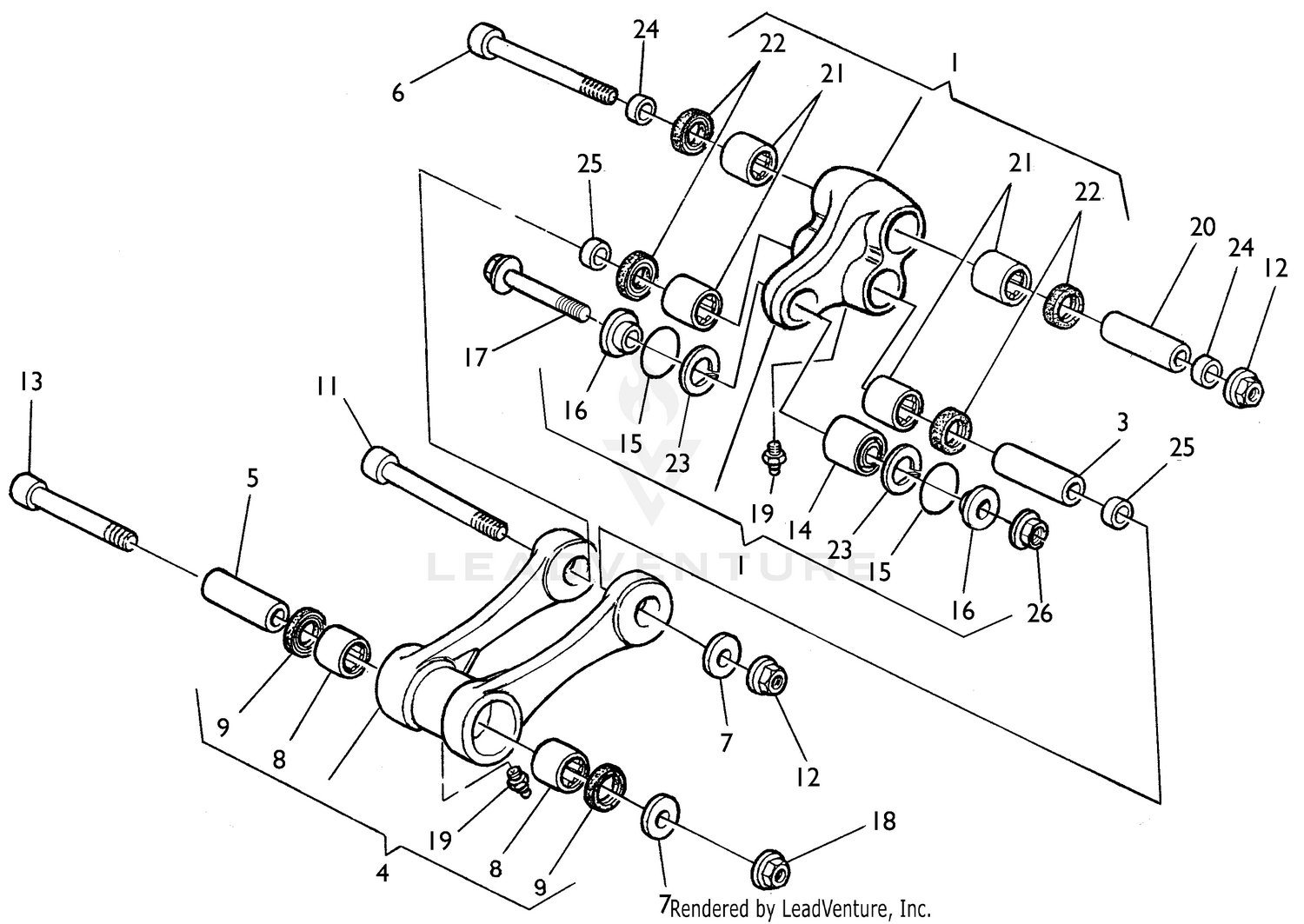

Rear Suspension Linkage

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    800096923 rocking lever
    This part is currently unavailable.
  • 3
    800086176 wrist pin 22x15x50.4
    This part is currently unavailable.
  • 4
    8A0097054 tie rod
    This part is currently unavailable.
  • 4
    800097054 swinging arm In alternative
    This part is currently unavailable.
  • 5
    800097050 wrist pin Retail: $26.09 Price: $22.18
    Backordered
  • 6
    8A0086138 screw, special m12x1.25 Retail: $29.09 Price: $24.73
    Backordered
  • 7
    8000H3014 washer Supersedes: 800086140 (Ring) Retail: $1.99 Price: $0.50
    In Stock
  • 8
    800086136 bearing, needle hk2216 In alternative Supersedes: 8A0086136 (BEARING, NEEDLE 22X28X16 MM)
    This part is currently unavailable.
  • 8
    800086136 bearing, needle hk2216
    This part is currently unavailable.
  • 9
    800038521 oil seal 28x22x4
    This part is currently unavailable.
  • 11
    800093124 axle m12x1.25x103 mm Retail: $21.19 Price: $18.01
    Backordered
  • 12
    Z00042023 nut Supersedes: 800042023 (Nut) Price: $3.99
    In Stock
  • 13
    8A0093124 screw m12x121
    This part is currently unavailable.
  • 14
    800072168 ball joint 12x26x16
    This part is currently unavailable.
  • 15
    800038767 grommet 26x15x3mm
    This part is currently unavailable.
  • 16
    151133302 bush
    This part is currently unavailable.
  • 17
    ZD0062797 screw Supersedes: 8D0062797 (SCREW TE M10X1.25X47 CH14) Price: $3.99
    Backordered
  • 18
    Z00042023 nut Supersedes: 800042023 (Nut) Price: $3.99
    In Stock
  • 19
    800001412 nipple, grease m6x1
    This part is currently unavailable.
  • 20
    800086176 wrist pin 22x15x50.4
    This part is currently unavailable.
  • 21
    800086136 bearing, needle hk2216
    This part is currently unavailable.
  • 22
    800086137 oil seal 34x26x4
    This part is currently unavailable.
  • 23
    800090561 circlip rb 26 din 7993
    This part is currently unavailable.
  • 24
    8000H3015 spacer Supersedes: 800086177 (Spacer)
    This part is currently unavailable.
  • 25
    8000H3015 spacer Supersedes: 800086177 (Spacer)
    This part is currently unavailable.
  • 26
    Z00042022 nut m10x1,25-ch14-sp10 Supersedes: 800042022 (Nut) Price: $2.99
    In Stock
