# Part Retail Our Price

Stock Status Suggested Quantity
1
06911-HN8-000 bearing set, needle Retail: $31.38 Price: $25.89

Expected to Ship in 5-8 Days
2
12361-300-000 cap, valve adj. Supersedes: 12361-371-980 (CAP, VALVE ADJ.)
This part is currently unavailable.
3
41300-HN8-B40 gear assy., rr. final Retail: $830.02 Price: $664.02

Expected to Ship in 5-8 Days
4
41311-HN8-000 case sub-assy., rr. final gear Retail: $288.40 Price: $233.60

Expected to Ship in 5-8 Days
5
41315-HN8-A40 joint, rr. pinion Retail: $83.35 Price: $69.18

In Stock
6
41331-HN8-010 cover sub-assy., rr. final gear Supersedes: 41331-HN8-000 (COVER SUB-ASSY., RR. FINAL GEA) Retail: $115.78 Price: $93.78

Expected to Ship in 5-8 Days
7
41421-HN8-A40 gear, rr. pinion (13t) Supersedes: 41421-HN8-000 (GEAR, RR. PINION (13T)) Retail: $149.84 Price: $121.37

Expected to Ship in 5-8 Days
8
41431-HN8-000 gear, rr. ring (41t) Retail: $250.58 Price: $202.97

Expected to Ship in 5-8 Days
9
41436-MB0-310 pin, ring gear stopper Retail: $36.45 Price: $30.08

Expected to Ship in 5-8 Days
10
41437-MB0-310 shim a, stopper pin (0.10) Price: $6.77

Expected to Ship in 5-8 Days
10
41438-MB0-310 shim b, stopper pin (0.15) Price: $6.77

Expected to Ship in 5-8 Days
11
41447-HM8-000 shim a, pinion gear (1.64) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41448-HM8-000 shim b, pinion gear (1.70) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41449-HM8-000 shim c, pinion gear (1.76) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41451-HM8-000 shim d, pinion gear (1.82) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41452-HM8-000 shim e, pinion gear (1.88) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41453-HM8-000 shim f, pinion gear (1.94) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41454-HM8-000 shim g, pinion gear (2.00) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41455-HM8-000 shim h, pinion gear (2.06) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41456-HM8-000 shim i, pinion gear (2.12) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
11
41457-HM8-000 shim j, pinion gear (2.18) Retail: $10.04 Price: $8.28

Expected to Ship in 5-8 Days
12
41450-MG8-000 shim a, pinion gear (1.82) Price: $8.96

Expected to Ship in 5-8 Days
12
41451-MG8-000 shim b, pinion gear (1.88) Price: $8.96

Expected to Ship in 5-8 Days
12
41452-MG8-000 shim c, pinion gear (1.94) Price: $8.54

Expected to Ship in 5-8 Days
12
41453-MG8-000 shim d, pinion gear (2.00) Price: $8.54

Expected to Ship in 5-8 Days
12
41454-MG8-000 shim e, pinion gear (2.06) Price: $8.54

Expected to Ship in 5-8 Days
12
41455-MG8-000 shim f, pinion gear (2.12) Price: $8.54

Expected to Ship in 5-8 Days
12
41456-MG8-000 shim g, pinion gear (2.18) Price: $8.54

Expected to Ship in 5-8 Days
13
43133-HN8-000 tube, breather (3.5x1450) Price: $4.04

Expected to Ship in 5-8 Days
14
90009-371-015 bolt, flange (10x120) (sato) Supersedes: 90009-371-005 (BOLT, FLANGE (10X120)) Retail: $12.98 Price: $10.70

Expected to Ship in 5-8 Days
15
90109-371-000 bolt, sealing (8mm) Price: $3.24

In Stock
16
90133-HP5-600 bolt, flange (8x27) Price: $3.20

Expected to Ship in 5-8 Days
17
90134-HP5-600 bolt, flange (10x35) Price: $4.62

Expected to Ship in 5-8 Days
18
90242-MB0-000 nut, lock (64mm) Retail: $39.40 Price: $32.50

Expected to Ship in 5-8 Days
19
90305-HC0-770 nut, self-lock (10mm) Price: $3.95

In Stock
20
90381-HA0-000 nut, hex. (16mm) Price: $10.41

Expected to Ship in 5-8 Days
21
90471-580-000 washer (8mm) Price: $3.57

In Stock
22
91012-KF0-000 clip, needle thrust bearing (12mm) Price: $3.92

Expected to Ship in 5-8 Days
23
91061-MB0-005 bearing, radial ball (6305) Supersedes: 91061-MG8-005 (BEARING, RADIAL BALL (6305)) Retail: $142.98 Price: $115.81

Expected to Ship in 5-8 Days
23
91061-MB0-005 bearing, radial ball (6305) Supersedes: 91061-MG8-005 (BEARING, RADIAL BALL (6305)) Retail: $142.98 Price: $115.81

Expected to Ship in 5-8 Days
24
91203-HN8-003 oil seal (28x55x7) Retail: $10.42 Price: $8.59

Expected to Ship in 5-8 Days
25
91251-HN8-003 oil seal (33x70x8) Retail: $17.91 Price: $14.78

Expected to Ship in 5-8 Days
26
91252-HN8-003 oil seal (33x75x8) Retail: $17.91 Price: $14.78

Expected to Ship in 5-8 Days
27
91302-001-020 o-ring (30.8mm) (honda code 0001065) Price: $4.94

In Stock
28
91312-KE7-003 o-ring (19x3) (nok) Price: $3.13

In Stock
29
91353-HN8-003 o-ring (139.5x2) Retail: $10.25 Price: $8.45

Expected to Ship in 5-8 Days
30
95002-35000 clip, tube (c6.5) Price: $1.37

In Stock
31
96100-60063-00 bearing, radial ball (6006) Retail: $18.20 Price: $15.02

Expected to Ship in 5-8 Days
32
96100-62063-00 bearing, radial ball (6206) Retail: $22.27 Price: $18.38

In Stock

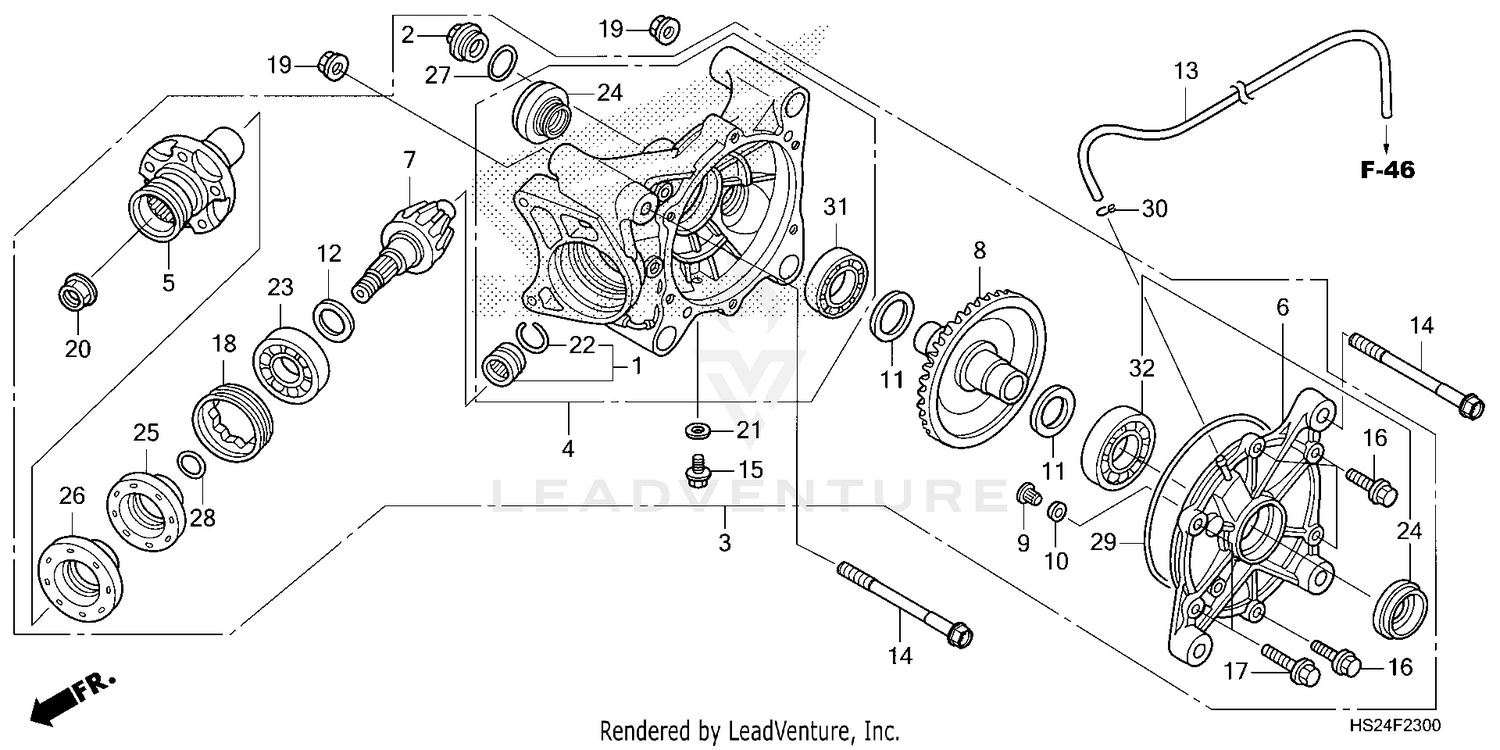

2024 Honda RUBICON 4X4 AUTOMATIC TRX700F FINAL DRIVEN GEAR
