More Parts for this ride

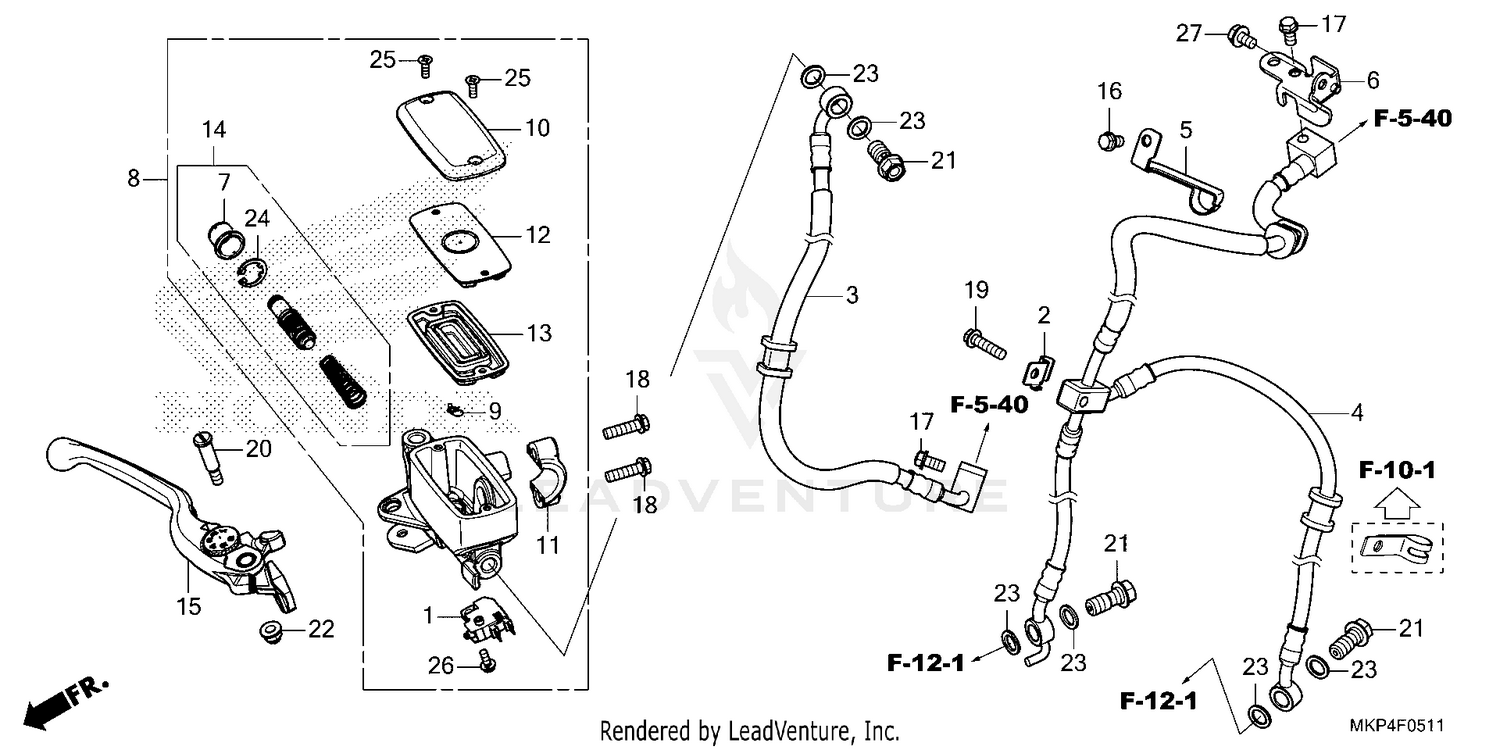

FRONT BRAKE MASTER CYLINDER (CB500XA'22/'23)

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
35340-MGS-D31 switch assy., fr. stop Retail: $22.42 Price: $18.83

In Stock
2
38514-MKH-D00 clamp b, sensor wire Price: $2.15

Expected to Ship in 5-8 Days
3
45125-MKP-DQ1 hose a, fr. brake Retail: $31.82 Price: $26.73

Expected to Ship in 5-8 Days
4
45126-MKP-DQ1 hose b, fr. brake Retail: $117.49 Price: $97.52

Expected to Ship in 5-8 Days
5
45155-MKP-DQ0 clamp a, fr. Price: $4.66

Expected to Ship in 5-8 Days
6
45160-MKP-DN0 stay, fr. brake hose Price: $9.57

Expected to Ship in 5-8 Days
7
45504-410-003 boot Retail: $14.75 Price: $12.39

In Stock
8
45510-MJE-305 master cylinder sub-assy., fr. (coo) (nissin) Supersedes: 45510-MJE-D01 (MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)) Retail: $121.45 Price: $100.80

In Stock
8
45510-MJE-305 master cylinder sub-assy., fr. (coo) (nissin) Supersedes: 45510-MJE-D01 (MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)) Retail: $121.45 Price: $100.80

In Stock
9
45512-MA6-006 protector Price: $5.65

Expected to Ship in 5-8 Days
10
45513-MM5-016 cap, master cylinder (nissin) Supersedes: 45513-MM5-006 (CAP, MASTER CYLINDER (NISSIN)) Retail: $27.15 Price: $22.81

In Stock
11
45517-166-006 holder, master cylinder Retail: $16.42 Price: $13.79

Expected to Ship in 5-8 Days
12
45518-MM5-006 plate, diaphragm (nissin) Retail: $12.91 Price: $10.84

Expected to Ship in 5-8 Days
13
45520-MM5-006 diaphragm (nissin) Retail: $18.31 Price: $15.38

In Stock
14
45530-471-831 master cylinder set Retail: $48.07 Price: $40.38

In Stock
15
53170-MKK-D01 lever assy., r. handle Retail: $61.64 Price: $51.78

In Stock
16
90013-GHB-600 bolt, flange (6x10) Price: $5.37

Expected to Ship in 5-8 Days
17
90013-GHB-610 bolt, flange (6x12) (l. side only) Price: $2.78

In Stock
18
90013-GHB-660 bolt, flange (6x22) Price: $2.78

In Stock
19
90113-MKN-D50 bolt, flange (6x23.5) Price: $1.47

Expected to Ship in 5-8 Days
20
90114-MA5-671 bolt, r. handlebar pivot Retail: $11.42 Price: $9.59

In Stock
21
90145-MS9-612 bolt, oil (10x22) (saga) Supersedes: 90145-MS9-611 (BOLT, OIL (10X22)) Price: $9.66

In Stock
22
90202-KCW-870 nut, cap (6mm) Price: $3.49

Expected to Ship in 5-8 Days
23
90545-300-000 washer, oil bolt Price: $6.89

In Stock
24
90651-MA5-671 circlip Price: $3.52

In Stock
25
93600-04012-0G screw, flat (4x12) Supersedes: 90104-KRM-R80 (SCREW, FLAT (4X12)) Price: $1.07

In Stock
25
93600-04012-0G screw, flat (4x12) Supersedes: 90104-KRM-R80 (SCREW, FLAT (4X12)) Price: $1.07

In Stock
26
93893-04012-07 screw-washer (4x12) Price: $1.58

In Stock
26
93893-04012-07 screw-washer (4x12) Supersedes: 93893-04012-17 (SCREW-WASHER (4X12)) Price: $1.58

In Stock
27
95701-06010-07 bolt, flange (6x10) Supersedes: 95900-06010-07 (BOLT, FLANGE (6X10)) Price: $1.93

In Stock
