# Part Retail Our Price

Stock Status Suggested Quantity
1
17507-HR3-A20 tray, fuel tank Retail: $13.09 Price: $11.00

Expected to Ship in 5-8 Days
2
17510-HR3-A21 tank, fuel Retail: $189.96 Price: $157.67

Expected to Ship in 5-8 Days
3
17515-HR3-A21 protector, tank heat (lower) (a) Supersedes: 17515-HR3-A20 (PROTECTOR, TANK HEAT (LOWER) (A)) Retail: $21.56 Price: $18.11

Expected to Ship in 5-8 Days
4
17516-HR3-A21 protector, tank heat (lower) (b) Supersedes: 17516-HR3-A20 (PROTECTOR, TANK HEAT (LOWER) (B)) Price: $8.57

Expected to Ship in 5-8 Days
5
17517-HR3-A20 stay, fuel tank Retail: $10.69 Price: $8.98

Expected to Ship in 5-8 Days
6
17518-HR3-A20 pin, fuel tank joint Price: $8.99

Expected to Ship in 5-8 Days
7
17575-KPC-D50 cable, fuel tank stopper Price: $9.54

Expected to Ship in 5-8 Days
8
17620-HR3-A20 cap assy., fuel tank Retail: $28.98 Price: $24.34

Expected to Ship in 5-8 Days
9
17624-HF7-000 gasket, fuel cap (honda code 4067716) Price: $10.31

In Stock
10
18334-KA3-830 rubber, muffler Price: $5.13

In Stock
11
19052-MGH-640 collar, radiator mounting Supersedes: 19052-MN8-000 (COLLAR, RADIATOR MOUNTING) Price: $2.98

In Stock
12
32171-GJ1-003 clip, wire harness Price: $4.59

In Stock
13
35600-HR3-A21 stay, ecu Retail: $19.24 Price: $16.16

Expected to Ship in 5-8 Days
14
35610-HR3-A20 lid, relay box Price: $9.57

Expected to Ship in 5-8 Days
15
35611-HR3-A20 seal, relay box Retail: $21.71 Price: $18.24

Expected to Ship in 5-8 Days
16
83551-MA6-000 grommet, side cover Price: $4.41

In Stock
17
90051-PNA-000 bolt, special (6x28) Price: $4.37

Expected to Ship in 5-8 Days
18
90101-PPD-000 bolt, torx (6x25) Price: $3.73

Expected to Ship in 5-8 Days
19
90111-162-000 bolt, flange (6mm) Price: $3.45

In Stock
20
90653-HC4-900 clip, splash guard (honda code 3795994) Price: $1.17

In Stock
21
93903-25110 screw, tapping (5x10) Price: $1.63

In Stock
22
94251-08000 pin, lock (8mm) Price: $1.42

In Stock
23
95011-63000 rubber c, stand stopper Price: $5.16

In Stock
24
95701-06030-00 bolt, flange (6x30) Supersedes: 95700-06030-00 (BOLT, FLANGE (6X30)) Price: $2.25

In Stock

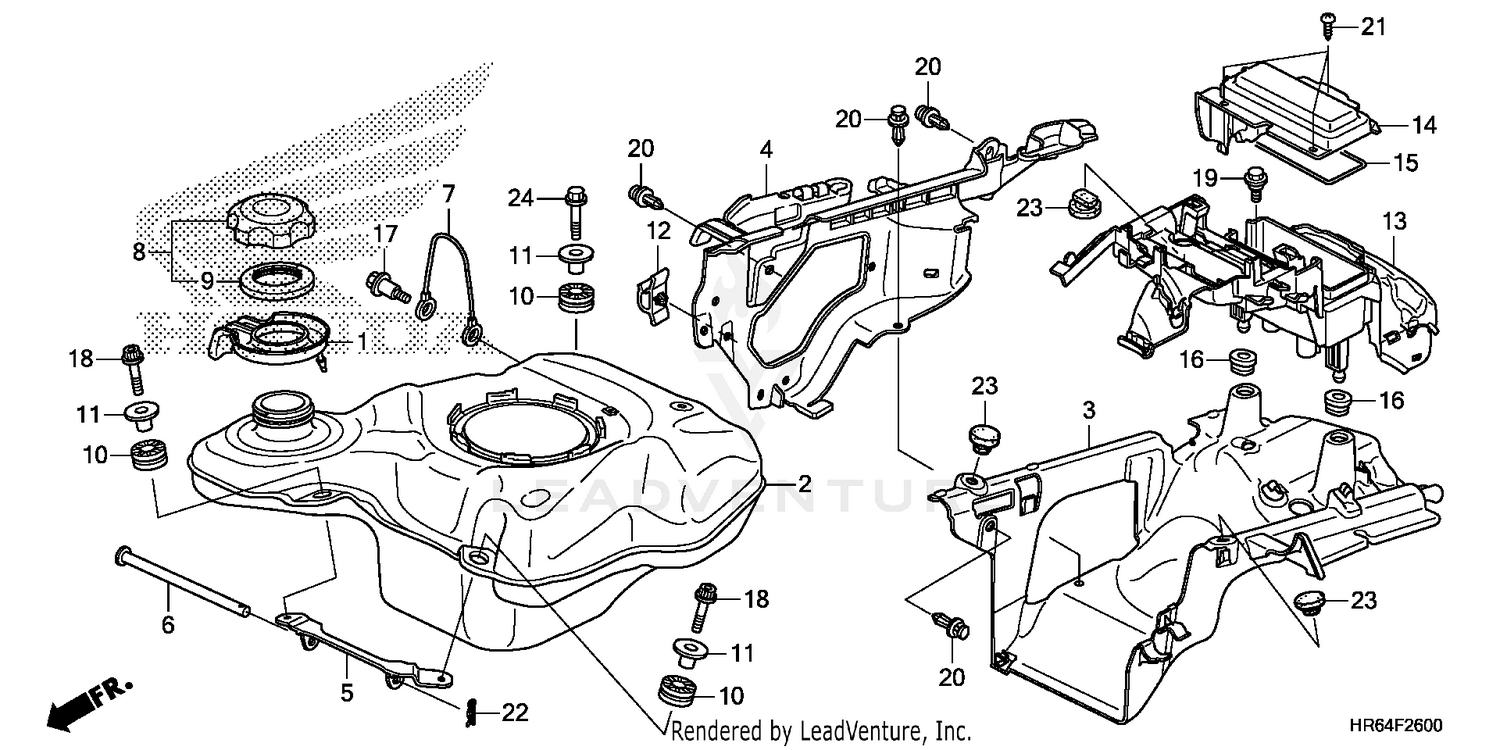

2016 Honda FOREMAN RUBICON DCT TRX500FA5 FUEL TANK
