# Part Retail Our Price

Stock Status Suggested Quantity
1
06430-HN2-000 shoe set, brake (ask) Retail: $87.40 Price: $43.77

In Stock
1
06430-MCL-700 shoe set, brake (jb) Retail: $68.63 Price: $56.96

In Stock
2
40520-HP0-A00 cover assy., drum Supersedes: 40520-HN2-000 (COVER ASSY., DRUM) Retail: $55.64 Price: $46.18

In Stock
3
42624-HN2-000 ring, damper Retail: $14.51 Price: $11.97

Expected to Ship in 5-8 Days
4
43010-HN2-000 panel set, rr. brake Retail: $405.91 Price: $324.73

Expected to Ship in 5-8 Days
5
43102-319-000 washer, anchor pin Price: $7.95

Expected to Ship in 5-8 Days
6
43122-HR0-F00 tube assy., rr. brake breather Price: $4.50

Expected to Ship in 5-8 Days
7
43134-300-000 dust seal, brake cam Price: $2.56

In Stock
8
43141-HA7-671 cam, rr. brake Retail: $31.54 Price: $26.03

In Stock
9
43145-HA7-670 indicator, brake Price: $7.22

Expected to Ship in 5-8 Days
10
43151-346-000 spring, rr. brake shoe Price: $7.56

In Stock
11
43410-HN2-000 arm, rr. brake Retail: $26.45 Price: $21.81

Expected to Ship in 5-8 Days
12
43415-HM7-000 spring, rr. brake arm Price: $9.21

In Stock
13
43459-HM5-A10 nut, brake adjusting Supersedes: 43459-VM4-000 (NUT, BRAKE ADJUSTING) Retail: $11.51 Price: $9.50

In Stock
14
43620-HR0-F00 drum assy., rr. brake Retail: $430.67 Price: $344.54

Expected to Ship in 5-8 Days
15
90109-371-000 bolt, sealing (8mm) Price: $3.16

In Stock
16
90151-HA7-670 bolt, stud (10x25) Retail: $7.96 Price: $3.77

In Stock
17
90471-580-000 washer (8mm) Price: $3.57

In Stock
18
91057-HA0-681 bearing, radial ball (28x58x16) Supersedes: 91057-HA8-004 (BEARING, RADIAL BALL (28X58X16)) Retail: $30.27 Price: $24.97

In Stock
18
91057-HA0-681 bearing, radial ball (28x58x16) Supersedes: 91057-HA8-004 (BEARING, RADIAL BALL (28X58X16)) Retail: $30.27 Price: $24.97

In Stock
19
91206-968-003 dust seal (17x23x3) (nok) Supersedes: 91206-968-004 (DUST SEAL (17X23X3)) Price: $4.73

In Stock
20
91252-HM7-003 oil seal (34x58x6) (arai) Retail: $17.46 Price: $14.41

In Stock
21
91253-HM7-003 dust seal (41x76x19) (arai) Retail: $21.11 Price: $17.42

In Stock
22
91320-HM7-702 o-ring (75x3.2) (nok) Price: $3.44

In Stock
23
91355-HN2-003 o-ring (199x3.1) Retail: $15.54 Price: $12.83

In Stock
24
94050-08000 nut, flange (8mm) nut, flange (10mm) Supersedes: 90236-300-000 (NUT, FLANGE (8MM)) Price: $1.72

In Stock
25
94201-25300 pin, split (2.5x30) Supersedes: 94201-25150 (PIN, COTTER (2.5MM)) Price: $1.10

In Stock
25
94201-25300 pin, split (2.5x30) Supersedes: 94201-25150 (PIN, COTTER (2.5MM)) Price: $1.10

In Stock
25
94201-25300 pin, cotter (2.5mm) Supersedes: 94201-25150 (PIN, COTTER (2.5MM)) Price: $1.10

In Stock
26
94520-58000 circlip (inner) (58mm) Price: $4.01

In Stock
27
95002-35000 clip, tube (c6.5) Price: $1.33

In Stock
28
95014-73100 spring a, brake rod Price: $1.51

In Stock
29
95015-32001 joint b, brake arm Price: $1.08

In Stock
30
95701-08045-00 bolt, flange (8x45) Supersedes: 95700-08045-00 (BOLT, FLANGE (8X45)) Price: $1.70

In Stock
31
96001-06016-00 bolt, flange (6x16) Supersedes: 96001-06016 (BOLT, FLANGE (6X16)) Price: $1.12

In Stock

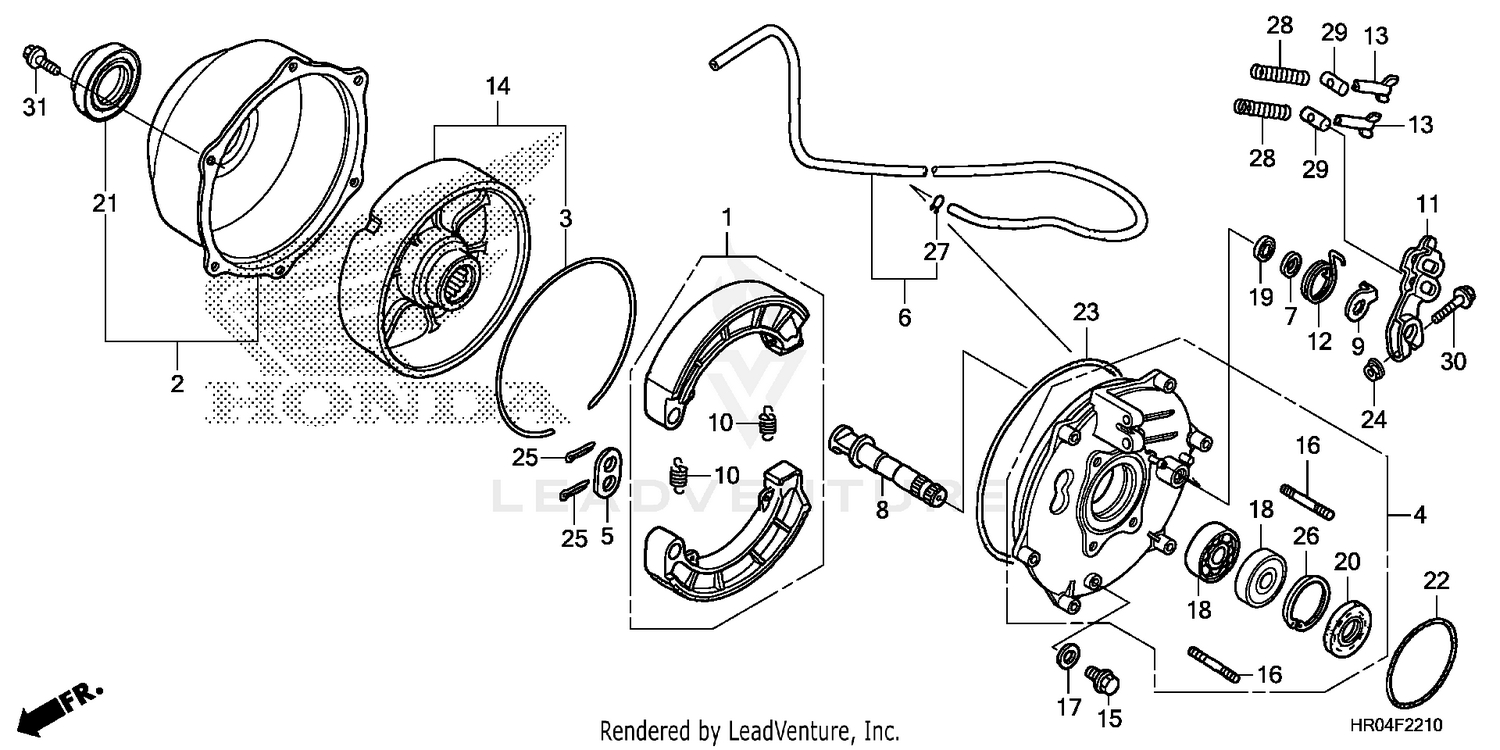

2013 Honda FOREMAN 4X4 EPS TRX500FPM REAR BRAKE PANEL
