# Part Retail Our Price

Stock Status Suggested Quantity
1
06450-HC5-900 shoe set, brake (see kit p/n--end of block) Retail: $69.56 Price: $57.73

Expected to Ship in 5-8 Days
3
43315-SN4-003 cover, dust Supersedes: 43315-671-631 (COVER, DUST) Price: $7.01

Expected to Ship in 5-8 Days
3
43315-SN4-003 cover, dust Supersedes: 43315-671-631 (COVER, DUST) Price: $7.01

Expected to Ship in 5-8 Days
4
43341-602-003 cup, piston Price: $6.96

Expected to Ship in 5-8 Days
5
43352-HC5-971 screw, bleeder (nissin) Supersedes: 43352-MZ0-760 (SCREW, BLEEDER) Price: $5.58

Expected to Ship in 5-8 Days
6
43353-461-771 cap, bleeder Supersedes: 43353-443-761 (CAP, BLEEDER) Price: $6.67

Expected to Ship in 5-8 Days
7
44133-HC5-970 tube, breather (3.5x111o) Price: $9.40

Expected to Ship in 5-8 Days
8
45110-HA7-651 plate, r. back (nissin) (not available)
This part is currently unavailable.
9
45120-HA7-651 plate, l. back (nissin) (not available)
This part is currently unavailable.
10
45171-HM5-A81 spring, brake Supersedes: 45171-HA7-671 (SPRING, BRAKE) Price: $3.41

In Stock
10
45171-HM5-A81 spring, brake Supersedes: 45171-HA7-671 (SPRING, BRAKE) Price: $3.41

In Stock
11
45172-S04-003 spring, shoe clamp Supersedes: 45172-SA0-003 (SPRING, SHOE CLAMP) Price: $1.92

Expected to Ship in 5-8 Days
11
45172-S04-003 spring, shoe clamp Supersedes: 45172-SA0-003 (SPRING, SHOE CLAMP) Price: $1.92

Expected to Ship in 5-8 Days
12
45175-HC4-006 pin, tension Supersedes: 45175-HC4-000 (PIN, TENSION) Price: $5.48

Expected to Ship in 5-8 Days
12
45175-HC4-006 pin, tension Price: $5.48

Expected to Ship in 5-8 Days
13
45176-HM5-A81 cap, pin (nissin) Supersedes: 45176-HA7-651 (CAP, PIN) Price: $9.49

Expected to Ship in 5-8 Days
13
45176-HM5-A81 cap, pin (nissin) Supersedes: 45176-HA7-651 (CAP, PIN) Price: $9.49

Expected to Ship in 5-8 Days
14
45177-HA7-651 seal, pin (nissin) Price: $9.08

Expected to Ship in 5-8 Days
15
45181-HC5-006 pipe, fr. wheel cylinder Retail: $23.98 Price: $19.78

Expected to Ship in 5-8 Days
16
45310-HC5-006 cylinder assy. a, r. fr. wheel Retail: $39.91 Price: $32.92

Expected to Ship in 5-8 Days
17
45314-HC5-006 piston Retail: $20.75 Price: $17.11

Expected to Ship in 5-8 Days
18
45316-VM0-003 nut, r. adjuster Retail: $11.13 Price: $9.19

Expected to Ship in 5-8 Days
19
45317-634-013 screw, r. adjusting Price: $7.63

Expected to Ship in 5-8 Days
20
45318-HA7-671 lock, spring Price: $7.75

Expected to Ship in 5-8 Days
21
45319-634-003 screw-washer (4x6) Price: $2.98

Expected to Ship in 5-8 Days
22
45330-HC5-006 cylinder assy. a, l. fr. wheel Retail: $39.91 Price: $32.92

Expected to Ship in 5-8 Days
23
45336-VM0-003 nut, l. adjuster Retail: $11.13 Price: $9.19

In Stock
24
45337-634-013 screw, l. adjusting Price: $7.63

Expected to Ship in 5-8 Days
25
45350-HC5-971 cylinder assy. b, r. fr. wheel (nissin) Retail: $43.64 Price: $36.00

Expected to Ship in 5-8 Days
26
45370-HC5-971 cylinder assy. b, l. fr. wheel (nissin) Retail: $41.93 Price: $34.59

Expected to Ship in 5-8 Days
27
90115-HA7-651 bolt, flange (8x20) Price: $6.16

Expected to Ship in 5-8 Days
28
91357-HA7-651 o-ring (64.6x1.3) (not available)
This part is currently unavailable.
29
93402-06012-08 bolt-washer (6x12) Supersedes: 93412-06012-08 (BOLT-WASHER (6X12)) Price: $1.79

Expected to Ship in 5-8 Days
30
94001-08000-0S nut, hex. (8mm) Supersedes: 94001-08200-0S (NUT, HEX. (8MM)) Price: $1.44

In Stock
30
94001-08000-0S nut, hex. (8mm) Supersedes: 94001-08200-0S (NUT, HEX. (8MM)) Price: $1.44

In Stock
30
94001-08000-0S nut, hex. (8mm) Supersedes: 94001-08200-0S (NUT, HEX. (8MM)) Price: $1.44

In Stock
30
94001-08000-0S nut, hex. (8mm) Supersedes: 94001-08200-0S (NUT, HEX. (8MM)) Price: $1.44

In Stock
31
94111-08800 washer, spring (8mm) Price: $1.08

Expected to Ship in 5-8 Days
33
95002-35000 clip, tube (c6.5) Price: $1.37

In Stock

air cleaner ('93-'95) 93-95
alternator
battery
cam chain
camshaft
carburetor
carrier ('93-'95) 93-95
clutch
cooling fan kit
crankcase
crankshaft + piston
cylinder
cylinder head
final driven gear
frame ('93-'95) 93-95
front cushion ('93-'95) 93-95
front fender ('93-'95) 93-95
front guard kit
front wheel
fuel tank
gasket kit a
gasket kit b
handle switch
handlebar
headlight
kick starter spindle
labels
left crankcase cover
mark ('94) 94
muffler
oil pump
rear brake panel
rear fender
rear shock absorber
rear wheel
right crankcase cover
seat
shift drum + gearshift
side gear case
starter motor
steering shaft
step
swingarm
taillight
tie rod
tools
transmission
trx300fwdriveshaft (trx300fw)
trx300fwfront arm (trx300fw)
trx300fwfront brake master cylinder 93-95
TRX300FWFRONT BRAKE PANEL (TRX300FW)
trx300fwknuckle (trx300fw)
wire harness

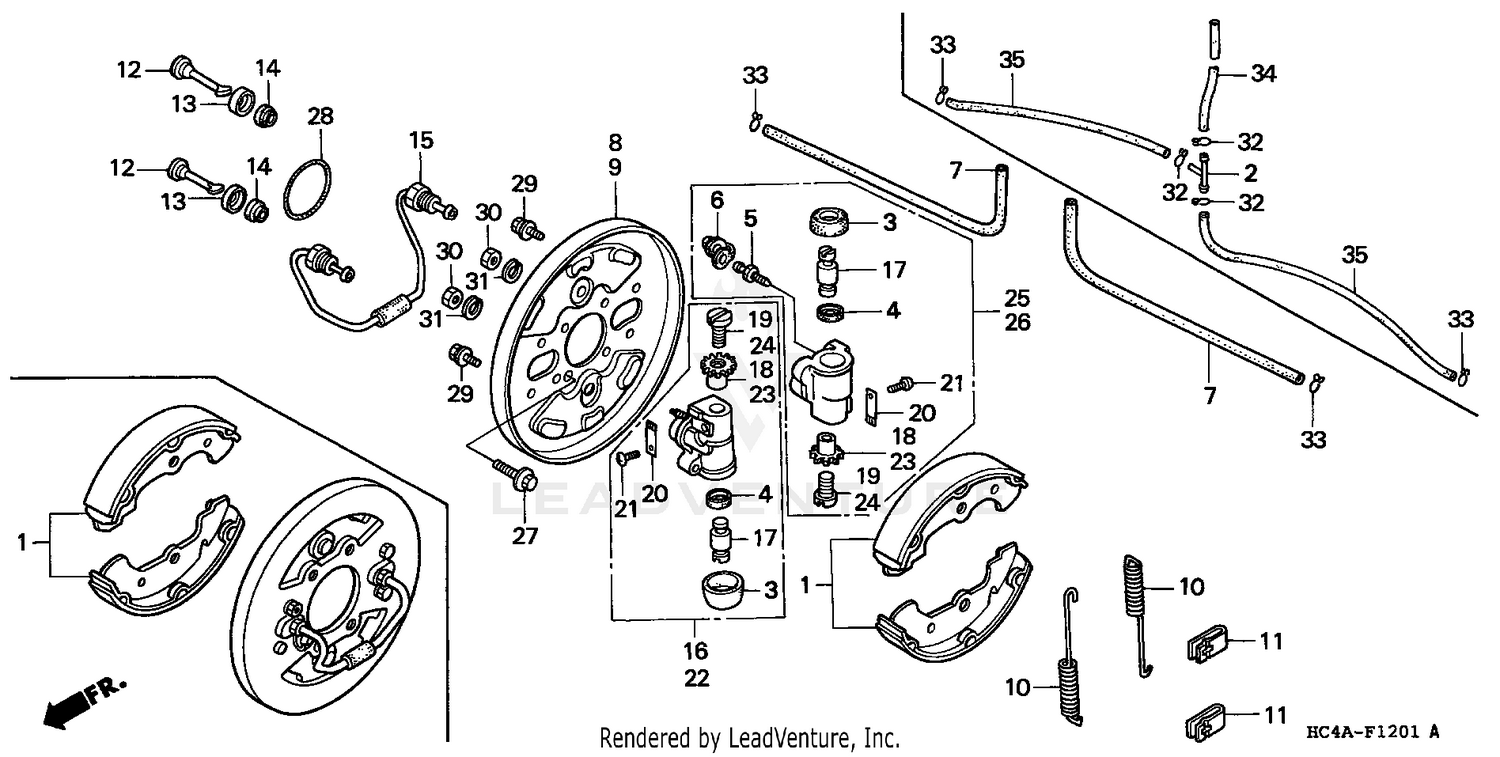

1994 Honda TRX300FW 4X4 TRX300FWFRONT BRAKE PANEL (TRX300FW)
