1987 Honda TRX250X CARBURETOR

Set this as my ride

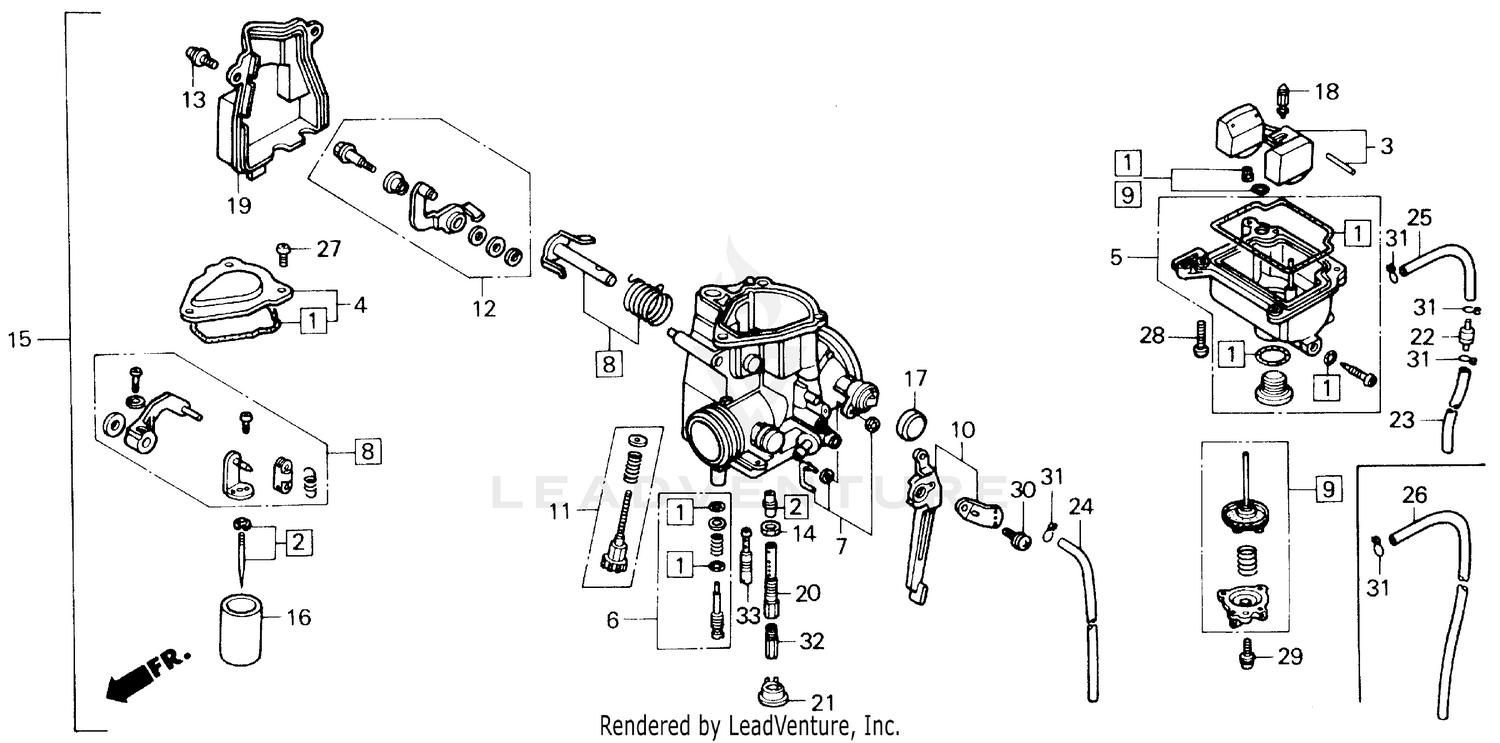

CARBURETOR

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    16010-HM3-A61 gasket set Supersedes: 16010-HC0-003 (GASKET SET) Retail: $32.85 Price: $27.11
    Expected to Ship in 5-8 Days
  • 1
    16010-HM3-A61 gasket set Supersedes: 16010-HC0-003 (GASKET SET) Retail: $32.85 Price: $27.11
    Expected to Ship in 5-8 Days
  • 1
    16010-HM3-A61 gasket set Supersedes: 16010-HC0-003 (GASKET SET) Retail: $32.85 Price: $27.11
    Expected to Ship in 5-8 Days
  • 2
    16012-HC0-013 needle set, jet (source: vintage parts inc.) Retail: $51.38 Price: $42.65
    Expected to Ship in 5-8 Days
  • 3
    16013-KR3-980 float set Supersedes: 16013-MA6-003 (FLOAT SET) Retail: $65.02 Price: $53.97
    In Stock
  • 3
    16013-KR3-980 float set Supersedes: 16013-MA6-003 (FLOAT SET) Retail: $65.02 Price: $53.97
    In Stock
  • 4
    16014-HM3-L00 top set Supersedes: 16014-HA0-003 (TOP SET) Retail: $38.72 Price: $31.94
    Expected to Ship in 5-8 Days
  • 4
    16014-HM3-L00 top set Supersedes: 16014-HA0-003 (TOP SET) Retail: $38.72 Price: $31.94
    Expected to Ship in 5-8 Days
  • 5
    16015-HM3-A61 chamber set, float Supersedes: 16015-HM3-L00 (CHAMBER SET, FLOAT)
    This part is currently unavailable.
  • 5
    16015-HM3-A61 chamber set, float Supersedes: 16015-HM3-L00 (CHAMBER SET, FLOAT)
    This part is currently unavailable.
  • 5
    16015-HM3-A61 chamber set, float Supersedes: 16015-HM3-L00 (CHAMBER SET, FLOAT)
    This part is currently unavailable.
  • 6
    16016-HM5-730 screw set Supersedes: 16016-HA8-681 (SCREW SET A)
    This part is currently unavailable.
  • 6
    16016-HM5-730 screw set
    This part is currently unavailable.
  • 7
    16017-HM3-L00 rod set, choke Supersedes: 16017-HC0-003 (ROD SET, CHOKE) Retail: $43.73 Price: $36.08
    Expected to Ship in 5-8 Days
  • 7
    16017-HM3-L00 rod set, choke Supersedes: 16017-HC0-003 (ROD SET, CHOKE) Retail: $43.73 Price: $36.08
    Expected to Ship in 5-8 Days
  • 8
    16018-HA7-771 arm set, link (not available)
    This part is currently unavailable.
  • 9
    16021-HM3-L00 diaphragm set, pump Supersedes: 16021-HC0-003 (DIAPHRAGM SET, PUMP) Retail: $103.55 Price: $83.88
    Expected to Ship in 5-8 Days
  • 9
    16021-HM3-L00 diaphragm set, pump Retail: $103.55 Price: $83.88
    Expected to Ship in 5-8 Days
  • 10
    16025-HC0-003 lever set, choke (not available)
    This part is currently unavailable.
  • 11
    16028-KL8-900 screw set Supersedes: 16028-MK4-602 (SCREW SET)
    This part is currently unavailable.
  • 12
    16031-HM3-L00 arm set, pump Supersedes: 16031-HC0-003 (ARM SET, PUMP) Retail: $91.31 Price: $75.79
    Expected to Ship in 5-8 Days
  • 13
    16080-HC0-003 screw-washer Price: $5.31
    In Stock
  • 14
    16096-HC0-003 nut, hex. Price: $5.31
    Expected to Ship in 5-8 Days
  • 15
    16100-HC0-023 carburetor assy. Supersedes: 16100-HC0-013 (CARBURETOR ASSY.)
    This part is currently unavailable.
  • 16
    16111-HC0-003 valve, throttle Retail: $105.00 Price: $85.05
    Expected to Ship in 5-8 Days
  • 17
    16148-141-881 cap, choke dust Price: $6.08
    Expected to Ship in 5-8 Days
  • 18
    16155-397-971 valve, float Retail: $48.76 Price: $40.23
    In Stock
  • 19
    16160-HC0-003 cover, body
    This part is currently unavailable.
  • 20
    16165-HC0-003 holder, needle jet (not available)
    This part is currently unavailable.
  • 21
    16168-HC4-003 holder, jet Supersedes: 16168-HA5-004 (HOLDER, JET) Retail: $14.40 Price: $11.81
    In Stock
  • 21
    16168-HC4-003 holder, jet Supersedes: 16168-HA5-004 (HOLDER, JET) Retail: $14.40 Price: $11.81
    In Stock
  • 24
    16199-KG4-405 tube, fuel Supersedes: 16199-GJ3-601 (TUBE, OVERFLOW) Retail: $11.17 Price: $9.20
    In Stock
  • 24
    16199-KG4-405 pipe, overflow Supersedes: 16199-GJ3-601 (TUBE, OVERFLOW) Retail: $11.17 Price: $9.20
    In Stock
  • 26
    16199-KG4-405 tube, fuel Supersedes: 16199-GJ3-601 (TUBE, OVERFLOW) Retail: $11.17 Price: $9.20
    In Stock
  • 26
    16199-KG4-405 tube, fuel Supersedes: 16199-GJ3-601 (TUBE, OVERFLOW) Retail: $11.17 Price: $9.20
    In Stock
  • 27
    93500-04008-0H screw, pan (4x8) Supersedes: 93500-04008-1H (SCREW, PAN (4X8)) Price: $1.59
    In Stock
  • 28
    93500-04014-0H screw, pan (4x14) Supersedes: 93500-04014-1H (SCREW, PAN (4X14)) Price: $1.45
    In Stock
  • 29
    93892-04012-08 screw-washer (4x12) Supersedes: 93892-04012-18 (SCREW-WASHER (4X12)) Price: $1.12
    In Stock
  • 30
    93892-05010-08 screw-washer (5x10) Price: $1.23
    Expected to Ship in 5-8 Days
  • 31
    95002-02650 clip, tube (b6.5) Price: $1.59
    In Stock
  • 32
    99101-357-1200 jet, main (#120) (Optional). Retail: $22.00 Price: $18.16
    Expected to Ship in 5-8 Days
  • 32
    99101-357-1250 jet, main (#125) Supersedes: 99113-GHB-1250 (JET, MAIN (#125)) Retail: $11.07 Price: $9.14
    In Stock
  • 33
    99103-420-0350 jet, slow (#35) Retail: $13.25 Price: $10.94
    Expected to Ship in 5-8 Days
