# Part Retail Our Price

Stock Status Suggested Quantity
1
16010-HB5-305 gasket set Supersedes: 16010-HB5-671 (GASKET SET) Retail: $32.28 Price: $26.63

Expected to Ship in 5-8 Days
1
16010-HB5-305 gasket set Supersedes: 16010-HB5-671 (GASKET SET) Retail: $32.28 Price: $26.63

Expected to Ship in 5-8 Days
2
16012-HB5-014 needle set, jet
This part is currently unavailable.
3
16013-439-921 float set Retail: $89.84 Price: $74.57

Expected to Ship in 5-8 Days
4
16015-KCE-671 chamber set, float Supersedes: 16015-KCE-670 (CHAMBER SET, FLOAT)
This part is currently unavailable.
4
16015-KCE-671 chamber set, float Supersedes: 16015-KCE-670 (CHAMBER SET, FLOAT)
This part is currently unavailable.
4
16015-KCE-671 chamber set, float Supersedes: 16015-KCE-670 (CHAMBER SET, FLOAT)
This part is currently unavailable.
5
16016-HB5-671 screw set a
This part is currently unavailable.
6
16022-HB7-004 valve set, throttle Supersedes: 16022-HB5-014 (VALVE SET, THROTTLE)
This part is currently unavailable.
6
16022-HB7-004 valve set, throttle
This part is currently unavailable.
7
16028-KB1-D11 screw set b Supersedes: 16028-402-004 (SCREW SET B) Price: $7.65

Expected to Ship in 5-8 Days
8
16100-HB5-306 carburetor assy.
This part is currently unavailable.
8
16100-HB5-306 carburetor assy. Supersedes: 16100-HB5-671 (CARBURETOR ASSY.)
This part is currently unavailable.
8
16100-HB5-306 carburetor assy. Supersedes: 16100-HB5-672 (CARBURETOR ASSY.)
This part is currently unavailable.
9
16110-HB5-004 gasket, top
This part is currently unavailable.
10
16119-440-004 plate, stay Retail: $10.81 Price: $8.92

Expected to Ship in 5-8 Days
11
16135-KA8-671 lever, choke
This part is currently unavailable.
12
16199-428-771 tube, overflow (not available)
This part is currently unavailable.
13
16155-397-971 valve, float Retail: $48.76 Price: $40.23

In Stock
14
16165-HB5-014 holder, needle jet
This part is currently unavailable.
15
16168-382-014 holder, jet Retail: $11.54 Price: $9.46

In Stock
16
16179-428-671 binder
This part is currently unavailable.
17
16199-437-405 tube, air vent Supersedes: 16199-HB5-004 (TUBE, AIR VENT)
This part is currently unavailable.
17
16199-437-405 tube, air vent
This part is currently unavailable.
18
93892-04016-08 screw-washer (4x16) Supersedes: 93892-04016-07 (SCREW-WASHER (4X16)) Price: $1.30

In Stock
19
93892-05012-08 screw-washer (5x12) Supersedes: 93892-05012-18 (SCREW-WASHER (5X12)) Price: $1.23

In Stock
20
94001-06200-0S nut, hex. (6mm) Supersedes: 94030-06000 (NUT, HEX. (6MM)) Price: $1.41

In Stock
20
94001-06200-0S nut, hex. (6mm) Supersedes: 94030-06000 (NUT, HEX. (6MM)) Price: $1.41

In Stock
21
95002-02650 clip, tube (b6.5) Price: $1.59

In Stock
22
99113-GHB-1080 jet, main (#108) (Optional). Supersedes: 99101-357-1080 (JET, MAIN (#108)) Retail: $10.96 Price: $9.05

Expected to Ship in 5-8 Days
22
99113-GHB-1120 jet, main (#112) Supersedes: 99101-357-1120 (JET, MAIN (#112)) Retail: $10.96 Price: $9.05

Expected to Ship in 5-8 Days
22
99113-GHB-1080 jet, main (#108) (Optional). Supersedes: 99101-357-1080 (JET, MAIN (#108)) Retail: $10.96 Price: $9.05

Expected to Ship in 5-8 Days
22
99113-GHB-1120 jet, main (#112) Supersedes: 99101-357-1120 (JET, MAIN (#112)) Retail: $10.96 Price: $9.05

Expected to Ship in 5-8 Days
23
99103-440-0350 jet, slow (#35) Retail: $15.50 Price: $12.80

Expected to Ship in 5-8 Days

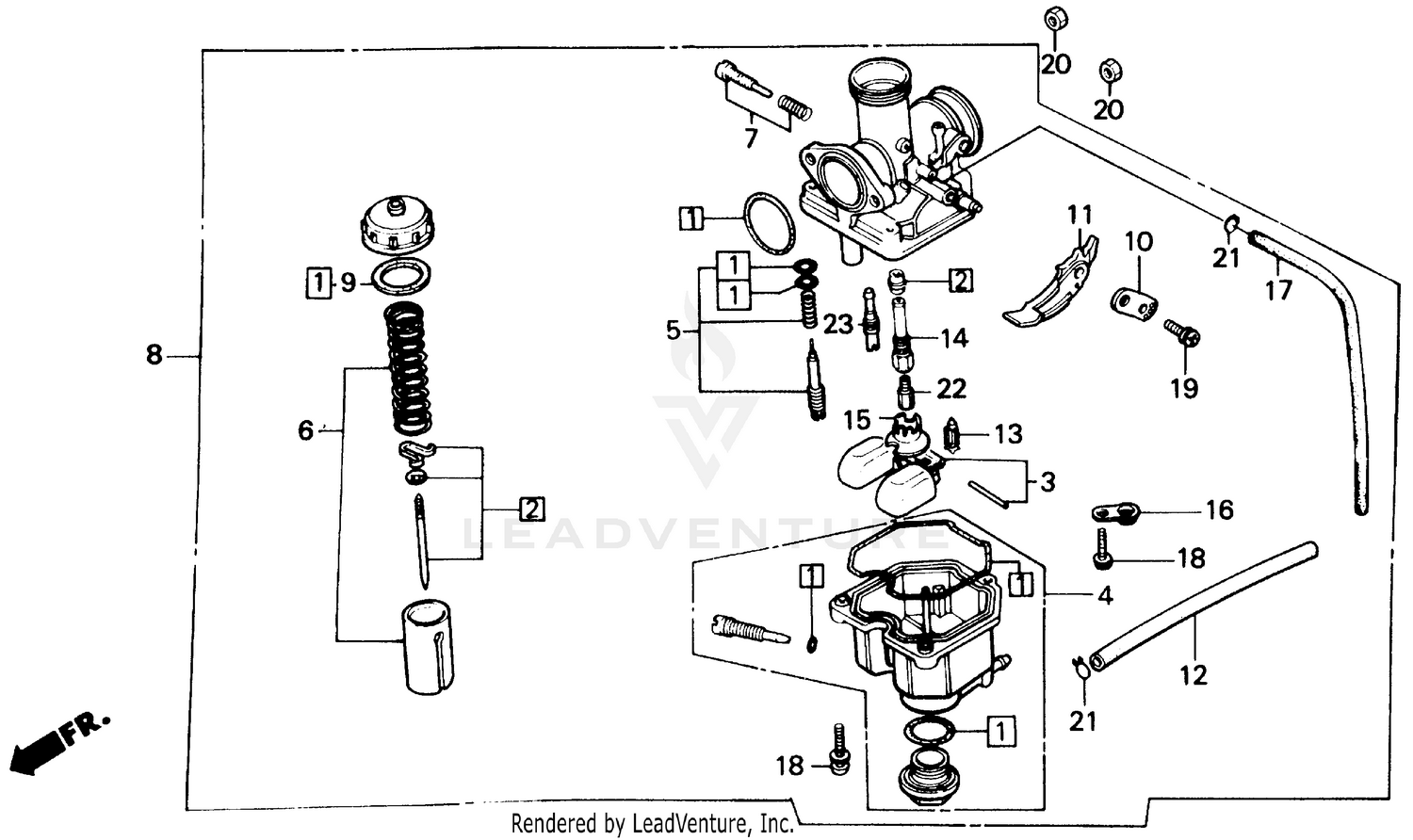

1987 Honda ATC200X CARBURETOR
