1987 HONDA CR500 CYLINDER 85-89

Set this as my ride

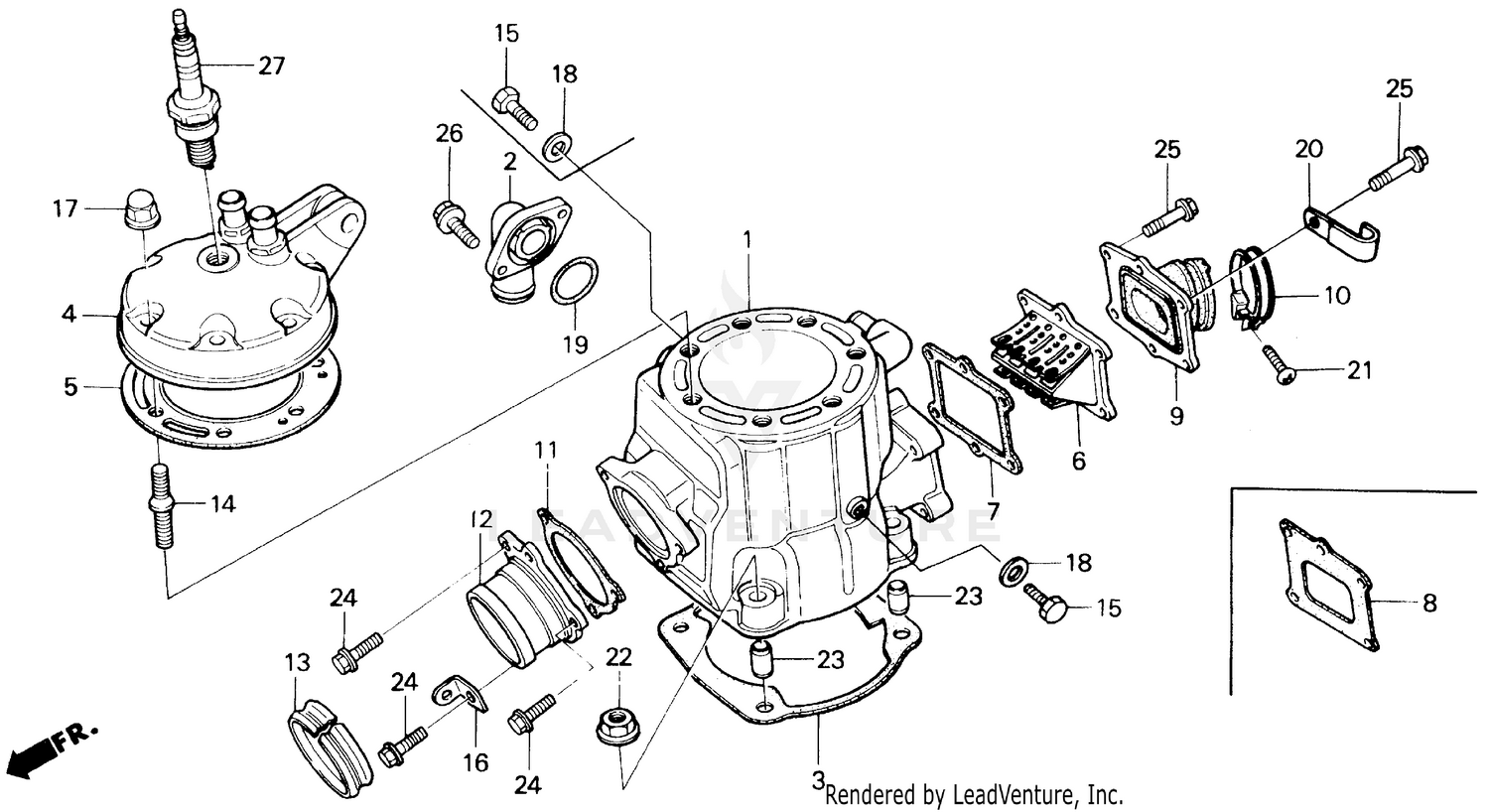

CYLINDER 85-89

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    06120-KA5-405 cylinder Supersedes: 12100-KA5-690 (CYLINDER)
    This part is currently unavailable.
  • 3
    12191-MAC-680 gasket, cylinder Supersedes: 12191-ML3-790 (GASKET, CYLINDER) Retail: $17.96 Price: $14.81
    In Stock
  • 3
    12191-MAC-680 gasket, cylinder Supersedes: 12191-ML3-790 (GASKET, CYLINDER) Retail: $17.96 Price: $14.81
    In Stock
  • 3
    12191-MAC-680 gasket, cylinder Supersedes: 12191-ML3-790 (GASKET, CYLINDER) Retail: $17.96 Price: $14.81
    In Stock
  • 3
    12191-MAC-680 gasket, cylinder Supersedes: 12191-ML3-790 (GASKET, CYLINDER) Retail: $17.96 Price: $14.81
    In Stock
  • 3
    12191-MAC-680 gasket, cylinder Supersedes: 12191-ML3-790 (GASKET, CYLINDER) Retail: $17.96 Price: $14.81
    In Stock
  • 4
    12200-ML3-780 cylinder head
    This part is currently unavailable.
  • 5
    12254-ML3-881 gasket, cylinder head Supersedes: 12254-KA5-691 (GASKET, CYLINDER HEAD (NOT AVAILABLE))
    This part is currently unavailable.
  • 5
    12254-ML3-881 gasket, cylinder head
    This part is currently unavailable.
  • 6
    14100-ML3-003 valve assy., reed
    This part is currently unavailable.
  • 7
    14132-KA5-306 gasket a, reed valve
    This part is currently unavailable.
  • 7
    14132-KA5-306 gasket a, reed valve Supersedes: 14132-KA5-740 (GASKET A, CYLINDER (NOT AVAILABLE))
    This part is currently unavailable.
  • 8
    14133-KA5-306 gasket b, reed valve
    This part is currently unavailable.
  • 8
    14133-KA5-306 gasket b, reed valve Supersedes: 14133-KA5-740 (GASKET B, CYLINDER (NOT AVAILABLE))
    This part is currently unavailable.
  • 9
    16221-ML3-870 insulator, carburetor Supersedes: 16221-KA5-690 (INSULATOR, CARBURETOR)
    This part is currently unavailable.
  • 9
    16221-ML3-870 insulator, carburetor
    This part is currently unavailable.
  • 10
    16223-KA5-690 band, insulator
    This part is currently unavailable.
  • 11
    18291-KA5-306 gasket, ex. flange
    This part is currently unavailable.
  • 11
    18291-KA5-306 gasket, ex. flange Supersedes: 18291-KA5-690 (GASKET, EX. MANIFOLD (NOT AVAILABLE))
    This part is currently unavailable.
  • 12
    18352-KA5-691 joint, ex. pipe Supersedes: 18352-KA5-690 (JOINT, EX. PIPE)
    This part is currently unavailable.
  • 12
    18352-KA5-691 joint, ex. pipe
    This part is currently unavailable.
  • 13
    18359-KA5-690 seal, ex. manifold Retail: $14.15 Price: $11.67
    In Stock
  • 14
    90032-KA5-690 bolt, stud (special) Price: $5.50
    In Stock
  • 15
    90037-360-000 bolt, oil check Price: $4.31
    In Stock
  • 16
    90442-KA5-690 plate, spring hanger (not available)
    This part is currently unavailable.
  • 17
    90443-107-000 nut, cap (8mm) Supersedes: 90443-KPS-900 (NUT, CAP (8MM)) Price: $3.45
    In Stock
  • 18
    90543-273-000 gasket, fr. fork drain valve Price: $2.96
    In Stock
  • 20
    91406-657-671 clip, wire harness
    This part is currently unavailable.
  • 21
    93500-05025-0A screw, pan (5x25) Price: $1.72
    In Stock
  • 22
    94050-10000 nut, flange (10mm) Supersedes: 94030-10000-07 (NUT, FLANGE (10MM)) Price: $1.70
    In Stock
  • 23
    94301-12200 pin a, dowel (12x20) Price: $2.71
    In Stock
  • 24
    96001-06018-07 bolt, flange (6x18) Supersedes: 96000-06018-07 (BOLT, FLANGE (6X18)) Price: $1.51
    In Stock
  • 24
    96001-06018-07 bolt, flange (6x18) Supersedes: 96000-06018-07 (BOLT, FLANGE (6X18)) Price: $1.51
    In Stock
  • 25
    95701-06022-00 bolt, flange (6x22) Supersedes: 95801-06022-00 (BOLT, FLANGE (6X22)) Price: $1.97
    In Stock
  • 25
    95701-06022-00 bolt, flange (6x22) Supersedes: 95801-06022-00 (BOLT, FLANGE (6X22)) Price: $1.97
    In Stock
  • 27
    98079-58679 spark plug (br8eg) (ngk) Supersedes: 98079-58649-00 (SPARK PLUG (BR8EG) (NGK)) Price: $7.42
    In Stock
  • 27
    98079-58679 spark plug (br8eg) (ngk) Supersedes: 98079-58649-00 (SPARK PLUG (BR8EG) (NGK)) Price: $7.42
    In Stock
  • 27
    98079-58659 spark plug (w24esr-v) (denso) Price: $2.94
    In Stock
  • 27
    98079-58679 spark plug (br8eg) (ngk) Supersedes: 98079-58649-00 (SPARK PLUG (BR8EG) (NGK)) Price: $7.42
    In Stock
  • 27
    98079-58679 spark plug (br8eg) (ngk) Supersedes: 98079-58649-00 (SPARK PLUG (BR8EG) (NGK)) Price: $7.42
    In Stock
