Koso TNT-05R Tachometer

• Product Details

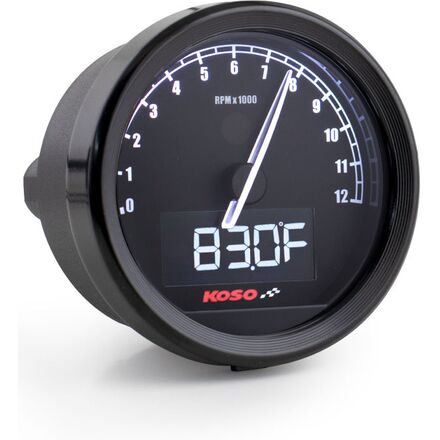

  KOSO TNT-05R Tachometer.

  • Whether it is day or night, this small-scaled TNT-05 tachometer will prevent your engine from being damaged with its warning function for temperature and voltage.

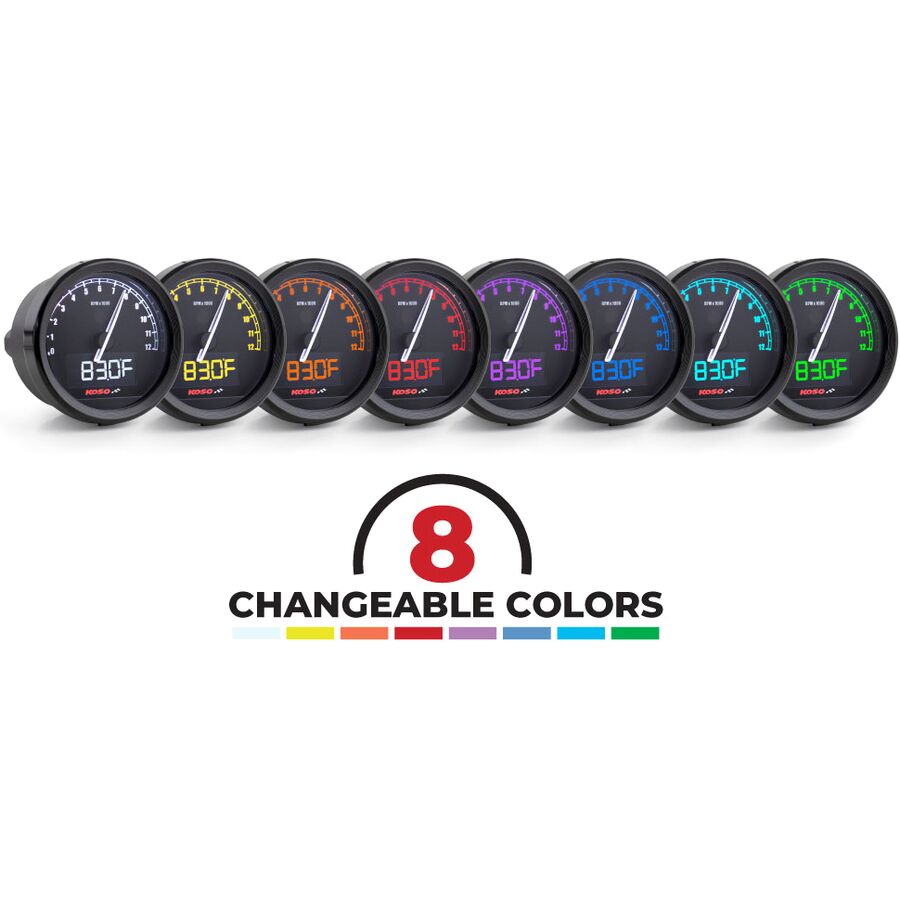

  • Gives different look to your motorcycle with its seven (7) changeable LCD display backlight colors.

  Specifications:

  • Tachometer:
  • R: 0 ~ 12,000 RPM.
  • U: 1,000 (Large grid), 500 RPM (small grid).
  • Effective temperature range:
  • 14 ~ 140F (-10 ~ 60C).
  • Effective voltage:
  • DC 12 V.
  • Indicator lights:
  • Over-running light (red).
  • Backlight colors:
  • White / Yellow / Orange / Red / Purple / Blue / Light blue / Green.
  • Volt meter:
  • R: DC 8 ~ 18 V | Flashing Warning light value.
  • Backlight brightness:
  • R: 1/3 (darkest) ~ 3/3 (brightest).
  • Pre-Shift light warning:
  • R: 1,000 ~ 11,00 RPM, when setting value is reached or above, warning light will illuminate.
  • U: 100 RPM.
  • RPM input pulse:
  • R: HI-ACT (positive wave pulse) / LO-ACT (negative wave pulse).
  • Max. rotating speed:
  • R: 0 ~ 12,000 RPM (km) U: 1,000 (Large grid), 500 RPM (small grid).
  • RPM Shift-light:
  • R: +100 ~ 12,000 RPM U: 100 RPM, warning light on > value.
  • Thermometer:
  • R: 32 ~ 482F (0 ~ 250C).
  • U: 0.1F or C (alternative).
  • Over temperature warning:
  • R: 140 ~ 482F (60 ~ 250C) / U: 1F (C).

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  D48 / Standard	BA086101
  D60 / Standard	BA085101
