TNT-02 Multifunction Gauge

• Product Details

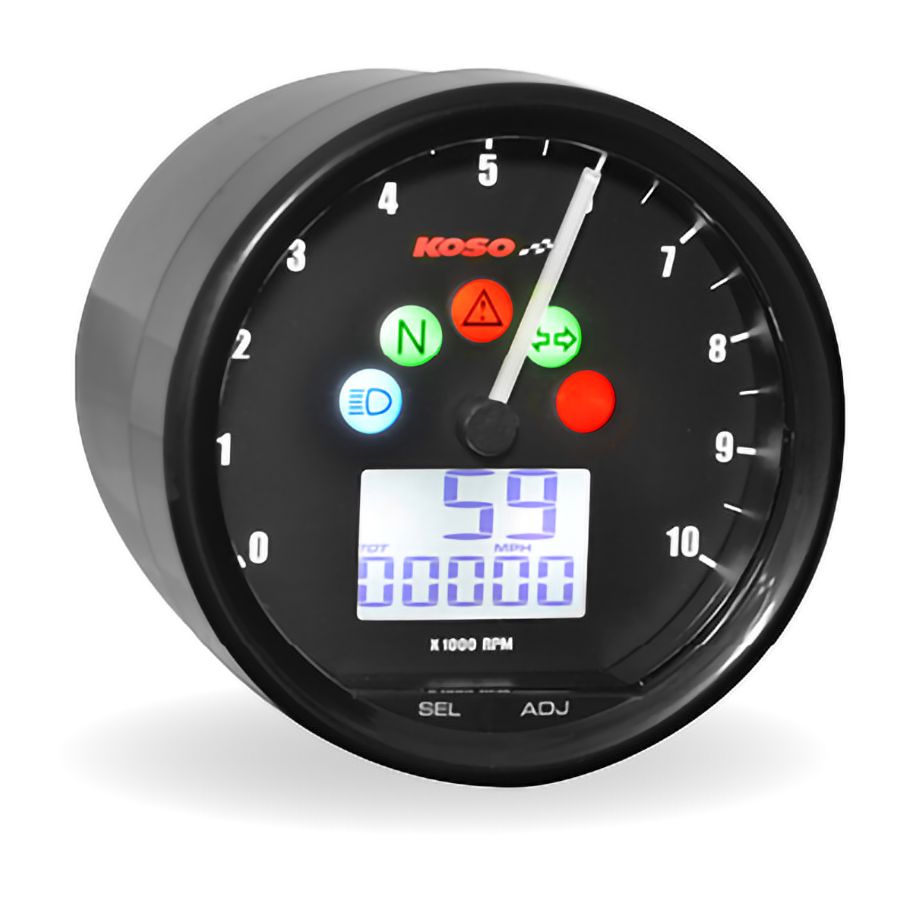

  With its vintage look, Koso's TNT-02 is the perfect meter for all caf racers and special project bikes - or Harley-Davidsons - that require a small multifunction meter. This 64 mm instrument is a smaller version of the popular TNT-01 and it has the same features such as speedometer, odometer, trip meter, tachometer, fuel meter, clock, shift light and indicator lights. Its strong stepper motor allow the reading to be fast and smooth for the best in-time response you can have and its adjustable backlight brightness makes it very easy to read.

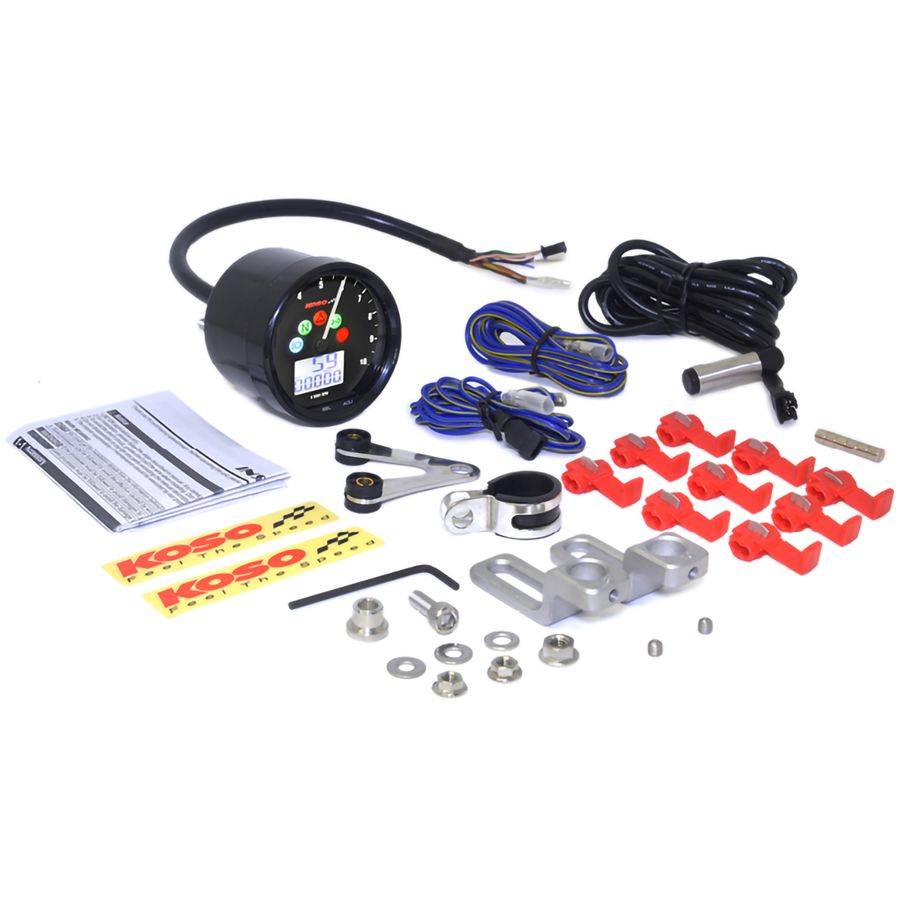

  • Kit includes everything needed for installation.

  Detailed Specifications:

  • Speedometer:
  • Display range: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Display unit: 1 MPH or km/h (alternative).
  • Internal display: < 0.5 second.
  • Odometer:
  • Display range: 0 ~ 99,999 miles (km).
  • Reset automatically after 99,999 miles (km).
  • Display unit: 1 mile (km).
  • Trip meter A/B:
  • Display range: 0 ~ 999.9 miles (km).
  • Reset automatically after 999.9 miles (km).
  • Display unit: 0.1 mile (km).
  • Tire circumference:
  • Setting range: 300 ~ 2,500 mm.
  • Setting unit: 1 mm.
  • Sensitive point : 1 ~ 20.
  • Tachometer: Display range: 0 ~ 10,000 RPM.
  • Shift light:
  • Setting range: 5,000 ~ 20,000 RPM.
  • Setting unit: 100 RPM.
  • Warning: Setting range: Light on (F-OFF), Flash (F-ON).
  • RPM input signal nb setting: Setting range: 0.5, 1 ~ 6.
  • RPM input pulse:
  • Setting range:
  • HI-ACT (positive wave pulse).
  • LO-ACT (negative wave pulse).
  • Fuel meter:
  • Display range: 0 ~ 100%.
  • Display unit: 1%.
  • Clock: Setting range: 24 H format.
  • Backlight brightness:
  • Setting range: 1/5 (darkest) ~ 5/5 (brightest).
  • Setting unit: 20%.
  • Indicator lights:
  • Turn signals.
  • Warning.
  • Neutral.
  • High beam.
  • RPM shift light.
  • Effective temperature range: 14 ~ 140F (-10 ~ 60C).
  • Effective voltage: DC 12V.
  • Meter standard: JIS D 0203 S2.

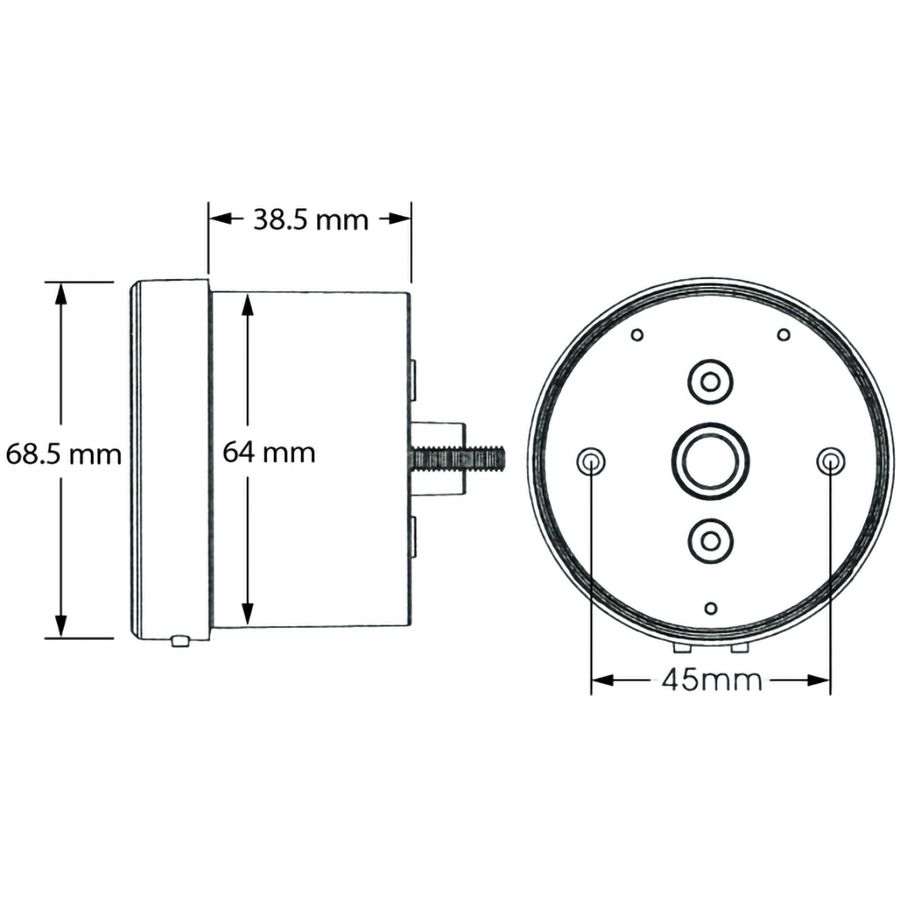

  • Meter size: dia. 2-1/2 x 1-1/2" (dia. 64 x 38.5 mm).
  • Meter weight: 11.64 ounces (330 grams).
  • Sensor type (universal model ONLY): Passive speed sensor: BF019005.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Black / Harley Davidson Koso TNT-02 Multifunction Gauge	BA058100-HD
