TNT-01 Multifunction Gauge

• Product Details

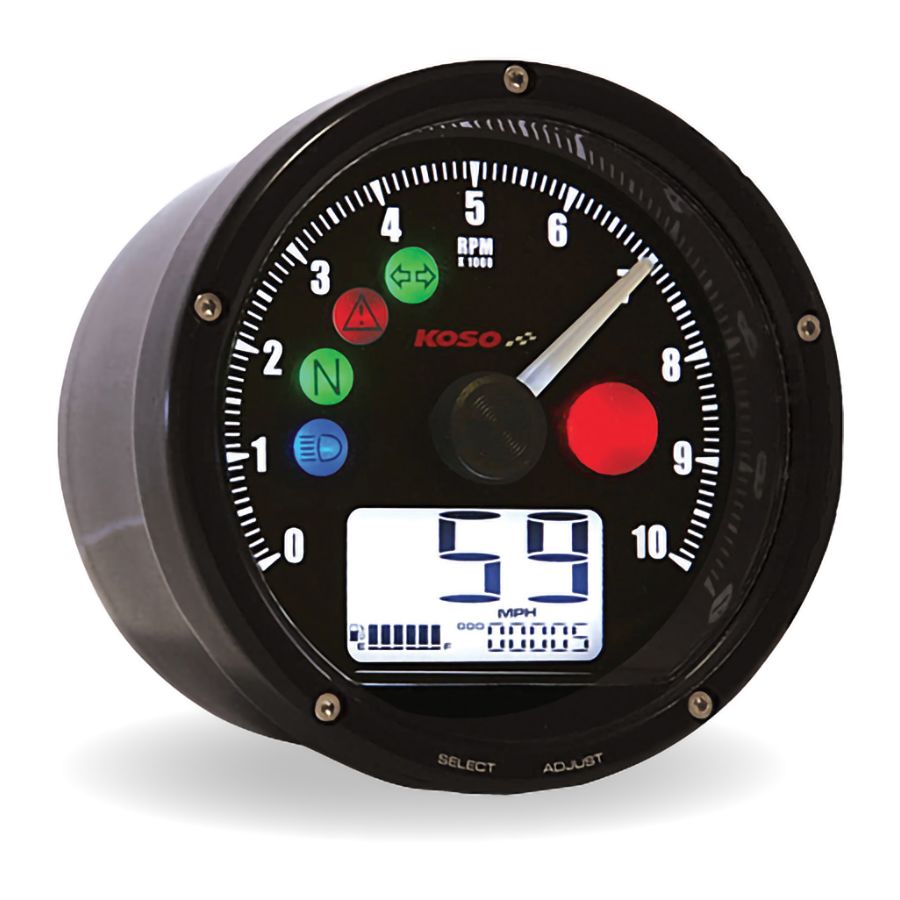

  Koso's TNT-01 Multifunction Meter is perfect for all the Caf Racers, special projects or Harleys. It uses a stepper motor for a fast and smooth response. The instrument features many functions such as speed, odometer, trip meter, RPM, fuel meter, clock, voltage, shift light, indicator light and more...This meter is available in black or white face and functions with the Harley-Davidson speed sensor on the transmission or comes with a speed sensor for other applications.

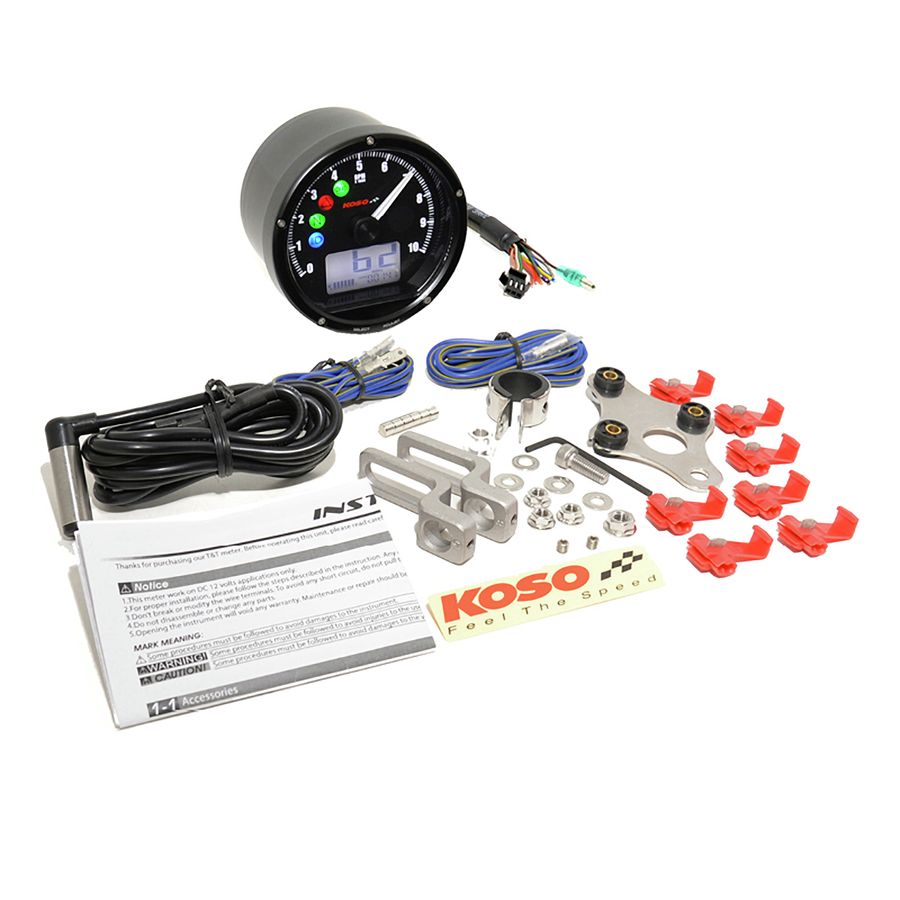

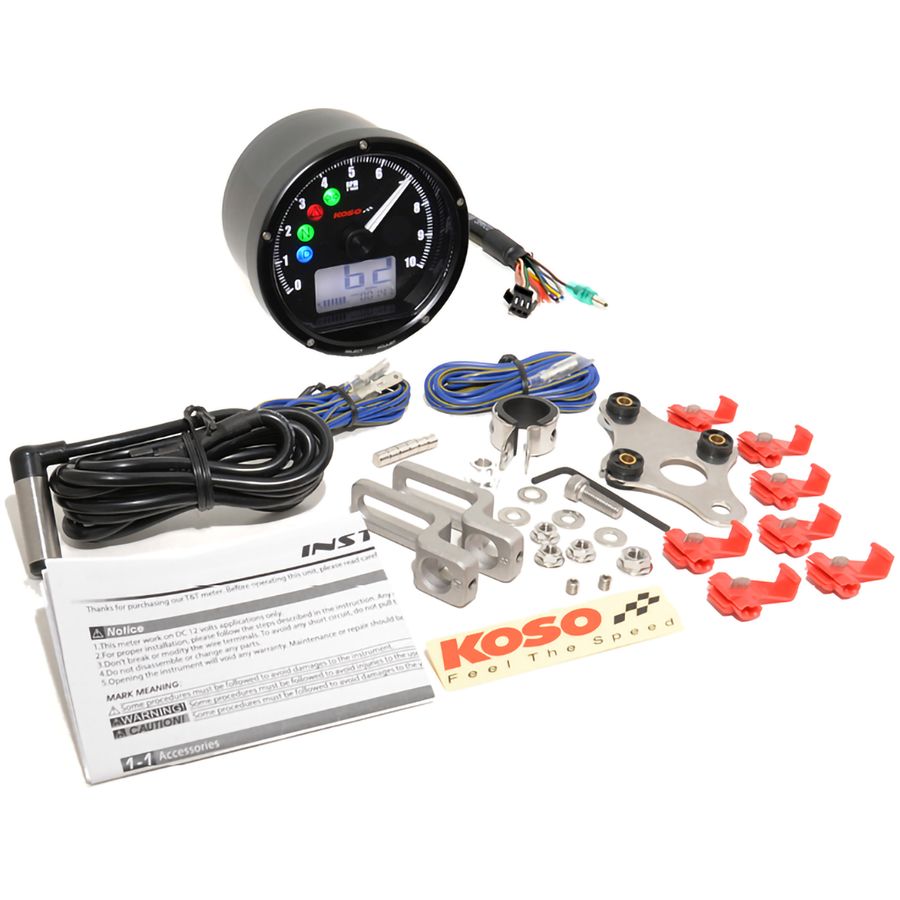

  • Kit includes everything needed for installation.

  Detailed Specifications:

  • Speedometer:
  • Display range: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Display unit: MPH and km/h.
  • Display internal: < 0.5 second.
  • Odometer:
  • Display range: 0 ~ 99,999 miles (km).
  • Reset automatically after 99,999 miles (km).
  • Display unit: 1 mile (km).
  • Trip meter A/B:
  • Display range: 0 ~ 999.9 miles (km).
  • Reset automatically after 999.9 miles (km).
  • Display unit: 0.1 mile (km).
  • Tire circumference:
  • Setting range: 300 - 2,500 mm.
  • Setting unit: 1 mm.
  • Sensitive point: 1 ~ 20.
  • Tachometer: Display range: 0 ~ 10,000 RPM.
  • Shift light:
  • Setting range: 8,000 ~ 10,000 RPM.
  • Setting unit: 100 RPM.
  • Warning (shift light):
  • Light on (F-OFF).
  • Flash (F-ON).
  • RPM input signal number: Setting range: 0.5, 1 ~ 24.
  • RPM input pulse: Setting range:
  • HI-ACT (positive wave pulse.
  • LO-ACT (negative wave pulse).
  • Fuel meter:
  • Display range: 6 levels.
  • Display unit: Each level represents 16.6%.
  • Fuel resistance: Setting range: 100 ohm / 250 ohm / 510 ohm / 1200 ohm / SW.
  • Clock: Setting range: 24 H format.
  • Volt meter:
  • Display range: DC 8 ~ 18V.
  • Flashing warning when voltage lower than 11.5V or higher than 15.5V.
  • Backlight brightness:
  • Setting range: 1-5 (Darkest) ~ 5-5 (Brightest).
  • Setting unit: Each level represents 20%.
  • Indicator lights:
  • Turn signals.
  • Warning.
  • Neutral.
  • High beam.
  • RPM shift light.
  • Effective temperature range: 14 ~ 140F (-10 ~ 60C).
  • Effective voltage: DC 12V.
  • Meter standard: JIS D 0203 S2.

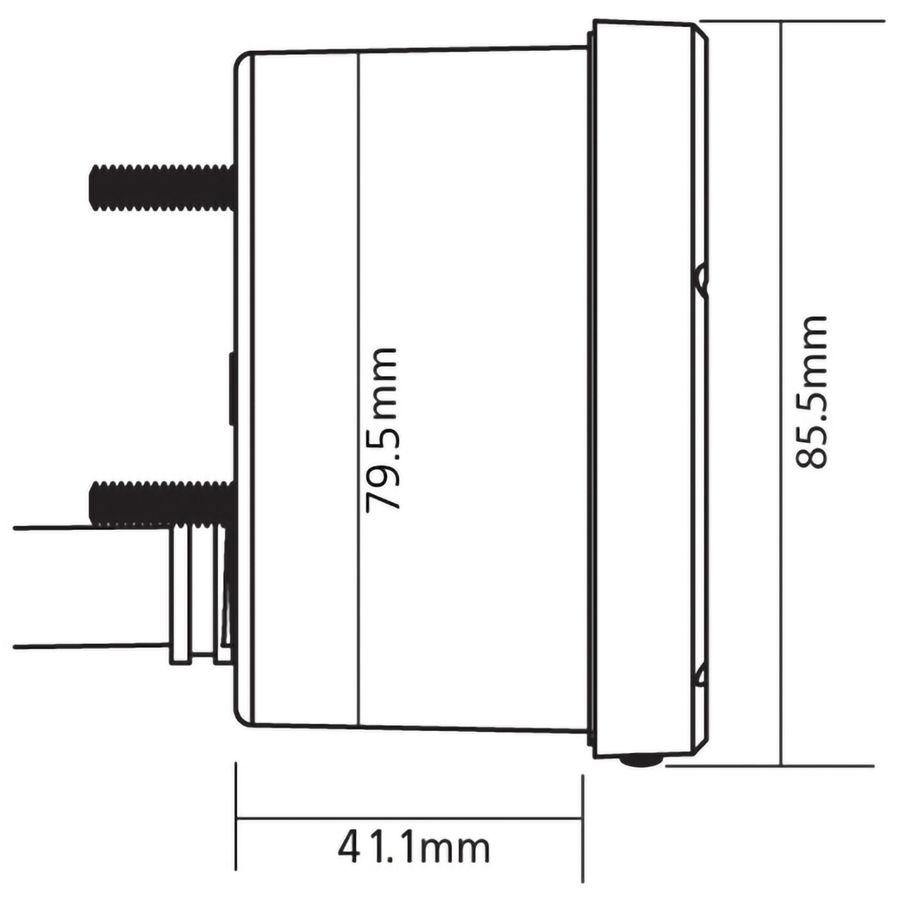

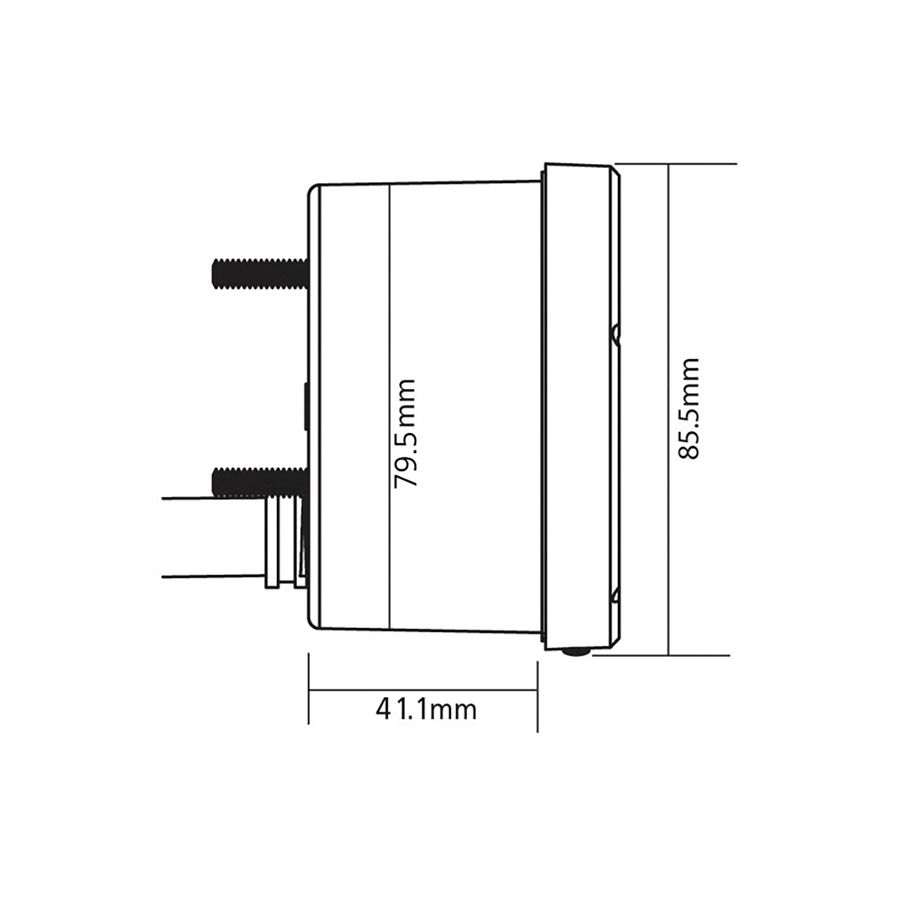

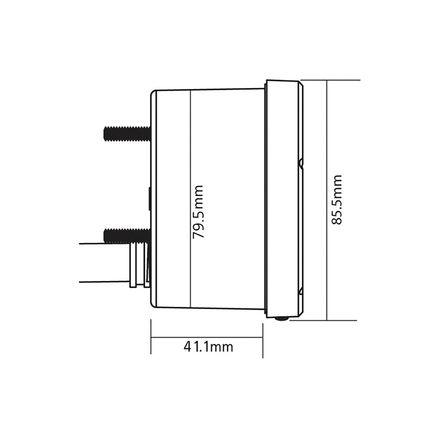

  • Meter size: dia. 3-1/8 x 1-5/8" (dia. 79.5 x 41.1 mm).
  • Meter weight: 11.64 ounces (330 grams).
  • Sensor type (where required): Passive speed sensor: BF019005.
