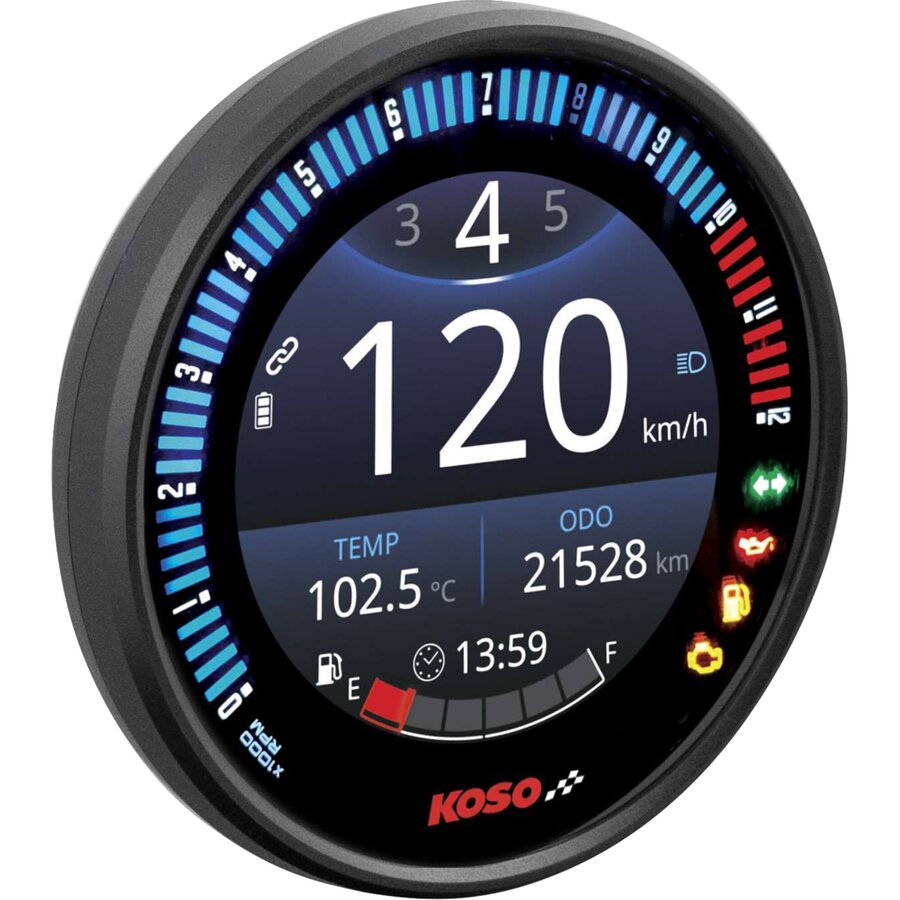

RX-6S | TFT Multifunction Meter.

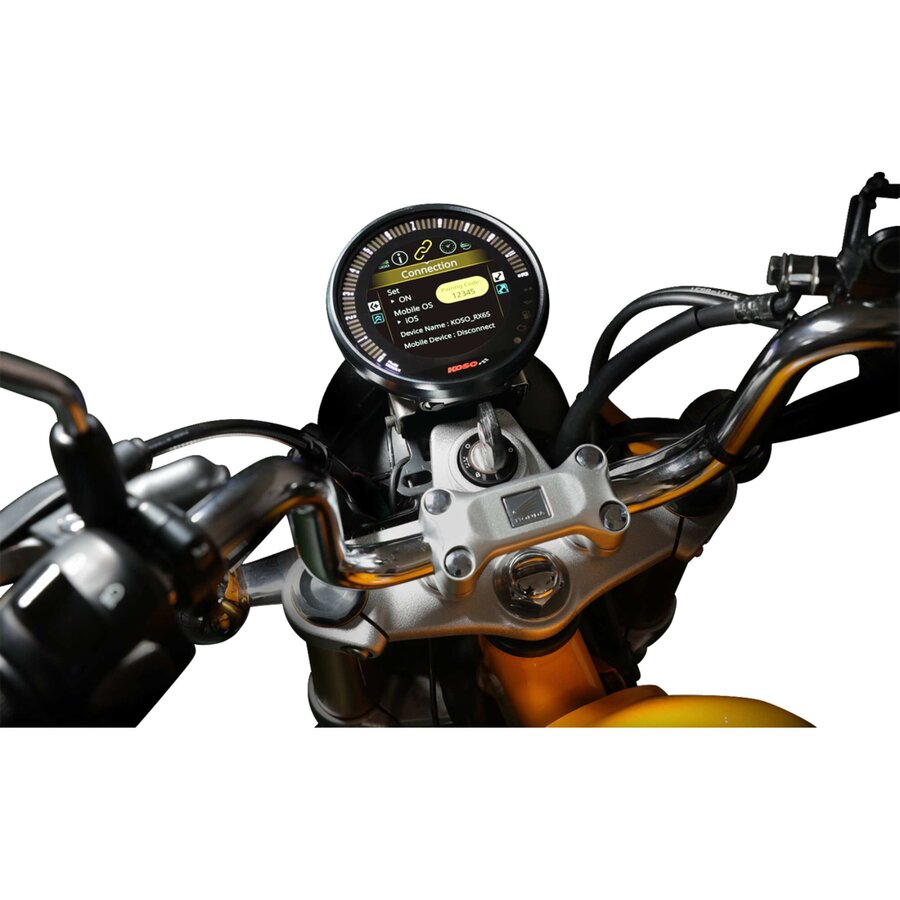

This new universal gauge combines a TFT screen with a LCD RPM gauge. It features a smartphone integration that gives you full control of your display directly from your device. The Bluetooth option allows you to see on the gauge your music information, phone calls and navigation so you can stay informed while riding.

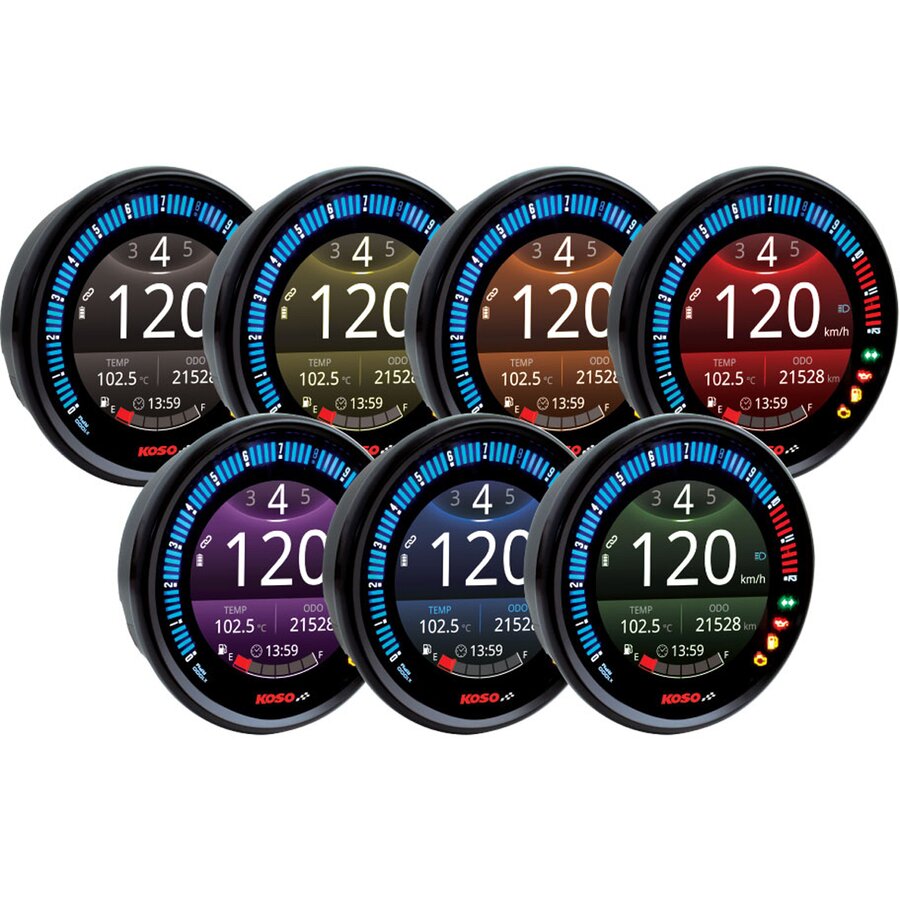

Connect your gauges to your phone with the KOSO K Link app and monitor real-time data of your bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance and more. You can choose between seven (7) different backlight colors to match your style. The K Link app also allows you to check your system health and maintenance with its diagnostics feature.
- Speedometer:
- R: 0 ~ 225 MPH (0 ~ 360 km/h).
- U: 1 MPH or km/h (alternative).
- Odometer (internal and external):
- R: 0 ~ 999,999 miles (km) | U: 1 mile (km).
- Tripmeter 1, 2:
- R: 0 ~ 9, 999.9 miles (km).
- U: 0.1 mile (km).
- Low fuel mileage:
- R: 0 ~ 999miles (km) | U: 1 mile (km).
- Oil Maintenance:
- R: 300 ~ 10,000 miles (500 ~ 16,000 km), OFF.
- U: 100 mile (km).
- Maximum speed record:
- R: 0 ~ 225 MPH (0 ~ 360 km/h).
- U: 1 MPH or km/h (alternative).
- Gear indicator:
- R: N, 1 ~ the highest gear, (the highest gear shall be based on the gear learning).
- Maximum gear indicator:
- R: N, 1 ~ the highest gear, (the highest gear shall be based on the gear learning) may return to zero manually.
- Tachometer:
- Shift light:
- R: 1,000 ~ 12,000 RPM, OFF / Fast Flash / Steady / Slow Flash.
- U: 100 RPM.
- Maximum RPM:
- R: 0 ~ 12,000 RPM, may return to zero manually.
- RPM input signal number setting:
- RPM input pulse:
- Operating voltage:
- Thermometer:
- R: 0.0 ~ 250C (32 ~ 482F) | U: DC 0.1 V.
- U: 0.1C (F).
- Overheat warning A, B setting:
- R:60 ~ 250C (140 ~ 482F), when setting value is reached , the color of the number turns to red and flashes. | U: 1C (F).
- Maximum temperature record:
- R: 0.0 ~ 250.0C (32.0 ~ 482.0F), may return to zero manually. | U: 0.1C (F).
- Fuel meter:
- R: Six levels | U: 1 level = 16.6%.
- Fuel warning setting:
- R: 0 ~ 3/6, when setting value is reached or below, warning light will illuminate.
- U: 1.
- A/F ratio meter:
- Fuel gauge resistance (Ohm):
- R: 100 Ohm, 250 Ohm, 270 Ohm, 390 Ohm, 510 Ohm, 1200 Ohm, SW, custom, OFF.
- Clock:
- Volt meter:
- R: DC 8.0 ~ 18.0 V | U: DC 0.1 V.
- Low voltage warning:
- R: DC 8.0 ~ 13.0 V | U: DC 0.1 V.
- D: LO ≤ value, numbers will turn red and blink.
- High voltage warning:
- R: DC 13.1 ~ 18.0 V | U: DC 0.1 V.
- D: HI value, numbers will turn red and blink.
- Target speed:
- R: 0 ~ 225 MPH (0 ~ 360 km/h) | U: 5 km/h (MPH).
- Target distance:
- R: 1/32 ~ 30/32 mile (50 ~ 1,500 m).
- U: 1/32 mile (50 m).
- Top speed:
- D:
- Speed: 0 ~ 225 MPH (0 ~ 360 km/h).
- Distance: 0 ~ 999 m (0 ~ 3,280 feet).
- RPM: 0 ~ 10,000 RPM/ 0 ~ 12,500 RPM/ 0 ~ 15,000 RPM/ 0 ~ 18,000 RPM.
- Time : 0 ~ 9 : 59"99.
- Navigation:
- R: Total of 40 turning precautions, 0 ~ 999m (1 ~ 999km).
- Bluetooth connection status.
- Operating system:
- iOS: iOS 5.0 and above.
- Android : Android 9 and above.
- Phone battery:
- Incoming phone call:
- D:
- Name or number up to 7 letters.
- "..." displayed if > 7 letters.
- "Unknown" displayed when there is no name.
- iOS - shows either name or number of the incoming call.
- Android - shows number only.
- Incoming online App call:
- D:
- Name up to seven letters.
- "..." displayed if > seven letters.
- "Unknown" displayed when there is no name.
- App:
- Operating system:
- iOS: supported.
- Android: NOT supported.
- Music playing info:
- D:
- Song: 13 letters / "..." if > 13 letters.
- Artist: 9 letters / "..." if > 9 letters.
- Operating system (for total time):
- iOS: supported.
- Android: NOT supported.
- Current playing time:
- Operating system (for current time):
- iOS : supported.
- Android : NOT supported.
- Push info:
- D:
- Name: seven letters / "..." if > four letters.
- Operating system:
- iOS : supported.
- Android : NOT supported.
- Background display:
- R: Auto (automatically switch according to the light: Day mode display for a bright environment and Night mode display for a dark environment), Day mode, Night mode.
- Back light brightness (Day):
- R: 1/5 (darkest) ~ 5/5 (brightness).
- Back light brightness (Night):
- R: 1/5 (darkest) ~ 5/5 (brightness).
- Backlight color:
- R: White, yellow, orange, red, purple, blue and green.
- Indicator lights:
- Turn signals / Check Engine / Motor oil (maintenance) / Fuel light.
- Effective temperature range:
