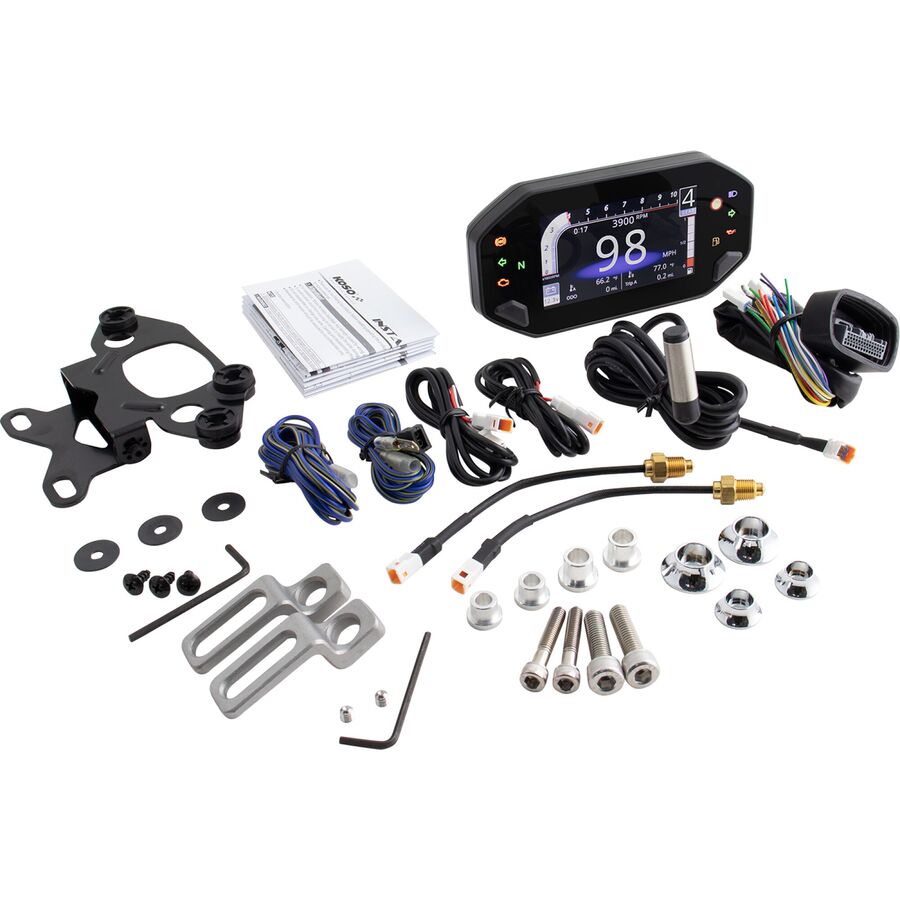

Koso RX-4 Universal TFT Multifunction Gauge

• Product Details

  With its modern look and features, this RX-4 speedometer is the perfect plug and play meter for many motorcycles.

  Featuring speed, odometer, tripmeter, hour meter, voltage, clock and stopwatch as well as six indicator lights, this meter will give you all information you need.

  Note: Model-specific brackets (sold separately) are required to install the meter in the original location.

  Specifications:

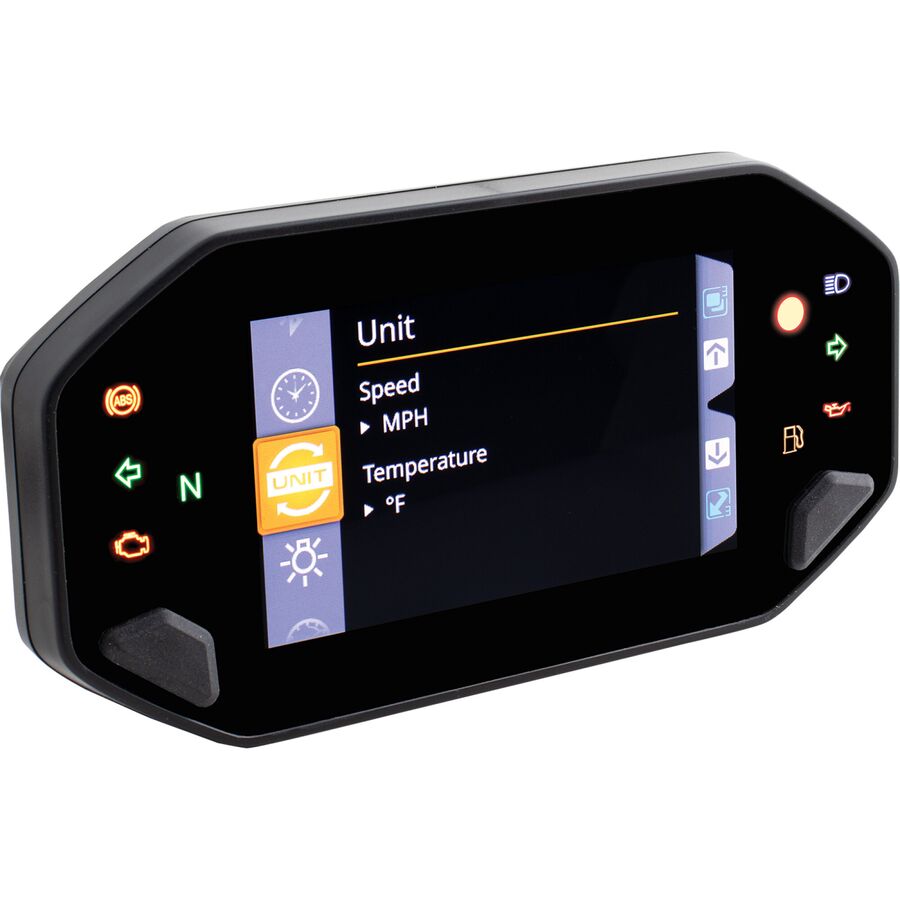

  • Speedometer: R (Range): 0 ~ 225 MPH (0 ~ 360 km/h), U (Unit): 1 MPH or km/h (alternative).
  • Odometer: R (Range): 0 ~ 999,999 miles (km) | U (Unit): 1 mile (km).
  • Tripmeter A, B: R (Range): 0 ~ 9,999.9 miles (km) | U (Unit): 0.1 mile (km).
  • Low fuel mileage: R: 0 ~ 999 miles (km) | U: 1 mile (km).
  • Oil maintenance: R: 300 ~ 10,000 miles (500 ~ 16,000 km) ~ -999 km (mile) | U: 1 mile (km); Value will decrease automatically.; Warning range: Text will turn red as the value is 0 mile (km) and below.
  • Speed warning setting: R: 20 ~ 225 MPH (30 ~ 360 km/h), when setting is reached or above warning light will illuminate | U: 1 MPH or km/h (alternative).
  • Max. speed record: R: 0 ~ 225 MPH (0 ~ 360 km/h) | U: 1 MPH or km/h (alternative).
  • Gear indicator: R (Range): N, 1 ~ highest gear (the highest gear shall be based on gear learning).
  • Max. gear indicator: R (Range): N, 1 ~ highest gear (the highest gear shall be based on gear learning).
  • Tachometer: R: 0 ~ 10,000 RPM / 0 ~ 12,500 RPM / 0 ~ 15,000 RPM / 0 ~ 18,000 RPM.
  • Pre -shift light warning setting: R: 1,000 ~ 10,000 RPM / 1,000 ~ 12,500 RPM / 1,000 ~ 15,000 RPM / 1,000 ~ 18,000 RPM |U: 100 RPM.
  • Shift light warning setting: R: 1,000 ~ 10,000 RPM / 1,000 ~ 12,500 RPM / 1,000 ~ 15,000 RPM / 1,000 ~ 18,000 RPM |U: 100 RPM.
  • Max. rotating speed: R: 0 ~ 10,000 RPM / 0 ~ 12,500 RPM / 0 ~ 15,000 RPM / 0 ~ 18,000 RPM.

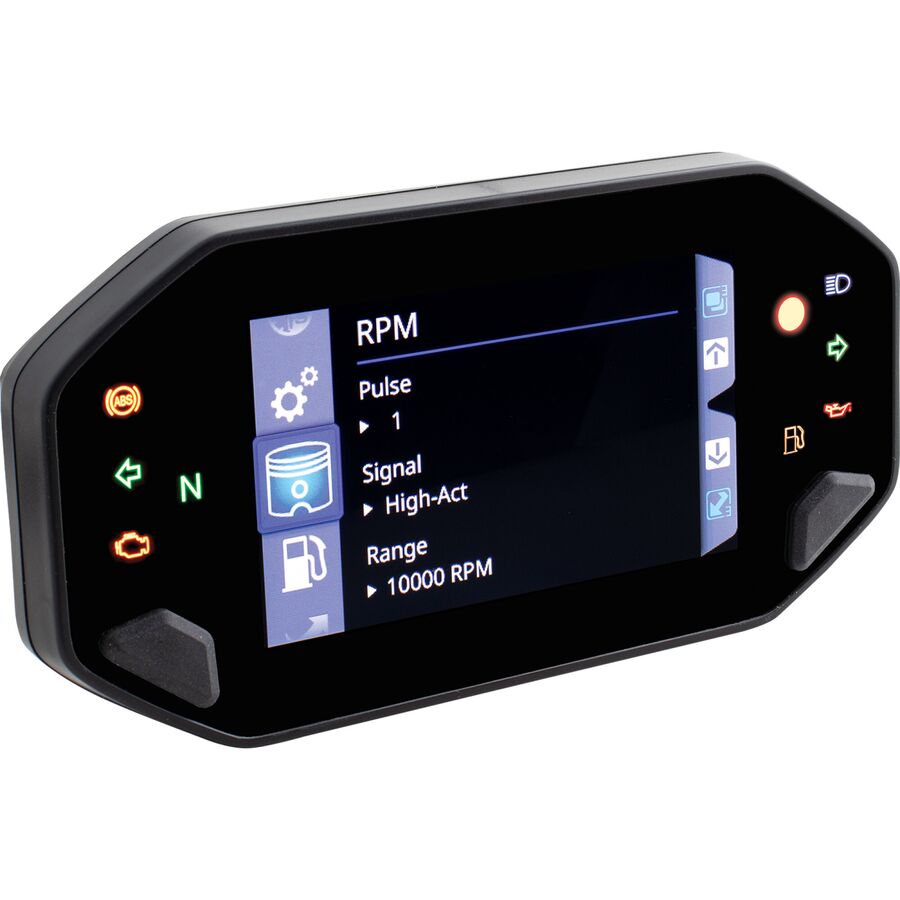

  • RPM input signal number setting: R: 0.5, 1.0 ~ 24.0.
  • RPM input pulse: R: Low-Act, High-Act.
  • Thermometer A, B: R: 32.0 ~ 482.0F (0.0 ~ 250.0C) | U: 0.1F (C).
  • Overheat warning A, B: R: 140 ~ 482F (60 ~ 250C); the numbers will turn red and blink | U: 1F (C).
  • Max. temp. record A, B: R: 32.0 ~ 482.0F (0.0 ~ 250.0C) | U: 0.1F (C).
  • A/F ratio meter: R: 12.1 ~ 17.5 | U: 0.1.
  • Fuel meter: R: 6 levels | U: 1 level = 16.6%.
  • Fuel gauge resistance (Ohm): R: 100 Ohm, 250 Ohm, 270 Ohm, 390 Ohm, 510 Ohm, 1200 Ohm, SW, learning mode, off.
  • Low fuel warning: R: Fuel level 1 segment the warning signal will blink.
  • Clock: R: 12 H or 24 H format.
  • Perpetual calendar: R (year): 2021 ~ 2099 | R (month): 1 ~ 12 | R (date): 1 ~ 31 | R (day): MON, TUE, WED, THU, FRI, SAT, SUN.
  • Volt meter: R: DC 8.0 ~ 18.0 V | U: DC 0.1 V.
  • Low voltage warning: R: DC 8.0 ~ 13.0 V | U: DC 0.1 V | D: LO value, numbers will turn red and blink.
  • High voltage warning: R: DC 13.1 ~ 18.0 V | U: DC 0.1 V | D: HI value, numbers will turn red and blink.
  • Target speed: R: 0 ~ 225 MPH (0 ~ 360 km/h) | U: 5 MPH (km/h).
  • Target distance: R: 1/32 ~ 30/32 mile (50 ~ 1,500 m) | U: 1/32 mile (50 m).
  • Top speed: D: Speed : 0 ~ 225 MPH (0 ~ 360 km/h) | Distance : 0 ~ 999 m (0 ~ 3,280 feet) | RPM: 0 ~ value at top speed | Time : 0 ~ 9 : 59"99.
  • Record order: R: Sequence, Best.
  • Bluetooth connection status: R: Steady (connected), OFF (Unconnected).
  • Operating system:
  • iOS: iOS 5.0 and above.
  • Android: Android 9, Android 10.
  • Phone battery: R: 3 segments.
  • Incoming phone call:
  • D:
  • Name or number up to 12 letters.
  • "..." displayed if > 12 letters.
  • "Unknown" displayed when there is no name.
  • iOS - shows either name or number of the incoming call.
  • Android - shows number only.
  • Incoming online App call:
  • D:
  • Name up to 12 letters.
  • "..." displayed if > 12 letters.
  • "Unknown" displayed when there is no name.
  • App:
  • LINE, WeChat, WhatsApp.
  • Operating system:
  • iOS: supported.
  • Android: NOT supported.
  • Music playing info:
  • D:
  • Song: 15 letters / "..." if > 15 letters.
  • Artist: 18 letters / "..." if > 18 letters.
  • Total song time: 00:00 ~ 9:59:59.
  • Operating system (for total time):
  • iOS: supported.
  • Android: NOT supported.
  • Current playing time: 00:00 ~ 9:59:59.
  • Operating system (for current time):
  • iOS: supported.
  • Android: NOT supported.
  • Push info:
  • D:
  • Name 4 letters / "..." if > 15 letters.
  • Content 17 letters / "..." if > 17 letters.
  • Operating system:
  • iOS: supported.
  • Android: NOT supported.
  • Backlight color: R: blue, green, orange, white.
  • Indicator lights: ABS / Left turn signal / Check Engine / Neutral / Composite warning light / High beam / Right turn signal / Motor oil (maintenance).
  • Effective temperature range: -4 ~ 185F (-20 ~ 85C).
  • Storage temperature range: -22 ~ 194F (-30 ~ 90C).
  • Operating voltage: DC 12V.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso RX-4 Universal TFT Multifunction Gauge	BA081010
