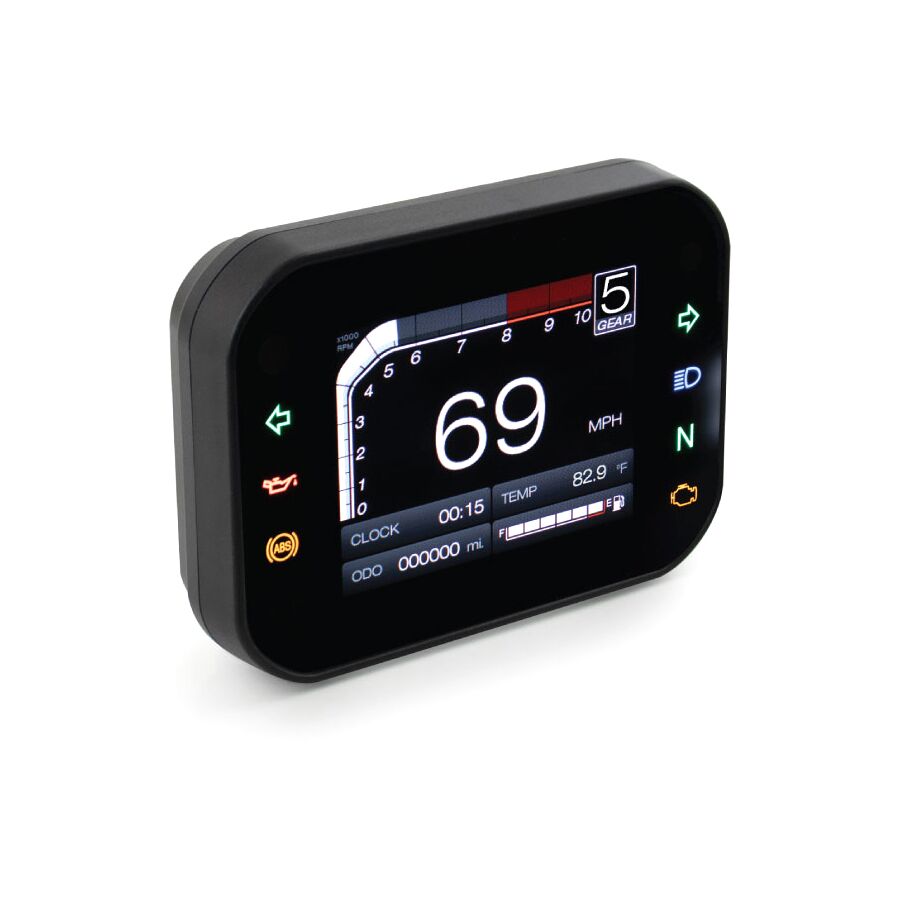

Koso RX-3S TFT Multifunction Gauge

• Product Details

  The new RX-3S TFT multifunction meter can fit any bike and is easy to install with its lightweight and compact display. This gauge features speed, tachometer, trip meter and much more to give you all the data you need. It has day and night brightness adjustability to easily read the screen and five different background colors to choose from.

  Specifications:

  • Speedometer:
  • R: 0 ~ 225 MPH (0 ~ 360 km/h).
  • U: 1 MPH or km/h (alternative).
  • Odometer:
  • R: 0 ~ 999,999 miles (km) | U: 1 mile (km).
  • Tripmeter A/B:
  • R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km).
  • Oil maintenance:
  • R: 300 ~ 10,000 miles.
  • (500 ~ 16,000km), OFF
  • U: 100 miles (km).
  • Speeding warning light:
  • R: 20 ~ 225 MPH (30 ~ 360 km/h).
  • U: 1 MPH(km).
  • Top speed record:
  • R: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Tire circumference:
  • R: 300 ~ 2,500 mm | U: 1 mm.
  • Sensitive point: 1 ~ 40.
  • Gear indicator (learning):
  • R: -, N, 1 ~ the highest gear.
  • Tachometer:
  • R: 0~10,000 RPM / 0~12,000 RPM / 0~15,000 RPM / 0~18,000 RPM / 0~20,000 RPM.
  • RPM shift-light:
  • R: 1,000 ~ 10,000 RPM / 1,000 ~ 12,000 RPM / 1,000 ~ 15,000 RPM / 1,000 ~ 18,000 RPM / 1,000 ~ 20,000 RPM | U: 100 RPM.
  • Max. RPM:
  • R: 0~10,000 RPM / 0~12,000 RPM / 0~15,000 RPM / 0~18,000 RPM / 0~20,000 RPM.
  • RPM input signal number setting:
  • R: 0.5, 1 ~ 24.
  • RPM input pulse:
  • R: Low-Act, High-Ac.
  • Thermometer:
  • R: 32.0 ~ 482.0F (0 ~ 250C).
  • U: 0.1C (F).
  • Over Temperature warning:
  • R: 140 ~ 482F (60 ~ 250C).
  • U: 1F (C).
  • A/F ratio meter:
  • R: 12.1 ~ 17.5 | U: 0.1.
  • Fuel meter:
  • R: 6 levels | U: 1 level = 16.6 %.
  • Fuel resistance:
  • R: OFF, 100 O, 250 O, 270 O, 510 O, 1200 O, SW, Custom, OFF.
  • Low fuel warning:
  • R: 0 ~ 3/6 | U: 1.
  • Clock R: 24 H / 12 H format.
  • Voltmeter:
  • R: DC 8.0 ~ 18.0 V | U: DC 0.1 V.
  • Low voltage warning:
  • R: DC 8.0 ~ 13.0 V | U: 0.1.
  • High voltage warning:
  • R: DC 13.1 ~ 18.0 V | U: 0.1.
  • Target speed:
  • D: 20 ~ 225 MPH (30 ~ 360 km/h).
  • R: 5 MPH (km/h).
  • Target distance:
  • D: 1/32 ~ 30/32 mile (50 ~ 1,500 m).
  • U: 1/32 mile (50 m).
  • Top speed:
  • R: Speed : 0 ~ 360 km/h (0 ~ 225 MPH).
  • Distance : 0 ~ 999 m (0~3,280 feet).
  • RPM : 0~10,000 RPM / 0~12,000 RPM / 0~15,000 RPM / 0~18,000 RPM / 0~20,000 RPM.
  • RPM Time : 0 ~ 9 : 59”99.
  • Background display:

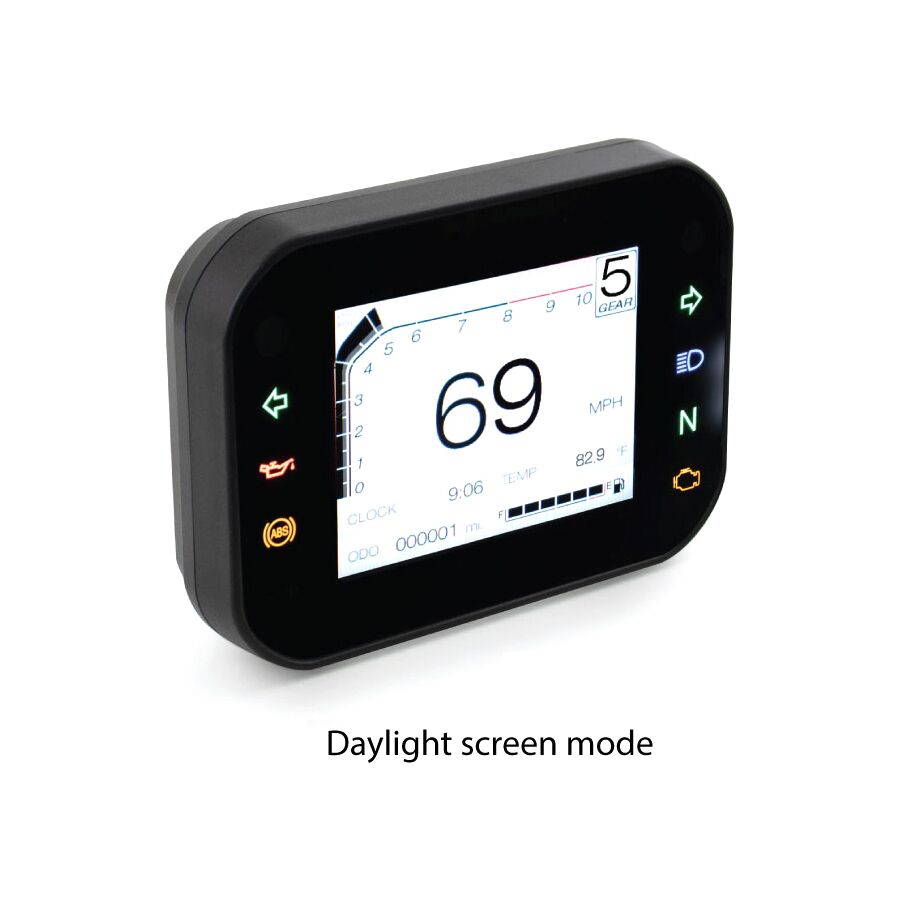

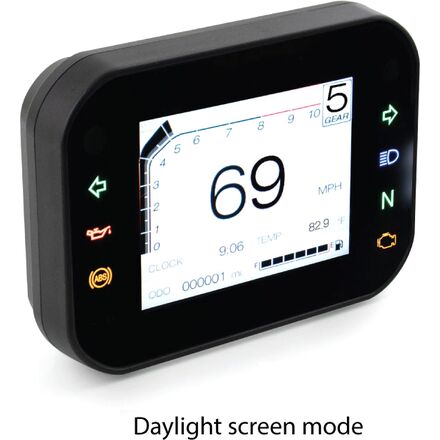

  • R: Auto (switch according to the ambient light: Day mode / Night mode.).
  • Backlight brightness (Day):
  • R: 3/5~ 5/5(Brightest) | U: 1/5.
  • Backlight brightness (Night):
  • R: 1/5(Darkest) ~ 5/5(Brightest) | U: 1/5.

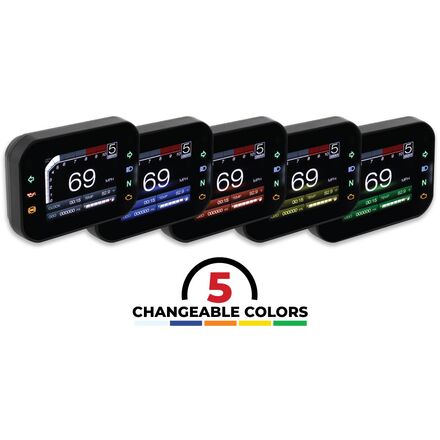

  • Backlight colors:
  • R: white, blue, orange, yellow, green.
  • Indicator lights:
  • R: Neutral / High beam / Turn signals / Check engine / Oil level / ABS / Warning light/ Anti-Theft light.
  • Effective temperature range:
  • R: -4 ~ 185F (-20 ~ 85C).
  • Effective voltage DC 12 V.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso RX-3S TFT Multifunction Gauge	BA079000
