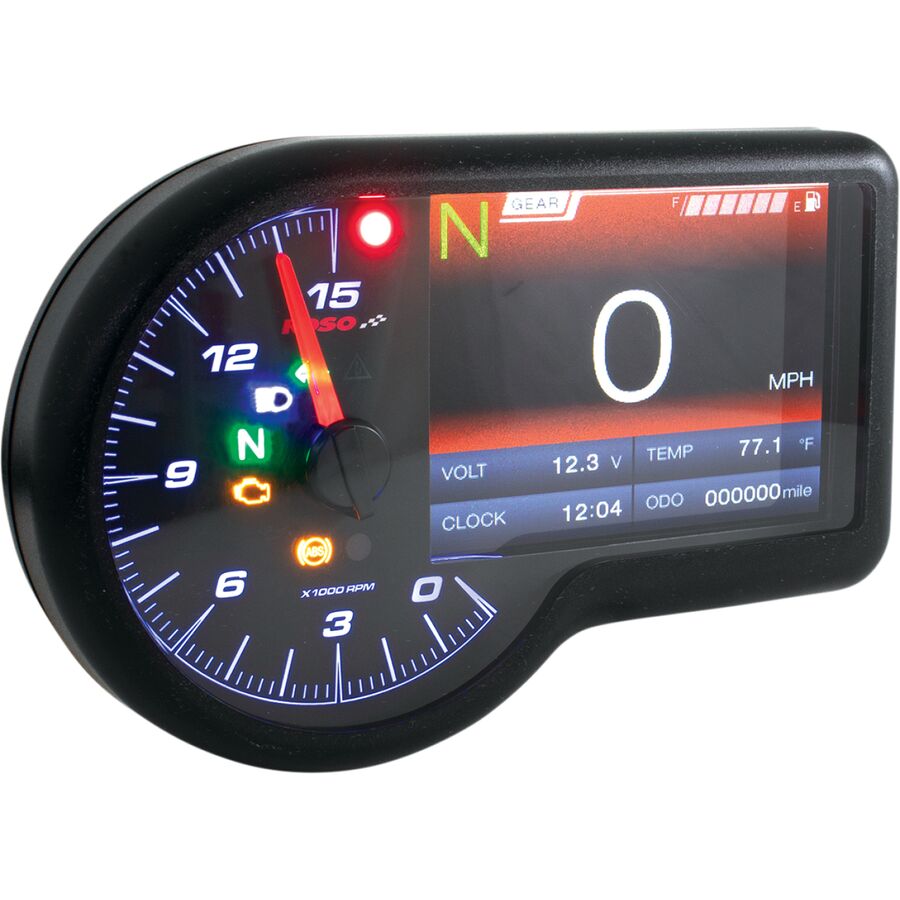

Koso RX-3 TFT Multifunction Gauge

• Product Details

  The RX-3 TFT multifunction meter is the newest addition to Koso's RX series of gauges. It features a modern TFT screen to display your information with the day and night brightness adjustability and also has five different colors to choose from.

  Compact, lightweight and easy to operate, this modern meter offers a clean and simple design. This universal gauge can be used for any application and also features a plug-and-play connector available for the Honda Grom and the Honda Monkey (both sold separately).

  Specifications:

  • Speedometer: R: 0 ~ 225 MPH (0 ~ 360 km/h). U: 1 MPH or km/h (alternative).
  • Odometer: R: 0 ~ 99,999 miles (km) | U: 1 mile (km).
  • Tripmeter A/B: R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km).
  • Oil maintenace: R: 300 ~ 10,000 miles (500 ~ 16,000 km), OFF. U: 100 miles (km).
  • Speeding warning light: R: 20 ~ 225 MPH (30 ~ 360 km/h). U: 1 MPH (km).
  • Top speed record: R: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Tire circumference: R: 300 ~ 2,500 mm | U: 1 mm. Sensitive point: 1 ~ 40.
  • Gear indicator (learning): R: -, N, 1 ~ the highest gear (the highest gear based on the gear learning).
  • Tachometer: R: 0 ~ 15,000 RPM.
  • RPM shift€‘light: R: 1,000 ~ 15,000 RPM | U: 100 RPM display light: steady or fast flash.
  • Max. RPM: R: 0 ~ 15,000.
  • RPM input signal number setting: R: 0.5, 1 ~ 24.
  • RPM input pulse: R: Low-Act, High-Ac.
  • Thermometer: R: 32.0 ~ 482.0F (0 ~ 250C). U: 0.1C (F).
  • Over temperature warning: R: 140 ~ 482F (60 ~ 250C) | U: 1F (C).
  • A/F ratio meter: R: 12.1 ~ 17.5 | U: 0.1.
  • Fuel meter: R: 6 levels | U: 1 level = 16.6%.
  • Fuel resistance: R: OFF, 100 , 250 , 270 , 510 , 1200 , SW, learning mode, OFF.
  • Low fuel warning: R: 0 ~ 3/6 | U: 1.
  • Clock: R: 24 H / 12 H format.
  • Voltmeter: R: DC 8.0 ~ 18.0 V | U: DC 0.1 V.
  • Low voltage warning: R: DC 8.0 ~ 13.0 V | U: 0.1.
  • High voltage warning: R: DC 13.1 ~ 18.0 V | U: 0.1.
  • Target speed: D: 20 ~ 225 MPH (30 ~ 360 km/h). R: 5 MPH (km/h).
  • Target distance: D: 1/32 ~ 30/32 mile (50 ~ 1,500 m). U: 1/32 mile (50 m).
  • Top speed: R: Speed: 0 ~ 360 km/h (0 ~ 225 MPH). Distance: 0 ~ 999 m (0 ~ 3,280 feet). RPM: 0 ~ 15,000. RPM Time: 0 ~ 9 : 59"99.
  • Background display: R: Auto (switch according to the ambient. Light: Day mode / Night mode).
  • Backlight brightness (Day): R: 3/5 ~ 5/5 (Brightest) | U: 1/5.
  • Backlight brightness (Night): R: 1/5 (Darkest) ~ 5/5 (Brightest) | U: 1/5.

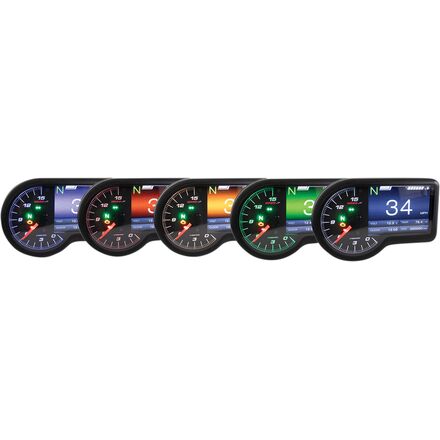

  • Backlight colors: R: white, red, orange, green, blue.
  • Indicator lights: R: Neutral / High beam / Turn signals / Check engine Oil level / ABS / Warning / RPM shift light.
  • Effective temperature range: R: 14 ~ 140F (€‘10 ~ 60C).
  • Effective voltage: DC 12 V.
  • Specification: JIS D 0203 (S2).
  • Meter size: (W x L x H) 140.9 x 90.9 x 45.3 mm.
  • Meter weight: 188 grams.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso RX-3 TFT Multifunction Gauge	BA071000
