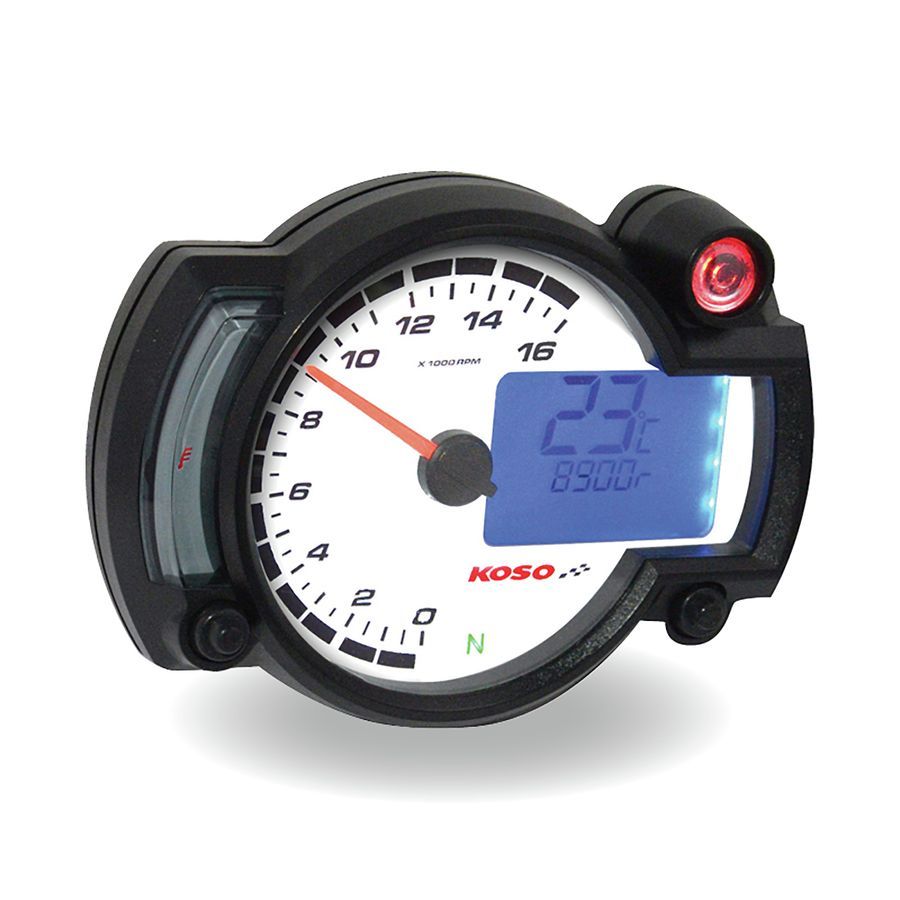

RX-2NR GP Style Tachometer

• Product Details

  The RX-2NR GP Style Tachometer is the perfect race meter! The 80 mm needle driven by a stepper motor is easy to read at high speed. Its many functions, such as RPM, programmable shift light, temperature output, max RPM record will give you all the necessary information needed. Get it to monitor your engine and enjoy the race.

  • Tachometer:
  • Display range: 0 ~ 16,000 RPM.
  • Display unit: 100 RPM.
  • Display internal: < 0.5 Second.
  • Shift light:
  • Setting range: 5,000 ~ 16,000 RPM.
  • Setting unit: 100 RPM.
  • Stroke / piston setting:
  • 2 Stroke: 1, 2, 3, 4 pistons.
  • 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons.
  • Thermometer:
  • Display range: 0 ~ 250C or 32 ~ 399F.
  • Display unit: 0.1C or F.
  • Temperature alarm:
  • Setting range: 60 ~ 250C or 140 ~ 399F.
  • Setting unit: 1C or F.
  • Battery type: 9V-1604, 6LR61 - 12 Volts DC.
  • Effective temp. range: 10 ~ + 60C (50 ~ + 140F).
  • Meter standard: JIS D 0203 S2.

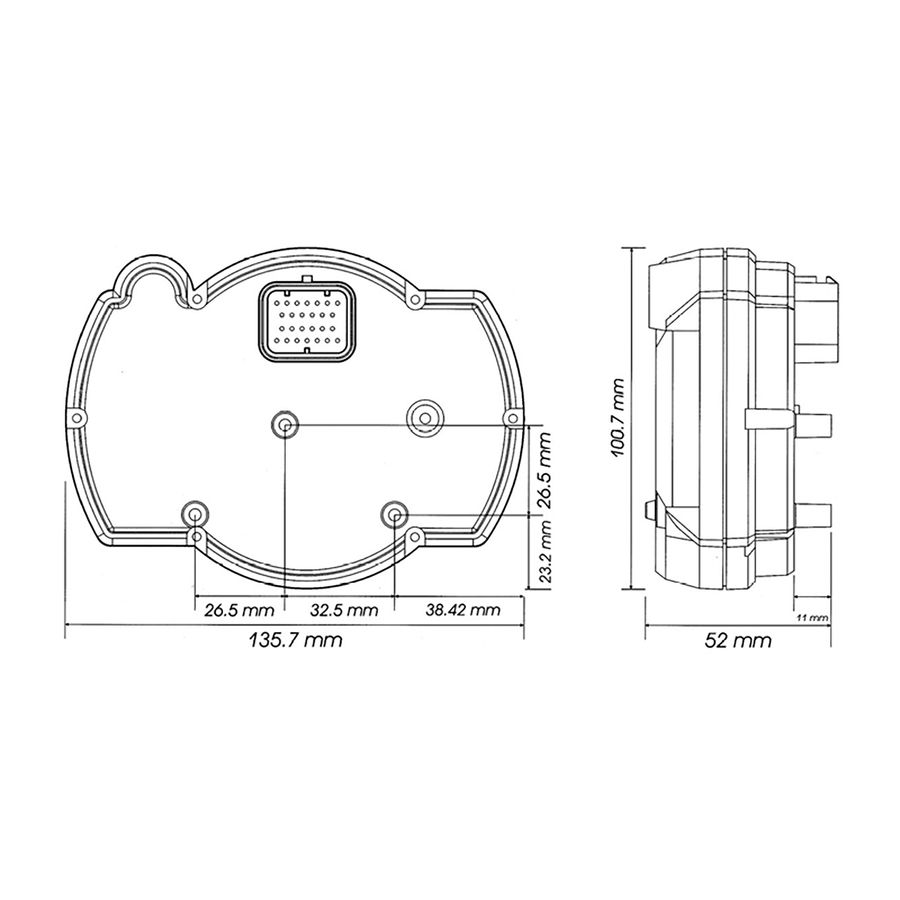

  • Meter size (W x L x H): 135.7 x 100.7 x 52 mm.
  • Meter weight: 240 grams.
  • Sensor type: Temperature sensor: BF030000 1/8 (BSP) x 28.
  • Indicator light.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  16000 RPM Koso RX-2NR GP Style Tachometer	BA015000
