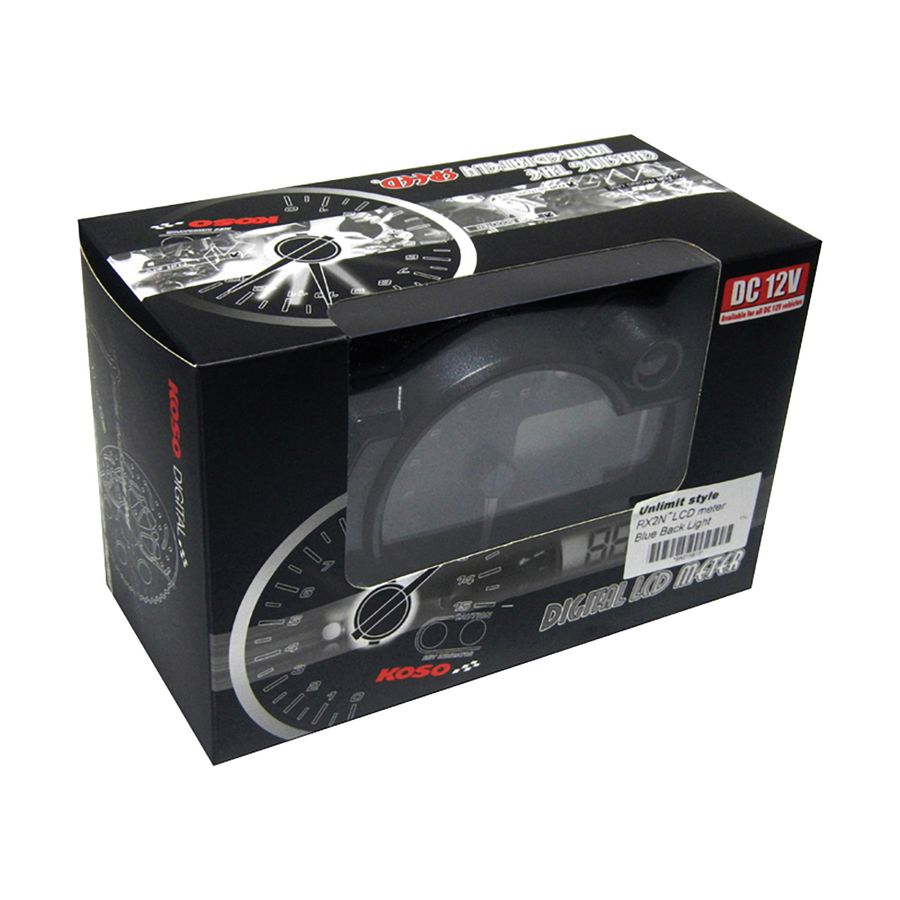

RX-2N GP Style Multifunction Gauge

• Product Details

  The RX-2N GP Style Multifunction has been developed with the best components and latest technology on the market. The illuminated needle with LED pointer makes the RX-2N a very easy meter to read even at night. This instrument features many different functions, such as speed, odometer, trip meter, RPM, shift light, temperature, indicator lights and many other functions.

  • Speed unit: Km/h or MPH.
  • Speedometer range: 0 ~ 360 km/h or 0 ~ 223 MPH.
  • Odometer: 0 ~ 99999.9 km or mile.
  • Trip A.B: 0 ~ 999.9 km or mile.
  • Speeding warning setting range: 30 ~ 180 km/h or 20 ~ 110 MPH, Adjust unit: 5 km/h or 5 MPH.
  • Top speed record: 0 ~ 360 km/h or 0 ~ 223 MPH.
  • Tire circumference setting: 300 ~ 2,500 m/m, Adjust unit: 1 m/m, Sensor point: 1 ~ 60.
  • Tachometer range: 0 ~ 20,000 RPM, Display unit: 100 RPM.
  • Over RPM shift light setting: 0 ~ 20,000 RPM, Adjust unit: 100 RPM.
  • Max RPM record: 0 ~ 20,000 RPM.
  • Stroke / piston setting:
  • 2 stroke: 1, 2, 3, 4, pistons.
  • 4 stroke : 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons.
  • Temperature unit: C / F.
  • Digital water temperature range: 0 ~ 250C or 32 ~ 482F, Display unit: 0.1C or 0.1F.
  • Temperature level gauge display: 20 ~ 120C or 68 ~ 248F, Display in 10 levels, Range display unit: 1 level = 10C or 50F.
  • Digital oil temperature range: 0 ~ 250C or 32 ~ 482F, Display unit: 0.1C or 0.1F.
  • Over temperature warning setting (water and oil): 60 ~ 120C or 140 ~ 248F, Adjust unit: 1C or 1F.
  • Top temperature record: 0 ~ 250C or 32 ~ 482F.
  • Fuel gauge: Display in 10 levels, Range display unit: 1 level = 10% fuel.
  • Fuel resistance setting: 100 ohm - 500 ohm.
  • Insufficient fuel warning setting: 10 ~ 50%, Adjust unit: 10%.
  • Clock: 24H.
  • Target speed timer: 30 ~ 360 km/h or 20 ~ 220 MPH, Adjust unit: 5 km/h or 5 MPH.
  • Target distance timer: 50 ~ 1,000 m or 1/32 ~ 20/32 mile, Adjust unit: 50 m or 1/32 mile.
  • Top speed timer:
  • The record including:
  • 1. Speed: 0 ~ 360 km/h or 0 ~ 223 MPH.
  • 2. Distance: 0 ~ 999 m or 0 ~ 3,280 feet.
  • 3. RPM: 0 ~ 20,000 RPM.
  • 4. Timer: 0 ~ 9'59"99.
  • Indicator lights:
  • Turn signal (Green).
  • Neutral (Green).
  • High beam (Blue).
  • Oil (Red).
  • Eobd (Amber).
  • Speeding (Red).
  • Temperature (Amber).

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  20000 RPM Koso RX-2N GP Style Multifunction Gauge	BA015B25
