RS-2 Multifunction Gauge And Data Recorder

• Product Details

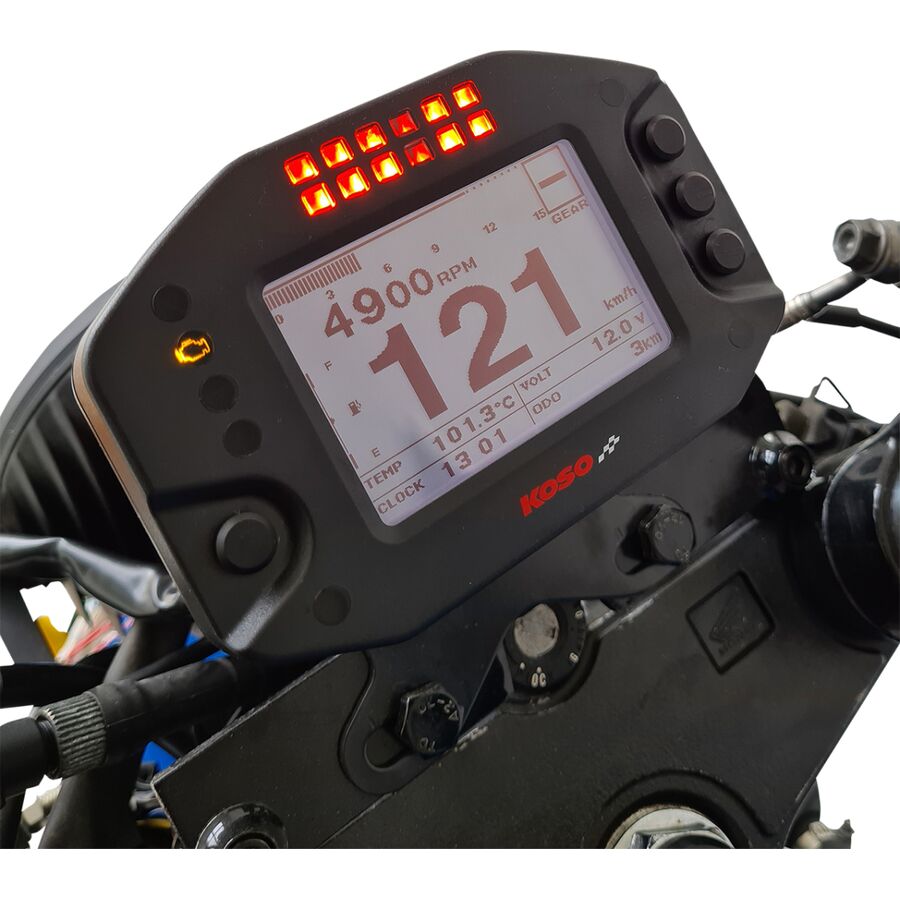

  The new RS-2 meter is a complete multifunction meter that is focused on the serious rider who likes to log their data to improve riding skills. You will be able to keep your target speed, target distance, maximum speed and maximum RPM. At the top of this meter, you will benefit from a group of red LEDs to get the right shift point.

  Included is the sensor and bracket to mount and install this meter on almost all applications. Also features the choice of eight colors in both positive and negative display for optimal reading during the day or the night.

  Specifications:

  • Speedometer: R: 0 ~ 225 MPH (0 ~ 360 km/h). U: MPH or km/h.
  • Odometer: R: 0 ~ 99,999 miles (km) | U: 1 mile (km).
  • Tripmeter A/B: R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km).
  • Oil maintenace: R: 312 ~ 10,000 miles (500 ~ 16,000 km), OFF. U: 100 miles (km).
  • Speeding warning light: R: 0 ~ 56 MPH (0 ~ 90 km/h). U: 1 MPH (km).
  • Top speed record (MAX): R: 0 ~ 225 MPH (0 ~ 360 km/h). U: 1 MPH (km).
  • Tire circumference: R: 300 ~ 2,500 mm | U: 1 mm. Sensitive point: 1 ~ 60.
  • Gear meter: R: N, 1 ~ 6.
  • Digital tachometer: R: 0 ~ 20,000 | U: 100 RPM.
  • Level tachometer: R: 0 ~ 9,000 - 12,000 - 15,000 - 18,000 - 20,000 RPM.
  • RPM shift-light: R: 3,000 ~ 20,000 RPM.
  • Max RPM record: R: 0 ~ 20,000 RPM.
  • RPM input (for fuel injection): R: 0.5, 1.0 ~ 24.0.
  • Thermometer: R: 32 ~ 482F (0 ~ 250C). U: 1F (C).
  • Temperature warning: R: 122 ~ 482F (50 ~ 250C). U: 1F (C).
  • Top temperature (MAX): R: 32 ~ 482F (0 ~ 250C).
  • A/F ratio meter: R: 12.1 ~ 16.8 | U: 1 level = 0.1.
  • Fuel level: R: 6 levels | U: 1 level = 16.6%.
  • Fuel resistance: R: 100 , 250 , 510 , 1200 , SW, learning mode.
  • Low fuel warning: R: 0 ~ 3/6 | U: 1 flashing light when lower than setting value.
  • ABS indicator: R: on/off.
  • Clock: R: 24 H format.
  • Digital voltmeter: R: DC 8.0 ~ 18.0 V | U: DC 0.1 V.
  • Target speed timer: D: 20 ~ 225 MPH (30 ~ 360 km/h). R: 5 MPH (km/h).

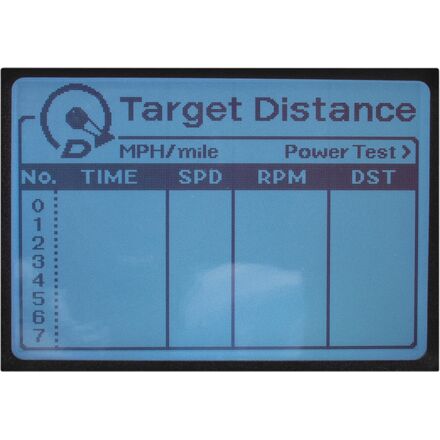

  • Target distance timer: D: 1/32 ~ 30/32 mile (50 ~ 1,500 m). U: 1/32 mile (50 m).
  • Top speed timer: R: Speed : 0 ~ 225 MPH (0 ~ 360 km/h). Distance : 0 ~ 3,280 feet (0 ~ 999 m). RPM : 0 ~ 20,000 RPM. Time : 0 ~ 9 : 59"99.
  • Display and backlight: (positive and negative display of the main screen). R: Time setting switchover (nighttime function is turned off when the before and after time are the same).
  • Liquid crystal concentration: R: 1/3 (Darkest) ~ 3/3 (Brightest).
  • Back light brightness: R: 1/5 (Darkest) ~ 5/5 (Brightest). Separate setting for daytime and nighttime.
  • Brightness (LED Bar): R: 1/5 (Darkest) ~ 5/5 (Brightest). Separate setting for daytime and nighttime.
  • Backlight colors: R: white / green / light blue / blue / purple / red / orange / yellow.
  • Indicator lights: Neutral / High beam / Turn signals / Check engine / Oil level / ABS / IMMO.
  • Effective temperature range: R: 14 ~ 140F (€‘10 ~ 60C).
  • Effective voltage: DC 12 V.
  • Meter standard: JIS D 0203 S2.
  • Meter size: (W x L x H) 129.2 X 85.3 X 40.5 mm.
  • Meter weight: 151 grams.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso RS-2 Multifunction Gauge And Data Recorder	BA073000
