Koso Multifunction Gauge

• Product Details

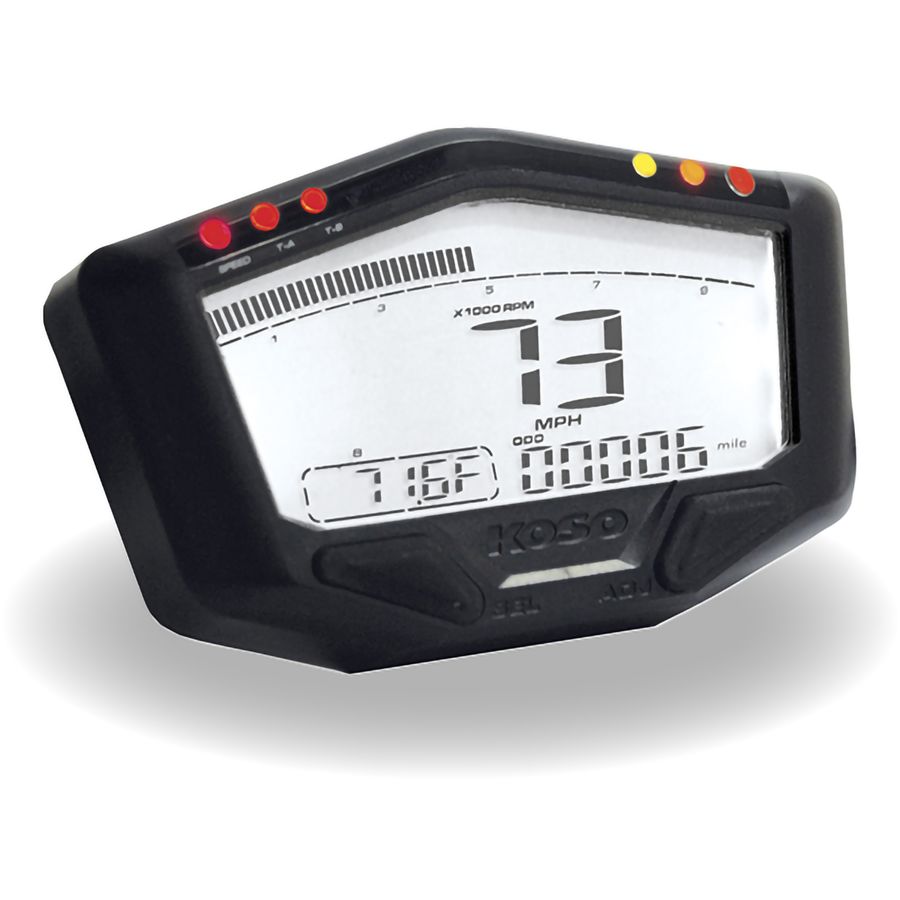

  The DB-02R multifunction meter was especially made to fit your street or race bike needs. Its white backlight makes it very easy to read at night even at high speed. Its great shape and nice LCD display make it the perfect meter to get for your street or race bike. The changeable RPM scale allows this meter to fit about any engine application. This instrument also features a three stage shift light that allows you to shift your gears perfectly. Beside those great functions, the DB-02 multifunction meter features: speed, odometer, trip meter, RPM, inner battery level, temperature, hour meter, and more.

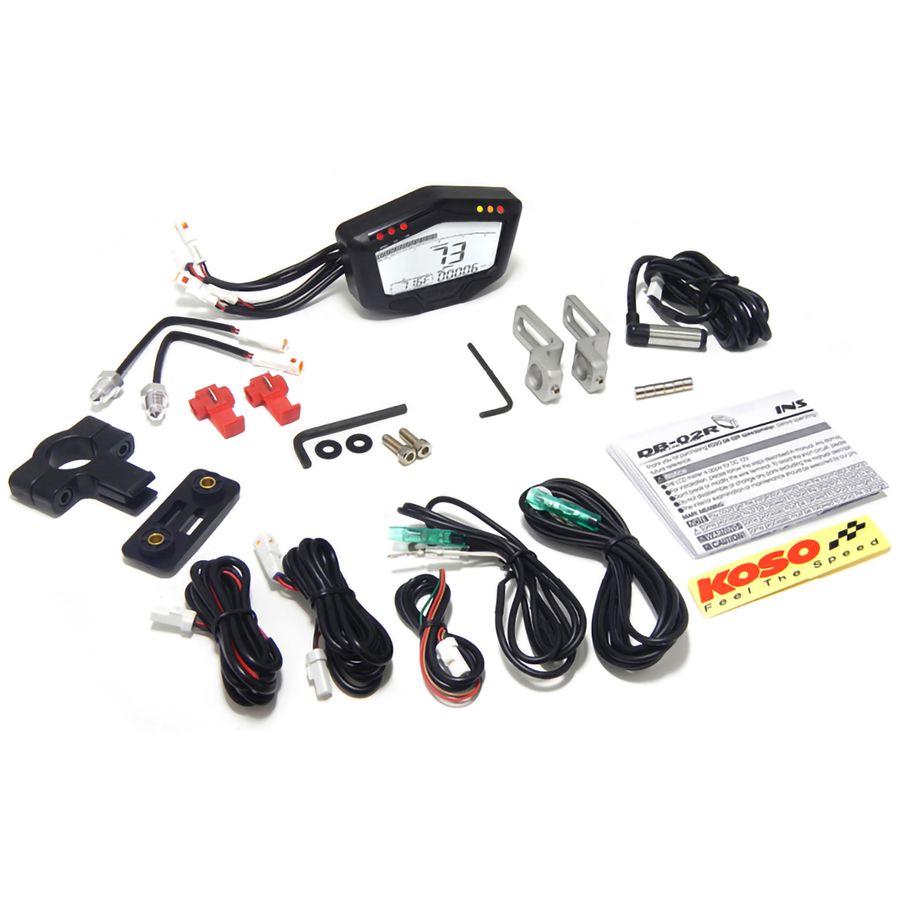

  • Kit includes everything needed for installation.

  Detailed Specifications:

  • Speedometer:
  • Display range: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Display unit: 1 MPH or km/h (alternative).
  • Internal display: < 0.5 second.
  • Odometer:
  • Display range: 0 ~ 99,999 miles (km).
  • Reset automatically after 99,999 miles (km).
  • Display unit: 1 mile (km).
  • Trip meter A/B:
  • Display range: 0 ~ 999.9 miles (km).
  • Reset automatically after 999.9 miles (km).
  • Display unit: 0.1 mile (km).
  • Speeding warning light:
  • Setting range: 19 ~ 225 MPH (30 ~ 360 km/h).
  • Setting unit: 1 MPH (km/h).
  • Top speed record: Display range: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Tire circumference:
  • Setting range: 300 ~ 2,500 mm.
  • Setting unit: 1 mm.
  • Sensor point : 1 ~ 6.
  • Digital tachometer:
  • Display range: 20,000 RPM.
  • Display unit: 10 RPM.
  • Graph bar tachometer:
  • Display range and unit (60 segment graph bar):
  • 10,000 RPM (1 segment = 166 RPM).
  • 15,000 RPM (1 segment = 250 RPM).
  • 20,000 RPM (1 segment = 333 RPM).
  • RPM shift light:
  • Display range: 5,000 ~ 20,000 RPM.
  • Display unit: 100 RPM.
  • Pre-shift light A/B:
  • Display range: -500 ~ -5,000 RPM before the shift light.
  • Display unit: 100 RPM.
  • Maximum RPM record: Display range: 0 ~ 20,000 RPM.
  • RPM input pulse: Display range: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6.
  • Hour meter:
  • Display range: 0 ~ 999.9 H.
  • Display unit: 0.1 H (6S).
  • Thermometer A/B:
  • Display range: 32 ~ 482F (0 ~ 250C).
  • Display unit: 0.1F or C (alternative).
  • Internal display: < 0.5 second.
  • Temperature alarm A/B:
  • Setting range: 140 ~ 482F (60 &126; 250C).
  • Setting unit: 1F (C).
  • Top temperature record: Display range: 32 ~ 482F (0 ~ 250C).
  • Fuel meter: Display range: 0 ~ 100%.
  • Fuel resistance: Setting range: 100 ohm / 510 ohm / no display.
  • Insufficient fuel warning:
  • Setting range: 10 ~ 50%.
  • Setting unit: 10%.
  • Volt meter:
  • Display range: DC 0 ~ 18 V.
  • Display unit: DC 0.1 V.
  • Clock: Setting range: 24 H format.
  • Target speed timer:
  • Setting range: 1/32 ~ 30/32 mile (50 ~ 1,500 m).
  • Setting unit: 1/32 mile (50 m).
  • Target distance timer:
  • Setting range: 1/32 ~ 30/32 mile (50 ~ 1,500 m).
  • Setting unit: 1/32 mile (50 m).
  • Top speed timer:
  • The record including:
  • Speed: 0 ~ 225 MPH (0 ~ 360 km/h).
  • Distance : 0 ~ 3,280 feet (0 ~ 999 m).
  • RPM: 0 ~ 20,000 RPM.
  • Timer: 0 ~ 9'59"99 seconds.
  • Indicator lights:
  • Speeding.
  • Temp. alarm A/B.
  • RPM shift light A.
  • RPM shift light B.
  • RPM shift light.
  • Effective temperature range: 14 ~ 140F (-10 ~ 60C).
  • Effective voltage: DC 12V.
  • Battery type (LCD display): CR 2032.
  • Battery life time: 220 hours nonstop.
  • Meter standard: JIS D 0203 S2 (S2).

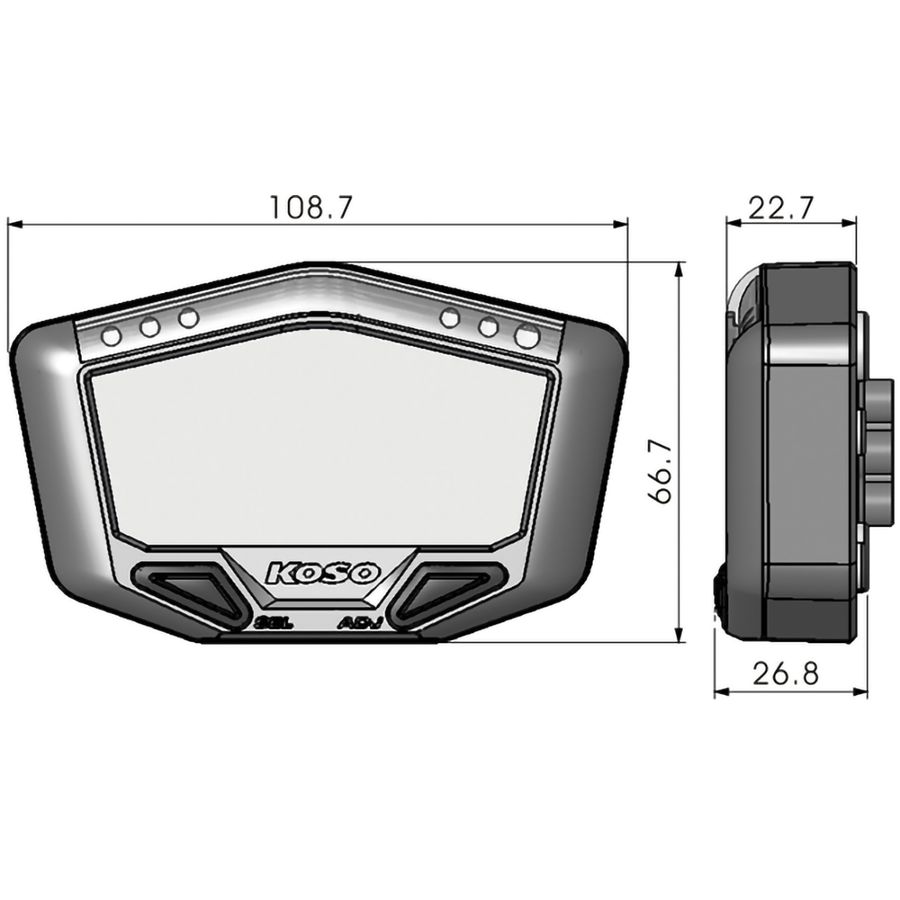

  • Meter size (L x W x H): 4-1/4 x 1-1/16 x 2-5/8" (108.7 x 26.8 x 66.7 mm).
  • Meter weight: 7.05 ounces (200 grams).
  • Sensor type:
  • Passive speed sensor: BF019J06.
  • Temperature sensor: BF030000.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  DB-02R / Street / Race Koso Multifunction Gauge	BA022W10
