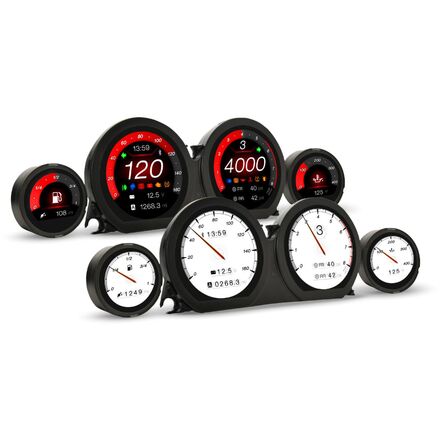

HD-03X | TFT Gauge Set.
This plug-and-play TFT gauge set for features a smartphone integration that gives you full control of your dashboard directly from your device. Connect your gauges to your phone with the KOSO K Link app and monitor real-time data of your bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more. You can even see your vehicle's location on the app and never have to search for it again in crowded places!
Match your motorcycle's style by instantly changing between the analog and digital interface, as well as seven (7) different backlight colors, providing up to 14 unique display combinations. The K Link app also allows you to check your system health and maintenance with its diagnostics feature.
- Tachometer:
- Display range: 0 ~ 8,000 RPM.
- Display unit: 10 RPM.
- RPM shift light:
- Display range: 1,000 ~ 8,000 RPM.
- Setting unit: 100 RPM.
- Maximum RPM:
- Display range: 0 ~ 8,000 RPM.
- Setting unit: 100 RPM.
- Speedometer:
- Display range: 0 ~ 199 MPH (0 ~ 299 km/h), switchable.
- Display unit: 1 MPH or km/h alternative.
- Display interval:
- Overspeed warning setting:
- Setting range: 20 ~ 199 MPH (30 ~ 299 km/h).
- When above (including) setting value, warning light will turn on.
- Max speed record:
- Display range: 0 ~ 199 MPH (0 ~ 299 km/h).
- Odometer:
- Display range: 0 ~ 999,999 miles (km).
- Display unit: 1 mile (km).
- Tripmeter A/B:
- Display range: 0 ~ 9,999.9 miles (km).
- Display unit: 0.1 mile (km).
- Mileage maintenance:
- Setting range: off / 300 ~ 10,000 miles (500 ~ 16,000 km) ~ -999 km (mile).
- Setting unit: 100 miles (km).
- Engine temperature:
- Display range: -40 ~ 572 F (-40 ~ 300 C).
- Fuel level:
- Display range: 6 levels.
- Display unit: 1 level = 16.6%.
- Fuel warning setting:
- Setting range:
- HD Standard - Flashing LCD as warning when fuel level resistance is greater than 211 bar;, and will turn off when resistance is smaller than 187 bar;.
- Customize - Flashing LCD as warning when fuel level resistance is lower than 20%, and will turn off when fuel level is higher than 30%.
- Fuel tank volume:
- Setting range: Off / 1.0 ~ 9.9 US gallons.
- Average fuel consumption:
- Setting range : Off / MPG (US specs) / MPG (UK Specs) / L/100 km / km/L.
- Remaining mileage:
- "LO RNG" and flashing as warning when range / remaining mileage is lower than 16 km (10 miles).
- Display unit: 1 km (mile).
- Oil temperature meter:
- Display range: 0 ~ 400F (32 ~ 248C).
- Display unit: 1F (C) alternative.
- Max oil temperature record:
- Display range: -40 ~ 572F (-40 ~ 300C).
- Clock:
- Setting range: 12H / 24H format.
- Volt meter:
- Digits brightness:
- Setting range: 1/5 (darkest) ~ 5/5 (brightest).
- Horsepower:
- G-Force:
- Range: 0 ~ 2 G.
- Units: 0.1 G.
- Tire pressure:
- Range:-, Hi, 0 ~ 73 PSI (0 ~ 506 kPa, 0.0 ~ 5.0 bar).
- Units: 1 PSI (1 kPa, 0.1 bar).
- DTC diagnostic:
- Altitude:
- Range: 0 ~ 10,000 meters (0 ~ 32,800 feet).
- Indicator lights:
- Turn signal.
- Temp warning.
- Oil pressure.
- Photometric sensing.
- Warning light.
- Check engine.
- High beam.
- Fog light.
- Volt.
- Traction control.
- Cruise.
- ABS.
- Rain mode.
- Vehicle hold control.
- Fuel level.
- Low tire pressure.
- Security light.
- Gear indicator:
- OFF, N, P, R, 1, 2, 3, 4, 5, 6.
- Effective temperature range:
- Effective voltage:
- Backlight color:
- Setting range: white, yellow, orange, red, purple, blue, green and day mode.
- Background display:
- Auto (automatically switch according to the light : Day mode display for the bright environment and Night mode display for the dark environment), Day mode, Night mode.
- Mobile connection status:
- Range: Steady (connected), OFF (not connected) .
- Background display:
- Speed unit : km/h , MPH.
- Temperature unit : C and F.
- CONS unit : L/100km, km/L, MPG(US), MPG(UK).
- Tire pressure unit : PSI, kPa, bar.
- Compass:
- R: N, NE, E, SE, S, SW, W, NW.
Note: To access settings on CVO models, you must turn ON the run / stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
