DL-03SR GP Style Multifunction Gauge

• Product Details

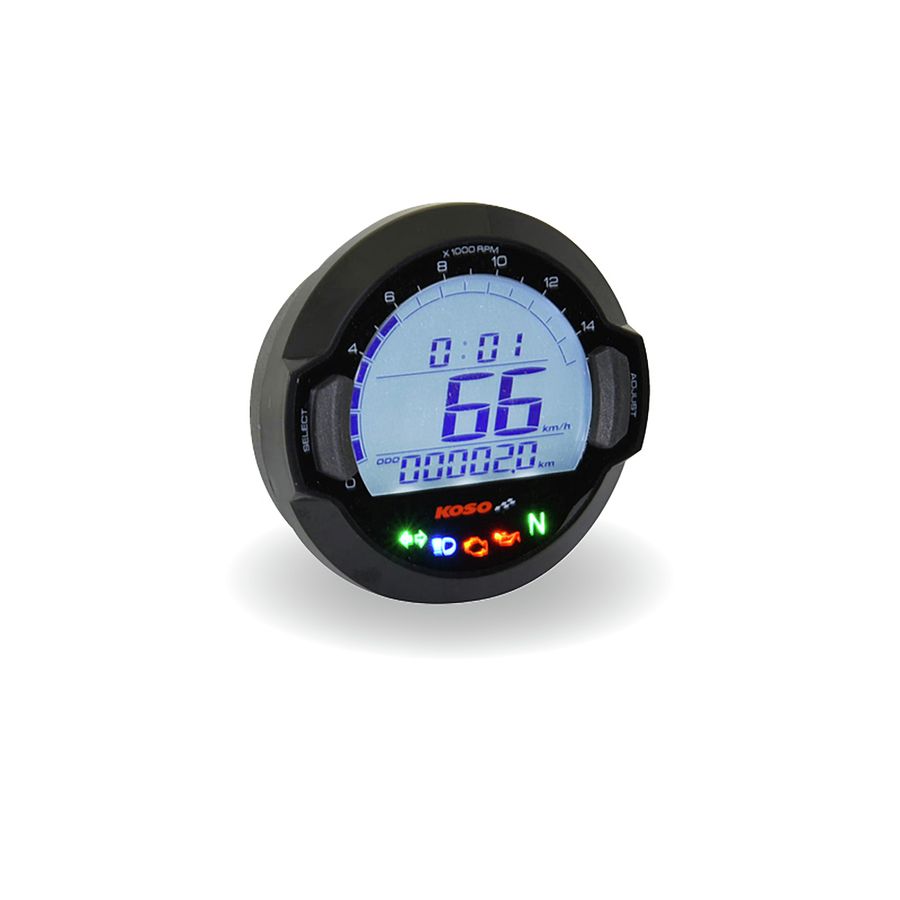

  The DL-03SR GP Style Multifunction features about all the functions you need to go on the street. The large digits, indicator lights, and backlight make this instrument easy to read, even at night. The universal speed sensor and bracket allow to install this meter on about any applications. Compact, lightweight, and easy to operate, this is Koso's DL-03SR GP style speedometer.

  • Speedometer:
  • Display range: 0 ~ 360 km/h (0 ~ 225 MPH).
  • Display unit: km/h or MPH.
  • Display internal: < 0.5 second.
  • Odometer:
  • Display range: 0 ~ 99999 km (mile) reset automatically after 99999 km (mile).
  • Display unit: 0.1 km (mile).
  • Trip A, B:
  • Display range: 0 ~ 999.9 km (mile) reset automatically after 999.9 km (mile).
  • Display unit: 0.1 km (mile).
  • Fuel / remaining distance:
  • Display range: 999.9 ~ 0 km (mile).
  • Display unit : 0.1 km (mile).
  • Tire circumference:
  • Setting range: 300 ~ 2,500 mm.
  • Setting unit : 1 mm - Sensor point: 1 ~ 60.
  • Tachometer: Display range 15 levels (each level represents 1000 RPM).
  • Fuel level: Display range: 4 levels. The fuel symbol begins to flash if only 1 level is left.
  • Fuel resistance: Setting range: 100 ohm - 250 ohm - 510 ohm - 1,200 ohm.
  • Clock: 24 H.
  • Digital volt meter: Display range: DC 5 ~ DC 24V. Flashing warming when voltage lower than 8V or higher than 18V.
  • Volt Meter:
  • Display range: 4 levels.
  • Display unit:
  • 1 level (Low) - DC 11.6 ~ 12.0V.
  • 2 level - DC 12.1 ~ 12.5V.
  • 3 level - DC 12.6 ~ 13.0V.
  • 4 level (High) - DC 13.1 ~.
  • Insufficient volt warning: Voltage level begins to flash when only 1 level left.
  • Backlight brightness adjust:
  • Setting range: 1-5 (Darkest) ~ 5-5 (Brightest).
  • Setting unit: adding 20% each adjustment (5 segments).
  • Indicator lights:
  • Turn Signal (Green).
  • Neutral (Green).
  • High beam (Blue).
  • Oil (Red).
  • EOBD (Amber).
  • Effective voltage: DC 12V.
  • Effective temperature range: -10 ~ 60C (14 ~ 140F).
  • Meter standard: JIS D 0203 S2.
  • Meter size (W x L x H): 72 x 63 x 33 mm.
  • Meter weight: 240 grams.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso DL-03SR GP Style Multifunction Gauge	BB642W20
