DB-03R Multifunction Gauge

• Product Details

  The DB-03R Multifunction is the perfect fit for any street bike. Its blue, orange and purple changeable backlight makes it very easy to read at night even at high speed. The integrated indicator lights do provide all the necessary information for any street use. The changeable RPM scale allows this meter to fit on about any engine application. This instrument also features a gear indicator and shift light which will allow you to shift in the perfect gear. Beside those great functions, the DB-03R Multifunction features: speed, odometer, trip meter, RPM, temperature, volt, fuel level, and a lot more!

  • Speedometer:
  • Range: 0 ~ 225 MPH / 0 ~ 360 KMH.
  • Display unit: MPH / KMH.
  • Display internal: < 0.5 second.
  • Odometer: Range: 0 ~ 99999 miles / km, reset automatically after 99999.
  • Trip meter A/B: Display range: 0 ~ 999.9 miles / km, reset automatically after 999.9.
  • Total hour meter:
  • Range: 0 ~ 99999 H.
  • Display unit: 1 H.
  • Hour meter A.B:
  • Range: 0.0 ~ 999.9 H.
  • Display unit: 0.1 H.
  • Tachometer:
  • Display range: 10,000 / 12,000 / 15,000 RPM.
  • Display unit:
  • 10,000 RPM (Each level = 166 RPM).
  • 12,000 RPM (Each level = 200 RPM).
  • 15,000 RPM (Each level = 250 RPM).
  • Display internal: < 0.5 second.
  • RPM warning / shift-light:
  • Range: 1,000 ~ 15,000 RPM.
  • Setting unit: 100 RPM.
  • Warning:
  • Light on (F-OFF).
  • Flash (F-ON).
  • MAX RPM record: 10,000 / 12,000 / 15,000 RPM.
  • Volt meter:
  • Range: DC 8 ~ 18V.
  • Flashing warning when voltage lower than 11.5V or higher than 15.5V.
  • Temperature unit: Display unit: F or C.
  • Thermometer:
  • Range: 32.0 ~ 482.0F / 0.0 ~ 250.0C.
  • Display unit: 0.1 FC.
  • Display internal: < 0.5 second.
  • Over temp warning:
  • Setting range: 140 ~ 482F / 60 ~ 250C.
  • Setting unit: F / 1C.
  • Top temperature record: 482F / 250C.
  • Fuel meter:
  • Display range: 6 levels.
  • Display unit: Each level = 16.6%.
  • Setting: 100 ohm, 250 ohm, 510 ohm, 1200 ohm, SW.
  • Clock: 24H.
  • Backlight brightness: Setting: 1 darkest to 5 brightest.
  • Backlight color: Blue / orange / light purple.
  • Indicator light color:
  • Neutral (Green).
  • High beam (Blue).
  • Repeater (Green).
  • EOBD (Amber).
  • Oil (Red).
  • Temperature (Red).
  • RPM shift light (Red, Yellow).
  • Effective voltage: DC 12V.
  • Meter standard: JIS D 0203 S2.

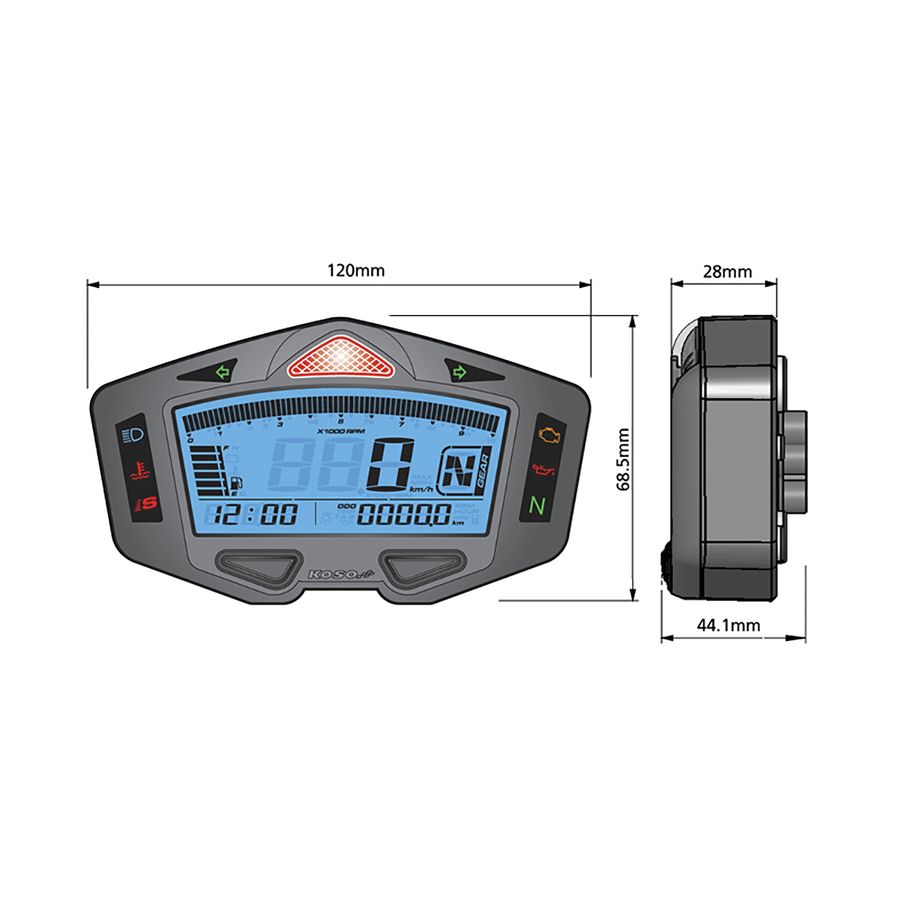

  • Meter size (W x L x H): 120 x 68.5 x 44.1 mm.
  • Meter weight: 127.3 grams.

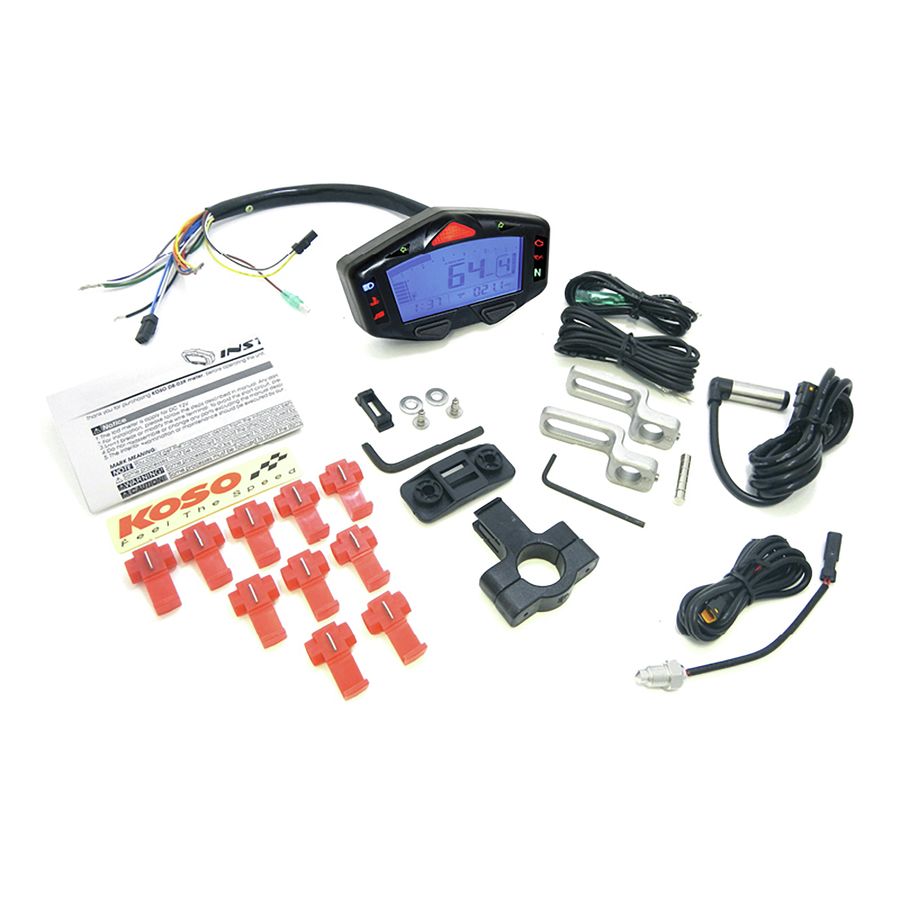

  • Sensor type:
  • Passive speed sensor: BF019J06.
  • Temperature sensor: BF030000.
  • Gear meter: N, 1, 2, 3, 4, 5, 6, 7, 8, 9.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso DB-03R Multifunction Gauge	BA038000
