Koso DB-01RN Multifunction Gauge

• Product Details

  The DB-01RN multifunction meter is a true complete meter. Designed to look great on any type of bike, its large display and easy-to-use functions make this meter very simple to use while at the same time providing you with a unique stand out look that all riders look for.

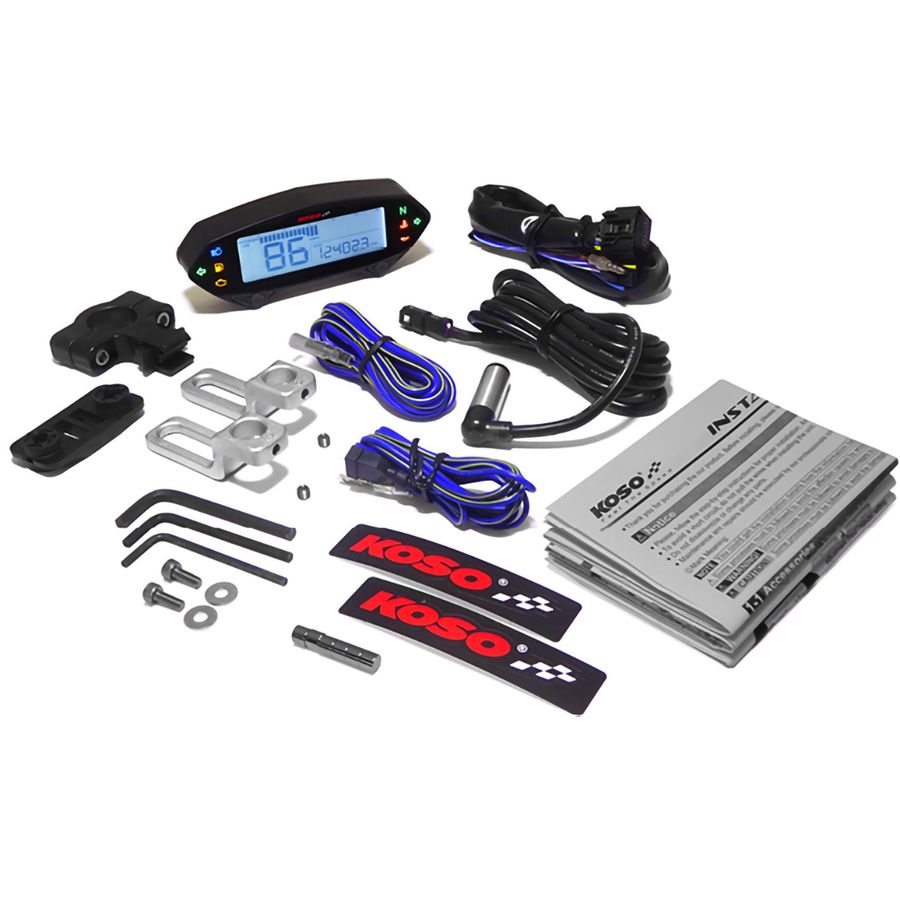

  • Kit includes everything needed for installation.

  Detailed Specifications:

  • Speedometer:
  • Display range: 0 ~ 223 MPH (0 ~ 360 km/h).
  • Will blink when exceed range.
  • Display unit: 1 MPH or km/h (alternative).
  • Display internal: < 0.5 second.
  • Internal odometer:
  • Display range: 0 ~ 99,999.9 miles (km).
  • Not user adjustable.
  • Display unit: 0.1 mile (km).
  • External odometer:
  • Display range: 0 ~ 99,999 miles (km).
  • Display unit: 1 mile (km).
  • Trip meter A/B:
  • Display range: 0 ~ 999.9 miles (km).
  • Reset automatically after 999.9 miles (km).
  • Display unit: 0.1 mile (km).
  • Oil maintenance mileage:
  • Display unit: 1 mile (km).
  • Display range (imperial units / miles): Setting range : 300 ~ 5,000 miles, automatic decrease according to the increase of total mileage. Go up to -999 miles when exceeds 0.
  • Display range (metric units / km): Setting range : 500 ~ 8,000 km, automatic decrease according to the increase of total mileage. Go up to -999 km when exceeds 0.
  • Maximum speed record:
  • Display range: 0 ~ 223 MPH (0 ~ 360 km/h).
  • Display unit: 1 MPH (km/h).
  • Average speed record: Display range: 0 ~ 223 MPH (0 ~ 360 km/h).
  • Tire circumference:
  • Setting range: 300 ~ 2,500 mm.
  • Setting unit: 1 mm.
  • Sensor point: 1 ~ 20.
  • Tachometer:
  • Display range: 0 ~ 15,000 RPM.
  • Display unit: 10 RPM.
  • Internal display: < 0.5 second.
  • Level tachometer:
  • Display range and unit:
  • 0 ~ 10,000 RPM (1 level = 333 RPM).
  • 0 ~ 12,000 RPM (1 level = 400 RPM).
  • 0 ~ 15,000 RPM (1 level = 500 RPM).
  • Maximum RPM record:
  • Display range: 0 ~ 15,000 RPM.
  • Display unit: 10 RPM.
  • RPM input signal number: Setting range: P-0.5, P-1 ~ P-25.
  • RPM input pulse:
  • Setting range:
  • HI-ACT (positive wave pulse).
  • LO-ACT (negative wave pulse).
  • Total hour meter:
  • Display range : 0 ~ 99,999.9 hours.
  • Display unit: 0.1 hour.
  • Hour meter A/B:
  • Display range: 0 ~ 9,999.9 hours.
  • Display unit: 0.1 hour.
  • Staged fuel level:
  • Setting range: 10 stage display.
  • Warning range: Fuel level warning stage below setting value (including), fuel level symbol will blink.
  • Digital fuel meter: Setting range: 0 ~ 100%.
  • Low fuel warning:
  • Setting range: 10 ~ 50%, when lower than setting value (including), fuel level symbol will blink.
  • Fuel resistance: Setting range: 100 ohm / 250 ohm / 270 ohm / 510 ohm / 1200 ohm / SWITCH / USER.
  • Volt meter:
  • Display range: DC 8 ~ 16 V.
  • Display unit: 0.1 V.
  • Clock Setting range: 12 H or 24 H format alternative.
  • Indicator lights:
  • Neutral.
  • Turn signals.
  • Water temperature.
  • Oil level.
  • Low fuel.
  • Check engine.
  • Effective temperature range: 14 ~ 140F (-10 ~ 60C).
  • Effective voltage: DC 12V.
  • Meter standard: JIS D 0203 S2.

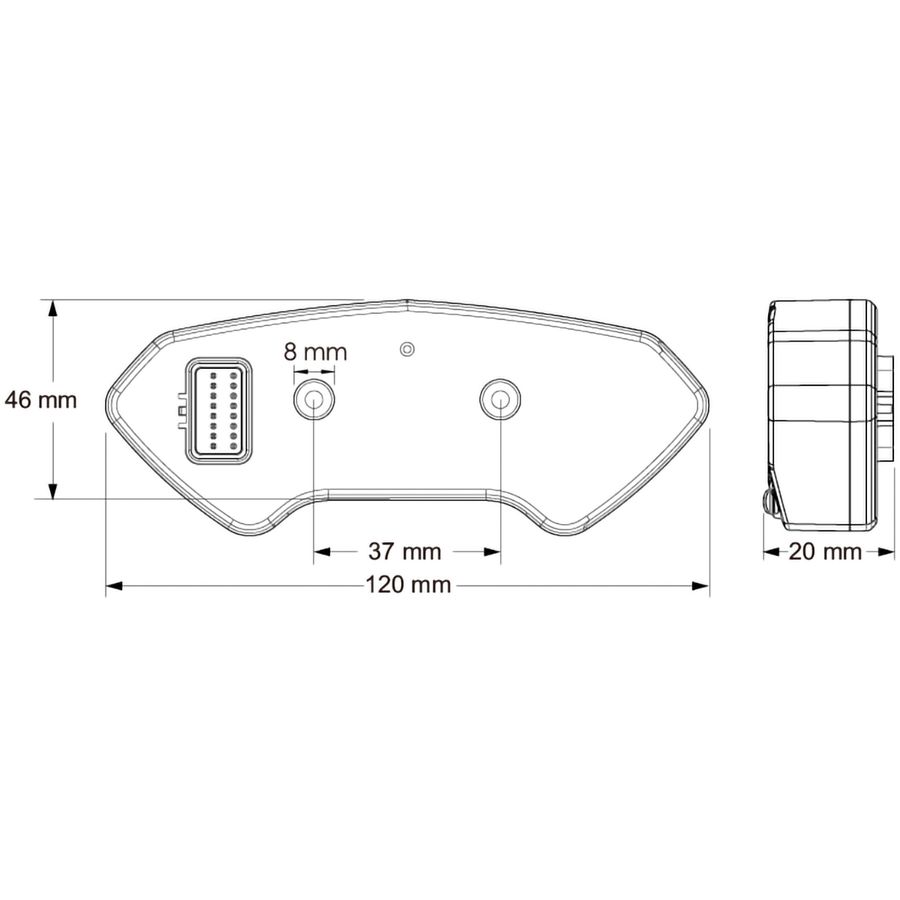

  • Meter size: dia. 4-3/4 x 13/16 x 1-13/16" (120 x 20 x 46 mm).
  • Meter weight: 8.47 ounces (240 grams).

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Koso DB-01RN Multifunction Gauge	BA041000
