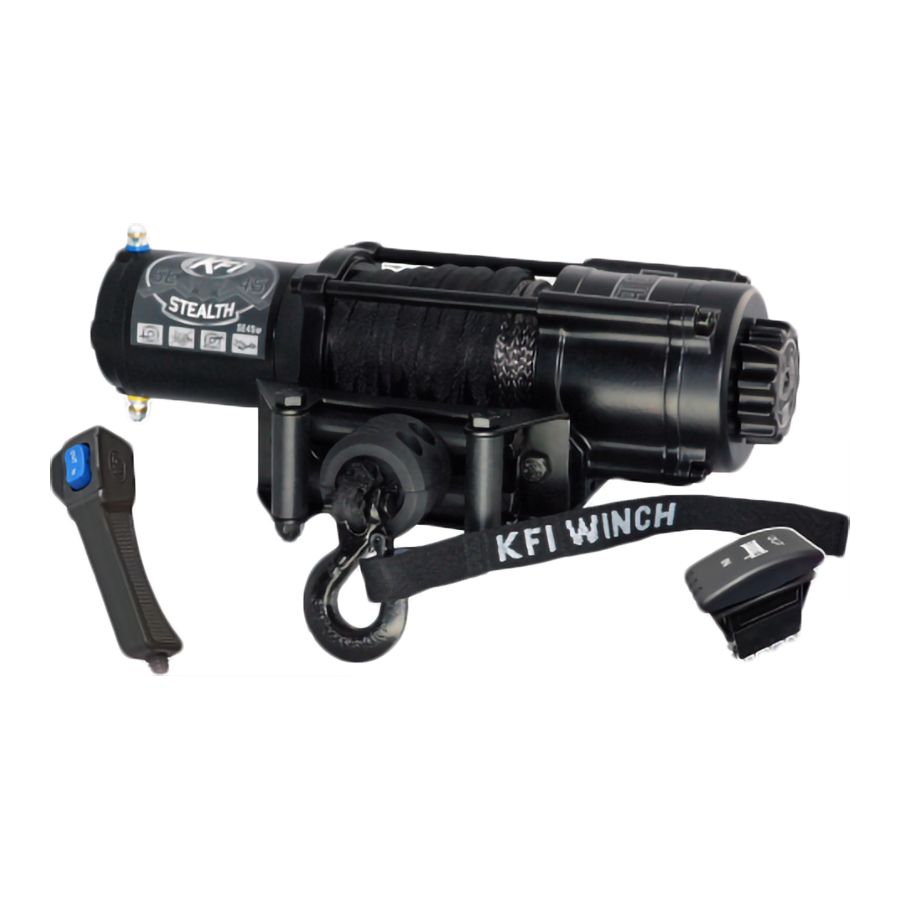

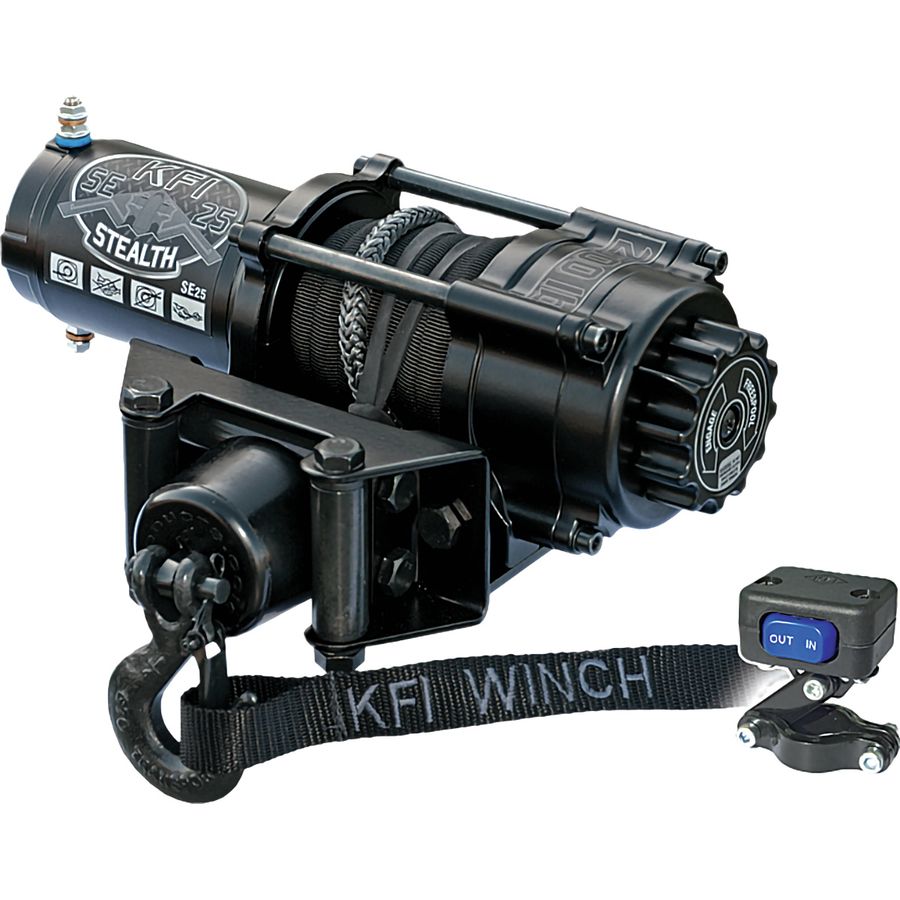

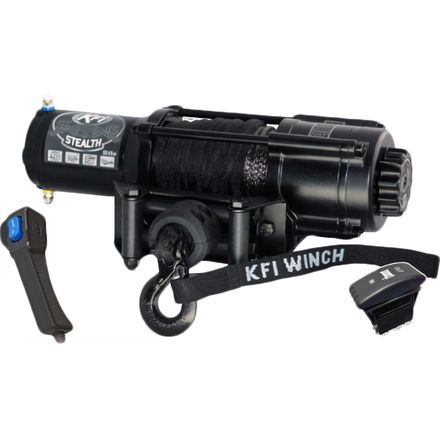

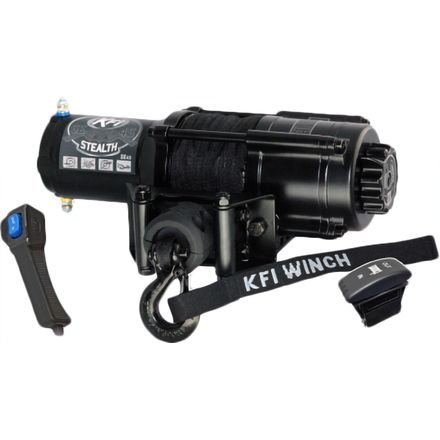

Stealth Series Winch

• Product Details

  Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 2500-pound, 3500-pound, and the standard and wide 4500-pound ATV Stealth Series winches each feature synthetic cable, cable hook stopper, a dynamic and mechanical braking system, water-resistant seals to keep the elements out, a standard four-hole mounting design and a heavy-duty all-metal turn clutch. All KFI winches are backed by a one year Limited Warranty and come with everything you need other than an ATV model specific winch mount (sold separately).

  • The all new Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.
  • The included cable hook stopper with the following benefits:
  • Eliminates wear and tear on your rollers from the hook which can cause cable wear.
  • Eliminates hook clatter from going down the trail.
  • Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
  • Keeps tension on the hook to eliminate the cable becoming loose.
  • Also has slits designed into it to work as an anti-kick back for the cable if your cable were to snap.
  • Looks great.
  • Once you have one, everyone else that you ride, with will want one :)
  • 2500-pound and 3500-pound models:
  • Take control of your winch with the included mini-rocker switch.
  • It comes with an adjustable bracket to mount it to your ATV's handlebars and allows you to control your winch with the touch of your finger without ever letting go of the bars.
  • 4500-pound models:
  • Take control of your winch with the included UTV dash rocker switch.
  • It comes with the switch and the wiring harness with the plug for easy install.
  • The dash rocker also comes with a blue LED light inside to light up your dash at night.
  • This rocker switch allows you to control your winch with just the touch of your finger, never having to fully let go of your steering wheel.
  • 3500-pound and 4500-pound models:
  • Also included is a handheld 14' corded remote for those situations when you need to control your winch from a distance or dismounted from your machine.
  • This compact high-quality remote offers a more reliable control than the other wireless options.
  • Included is a socket plug-and-play wiring system so that you can store your remote when not in use.
  • Note: A model-specific mount is necessary for your make and model UTV.

  Detailed Specifications:

  • Model: SE45 ATV Series.
  • Rated line pull: 4500 pounds.
  • Motor: 12V DC, 1.7 HP permanent magnet.
  • Gear ratio: 166:1.
  • Gear/transmission: All-metal planetary gear drive.
  • Brake: Dynamic and mechanical.
  • Clutch (free spooling): All-metal cam activated freespool.
  • Drum size: 2.0" (D) x 3.19" (L).
  • Synthetic cable: 15/64" (D) x 38' (L), smoke color.
  • Fairlead: Multi-directional roller.
  • Control: Deluxe dash-mounted dash-rocker control switch and a heavy-duty corded remote switch.
  • Winch dimensions: 14.6"L x 4.55"D x 4.82"H.
  • Mount plate: Fairlead mount ONLY (a model-specific mount is necessary for your make and model ATV).
  • Mounting bolt pattern: 3.00" x 4.875" (4-hole).
  • Recommended battery : 12 amp/hour minimum.
  • Warranty: Limited one year.
  • Winch weight: 33.65 pounds (complete kit).

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  4500 Standard KFI Stealth Series Winch	SE45-R2
