INNOVV Radar system for Motorcycle - The ThirdEYE.
Employing a millimeter-wave radar with a frequency range 77 - 79GHz, and combining the detected information with a software algorithm, the ThirdEYE can detect dynamic target vehicles from both sides of the motorcycle and the rear side, providing warnings with a visual alert and an audible warning in the dashboard.
Product Advantages:
- 1. Wide field of view: 150 horizontal detecting angle maximizing the detecting range, which helps the rider to get more time to react and respond to emergencies.
- 2. High precision: The radar is with 77Ghz sensor which enables the system to achieve super-good performance in the range resolution, velocity measurement, and accuracy.
- 3. Durable and flexible: High-end aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40C to +80C.
- 4. Up to 64 targets: Detecting 64 targets simultaneously in a 50 meter maximum detecting range helps the driver get more time to react and respond to avoid the accident.
- 5. Easy to Install: Small and compact sizes make the product quite easy to install.
- 6. Protection Degree: IP 67 rate, superior performance against water, dust and excellent performance in high and low-temperature environments.
Specification:
- Radar:
- Working frequency: 77 ~ 79GHz.
- Horizontal angle: 150.
- Pitch angel: 25.
- Detecting range: 0.2 ~ 50 meters.
- Accuracy of detecting rang: 0.11 meter.
- Detecting velocity range: -210 km/h ~ 210 km/h.
- Data updating frequency: Every 50 ms.
- Maximum detecting targets: 64.
- Working voltage: 9 ~ 16V DC.
- Power consumption: <3.5 W.

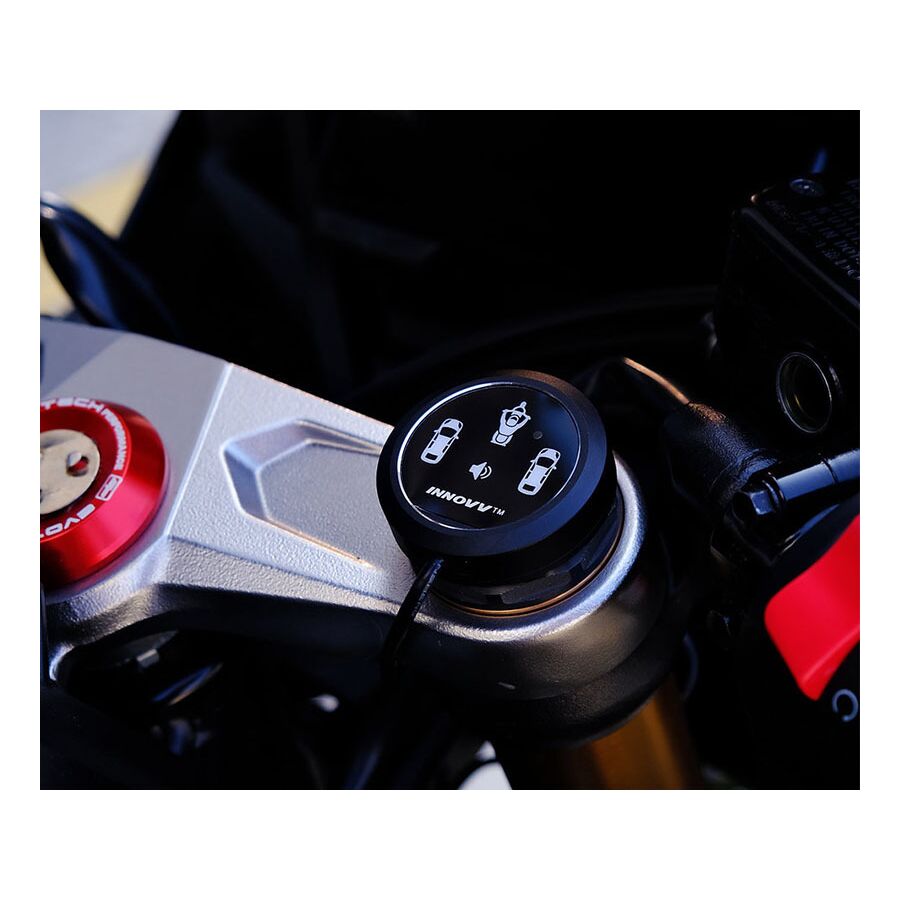

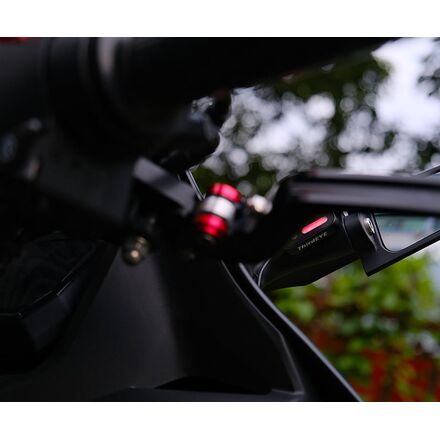

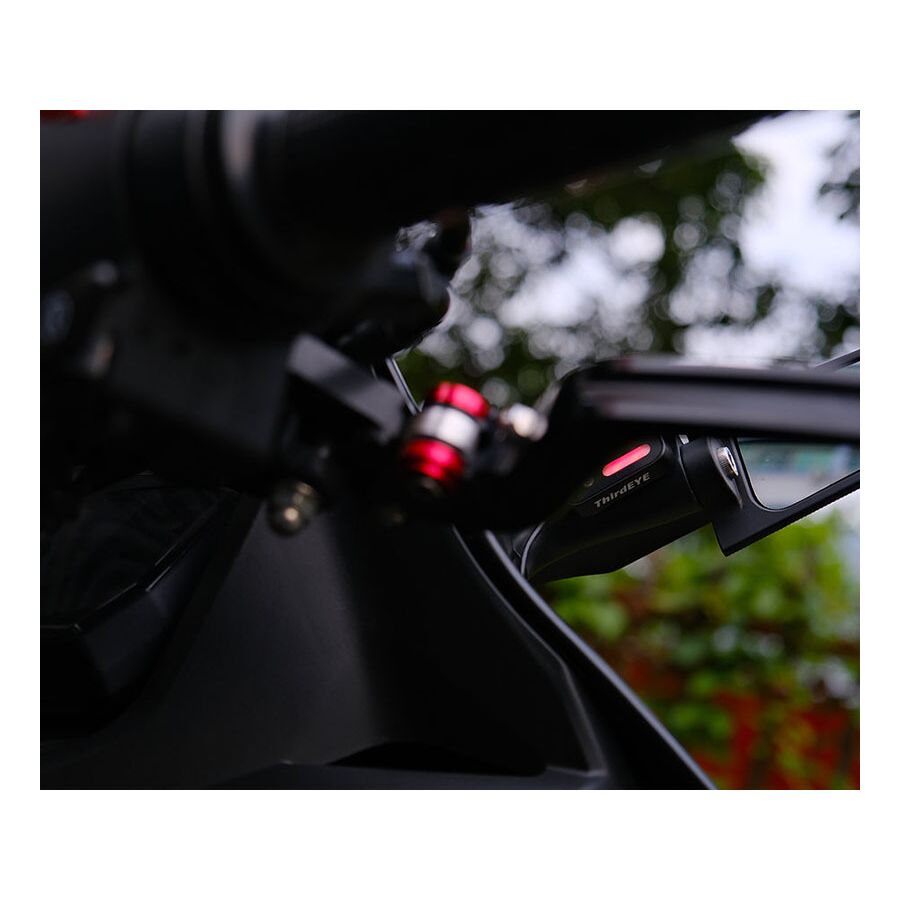

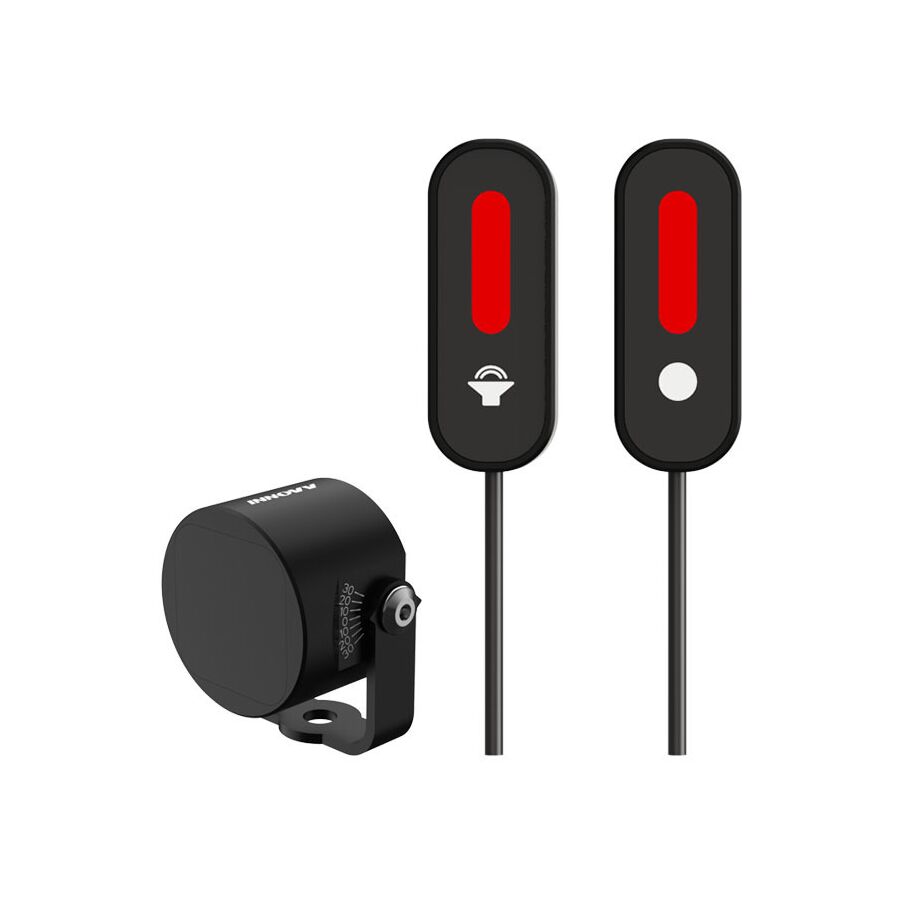

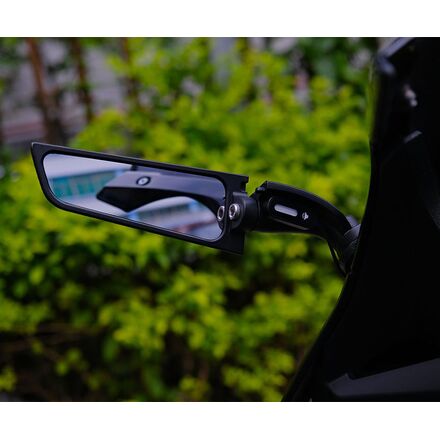

- Display size: Watch display: 50 mm diameter x 13 mm / Mirror display: 35 mm x 14 mm (each piece).
- Weight of display: Watch display: 130 grams / Mirror display: 100 grams.

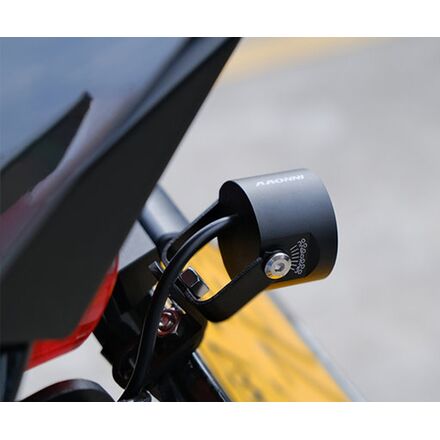

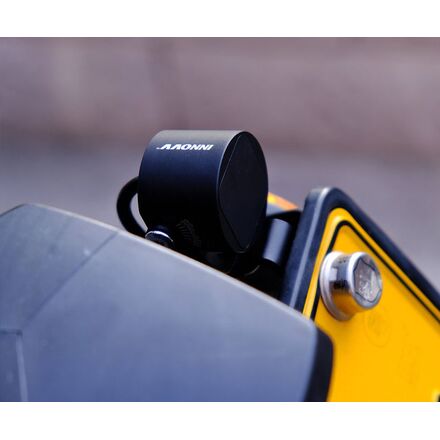

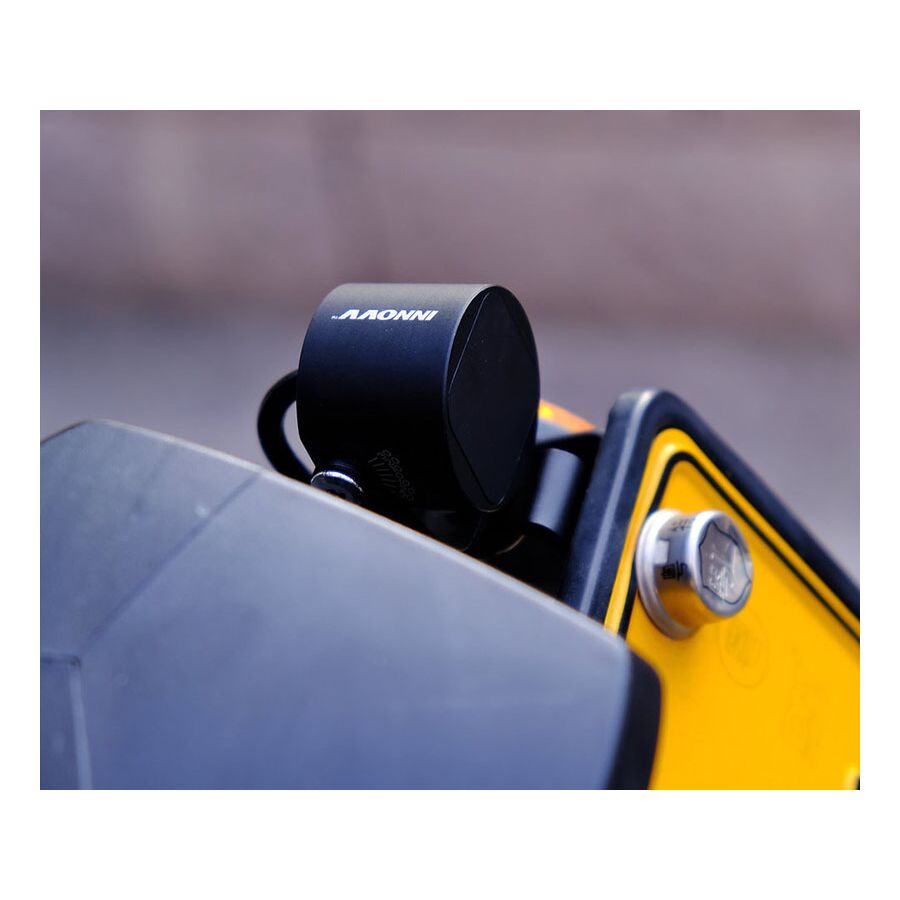

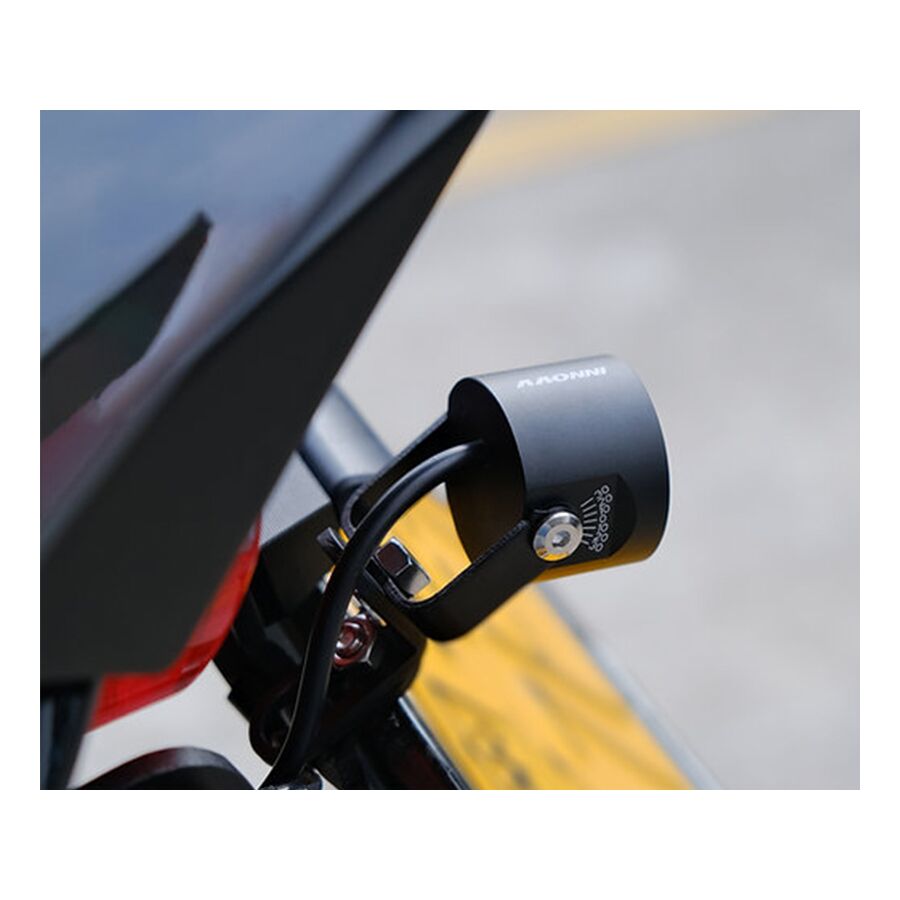

- Radar detector size: 36 mm diameter x 26 mm.
- Weight of radar detector: 90 grams.
- Storage temperature: -40C ~ +85C.
- Working temperature: -40 C ~ +80C.
- Protection degree: IP67.
