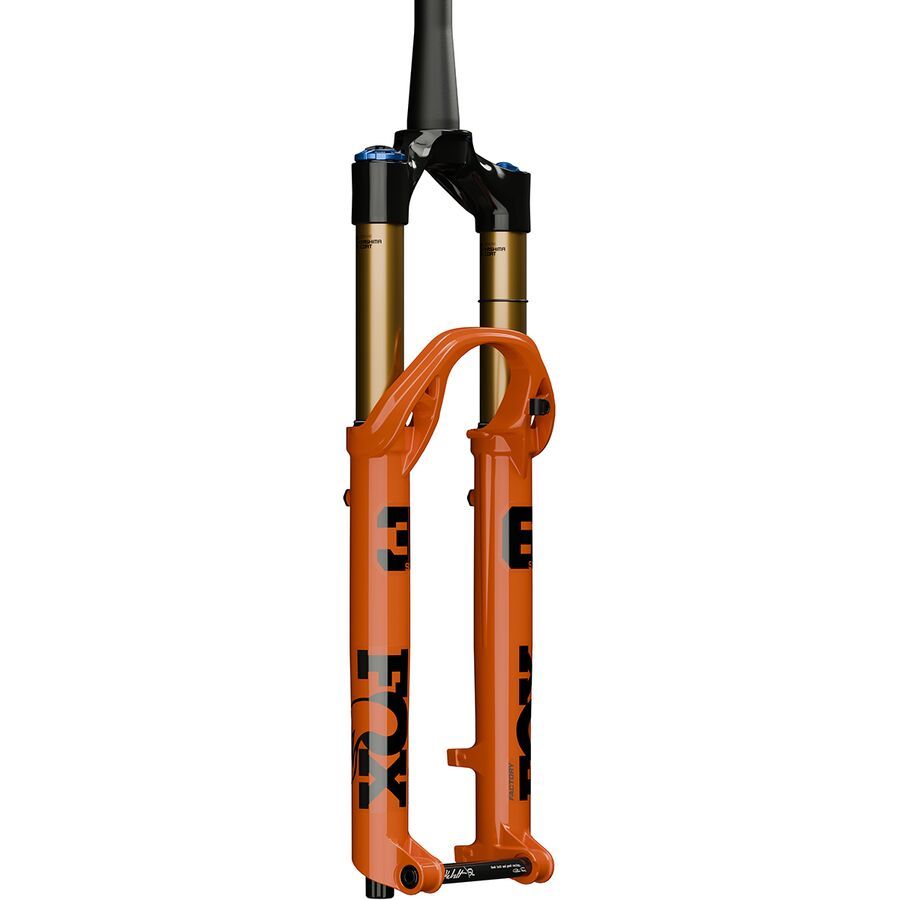

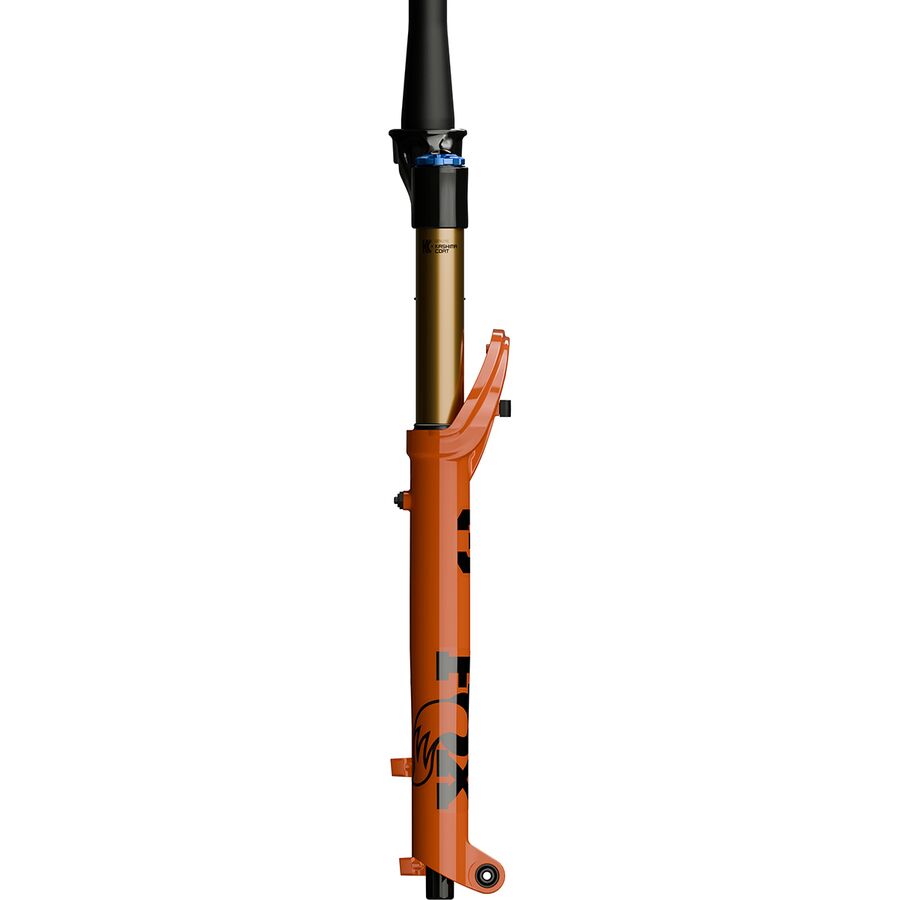

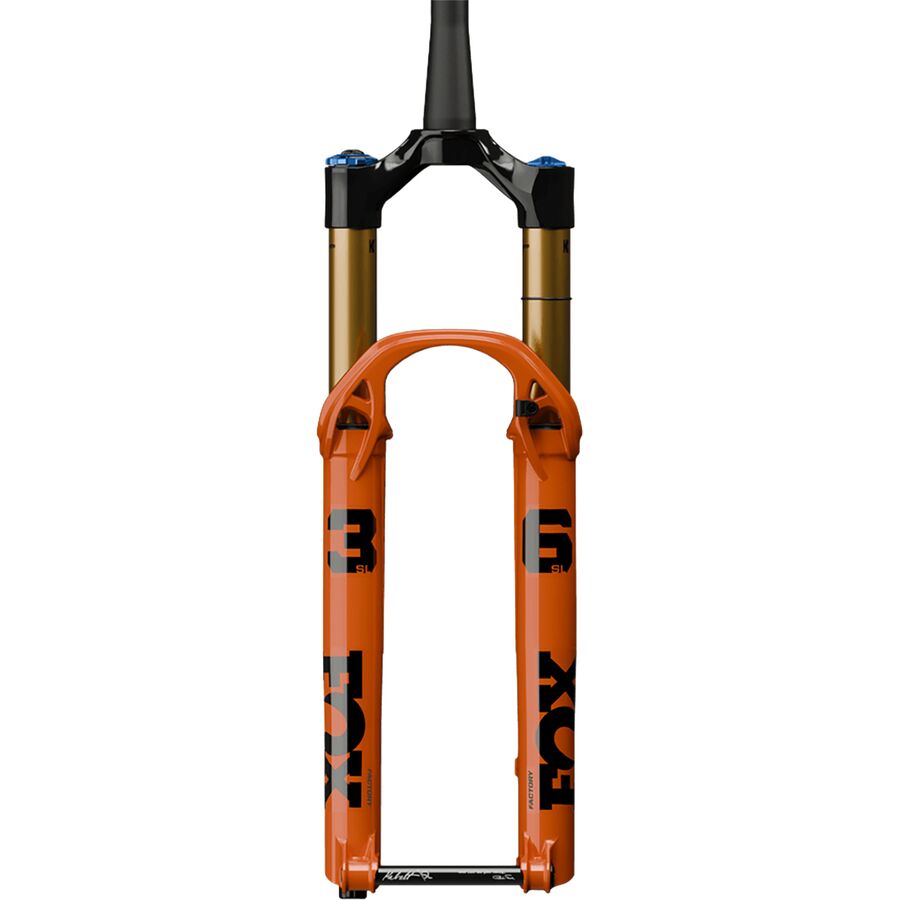

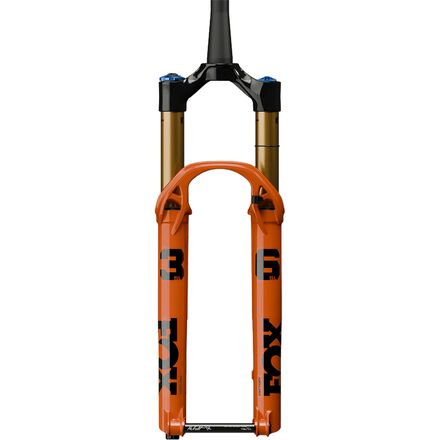

FOX Racing Shox 36 SL Float 29in Factory Grip X Fork

• Product Details

  What Our Gearhead Experts Are Saying:

  "The 36 SL gives me the control I loved in the 36, but without the weight penalty. I run the 140mm version on my downcountry bike and its unrealstiff enough to push hard on descents but light enough to pedal all day. GRIP X is the perfect trail damper."

  For modern trail bikes that need control without compromise, the FOX 36 SL Float 29in Fork offers just thatresponsiveness, stiffness, and lightweight precision in one sleek package. Designed for 120140mm travel bikes, this is FOXs lightest 36 ever, built for riders who want the confident feel of a big chassis without the weight penalty.

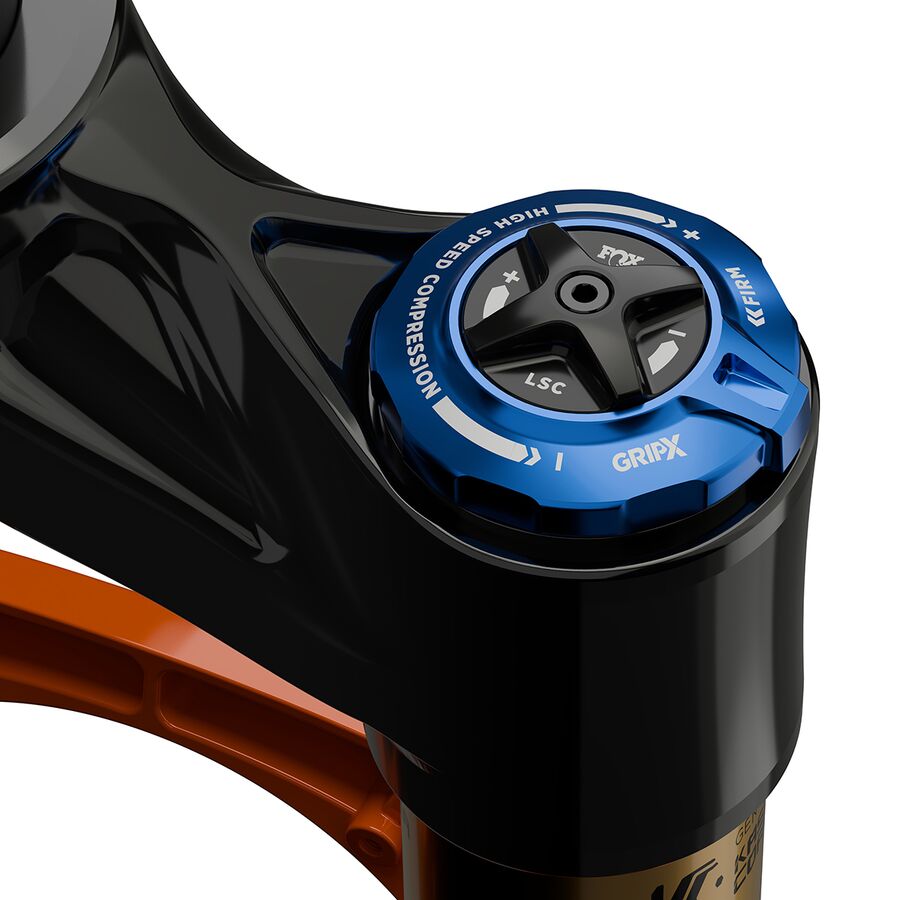

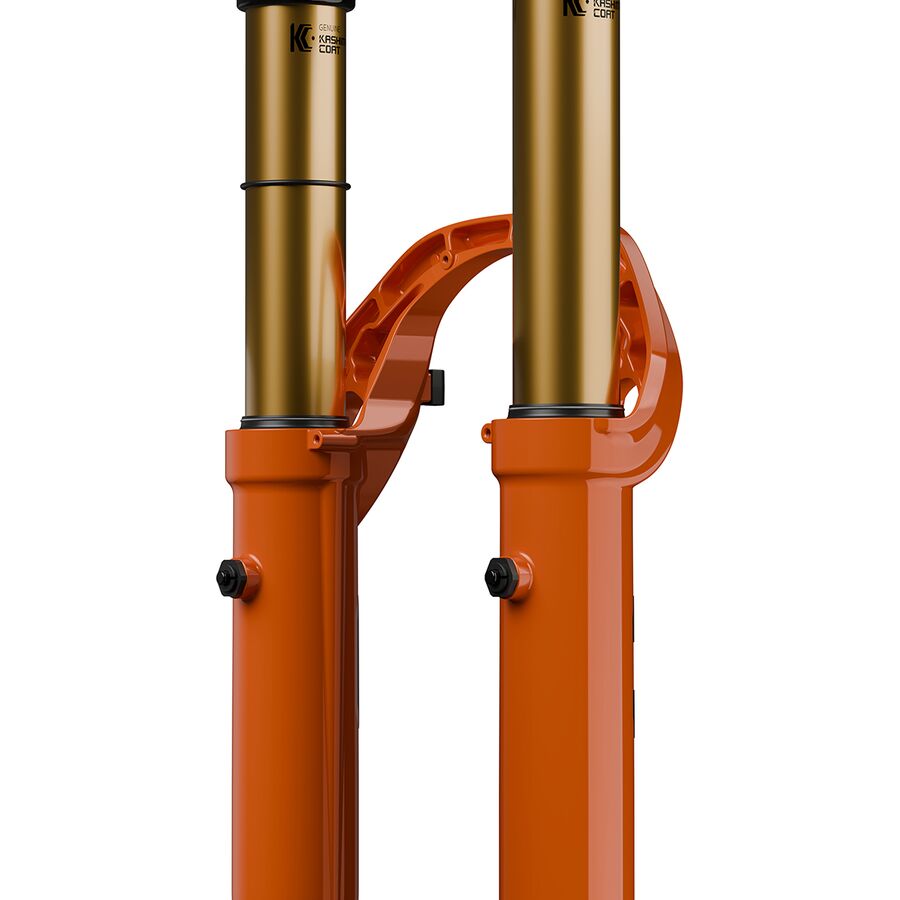

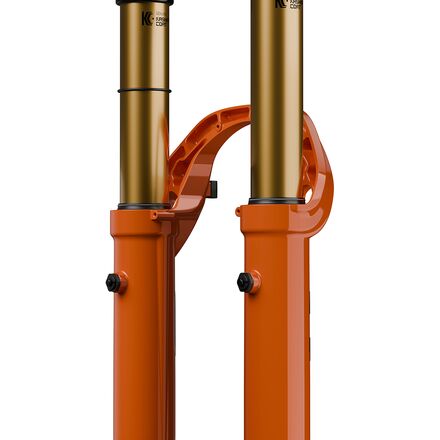

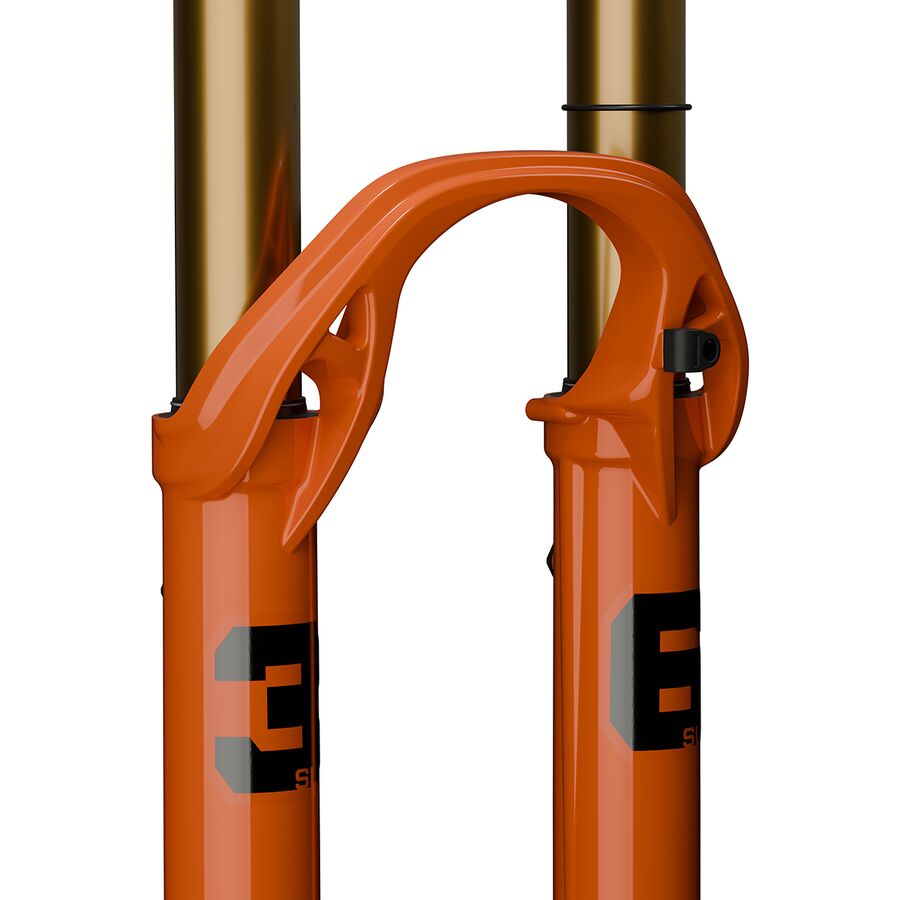

  Inside the magnesium lowers, internal bypass channels reduce friction while increasing small-bump sensitivity. A redesigned FLOAT EVOL air spring stays composed even under aggressive side loads, while 20mm of added bushing overlap improves smoothness and stiffness. The GRIP X damper provides HSC, LSC, and rebound adjust with a firm mode for climbing efficiency, refined for the trail with weight savings over the X2.

  Whether youre sending descents or climbing big vert, the 36 SL is your tool for going further and fasterwith less.

  • Lightweight 36mm trail fork optimized for 120140mm travel
  • GRIP X damper delivers elite-level compression and rebound control
  • FLOAT EVOL air spring enhances compliance under high side loads

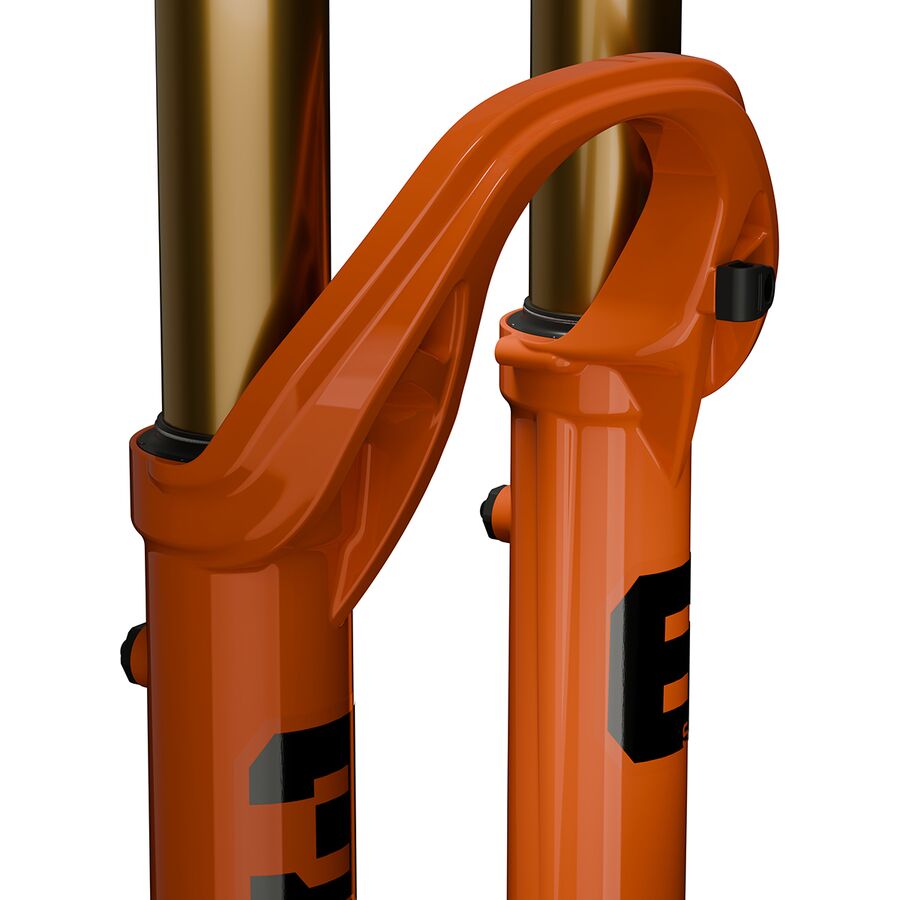

  • Redesigned chassis boosts torsional stiffness by 20% over the 34
  • Internal bypass channels reduce friction and increase plushness

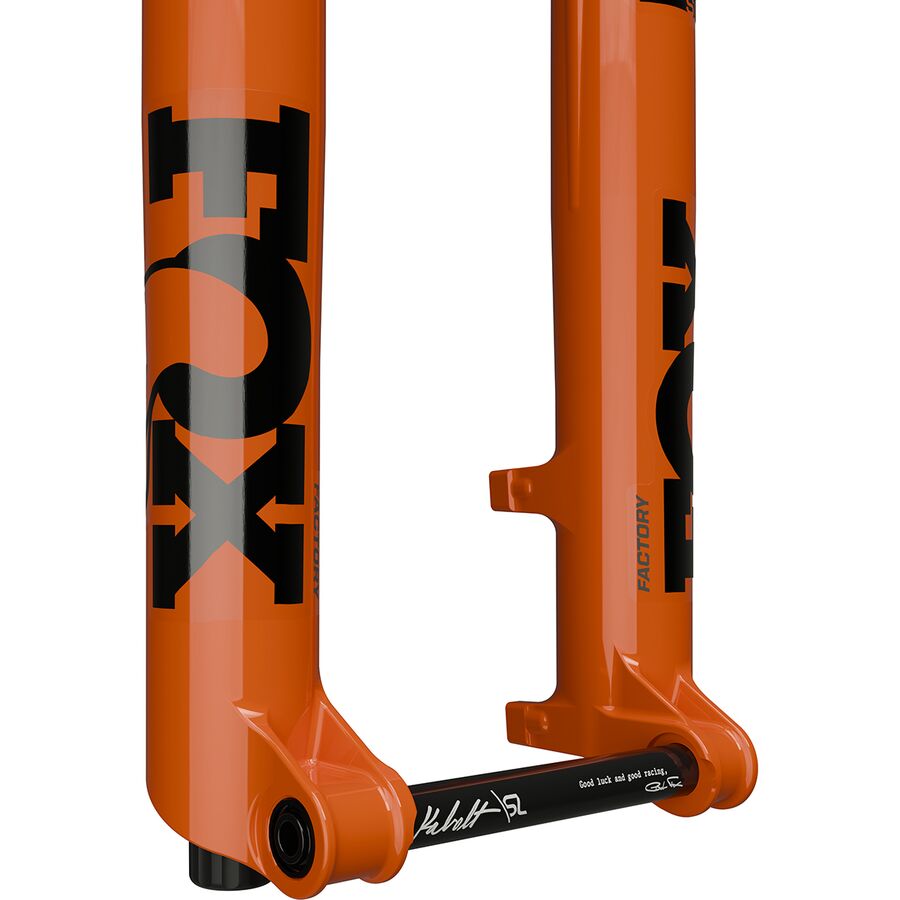

  • Kabolt SL axle, shortened steerer, and trimmed stanchions reduce weight
  • Ideal for downcountry, aggressive XC, and lightweight trail builds

  Travel

  130mm, 140mm

  Stanchion Material

  Kashima-coated aluminum

  Lower Material

  magnesium

  Crown Material

  hollow forged aluminum

  Wheel Size

  29in

  Steer Tube Diameter

  1.5in tapered

  Stanchion Diameter

  36mm

  Rake

  44mm

  Spring Type

  FLOAT EVOL (air)

  Damper

  GRIP X

  Adjustability

  High-speed compression (HSC), low-speed compression (LSC), low-speed rebound (LSR)

  Lockout

  3-position

  Axle

  15 x 110mm

  Brake Compatibility

  disc

  Rotor Compatibility

  180 - 230mm

  Claimed Weight

  3lb 14oz (1755g)

  Manufacturer Warranty

  1 year

  Activity

  trail, cross-country

  Manufacturer Part Number

  910-21-360, 910-21-358, 910-21-359, 910-21-357
