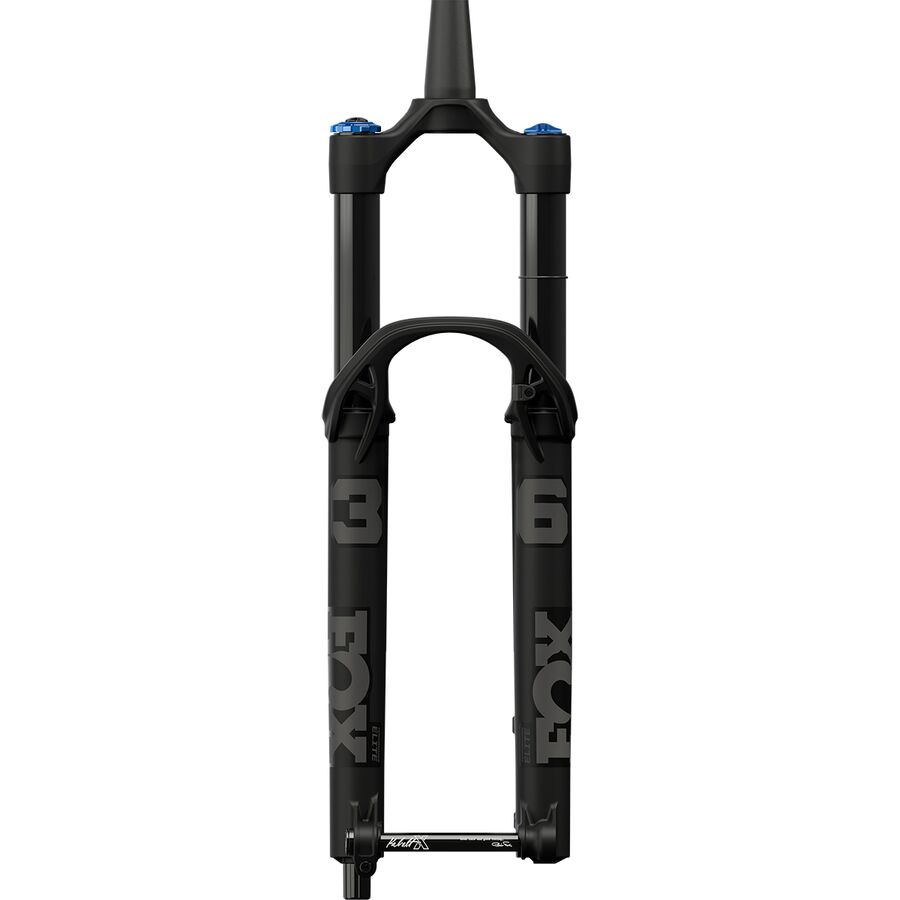

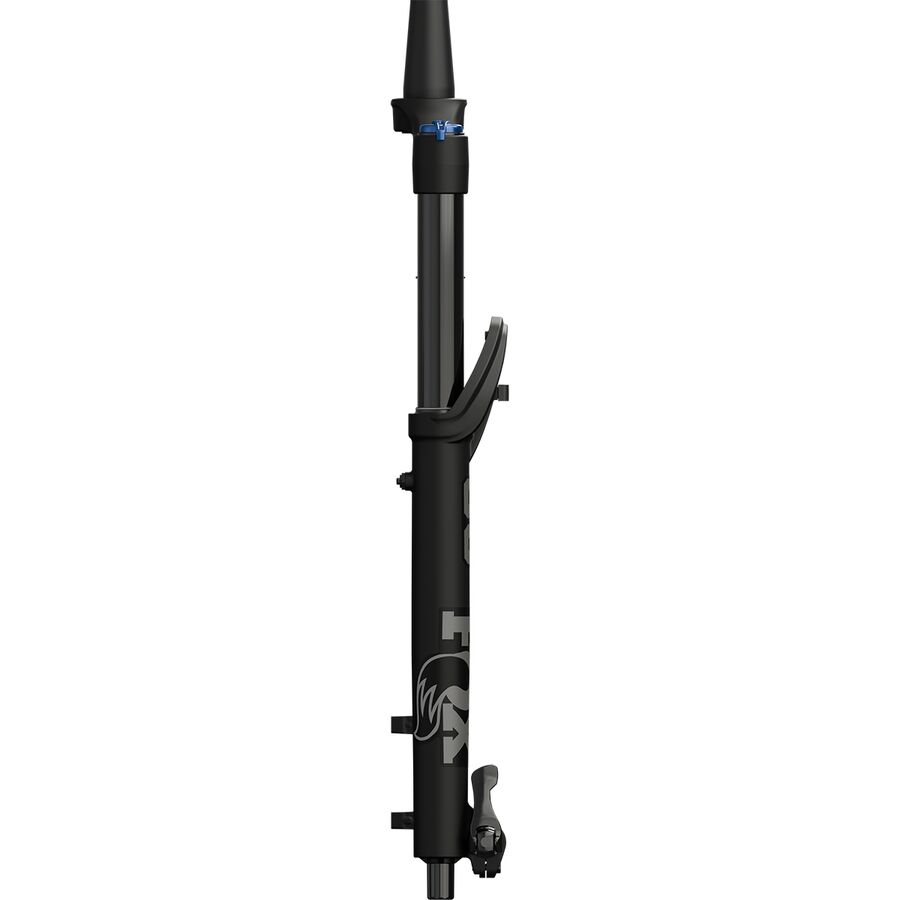

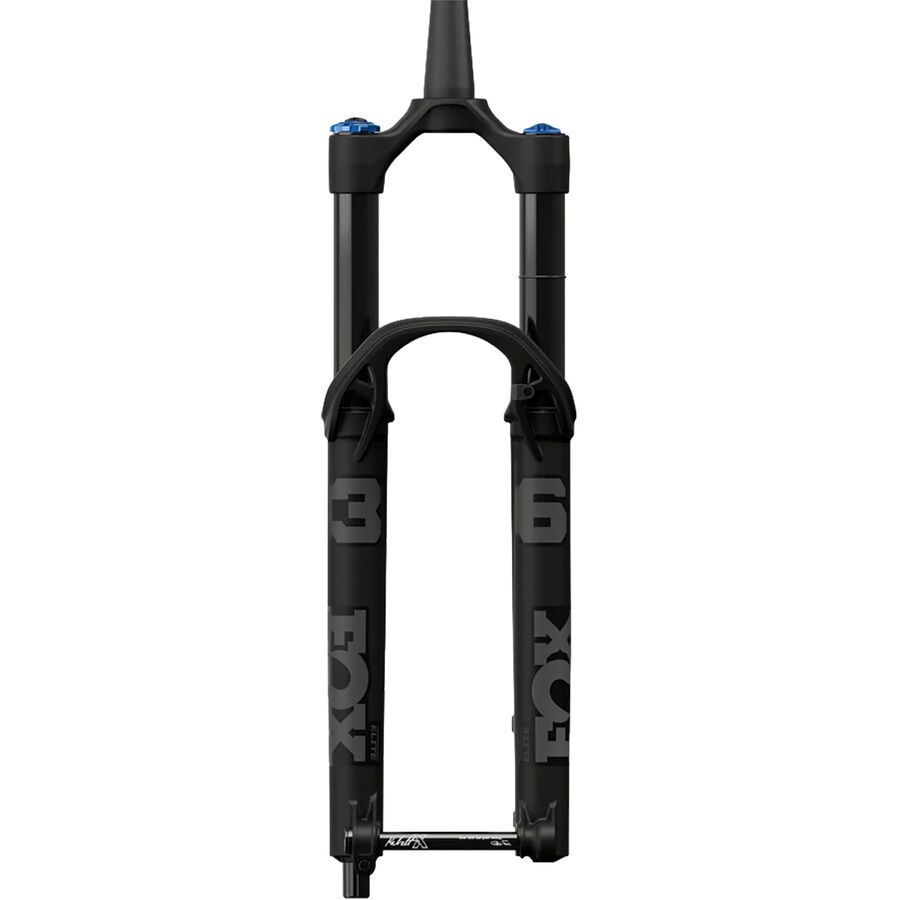

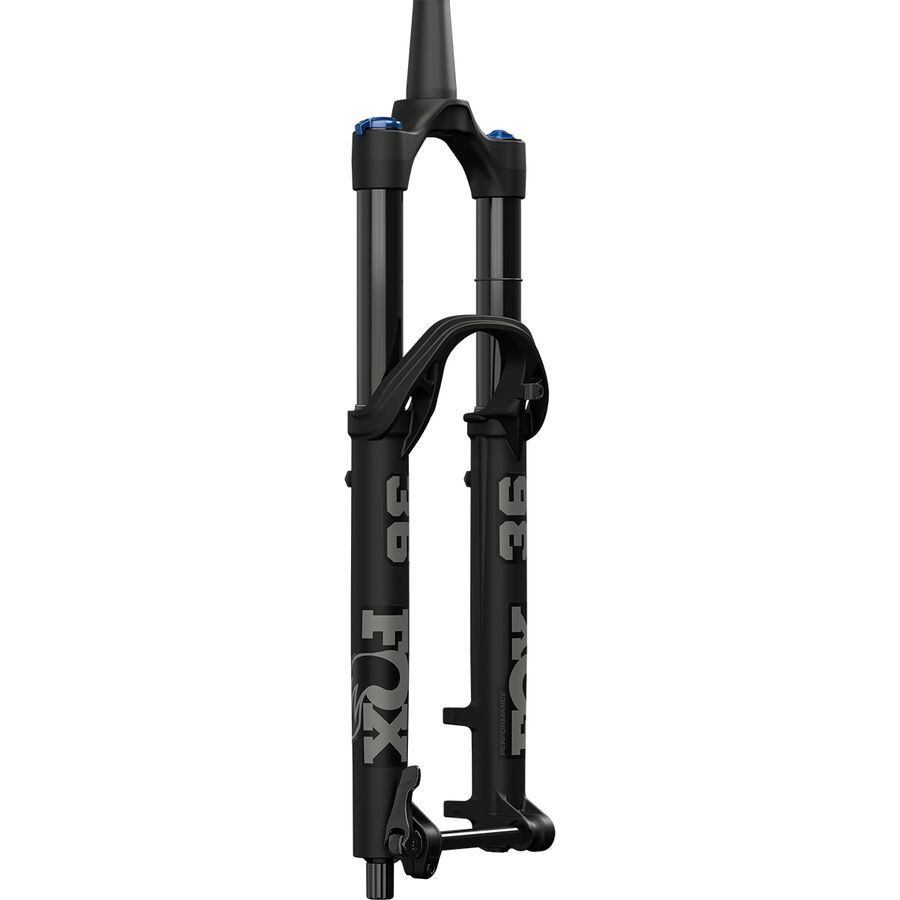

FOX Racing Shox 36 Float 29in Performance Elite Grip X Fork

• Product Details

  What Our Gearhead Experts Are Saying:

  "This fork nails that sweet spotit's as stiff and smooth as the Factory version but without the Kashima price tag. I love the GRIP X damper. Its simple to dial, super consistent, and confidence-inspiring when the trail points down."

  The Float 36 29in Performance Elite Grip X Fork is built for riders who charge hard but still want efficient pedaling and intuitive tuning. It shares the same chassis and air spring as FOXs top-tier Factory model, swapping the gold finish for stealthy black stanchions without compromising performance.

  This fork brings even more stiffness and smoothness to the trail. A redesigned arch increases torsional rigidity by 20%, while extended bushing overlap improves tracking and responsiveness under load. The FLOAT EVOL air spring, now enhanced with Glidecore technology, reduces internal friction and boosts small-bump sensitivity. The GRIP X damper offers high- and low-speed compression, rebound, and an easy-to-engage firm modemaking it ideal for everything from big descents to long climbs.

  • 160mm front suspension fork tuned for aggressive trail and all-mountain riding
  • GRIP X damper provides high- and low-speed compression, rebound, and firm mode
  • FLOAT EVOL spring with Glidecore reduces friction and improves sensitivity
  • Updated chassis arch increases torsional stiffness by 20% over prior generation
  • Extended bushing overlap improves small-bump support and chassis tracking
  • Black anodized stanchions offer smooth performance and stealth aesthetics
  • Kabolt-X 110 floating axle increases front-end precision and stiffness
  • Compatible with 200230mm rotors and FOX 36/38 mud guard (sold separately)

  Travel

  160mm

  Stanchion Material

  aluminum

  Lower Material

  magnesium

  Crown Material

  aluminum

  Wheel Size

  29in

  Steer Tube Diameter

  1.5in tapered

  Stanchion Diameter

  36mm

  Axle To Crown

  576mm

  Rake

  44mm

  Spring Type

  FLOAT EVOL

  Damper

  GRIP X

  Axle

  15 x 110mm

  Rotor Compatibility

  200 - 230mm

  Claimed Weight

  4lb 4oz (1920g)

  Activity

  trail

  Manufacturer Part Number

  910-21-350
